Eventuri BMW S55 Carbon Performance Intake F87 M2 COMPETITION

Eventuri BMW S55 Carbon Performance Intake F87 M2 COMPETITION

3 reviews
Regular price £1,857.60 Inc. VAT
Regular price £2,064.00 Sale price £1,857.60 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

BMW F87 M2 COMPETITION

Performance Gain: 12-20hp, 12-16ft-lb

Photos shown with optional carbon engine cover.

The F87 M2 Competition intake system is designed to to allow the turbos to work more efficiently. By replacing the stock airbox system with our Patented Venturi filter housings and smoothly curved tubes, the airflow to the turbos is more laminar thus they can spool with less drag. Since the M2 Competition does not have air openings behind the grills, we also added sealed ducts to ensure that the intake temperatures stay as low as possible. The combination of our Venturi housings, organically shaped tubes and sealed ducts result in an optimised intake which sets a benchmark for this platform.



The Eventuri Difference

The M2 Competition Eventuri system uses our Patented Carbon Fibre Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo. You can read more about the housing design and how it works Eventuri Filter housing design .



Please Note: The Kevlar version of this part is no longer available.



Carbon Intake Housing Assemblies

BMW F87 M2 COMPETITION - ML Performance

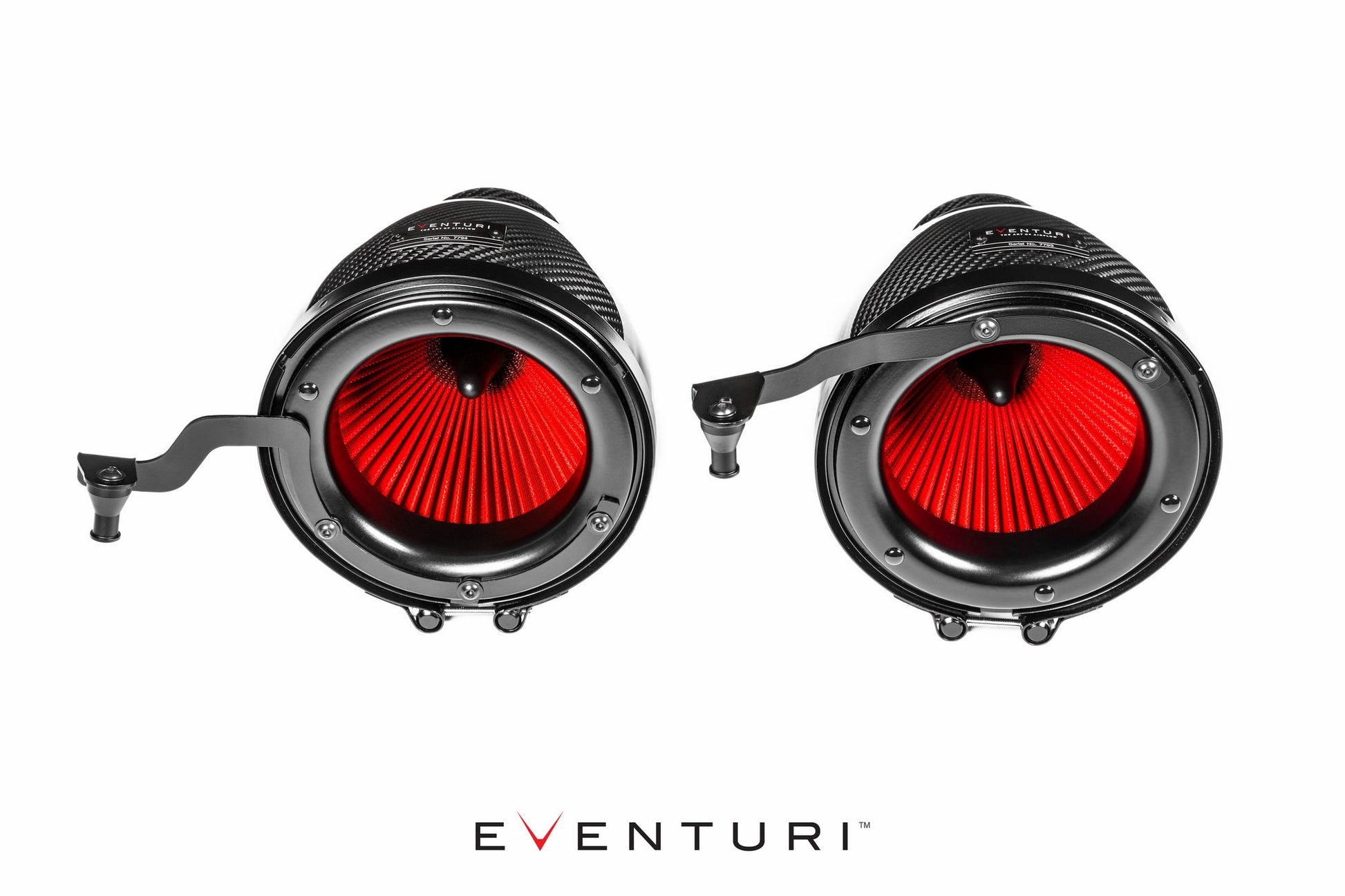

The filter housings comprise of the high flow filters, aluminium cowls, V-Band clamp, laser cut brackets and the Patented carbon pods themselves. The carbon pods shroud the reverse mounted filter and smoothly shape the airflow down to the intake tubes. This geometry invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patented design and a regular intake system. Our bespoke filters aid the airflow moving through the housings and allow for an even velocity profile as the airflow exits the housings.

BMW F87 M2 COMPETITION - ML Performance

Carbon Fibre Sealing Intake Ducts

BMW F87 M2 COMPETITION - ML Performance

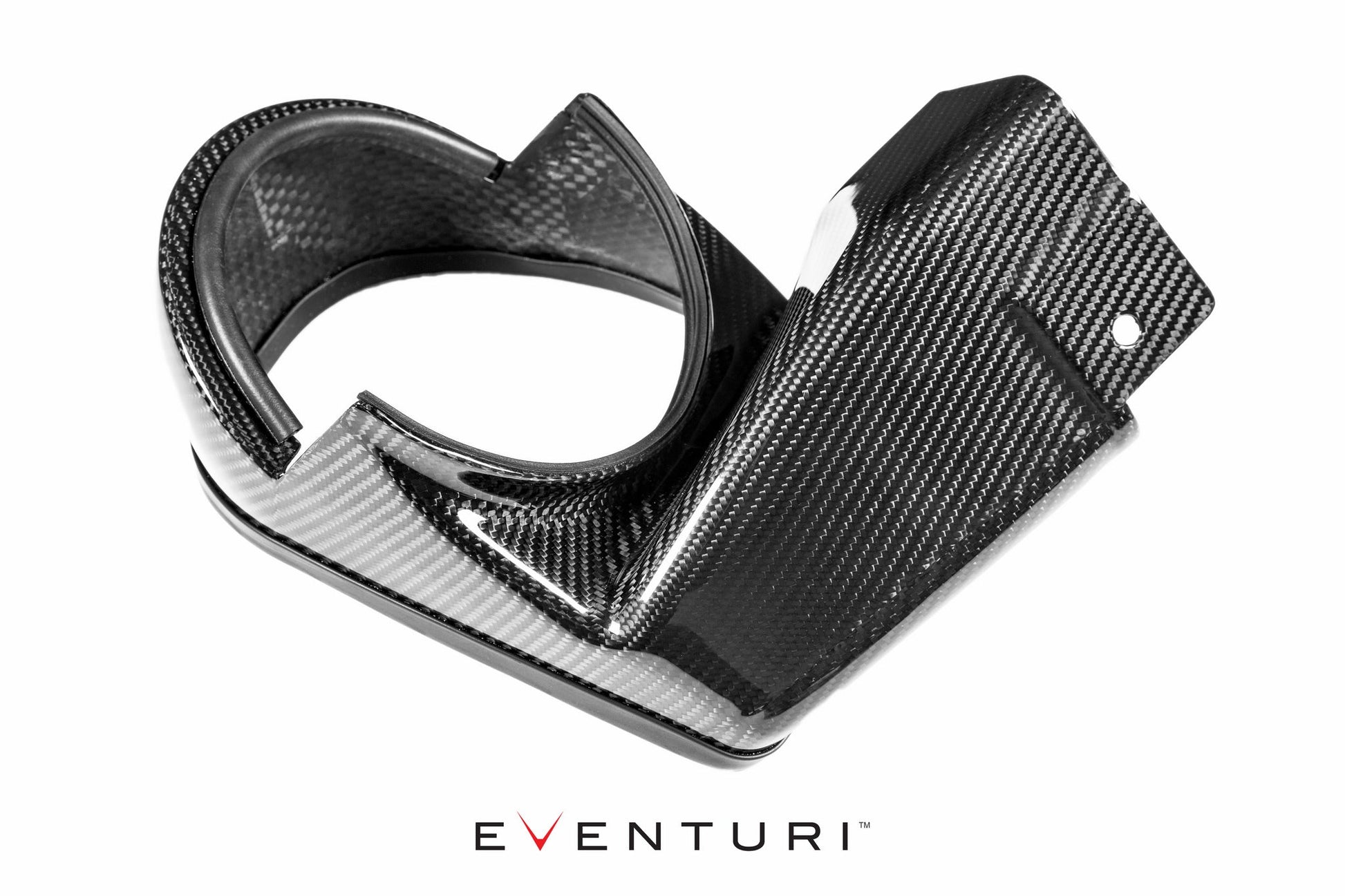

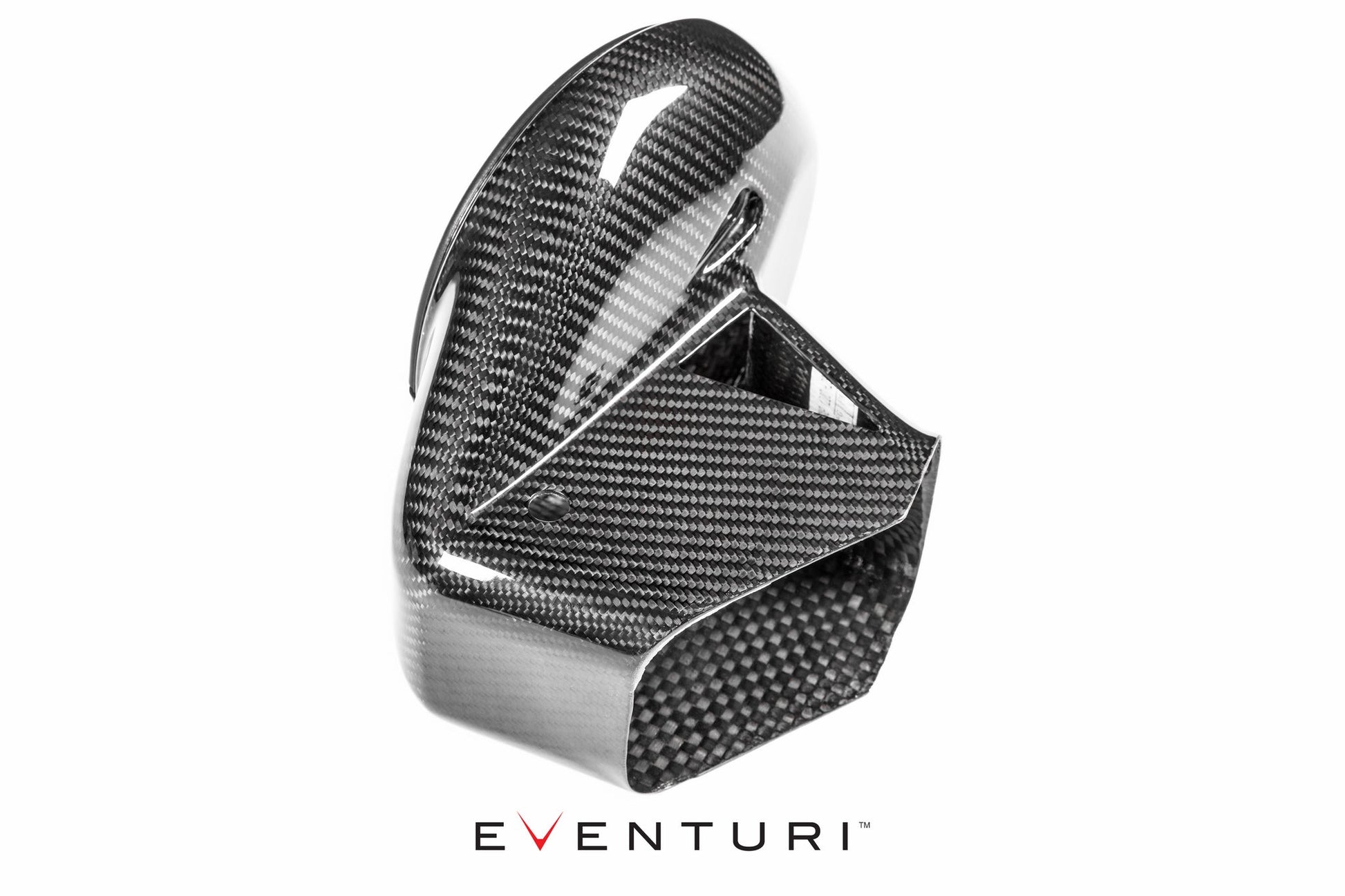

The filter housings are positioned with the openings sealed against the carbon ducts. These ducts have been designed to fit over the stock cold air ducting channels and direct ambient air into the filters. These ducts seal the openings of the filter housings and prevent heated air from entering the filters.

BMW F87 M2 COMPETITION - ML Performance

BMW F87 M2 COMPETITION - ML Performance



Carbon Fibre Intake Tubes

BMW F87 M2 COMPETITION - ML Performance



BMW F87 M2 COMPETITION - ML Performance

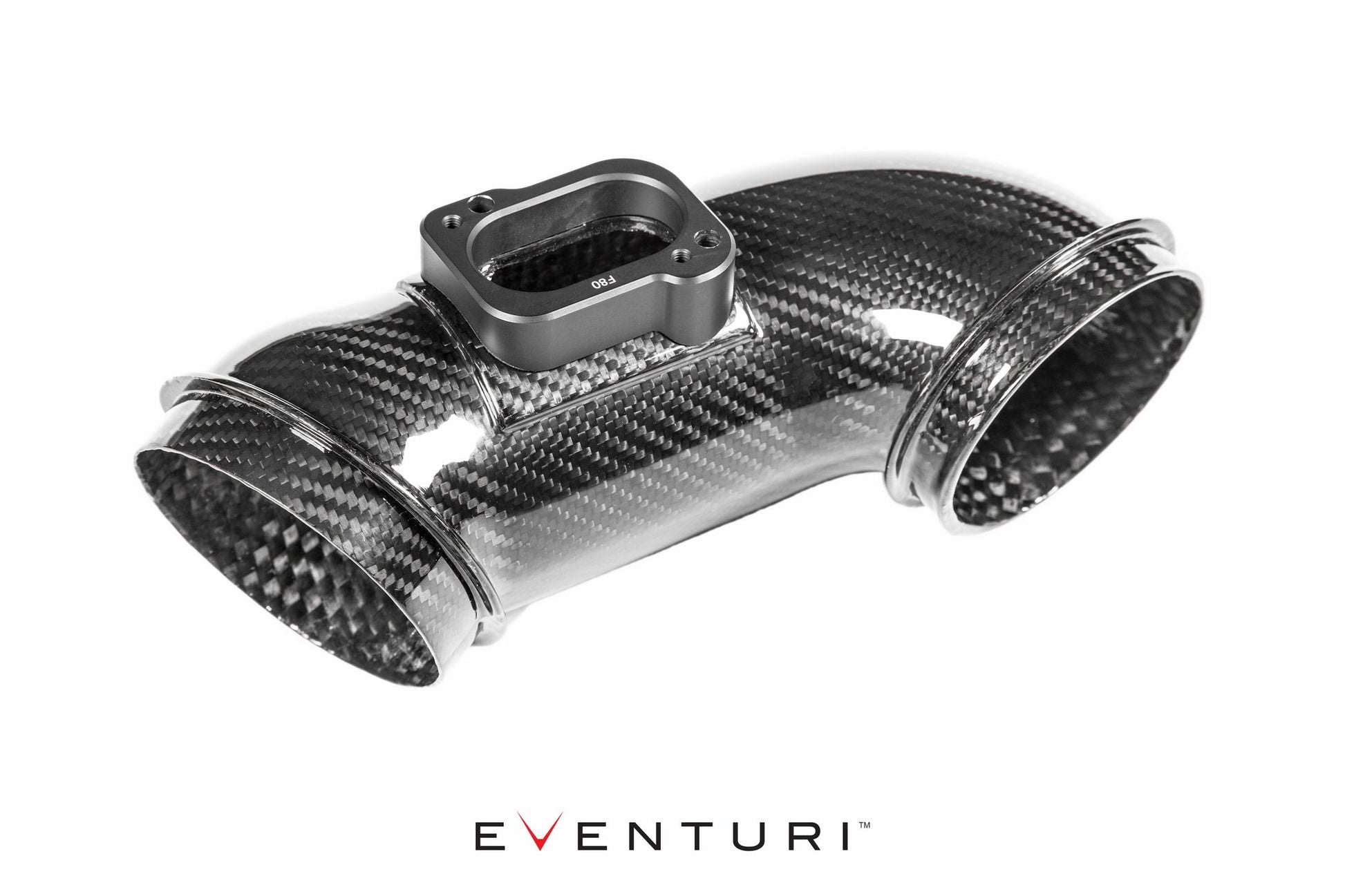

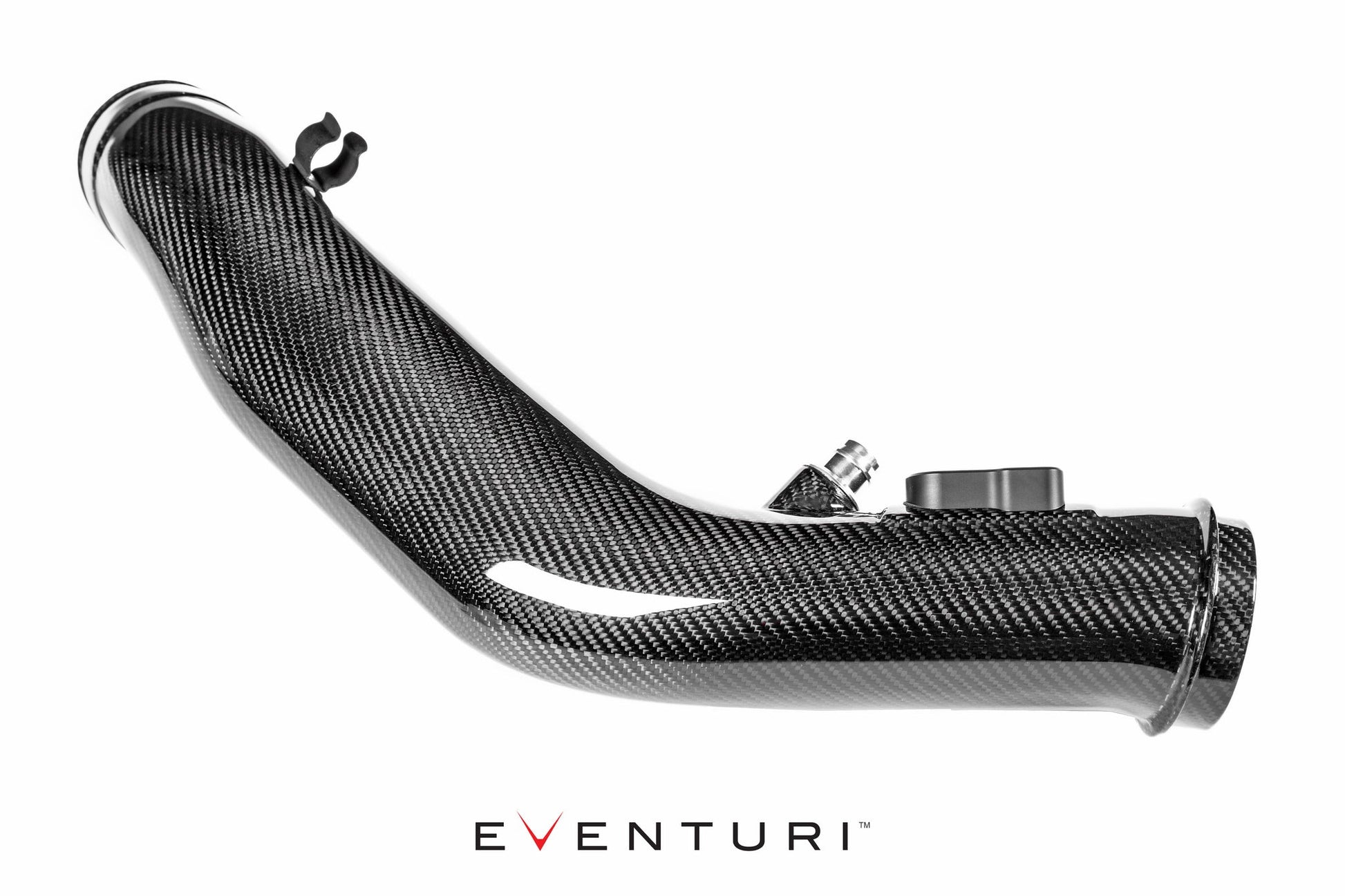

Our intake tubes are again crafted from 100% prepreg carbon fibre. Each tube has an integrated MAF sensor mount which is CNC machined from aluminium. The shorter left side tube smoothly transitions from the carbon housing down to the turbo inlet tube. The longer right side intake tube has to clear the fan shroud and strut brace. To do so we employed the same principle as the stock tube in changing the cross section from a circle at the turbo inlet tube to an oval for clearance over the shroud, then back to a circle at the filter housing end. We ensured these transitions were gradual so as not to disrupt airflow, furthermore we maintained the same cross sectional area in order to keep the velocity through the tube constant.


All the components come together in the engine bay to produce a genuine improvement in the driving experience as well as providing an incredible visual display of form and function in complete harmony.



Eventuri BMW F80 M3 & F82 F83 M4 Intake System

BMW F87 M2 COMPETITION - ML Performance

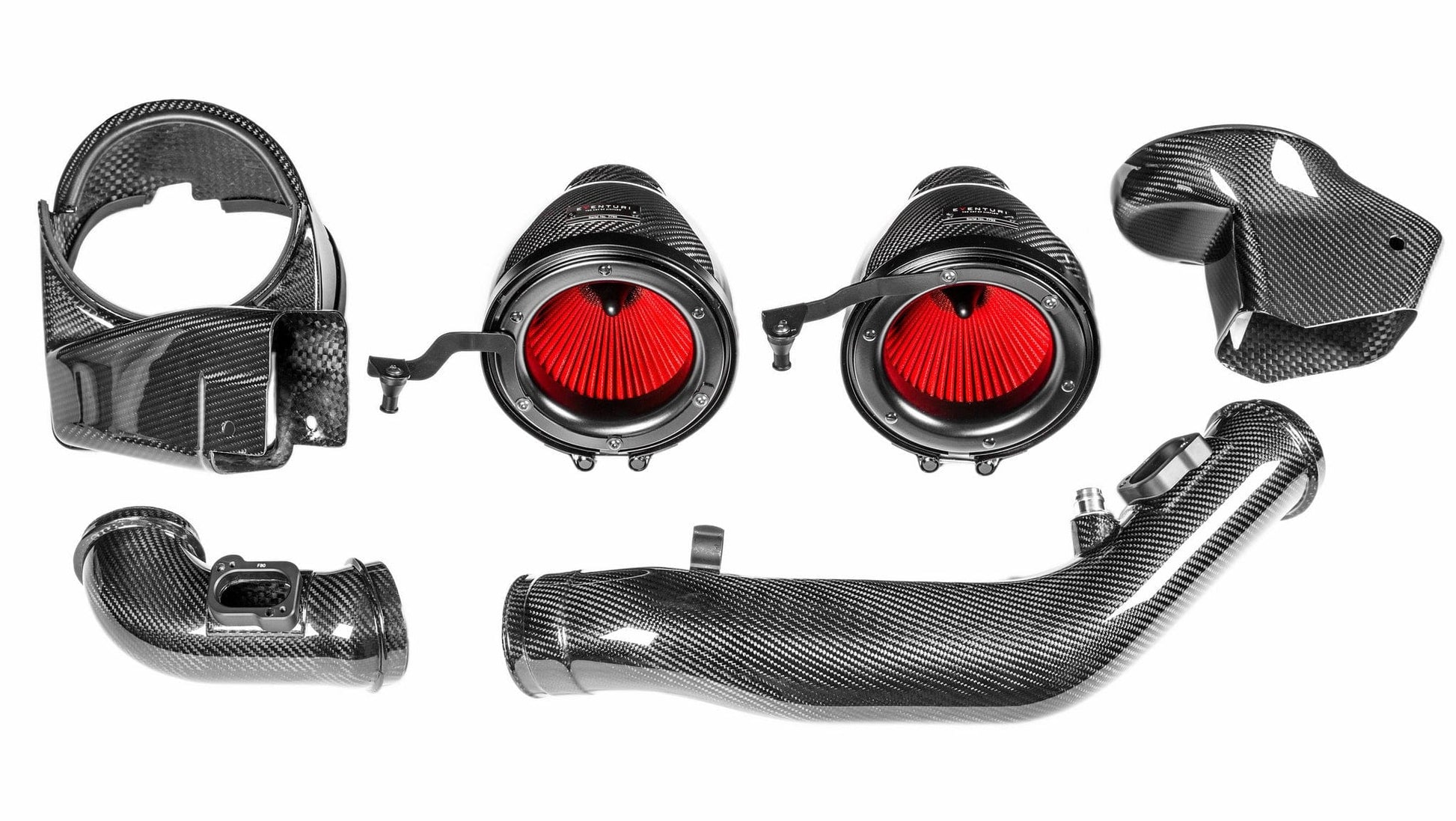

The Eventuri M2 Competition intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

Each intake system consists of:

  • 2 x Patented Carbon Fiber Venturi housings
  • 2 x Bespoke High Flow Generation 2 Filters
  • 2 x Aluminium Cowls for smooth airflow entry
  • Left Side Carbon Tube with integrated MAF sensor mount
  • Right Side Carbon Tube with integrated MAF sensor mount
  • 2 Carbon Fiber Intake Ducts
  • Laser Cut Stainless Steel Brackets
  • High-quality Silicon couplers with BMW specification hose clamps
  • 4 plastic rivets

    BMW F87 M2 COMPETITION - ML Performance



    BMW F87 M2 COMPETITION



    To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



    Below is a dyno graph showing the comparison between the Eventuri and the stock airbox on a M2 Competition. The car had no other modifications. As you can see, power and torque are increased through a large portion of the rpm range. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency. The hood was closed for all runs.

    (Click to enlarge)

    BMW F87 M2 COMPETITION ML Performance





    EVE-M2C-CF-INT (Black Carbon)

    EVE-M2C-KV-INT (Full Coloured Kevlar System)



    Manufactured by

    Eventuri



    Warranty

    One Year Eventuri Warranty
