Eventuri BMW N55 Carbon Performance Intake V2 (M135i, M2, M235i, 335i & 435i)

Eventuri BMW N55 Carbon Performance Intake V2 (M135i, M2, M235i, 335i & 435i)

2 reviews
Regular price £1,380.00 Inc. VAT
Regular price £1,380.00 Sale price £1,380.00 Inc. VAT
9th Anniversary Badge

Price Match
View full details

BMW M135i / M2 / M235i / 335i / 435i - V2

Description

The F22 M2 Eventuri intake system is a perfect example of our “Complete System” principal. It demonstrates the perfect balance between allowing for unrestricted airflow with our open filter housing and cold air saturation with our scoop and duct combination. Every detail has been meticulously developed from the prepreg carbon pieces to the precision bracket work. This intake sets a new benchmark in design and craftsmanship for the F22 and F87 platforms. Also fits the M135i and M235i with the N55 engine.



Eventuri have now updated the N55/F87 M2 intake system (V2) to now include a sealed carbon duct and shield.

This new addition to our intake isolates the intake path from the engine bay and avoids heat soak when at low speeds or stationary. The sealed carbon duct closes the front of the filter housing and stops heat from entering the filter area while still allowing some air entry from the cold side of the engine bay where the hood meets the wing, which ensures that it doesn't cause a restriction. In addition, the heat shield completely blocks out the hot air being pushed into the engine bay from the radiator.

ML Performance N55 / F87 M2 Version 2

ML Performance N55 / F87 M2 Version 2

ML Performance N55 / F87 M2 Version 2

 Special Thanks to Danny P. from M2 Owners Club UK - IG: @y33dtm



The Eventuri Difference

The M2 Eventuri system uses our Patent Pending Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect. You can read more about the housing design and how it works HERE.



An overview of the Eventuri N55 intake system



Eventuri BMW N55 Intake System



Eventuri BMW M135i Intake System





The Eventuri M2 N55 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

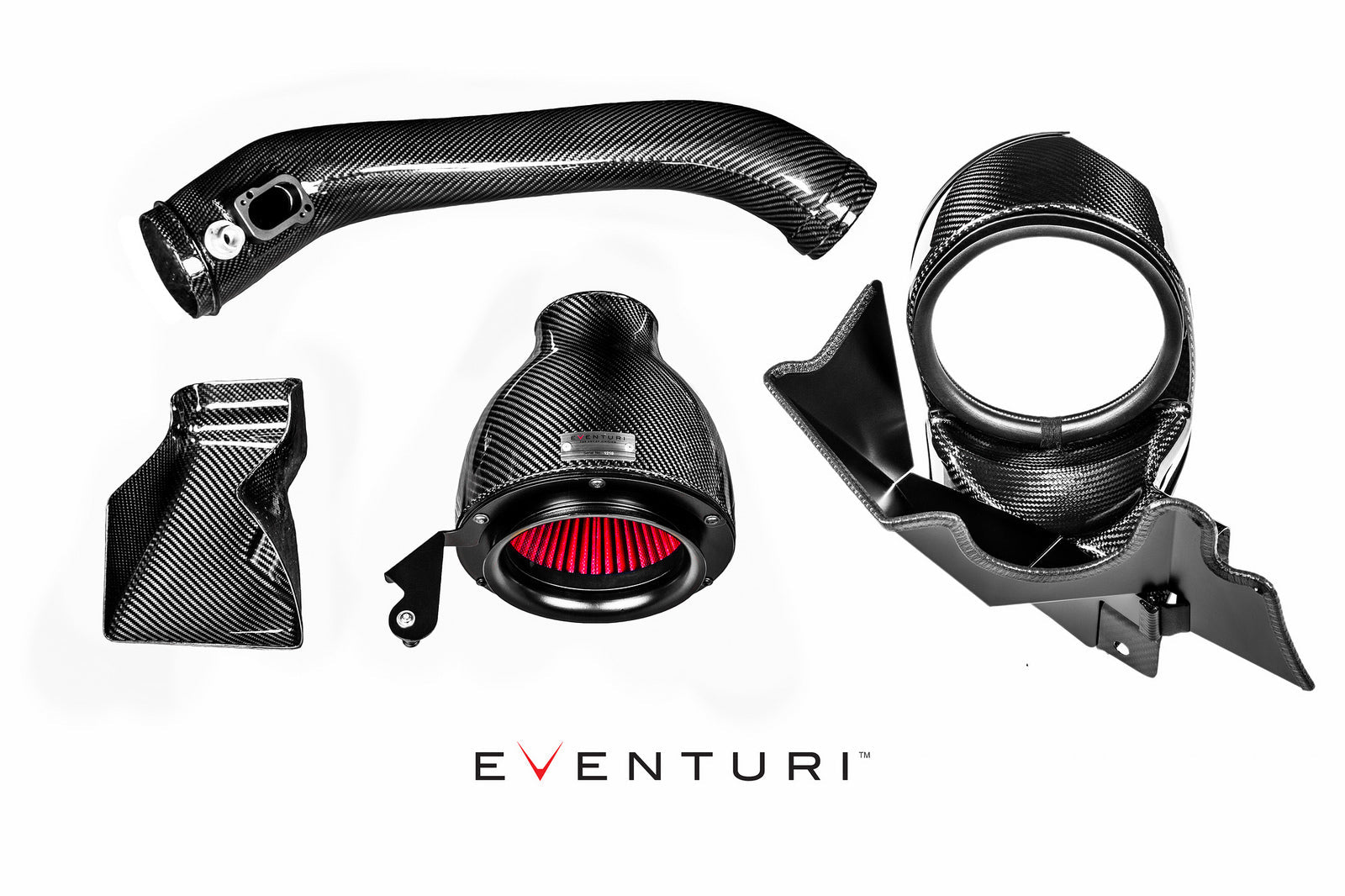

Each intake system consists of:

  • Prepreg Carbon Fibre Venturi Housing
  • High Flow Generation 2 Bespoke Cone Filter
  • Prepreg Carbon Sealing Duct
  • Prepreg Carbon Fibre Intake Tube with integrated MAF Sensor Mount
  • Prepeg carbon Fibre Air Scoop
  • Laser Cut Intake heat Shield
  • Laser Cut Stainless Steel Brackets
  • High quality Silicon couplers with BMW specification hose clamps

ML Performance BMW M2 / M235I / M135I v2

Carbon Intake Housing Assembly



The filter housing comprises of a high flow filter, aluminium cowl, laser cut bracket and the carbon pod itself. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the intake tube. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patent pending design and a regular intake system. Further details can be read in the Technology page.

ML Performance filter for BMW M2 / M235I / M135I

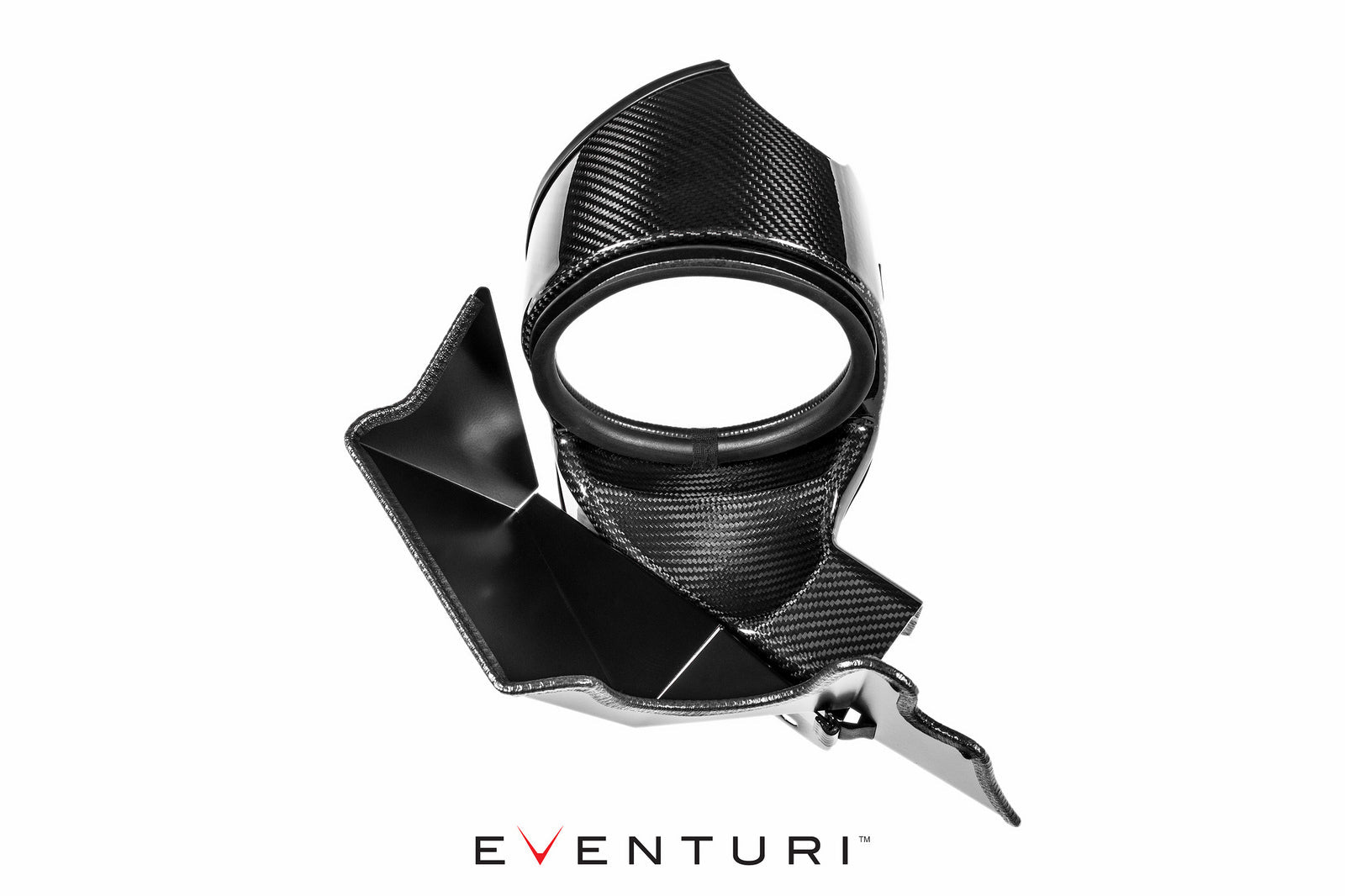

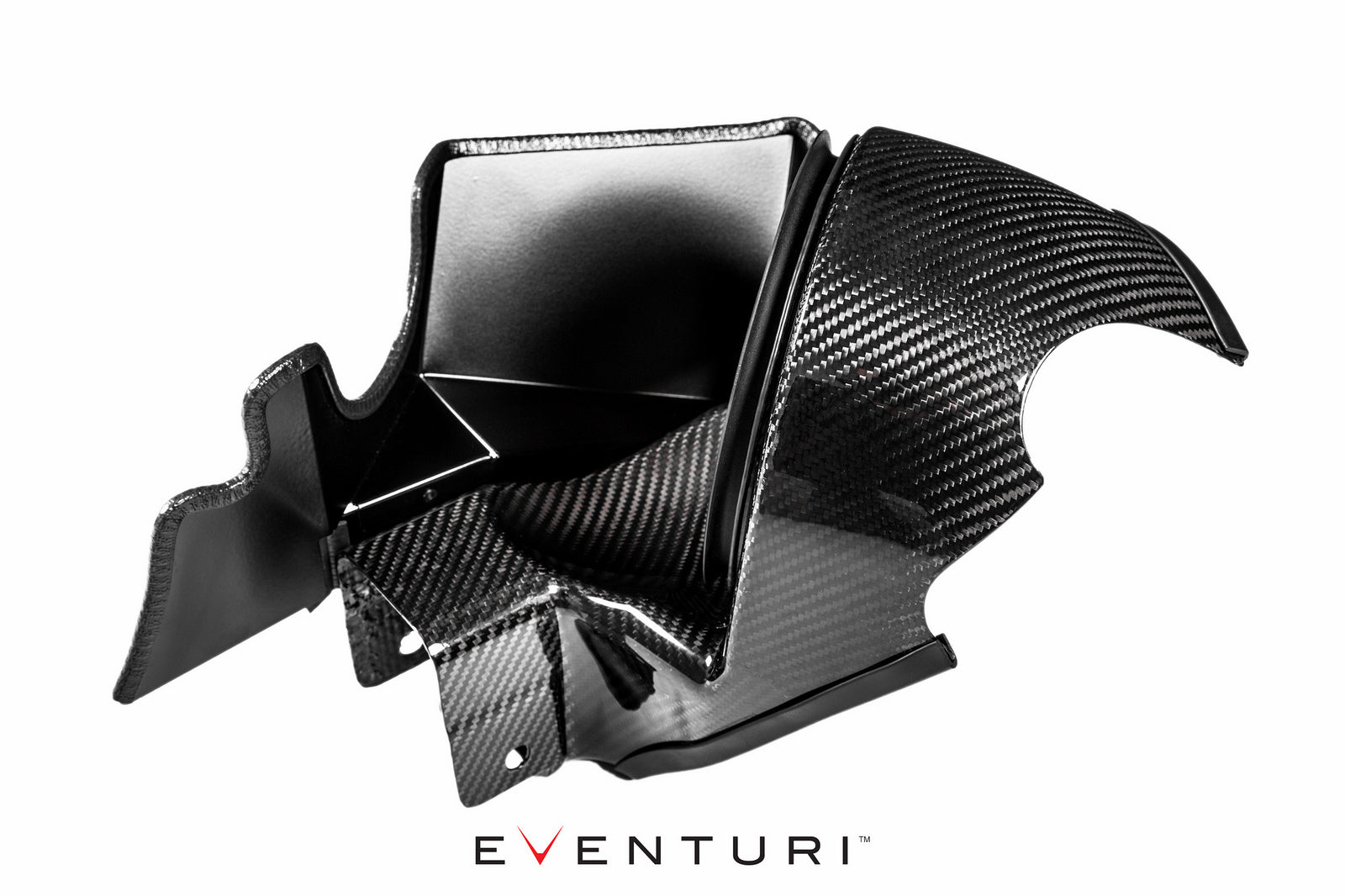

Carbon Intake Duct With Shield

ML Performance BMW M2 Duct With Shield

The filter housing is positioned with its opening sealed against this new carbon duct. This carbon duct has been designed to fit over the stock cold air duct and direct ambient air from the scoop into the filter. It seals against the engine bay heat whilst still allowing some air entry from the cold side of the engine bay where the hood meets the wing. In addition, there is a heat shield attached to the side which blocks the hot air from the radiator and the alternator from directly impacting onto the carbon housing. This shield reduces direct heat soak onto the carbon housing and therefore contributes in keeping IAT down.

ML Performance - Duct With Shield for Eventuri N55 F87 M2





Carbon Fibre Intake Tube



Eventuri intake tube is crafted from 100% prepreg carbon fibre. Each tube has an integrated MAF sensor mount and breather adapter which are CNC machined from aluminium. The inlet tube has been designed to provide a smooth path for the airflow to negotiate from the filter to the stock turbo tube. In order to clear the fan shroud we smoothly transitioned the cross section from a circle to an oval and maintained constant area. This ensures the airflow remains laminar and allows the turbo to function with minimal drag.


Carbon Fibre Intake Scoop


The scoop was designed for maximum efficiency in directing the incoming air to the stock duct openings. Many aftermarket scoops have a large flat area almost perpendicular to the oncoming air - not great for channeling it into the ducts as the airflow just "hits" this flat portion and creates turbulence.

The Eventuri Scoops have been designed to sit directly behind the front grills to capture as much air as possible and with a continuous curve to the duct opening to ensure this airflow is efficiently channeled. The following video explains the design features.



Download Install Guide



Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility

BMW 1 Series - F20/F21 M135i

BMW 2 Series - F22/F23 M235i

BMW 3 Series - F30/F31 335i

BMW 4 Series - F32/F33/F36 435i

BMW M Series - F87 M2



Warranty

One Year Eventuri Warranty



Manufactured by

Eventuri



Part Number

EVE-N55V2-CF-INT (Carbon Fibre)

EVE-N55V2-KV-INT (Kevlar)
