When building an aftermarket turbo system, you will need a wastegate to control the extra boost you add. The older turbos had an internal actuator that regulated the boost pressure, but nowadays, with systems becoming more demanding, an external wastegate is the better option.

Controlling higher boost levels and easily swapping out wastegate springs make it a no-brainer. The only problem is that with a 38mm wastegate, you will need a high-quality gasket to ensure you always hold as much boost pressure as possible. This is where the Exoracing 38mm external wastegate gaskets come in.

Our Exoracing wastegate gaskets are manufactured with utmost precision and care, using only the highest-quality 304-grade stainless steel or aluminium composite. They are designed to meet the 38mm external wastegate specifications for a seamless and snug fit every time, ensuring that no exhaust gas escapes from the flanges they seal.

These gaskets create a tight seal between two flanges, such as the wastegate to the manifold, and prevent boost pressure leakage. However, when gaskets become worn, split, or damaged, they can cause exhaust gas leakage, leading to a decrease in the engine's power output.

A bigger problem is that heat can warp the flanges over time, causing a gasket to blow out quickly. Because of this uneven surface and the risk of gaskets blowing out, we always recommend resurfacing the mating flanges if they aren't 100% flat when installing a brand-new gasket to ensure an optimal seal.

This will provide a better fit and increase your engine's longevity and performance. With our Exoracing Wastegate gaskets, you can be confident that your engine will run smoothly and efficiently without gas leakage or power loss.

We now offer a lifetime warranty against manufacturing defects on all our gaskets. We are confident they will last the test of time and want to provide a risk-free buying experience.

• 1 x Exoracing 38mm External Wastegate Gasket
• 1 x Exoracing Lifetime Warranty

• Laser cut from 304 stainless steel or aluminium composite
• 38mm external wastegate gasket
• Fixes boost leaks from the wastegate flange
• More reliable and heavier duty than paper gaskets
• OEM level of quality and fitment
• Exoracing Lifetime Warranty

Follow our simple and easy steps below to install your brand-new wastegate gasket. If you are unsure of any steps, please consult a professional mechanic.

1. First, ensure the wastegate and turbo manifold are cool to the touch to remove the risk of burns.
2. Remove any vacuum lines connected to the 38mm wastegate.
3. Depending on which gasket you're changing, remove the two bolts from the external side of the wastegate and slide the old gasket out, or remove the two bolts from the turbo manifold flange holding the wastegate. As a side note, we would always recommend replacing both wastegate gaskets whilst you are there for optimal performance.
4. Before installing the brand-new gasket, ensure that all the flanges are perfectly flat, and if not, get them machined flat. If you skip this step, you risk blowing the gaskets out or creating a boost leak.
5. Place the new Exoracing 38mm gasket on either the manifold or outlet side and sandwich between the flanges.
6. Tighten the wastegate using the bolts you removed and torque to factory specification.
7. Install the vacuum lines again in reverse order to how you removed them.
8. After a few heat cycles, return and retorque the wastegate bolts you have removed as these are very common to come loose on 38mm external wastegates.
9. You are all done! Remember to tag us in any photos on social media, as we would love to see your engine bays.

• Professional installation is always recommended.
• Please resurface the wastegate or manifold flange if they are not 100% flat; otherwise, there is a risk of the gasket blowing out.
• Always replace a worn gasket to reduce the risk of boost leak.

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

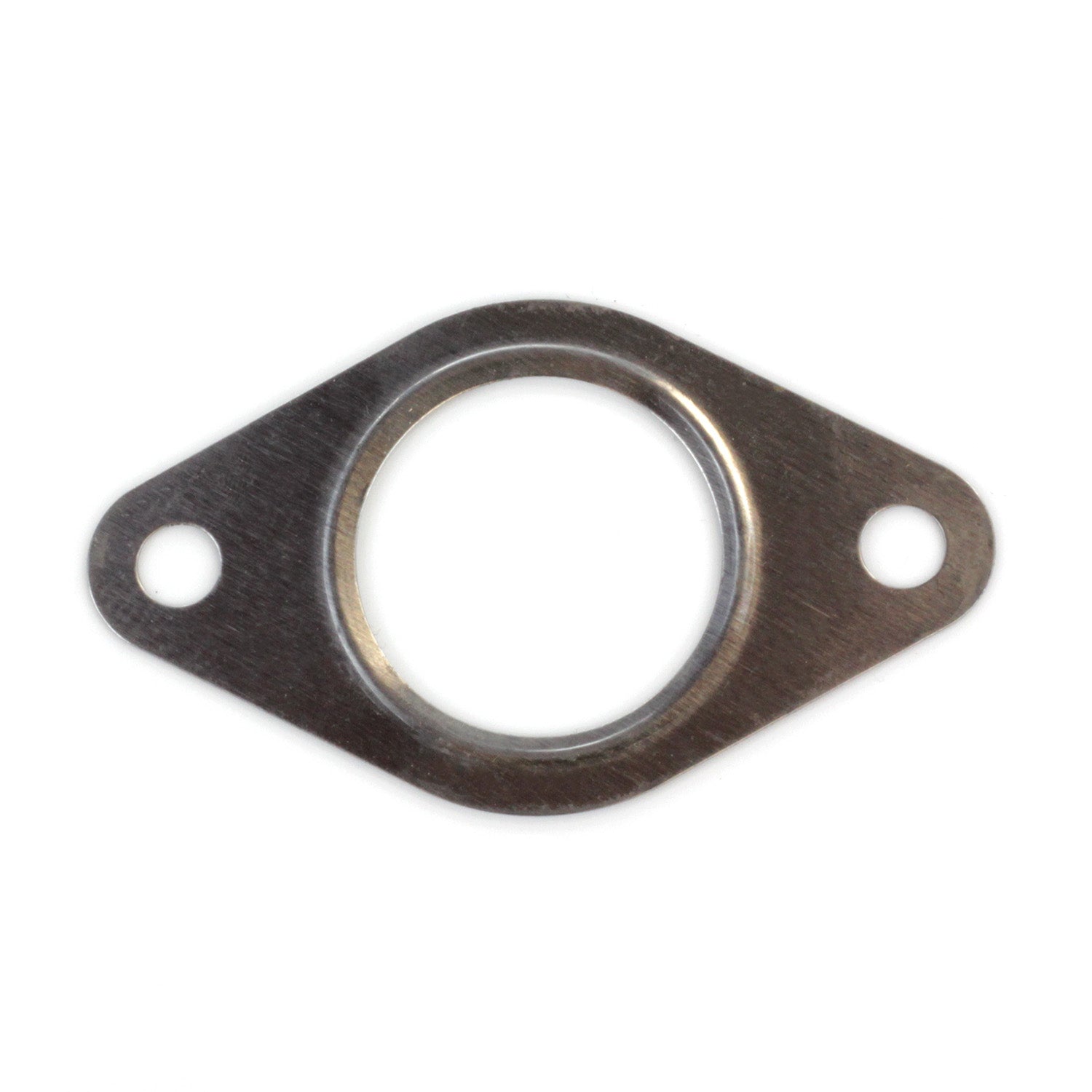

EXORACING-EX-WAST-1 (Stainless Steel)

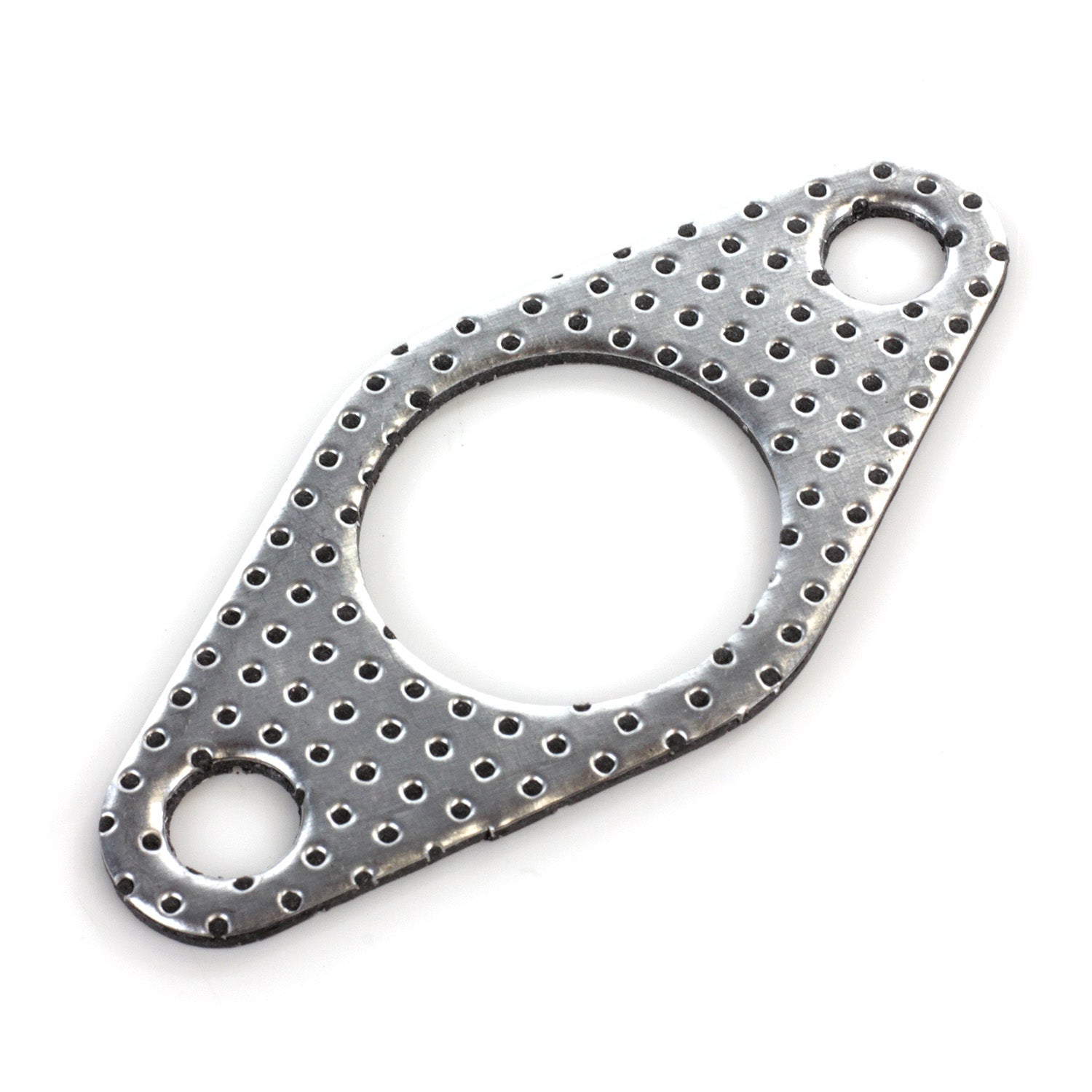

EXORACING-EX-WAST-COM (Aluminium Composite)

Manufactured by

Exoracing
