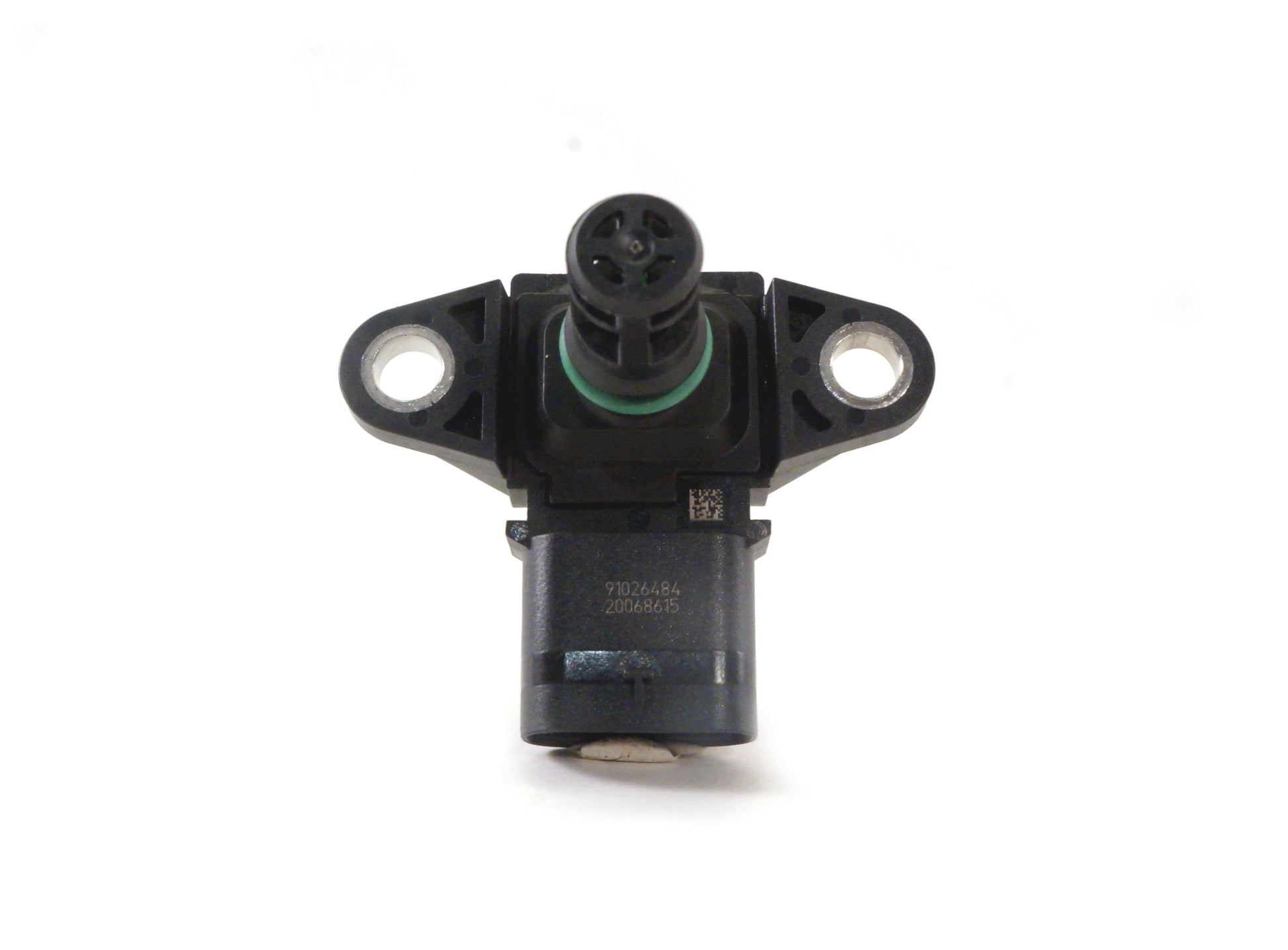

Genuine BMW N63 S55 S63 3.5 Bar Pressure Sensor for N63, S55 or S63 engine.

Install this BMW 3.5 bar pressure sensor to your N54 & N55 engine, raising the JB4 boost maximum boost range from 20psi up to 36psi. Suggested primarily for larger turbo vehicles. After installing update the 3.5bar TMAP sensor value to 1 in the JB4 user adjustment page.

Note: The BMS Adapter is needed to easily install this BMW 3.5 bar pressure sensor to your N54 or N55 with the Type A connector. You do not need the BMS Adapter if you have a N55 with the Type B connector.

How to check if you have Connection A or B:

• 1' F20 F21  (07/2010 — 02/2016)
• 125i (N20)
• 2' F22 F23   (10/2012 — 06/2016)
• 220i, 228i, 228ix (N20, N26)
• 2' F87 M2 LCI   (10/2016 — 12/2019)
• M2 Competition (S55)
• 3' F30 F31 F34  (02/2011 — 07/2015)
• 320i, 320ix, 328i, 328ix (N20, N26)
• 3' F80 M3   (04/2012 — 06/2018)
• M3 (S55)
• 4' F32 F33 F36   (11/2012 — 01/2017)
• 420i, 420ix, 428i, 428ix (N20, N26)
• 4' F82 F83 M4   (02/2013 — 02/2019)
• M4, M4 GTS, M4 CS (S55)
• 5' F07 F10 F11   (08/2012 — 02/2017)
• 520i, 528i, 528ix, M5 (N20, S63N)
• 5' F90 M5   (01/2016 — 12/2019)
• M5 (S63M)
• 6' F06 F12 F13   (10/2011 — 02/2018)
• M6 (S63N)
• X1 E84   (04/2009 — 06/2015)
• X1 16i, X1 20i, X1 20ix, X1 28i, X1 28ix (N20)
• X3 F25   (02/2011 — 08/2017)
• X3, 18i, X3 20i, X3 20ix, X3 28i, X3 28ix (N20)
• X4 F26   (05/2013 — 03/2018)
• X4 20ix, X4 28ix (N20)
• X5 F15   (10/2014 — 06/2018)
• X5 28ix (N20)
• X5 M F85   (04/2013 — 06/2018)
• X5 M (S63R)
• X6 F16   (11/2014 — 05/2019)
• X6 28ix (N20)
• X6 M F86   (10/2013 — 05/2019)
• X6 M (S63R)
• Z4 E89   (01/2011 — 08/2016)
• Z4 18i, Z4, 20i, Z4 28i (N20)

• 2' F87 M2 LCI   (10/2016 — 12/2019)
• M2 Competition
• 3' F80 M3 LCI   (01/2015 — 10/2018)

• M3
• 4' F82 M4 LCI   (05/2016 — 12/2019)
• M4, M4 CS
• 4' F83 M4 LCI   (05/2016 — 12/2019)
• M4
• 5' G30   (07/2018 — 12/2019)
• M550iX
• 5' F90 M5   (01/2016 — 12/2019)
• M5
• 7' G11 LCI   (01/2018 — 12/2019)
• 750iX
• 7' G12 LCI   (01/2018 — 12/2019)
• 750iX, 750LiX, ALPINA B7
• 8' G14/G15/G16   (10/2017 — 12/2019)
• M850iX
• 8' F91/F92/F93 M8   (11/2017 — 12/2019)
• M8
• X5 M F85   (04/2013 — 06/2018)
• X5 M
• X5 G05   (10/2017 — 12/2019)
• X5 50iX, X5 M50iX
• X6 M F86   (10/2013 — 05/2019)
• X6 M
• X6 G06   (06/2018 — 12/2019)
• X6 M50iX
• X7 G07   (11/2017 — 12/2019)
• X7 50iX, X7 M50iX

Also fits All N54 and N55 Engines.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

13628644433

Manufactured by

BMW

Warranty

Two years manufacturer warranty for UK customers and one year manufacturer warranty for international customers if VIN is provided during check out on compatible vehicles.
