Description

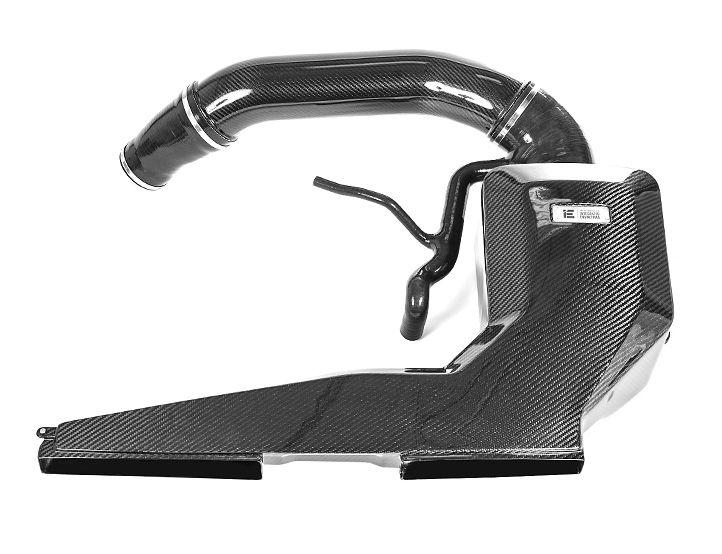

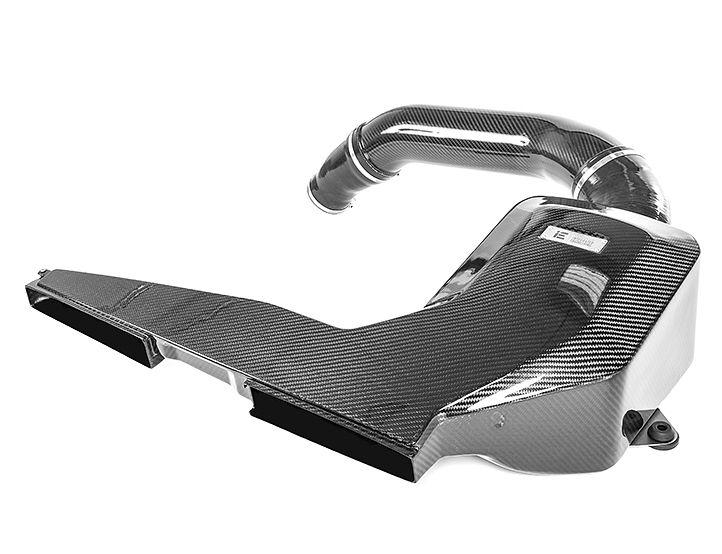

IE is proud to announce the best looking and highest performing air intake for the RS3 8V/8Y and TTRS 8S platforms. To ensure the highest performance, no corners were cut or expenses spared. A massive air filter, carbon fiber construction, large internal volume, and4-inch piping diameter ensure the engine breathes sufficiently and realizes large power gains across the entire powerband.

Important Note

2019 and newer North American Spec model year engines are equipped with a new style diverter valve housing that is non-compatible with the native intake design. If your RS model is year 2019 or newer, make sure to also purchase the Integrated Engineering Audi Carbon Fiber Intake System Diverter Valve Adapter Kit 2019+ (RS3 8V & TTRS 8S).

Power Gains

The ram-air design and performance features translate into big power gains. This intake system performs great with upgraded ECU Software or upgraded turbochargers. Stage 2 software yielded greater than 25 Horsepower with the addition of the IE intake. Below is a dyno chart provided by Iroz Motorsport in a 3rd party test.

Ram Air Design

The ram-air design ensures that as much air is forced into the intake system as possible. The intake achieves this by feeding cold air in from the front of the car. The front scoop of the IE intake system spans the entire width of the grille collecting all available air.

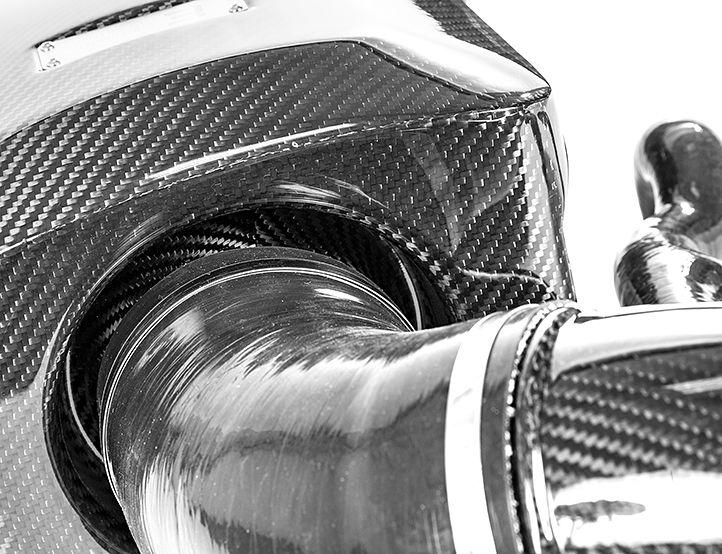

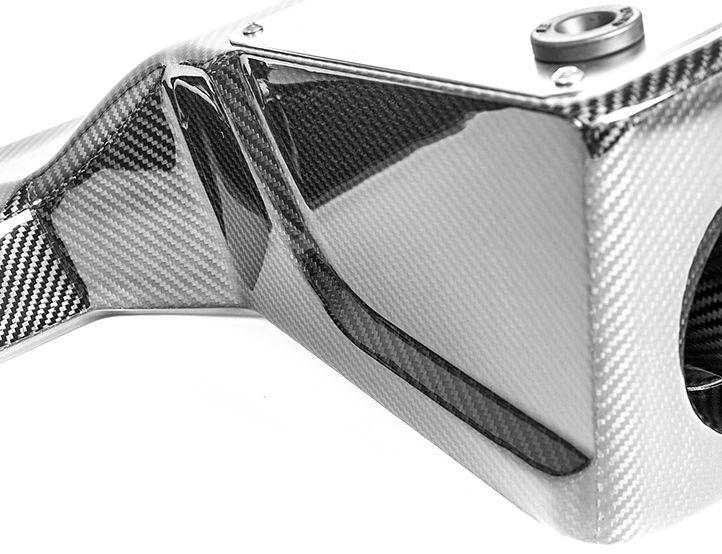

Carbon Fiber Glass Construction

Carbon Fiber air intakes not only look great but they also have a key performance advantage of being less heat absorbent. By absorbing less heat intake air temperatures remain cooler than other common construction materials such as sheet metal heat shields and aluminum piping.

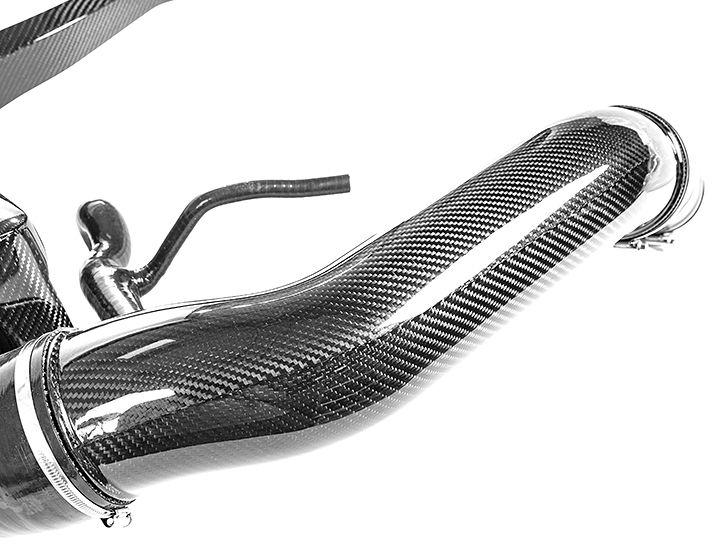

4 Inch Carbon Inlet Pipe

A large diameter 4-inch carbon inlet pipe ensures unrestricted airflow into the turbocharger. This large diameter pipe replaces the substantially smaller factory inlet pipe, allowing the engine to breathe properly.

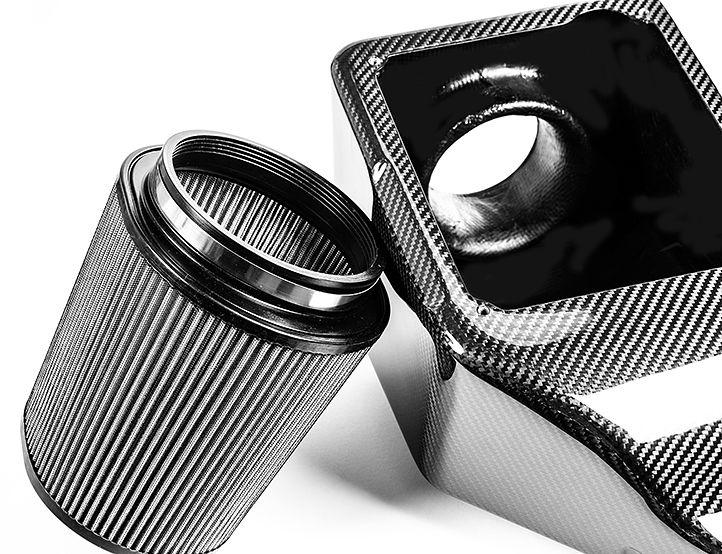

Massive High Flow Air Filter

IE engineers incorporated the largest filter possible. In addition to the sheer size, the frontal area of the air filter incorporates a pleated inverted cone which results in more air induction.

Compatibility:

• Audi - RS3 2017+ (8V.5) 2.5TFSI DAZA*
• Audi - RS3 2022+ (8Y) 2.5TFSI DAZA*

• Audi - TTRS 2016+ (MK3 - 8S) 2.5TFSI DAZA*

* 2019+ model years require the Integrated Engineering Audi Carbon Fiber Intake System Diverter Valve Adapter Kit 2019+ (RS3 8V.5, RS3 8Y & TTRS 8S).

Fitted Photos

Manufactured by

Integrated Engineering (IE)

Part Number

IEINCQ1

Installation Guide

Install can typically be completed in about an hour using basic tools. Be sure to read the install instructions in entirety before starting the process. As a pro tip, keep in mind that carbon fiber scratches easily (especially if tools are dropped on it).
