Integrated Engineering IE Audi B9 3.0T ECU Tune (S4, S5 & SQ5)

Integrated Engineering IE Audi B9 3.0T ECU Tune (S4, S5 & SQ5)

Regular price £832.70 Inc. VAT
Regular price £876.53 Sale price £832.70 Inc. VAT On sale

Price Match

Available on stock order

Learn more on stock order delivery.

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

View full details

Your 2017-2023 Audi S4 or S5 is the home to a turbocharged 3.0L V6 powerhouse begging to be let loose. IE's performance calibrations unleash your car's full potential right out of the gate. Maximized for incredible power at home on the drag strip and road course while maintaining full comfort and reliability on your everyday commute. Experience IE's Performance ECU Software yourself with a simple install that takes only minutes from the comfort of your own driveway.

You will also need the Integrated Engineering IE POWERLink Cable to flash your car.

TCU Stage 1 Included with this ECU tune.  For the Stage 2 TCU Tune please see Integrated Engineering IE Audi B9 AL552 ZF8 Transmission Tune (S4, S5 & SQ5).



  • Horsepower & torque gains maximized
  • 91, 93, E40, & E85 fuel maps for Stage 1 & 2
  • Stage 1 for stock hardware or basic bolt-ons
  • Stage 2 for full bolt-on support
  • Stage 1 & 2 Plus HPFP for massive mid-range power gains
  • Stage 1 Transmission Tune included with ECU purchase
  • Stage 2 Transmission Tune upgrade available
  • Recalibrated factory boost gauge displays higher boost
  • Neutral/park rev limit raised to 6500 RPM
  • Brake boost enabled for rolling launch
  • Annoying auto-start/stop defaults to off (button turns back on)
  • More aggressive overrun/crackle in Dynamic mode (Stage 2)
  • Crackles enabled for free revving in park or neutral
  • Engine VE is completely remodeled for a smooth power curve
  • Maximized throttle scaling for dependable throttle use
  • Boost control reconfigured for smooth and crisp power delivery
  • Optimized EGT for safe fuel ratios and maximized power output
  • Eliminated/minimized turbocharger surge
  • Reduced turbocharger lag
  • Road speed limiters removed
  • Engineered for all climates and elevations
  • Direct port OBDII at-home flashing
  • Easy octane switching takes only minutes
  • Read and clear diagnostic/problem codes
  • Easy to use Data-logger



B9/B9.5 3.0T STAGE 1

IE Stage 1 ECU calibration dramatically increases performance with up to 505HP & 585TQ, transforming your turbocharged 3.0L into a truly performance-classed vehicle. IE's advanced tuning strategies leave no hidden power on the table and safely max out the factory turbocharger's capability. Engineered to operate on entirely stock hardware and compatible with basic bolt-ons (intake, turbo inlet, intercooler) without the need to retune.

B9/B9.5 3.0T STAGE 2

IE Stage 2 performance software is a complete engine calibration for full bolt-on stock turbo builds running an aftermarket racing downpipe and catalyst. The unique B9 EA839 engines are equipped with a smaller factory turbo and large stock downpipe with incredibly minimal exhaust restrictions. Using advanced calibration techniques, IE calibrators can extract full peak power on pump gas and ethanol fuels on Stage 1 and 2 downpipe setups. However, the required hardware upgrades for stage 2 will increase airflow, lower intake air temps, faster IAT recovery, and produce an overall more efficient and faster vehicle on the same power.

STAGE 1 & STAGE 2 PLUS HPFP

Stage 1 & 2 Plus ECU tunes are calibrated to support increased fuel delivery from upgraded HPFP (High-Pressure Fuel Pump) internals providing additional horsepower and torque through the mid-range of the power band. Acceleration dramatically improves with a 52HP gain in the mid-RPM (peak HP number remains the same) and up to 75ft-lbs of additional torque on E85! Our matching Stage 2+ TCU transmission tune (sold separately) also includes optimized shift points that double down on the intense pull through the middle of the powerband, further increasing acceleration and faster 1/4 mile times.



Ethanol Fuels

E85 & E40 blend ethanol fuels unlock the most performance potential from our ECU tunes for your Audi S4 or S5. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is much less expensive than race gas.



Full E85

IE calibrators spent many months developing and testing ethanol blends on the B9 3.0T engines in many climates and elevations. Results were consistent that full E85 runs very close to or beyond the limit of the factory direct injection (DI) fuel system in the mid-range but allows for more power up top. IE's E85 calibration keeps mid-range power in check to avoid lean conditions, misfires, and power loss then ramps it up top for amazingly fast and consistent track times in a drag racing scenario. E85 is also great for easy fill-ups at the pump for daily driving without mixing blends.


E40 Blend

E40 is an ethanol mix of E85 with regular pump 91/93 fuel creating a lower ethanol content fuel. E40 offers the optimal ethanol content for the factory DI fuel system in the mid-range of the power band. The lower content ethanol allows this file to create the maximum power output from 3000RPM-4000RPM, perfect for road course and track racing. E40 will also result in a faster feeling car in most street driving situations.

An ethanol content sensor kit is highly recommended when running ethanol blends.



Brake Boost

Commonly used in roll racing, Brake Boosting allows you to build extra boost by applying brake pressure while accelerating. Release the brake pressure for a "rolling launch" or extra surge of power.

Brake Boost is included on all tune stages.



Exhaust Overrun

The stock calibration features a very mild overrun/crackle when you decelerate from higher RPM, but is very hard to hear with factory downpipe/exhaust. Stage 2 files turn up the aggressiveness of this overrun and enable crackles on free-revving in neutral or park. Not only will your car drive faster, it will sound faster too! Guaranteed to put a smile on your face.

Exhaust Overrun is included on stage 2 tunes.



Boost Control

The stock ECU boost control is delivered in a very “close enough” and erratic boost curve. This slow response is reflected in the factory torque curve and can be felt on long power pulls when utilizing the entire powerband. To smooth out this torque curve, IE calibrators re-tuned the boost control mapping to be much faster achieving precision boost request targeting that results in unmatched power delivery.



Throttle Mapping

The new generation Audi MG1 ECU uses a complicated mass flow model to calculate boost control. Typical ECU tunes simply raise the wastegate pressure, however, since the maps that control wastegate position (boost) are not controlled by throttle input resulting in limited throttle predictability. To avoid delivering full-boost at half throttle input, IE engineers have taken the care to rescale the entire mass flow model mathematically over 30 maps which correct the entire range of throttle input. This delivers a linear and predictable throttle pedal which improves drivability in every situation on the street or track.



EGT Optimization

Exhaust Gas Temperature (EGT) is the measurement of fuel mixtures exiting the exhaust and is used to determine the health of the fuel/air mixture entering the engine. IE engineers have spent countless hours adjusting boost air/fuel ratio, ignition timing angle, camshaft phasing, intake air temps, and much more to develop the proper EGT adjustments for ultimate engine safety without sacrificing power on all octanes. Since Ethanol burns cooler than gasoline, the extra fuel left over in the cylinders acts as coolant further reducing combustion temperatures and allows for a leaner air to fuel ratio without dangerous EGT levels. All IE files contain safety measures and complete knock control to keep the engine producing it's potential within verified and safety-first operation.



Recalibrated VE

The factory engine calibration shows a significant drop in torque and power around 3000 RPM due to the unique volumetric efficiency (VE) of the stock 3.0T engine. Instead of tuning around this drop in VE or attempting to simply raise the factory torque/load maps to compensate, our calibrators have completely solved and removed this drop from our ECU calibrations entirely.

IE's dyno charts are ported directly from our in-house dyno cells and are not modified or "smoothed" in any way.



Upgrading Stages

Upgrading from Stage 1 to Stage 2 or Stage 3 is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, simply follow the link on your IE POWERlink software to purchase the tune upgrade and you will be enjoying the next level of power in minutes!

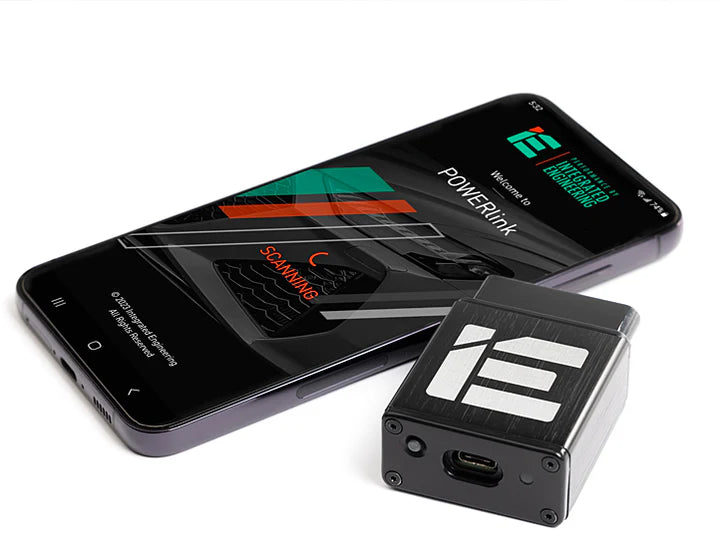

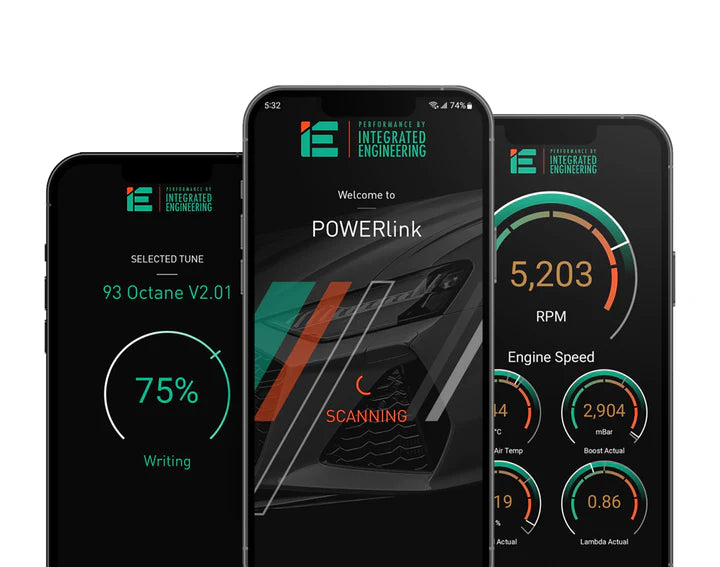

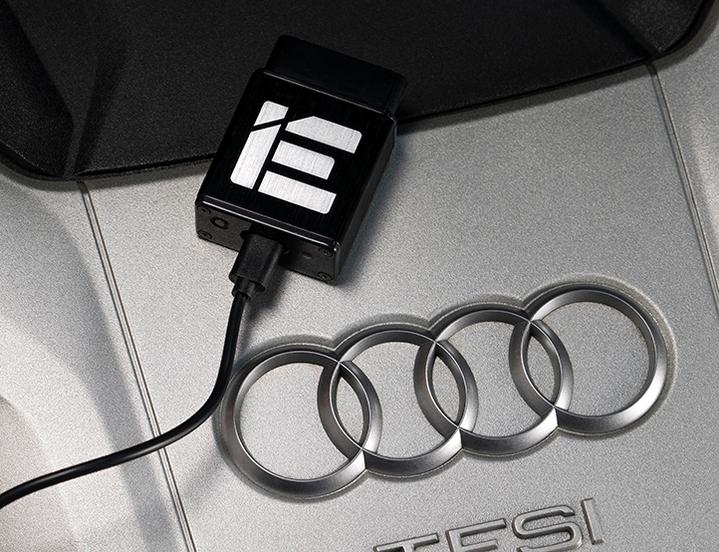

IE's POWERlink Cable and Flash Wizard software gives you the freedom to quickly flash your new IE ECU Tune. Simply plug your POWERlink into the vehicle's OBD-2 port and follow the on-screen directions, it's that easy!



  • AUDI B9 S4 2017-2020
  • AUDI B9 S5 2018-2020
  • AUDI B9 SQ5 2018-2020

Consumer Notice: This tune is currently only for B9 platforms and does not support B9.5 (facelift) transmissions. B9.5 support is coming soon!



IESOVZ11 (Stage 1)

IESOVZ12 (Stage 2)
