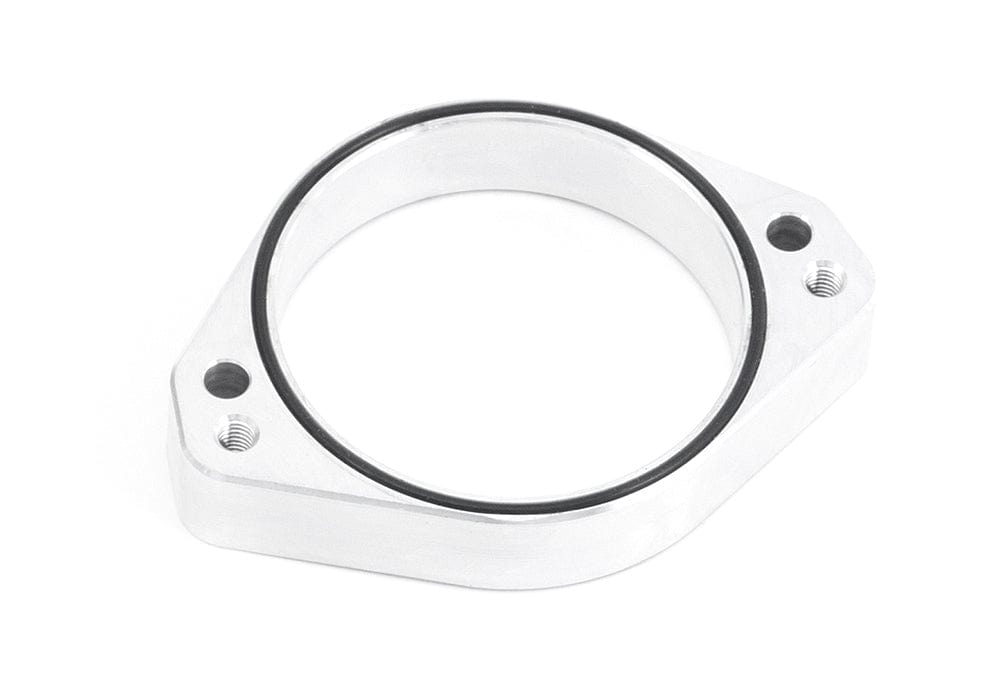

This adapter ring is for use with hybrid turbos with the TTE710/TTE810 Hybrid Turbo only.

Intended for use with the Integrated Engineering IE Audi B9 3.0T Turbo Inlet Pipe (S4 & S5) with the TTE710/TTE810 Hybrid Turbos.

The TTE710 and TTE810 hybrid turbochargers are very popular and fantastic choice for adding big power to your Audi B9/B9.5 S4, S5, or SQ5 3.0T engine. When upgrading to this turbo, you will need to address the larger inlet size and the mounting depth of the new compressor housing to your turbo inlet pipe. This billet o ring sealed flange adapts your IE Turbo Inlet Pipe directly to the TTE710/TTE810 66mm inlet. This easy solution makes your hybrid turbo installation a direct bolt-in job, keeping your IE intake and turbo inlet perfectly in place without any modifications.

Please Note:

• This adapter ring is for IE B9/B9.5 S4, S5, or SQ5 3.0T Turbo Inlet Pipe only, will not work with other brand turbo inlets.
• This adapter ring is for use with TTE710 or TTE810 hybrid turbos with a 66mm flange turbo only.

• Makes installing a TTE710 or TTE810 hybrid turbo easy
• Retains IE intake & cast turbo inlet with larger turbo install
• bolt-on install to existing IE Turbo Inlet
• Smooth transition for uninterrupted flow
• O ring sealed for leak-free reliability
• CNC machined from aircraft-grade aluminum

• Audi S4 2017-2020 (B9) 3.0T turbocharged engines
• Audi S5 2018-2020 (B9) 3.0T turbocharged engines

IEINCK4-12

Manufactured by

Integrated Engineering (IE)
