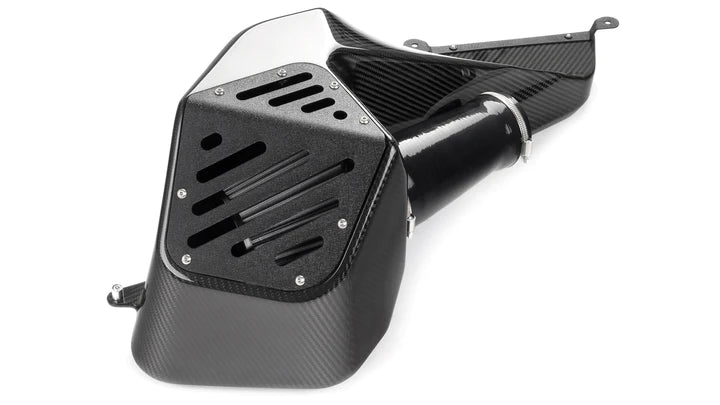

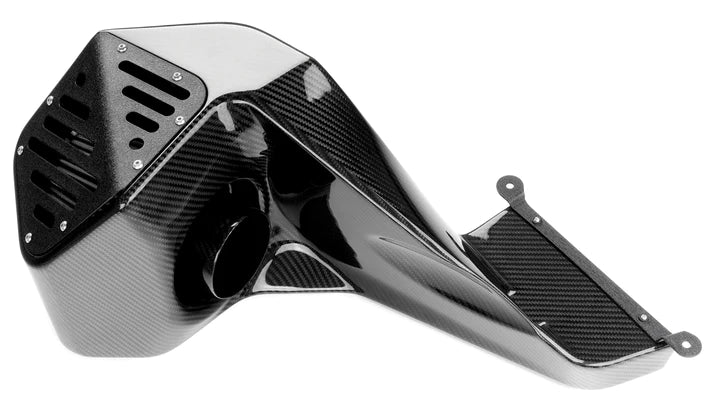

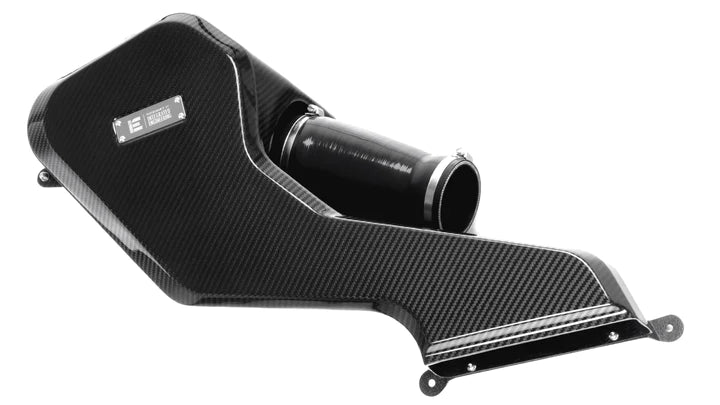

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System

Regular price £888.76 Inc. VAT
Regular price £947.62 Sale price £888.76 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

IE's carbon fibre intake system for your B9 SQ5 is meticulously designed to improve turbo & engine efficiency and engineered for significant airflow gains on stock and hybrid turbochargers while keeping IATs to a minimum. Unique motorsport features produce power gains of up to 19HP & 21ft-lbs on tuned engines, making it the ultimate intake system that delivers style, sound, and power for your turbocharged SUV.

You also wish to purchase the optional Integrated Engineering IE Audi B9 SQ5 3.0T Turbo Inlet Pipe.



  • High-gloss genuine carbon fiber construction
  • Leak-free seamless 1-piece airbox
  • Up to 19HP & 21ft-lbs over stock (with IE turbo inlet)
  • Flow 28% more than the stock intake system
  • Flow 44.2% more than stock intake (with IE turbo inlet)
  • Enhanced turbo & engine sound
  • High pressure & low pressure air zones
  • Maximized turbo & engine efficiency
  • Huge 5" air filter & velocity stack for excellent laminar flow
  • Factory style mounts for reliable & easy installation
  • All stainless hardware
  • Multi-ply silicone with stop-flat edges
  • High-quality clamps
  • Powder-coated aluminum filter plate
  • Stainless laser-etched logo plate

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK

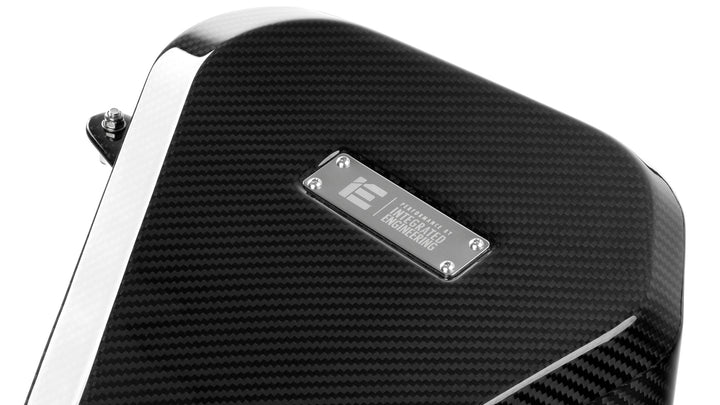

Carbon Fibre - More Than Style

Carbon fibre allows our engineers to create complex shapes and angles to maximize internal volume while maintaining high resistance to heat. This design practice utilizes every millimeter available in the engine bay, providing a much larger air supply and smooth flow.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Seamless Design

Our unique 1-piece airbox design offers a seamless and beautiful look without chances of air leaks, finicky installation, rubbing noises, or parts working loose over time, common with multi-peace airbox designs.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Built-in Velocity Stack

The built-in velocity stack smoothly reduces airflow from the massive 5" air filter down to the turbo inlet with excellent laminar properties. This transition creates a very high inertia flow from the huge filter with very low drag or power-robbing turbulence.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Multiple Pressure Zones

The intake takes advantage of multiple air supply avenues to support any power level. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the filter plate louvers pull extra required air from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Unique Sound

Your sporty SUV is equipped with a 6-cylinder turbocharged engine -sound like one!

The factory airbox is designed to mute all engine and turbo sounds. When upgrading to an IE intake system, you will instantly become addicted to the new turbocharger spool, engine throttle, and diverter valve symphony under the hood. Your SQ5 won't only pull harder, it will also sound classy, refined, and powerful.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Optional Turbo Inlet

Upgrading your intake with an IE cast turbo further removes significant airflow restrictions and maintains the largest size possible from the intake to the turbocharger. This combination increases flow from 28% (intake only) up to 57.6% over the stock intake and turbo inlet!

Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.

You can purchase the turbo inlet here:

Integrated Engineering IE Audi B9 SQ5 3.0T Turbo Inlet Pipe

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Precision Fit

3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK


  • ONE-PIECE CARBON FIBRE CONSTRUCTION
  • UP TO +19HP & 21TQ POWER YOU CAN FEEL
  • FLOW OPTIMIZED VELOCITY STACK MOTORSPORT DESIGN



Power Results

Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Flow Bench Testing

The proof is in the testing. Back-to-back flow bench results show constant and consistent CFM gains of up to 44.2% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UKIntegrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



Flow Report

The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.

-IN. H20 STOCK INTAKE IE INTAKE & STOCK INLET IE INTAKE & IE INLET

-5

129 CFM

165 CFM

186 CFM

-10

198 CFM

236 CFM

268 CFM

-15

250 CFM

292 CFM

333 CFM

-20

291 CFM

345 CFM

384 CFM

-25

330 CFM

383 CFM

430 CFM

-30

364 CFM

420 CFM

474 CFM



IE INTAKE & STOCK INLET IE INTAKE & IE INLET

MAXIMUM INCREASE:

+28% @ -5 in. H20

+44.2% @ -5 in/H20



Hybrid Turbo Flow Report

Upgrading to a hybrid turbocharger demands even more airflow. This flow result represent IE’s intake and inlet upgrades with a hybrid turbo.

-IN. H20 STOCK INTAKE IE INTAKE & IE INLET

-5

129 CFM

200 CFM

-10

198 CFM

312 CFM

-15

250 CFM

386 CFM

-20

291 CFM

447 CFM

-25

330 CFM

504 CFM

-30

364 CFM

553 CFM



IE INTAKE & IE INLET

MAXIMUM INCREASE:

+57.6% @ -10 in. H20



The above gains are a result of various design details:

  1. The 5" air filter surface area and increased air volume improve turbo efficiency.

  2. The internal velocity stack provides a low-turbulence transition from the filter to the inlet.

  3. Carbon airbox high & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK





The installation process is quick and straightforward using basic hand tools. The entire airbox system utilizes factory-style mounts that ensure a perfect and hassle-free fit.

Intake install time: 1 hour or less

Integrated Engineering IE Audi B9 SQ5 3.0T Carbon Fibre Intake System - ML Performance UK



AUDI SQ5 2018+ (B9) 3.0T Turbocharged


IEINCZ1
