- Horsepower & torque gains maximized
- Optimized for all climates & conditions
- 91, 93, & E85 octanes available (95, 98, RON & E85)
- ECU safely adapts between E65-E85 Ethanol
- Rev limiter increased to 7200 RPM (requires TCU tune)
- Cluster reprogrammed to show new 7200 RPM limit
- Auto start/stop disabled
- Activates brake boosting
- Road speed limiters removed

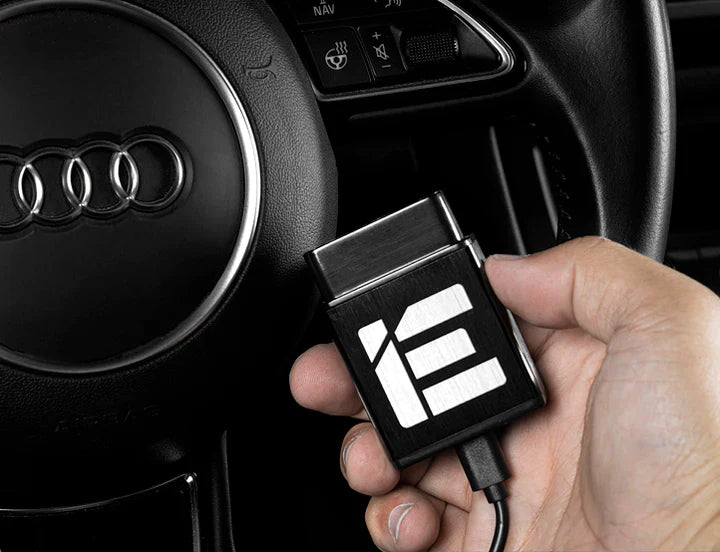

- Direct port OBDII at-home flashing
- Easy octane switching takes only minutes
- Upgrade stages to match hardware upgrades
- Simple on/off feature toggling
- Read and clear diagnostic/problem codes
- Easy to use Data-logger
Add Transmission Tune
All stages of IE ECU calibrations for the C7.5 A6 & A7 are compatible with the matching IE ZF8 AL551 Transmission TCU Tune and is highly recommended to reach the advertised power figures. Without a matching TCU tune, the transmission will short shift the powerband at 6300 RPM vs. the ECU tune's peak power at 7200RPM -leaving power on the table. Adding the TCU upgrade also modifies shift speed, torque limit maps, line pressure, and launch control functions resulting in a complete ECU & TCU performance package.
E85 Ethanol
E85 fuel unlocks the most performance potential from our ECU tunes for your Audi S6 or S7. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. E85 is an optional fuel map included with all tune purchases.
Brake Boost
Commonly used in roll racing, Brake Boosting allows you to build extra boost by applying brake pressure while accelerating. Release the brake pressure for a "rolling launch" or extra surge of power. Brake Boost is included on all tune stages.
Increased RPM
Take full advantage of your supercharger with a larger power band. RPM limits have been raised to 7200RPM in all stages. This higher RPM limit not only extends the power band, but also unlocks 20+HP in the upper RPM range! Transmission TCU Tune is required to unlock higher RPM.
Optimised Cooling
To combat power-robbing heat soak generated from the supercharged engine the factory coolant pump calibration has been modified in all ECU Tune stages. This new configuration runs the coolant pump at 50% duty when the ignition is keyed on pushing coolant through the charge coolers and reducing heat faster without the engine running. This helps avoid heat soak and provides faster recovery in-between runs or while staging at the track. During driving or when the intake temp is above 20C, the coolant pump operates at 100% for maximum cooling efficiency.
Reliability Testing
IE's fully proven software brings track-ready ECU programming to your supercharged V6 engine while retaining factory comfort and reliability. IE's own tuning technology suite is used to completely reverse-engineer the factory ECU mapping, allowing our software engineers access to realign all safety protocols and sensors for the new performance calibration. Every tune parameter undergoes months of testing on our in-house dyno systems that utilize the world's only Sea Level Generator developed specifically to verify tune operations in any condition. Confidently drive from LA to Pikes Peak with power that will keep you smiling every mile!
Stage 1
Require Hardware
PART UPGRADE |
COMPATIBLE |
REQUIREMENT |
|
|
Required For Peak Power Gains
|
|
|
Fully Compatible With All Stages
|
|
|
Fully Compatible With All Stages
|
|
|
Fully Compatible With All Stages
|
|
|
Not Compatible With Stage 1
|
|
|
Not Compatible With Stage 1
|
Stage 2 Single Pulley
PART UPGRADE |
COMPATIBLE |
REQUIREMENT |
|
|
|
|
|
|
|
|
Required For Peak Power Gains
|
|
|
Fully Compatible With All Stages
|
|
|
Fully Compatible With All Stages
|
|
|
Not Compatible With Stage 1
|
