Introducing the JHM Automatic Tensioner Conversion Kit for the B6-B7 S4 and C5-allroad 4.2L!!!

Our continued dedication to the B6-B7 S4 and C5-allroad 4.2L has led to the release of another innovative product for the platform. Now there is FINALLY a better solution for replacing the OEM Alternator Belt tensioning setup. We have developed a solution that will replace the expensive, non-automatic tensioning OEM parts on your B6-B7 S4 and C5-allroad 4.2L. Developed during our ongoing advancement of the JHM Supercharger Kit for higher levels of power and higher spinning motors, we have thousands of miles in long term testing of this automatic belt tensioning system. We used all of this knowledge and testing to release the JHM Automatic Tensioner Conversion Kit for those with either OEM or JHM 5-rib pulley setups. We have also incorporated this Automatic Tensioner into our 6-rib Pulley Upgrade Kits.

ABOUT THE PRODUCT

The biggest advantage to upgrading your OEM alternator belt, pulley, and tensioner setup to our JHM Automatic Belt Tensioner setup is that you no longer have to worry about the tension of your belt! No more worrying about whether your belt is tight enough or wondering if it is too loose. Improper belt tension can cause a lot of problems on the B6-B7 S4 and C5-allroad 4.2L: If it is too tight it can wear out alternator bearings and/or the belt prematurely. On the other hand, if the belt is too loose you can get a Battery Light on your dash indicating weak charging and in some cases thrown belts.

Our JHM Automatic Tensioner Conversion Kit will also fix the issue we have seen where people break their OEM manual tensioner by over-tightening it. These OEM tensioners are expensive to replace.

In addition to the "user friendly" features of our kit, one of the best features is the price. Our kit upgrades your belt tensioning components to a setup better than the OEM parts while still costing less than the retail pricing of the OEM parts it replaces.

Lastly, we've made our JHM Automatic Tensioner Conversion Kit much easier to install than the OEM parts it replaces. It's also easier to maintain.

INSTALLATION NOTES:

• - Due to the increased width of the larger tensioner, some clearancing of the core support is required. See the installation notes included in the zip file linked below for more information on this.

• - For some installation notes and a set of labeled pictures detailing the modification, the core support clearancing, and installation of this kit, please click HERE

• - NOTE: Tiptronic-Automatic Trans cars will need to bend the trans cooler lines in the core support as well to clear the auto tensioner arm or purchase our trans cooler kit upgrade which deletes those hard lines from the core support. See the instruction zip file above for more info and pictures.

• - In order to install this kit, you will need to either put the car in "service position" or completely remove the "front clip" of the car. Doing this makes it a great time to consider installing an upgraded 034Motorsport Snub Mount and a 034Motorsport Zero Gap Snub Bracket.

Benefits of Running the JHM Automatic Tensioner Conversion Kit versus OEM Components:

• - No more loose belts causing the battery light on your dash while driving (indicating weak charging)

• - No more squealing belts

• - No more dreaded thrown belts

• - No more over-tightened belts overloading your alternator bearings

• - Lower cost than the OEM belt tensioner parts

• - Easier installation than OEM (No belt adjustment needed!)

• - Replacement costs for parts in the JHM Kit are much less than the OEM

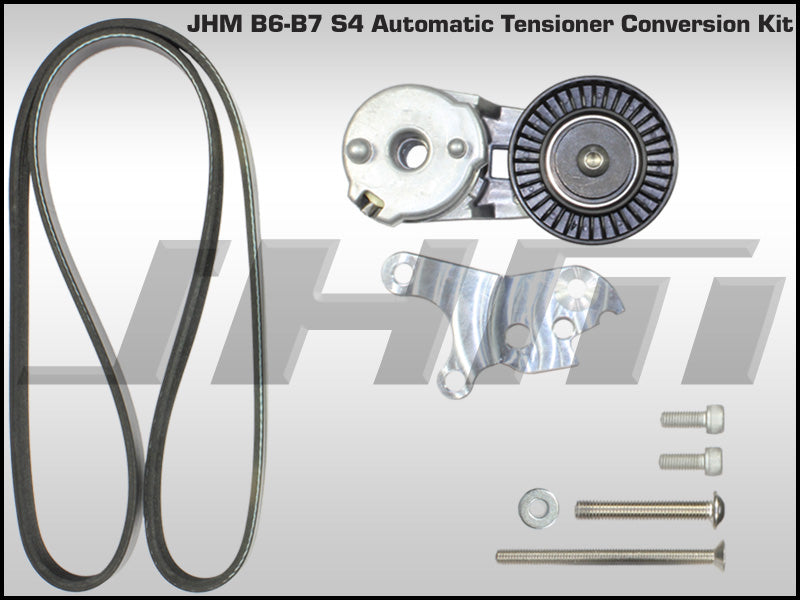

• - 1x JHM Modified Automatic Tensioner Assembly with Pulley

• - 1x JHM CNC Aluminum Mounting Bracket

• - 1x Low Profile 10mm Allen bolt and washer for mounting Tensioner to Bracket

• - 2x 8mm Allen Bolts for Mounting Bracket to block

• - 1x 8mm Allen Flat Head Bolt for Mounting Bracket to Alternator

• - 1x Gates 5-Rib Belt (High quality, used exclusively in our Supercharger Kits)

REPLACES THE FOLLOWING OEM PARTS:

• - 1x Serpentine Belt (5-rib) - 079903137E or 079 903 137 E

• - 1x Plastic Idler Pulley - 079903341 or 079 903 341

• - 1x Manual Tensioner Assembly - 079903133R or 079 903 133 R

• - And some miscellaneous OEM hardware and brackets that are no longer needed

• Audi S4 B6 (2003-2005) 4.2l V8 40v

• Audi S4 B7 (2005.5-2009) 4.2l V8 40v

• Audi allroad C5 (2001-2005) 4.2l V8 40v


JHM-079903133R-Kit

Manufactured by

JH Motorsports
