The 2002 - 2003 B6 A4 6-speed "Trio" Package (early) NOTE: This trio package does not work on the 04 and up 1.8t and 3.0l V6 with the 02X and 01X manual transmission. This is for the the 02 and 03 3.0l V6 A4 with the 01E manual transmission only.

This package includes: JHM "Solid" Short Throw Shifter, Delrin Shifter Stabilizer Bushing and the "Solid" Linkage Upgrade

Guaranteeing the ultimate shifting experience.

You save $$ vs. buying these three items separately.
JHM "Solid" shifter for B6/B7 A4 6-speed, 2002 onPROUDLY DESIGNED AND BUILT IN CALIFORNIA
INCLUDES THE FOLLOWING - new JHM Steel shaft, , Tig Welded Steel lower link, Delrin Bushings, New pushdown reverse springs (stock, medium and stiff) and all other hardware. Retains stock shifter knob. Instructions are not included with the package, just use the video links below and watch prior to installing. COMES COMPLETELY ASSEMBLED (retains pushdown reverse) Ready to be installed into your factory base. VIEW COMPARISON VIDEOVIEW SHIFTING DEMONSTRATION VIDEOVIEW INSTALLATION VIDEO

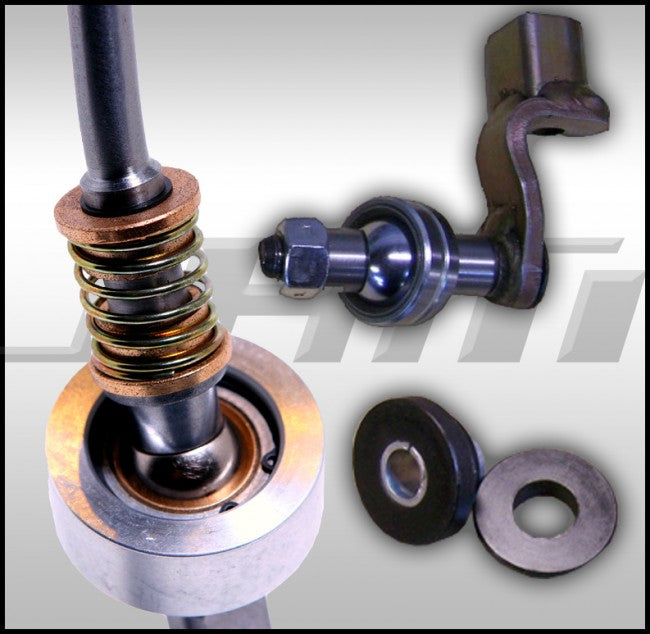

Supplemental install instructions (adjustment of the 6-speed type shifter) PICTURE OF A DISASSEMBLED JHM SHIFTERPICTURE OF A OUR EXCLUSIVE PIVOT ASSEMBLY
NEW! - INCLUDED OPTION WITH ALL SHIFTERS - FREE!
Pushdown Reverse Spring Stiffness: Additional pushdown reverse springs included for those aggressive drivers that have the tendency to accidentally push the shifter down while shifting.This shifter is only availabin in the Extra Short Throw version with 1/2" shorter knob height and 45% and 35% reduction settings.(Includes 4 bushings to allow more clearance in the shifter box for the additional throw reduction).
Extra Short Throw Version Install Notes
NOTE: Shifters come with 2 reduction settings. They ship already in the largest amount of reduction setting. See this pic for more info JHM Delrin shifter stabilizer bushing for B6/B7 A4 6-speed, 2002 on
INCLUDES THE FOLLOWING - JHM Delrin 2-piece bushing to replace the OEM rubber bushing, 1 - steel washer, 1 - Mounting bolt and 1-steel bushing insert. (This bushing is located at the transmission and is separate from our shifter) to determine your bushing year. The bushings are different depending on which shifter design your car has. VIEW COMPARISON VIDEOVIEW INSTALLATION VIDEO
NOTE: This video is just a guide. The install was done on a 5 speed car, on a 6 speed car the bushing is on top of the trans and is more difficult to access. VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED
NOTE: This video helps you have a better understanding of the linkage and how this bushing would be replaced. PICTURE OF THE JHM BUSHING VS. STOCK
NOTE: This bushing will transfer more noise and vibration to your shifter and shifter box vs. the stock rubber bushing. This is what gives you the enhanced feel and confidence when shifting. This is recommended for serious enthusiasts only; who want to fully compliment their JHM solid short throw shifter and linkage upgrade and want their car to shift as precise as possible.JHM Solid Linkage Upgrade for B6 A4 6-speed, 2002-2003(early)
NOTE: This linkage fits ONLY 2002-2003 B6 A4 6-speeds with a V6 engine. (Early)

INCLUDES THE FOLLOWING - JHM Modified OEM shift shaft link ($80 from dealer), JHM Modified Steel Spherical bearing, stainless steel spacers, all hardware, loctite and synthetic grease.

(This linkage is located at the transmission and is separate from our shifter) This linkage fits ONLY V6 2002-2003 B6 A4 6-speeds.COMES AS A COMPLETE DO IT YOURSELF KIT Only some cutting is required to allow proper clearance. VIEW COMPARISON VIDEOVIEW INSTALLATION VIDEO
NOTE: This video covers the installation of only the actual kit once the linkage rod is removed the car. VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED
NOTE: This video helps you have a better understanding of the linkage and how this shift rod would be removed for replacement. PICTURE OF THE JHM LINKAGE UPGRADE VS. STOCKPICTURE SHOWING THE DETAILS OF THE INSTALL
NOTE: Some cutting of your OEM linkage rod is required, other than that, this is a full bolt in kit.

For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.



Make	Model	Chassis	Engine
Audi	A4	B6 (2002-2005)	3.0l V6 30v

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



JHM-PKG-B6A4EV6
