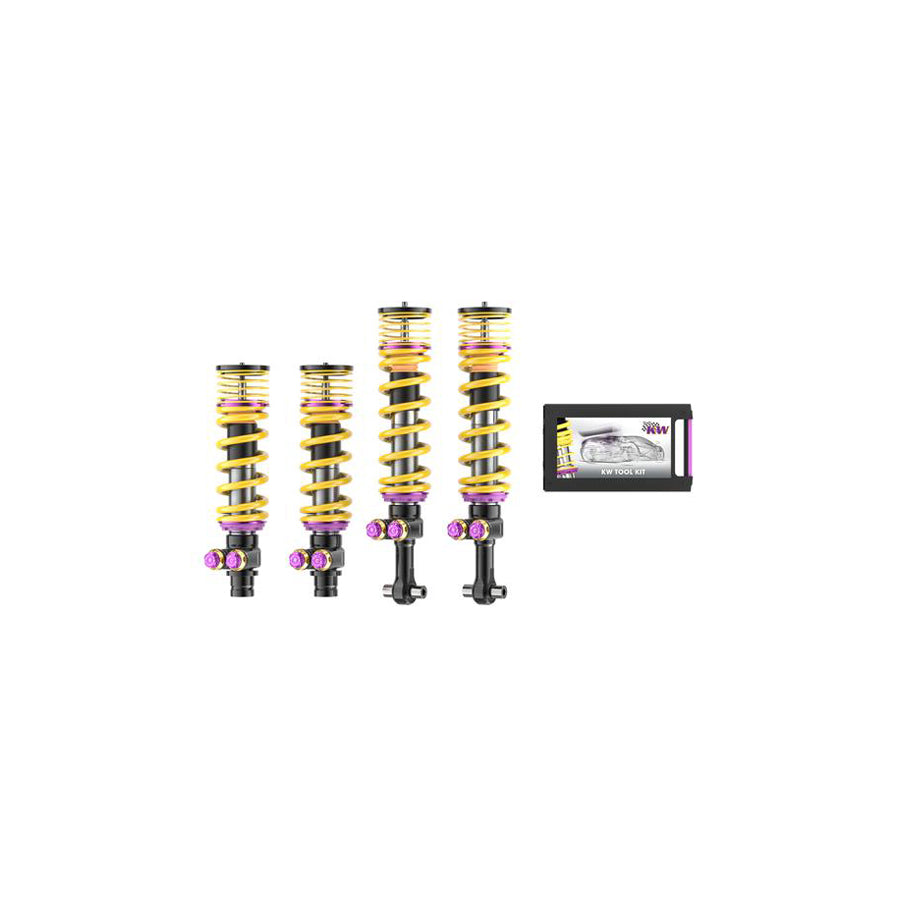

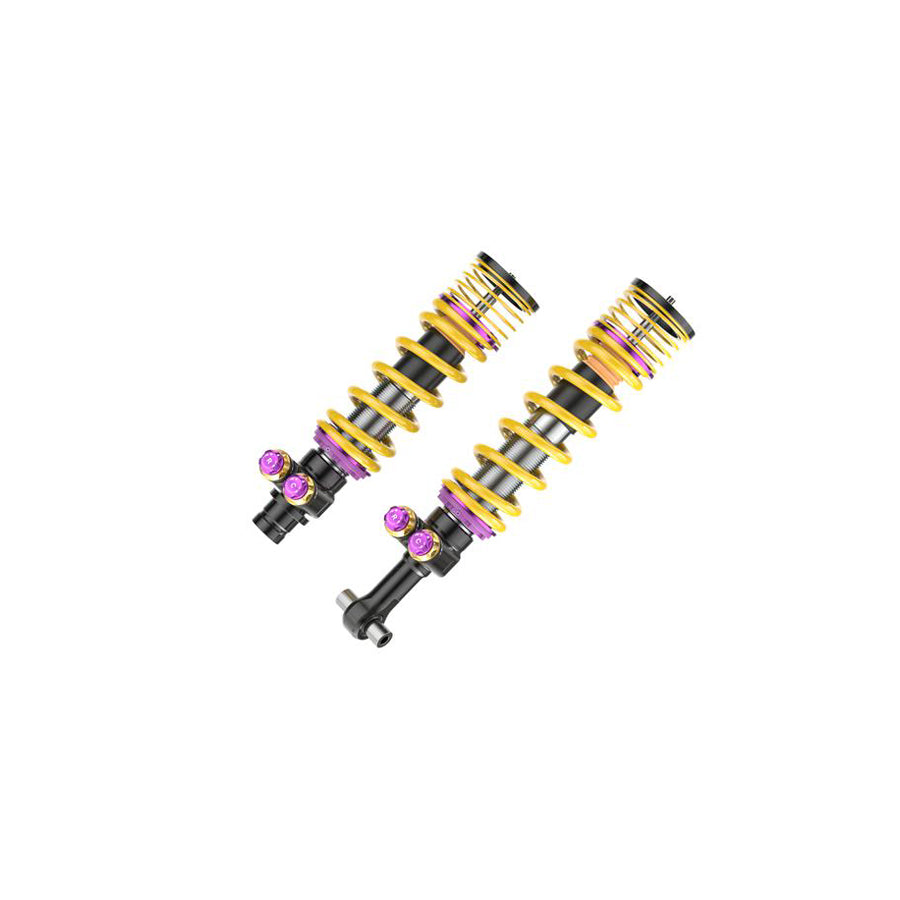

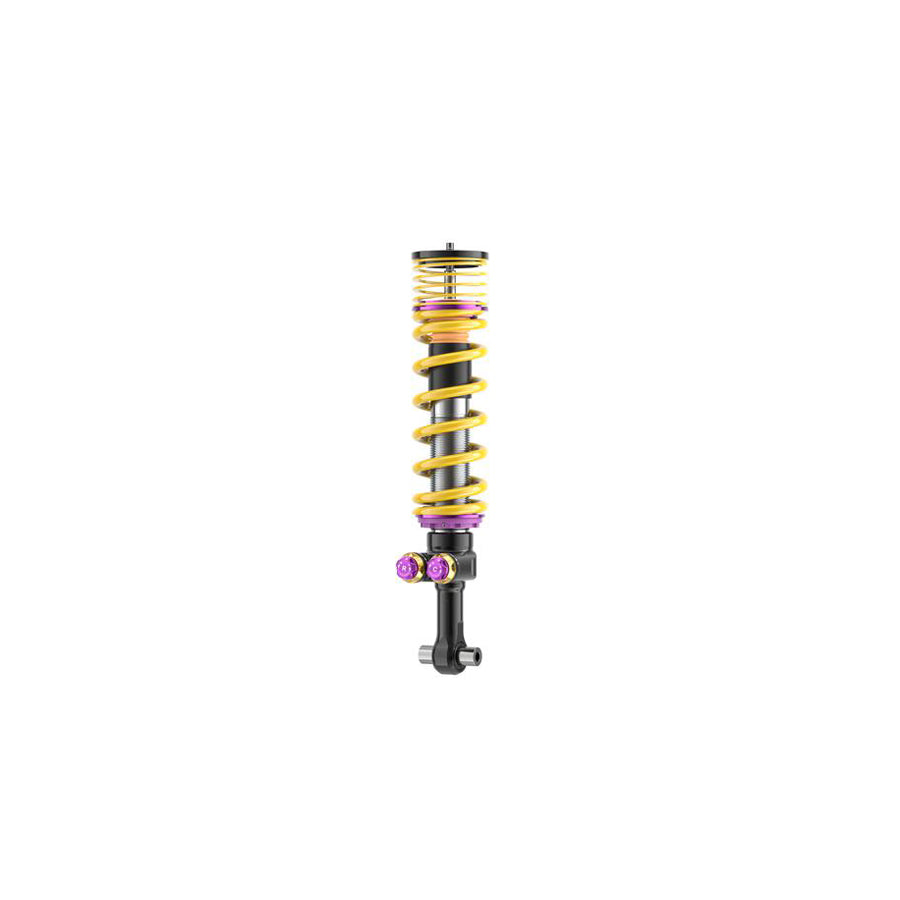

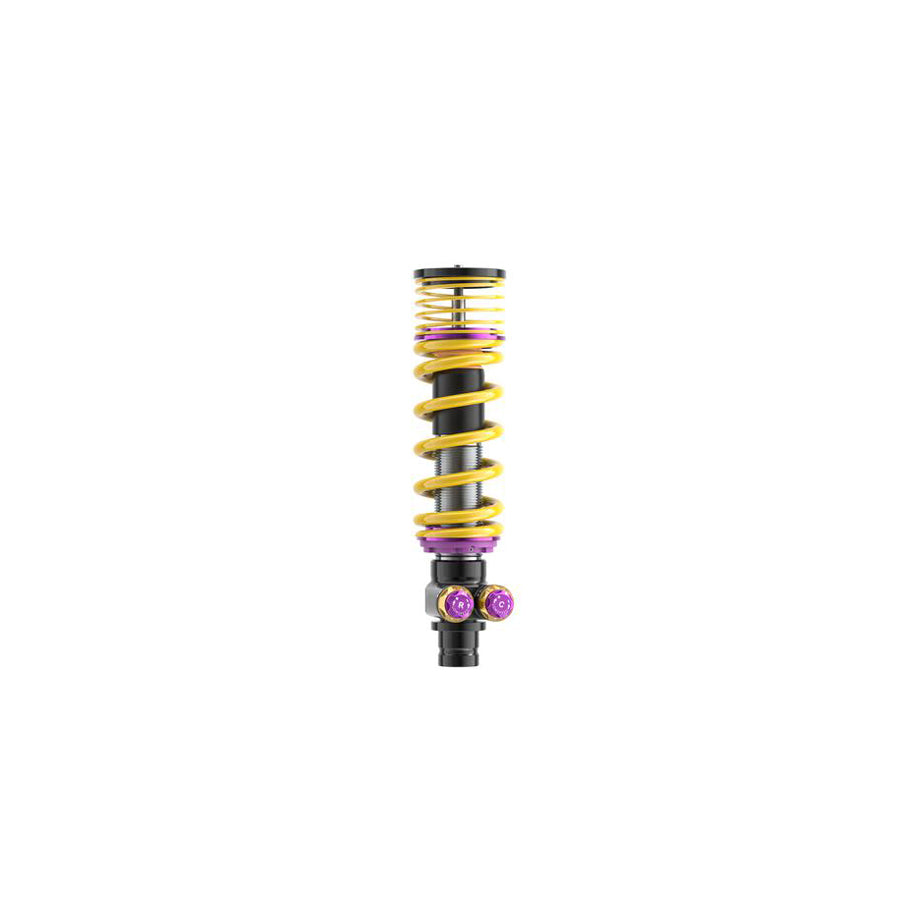

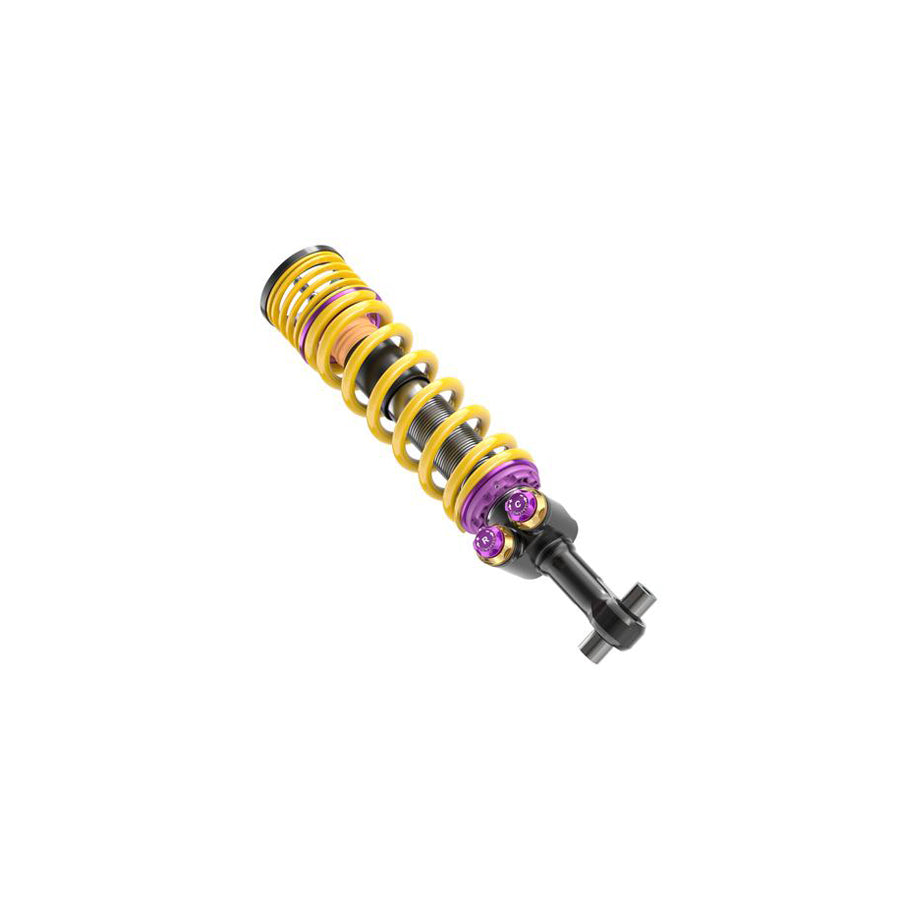

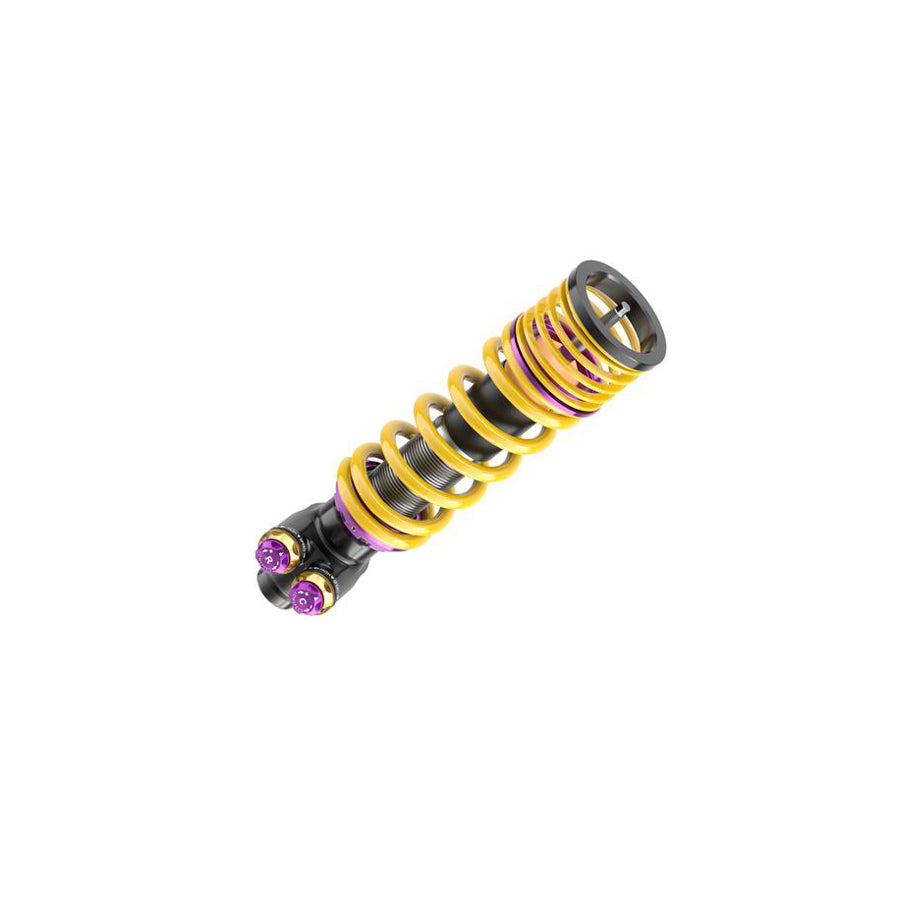

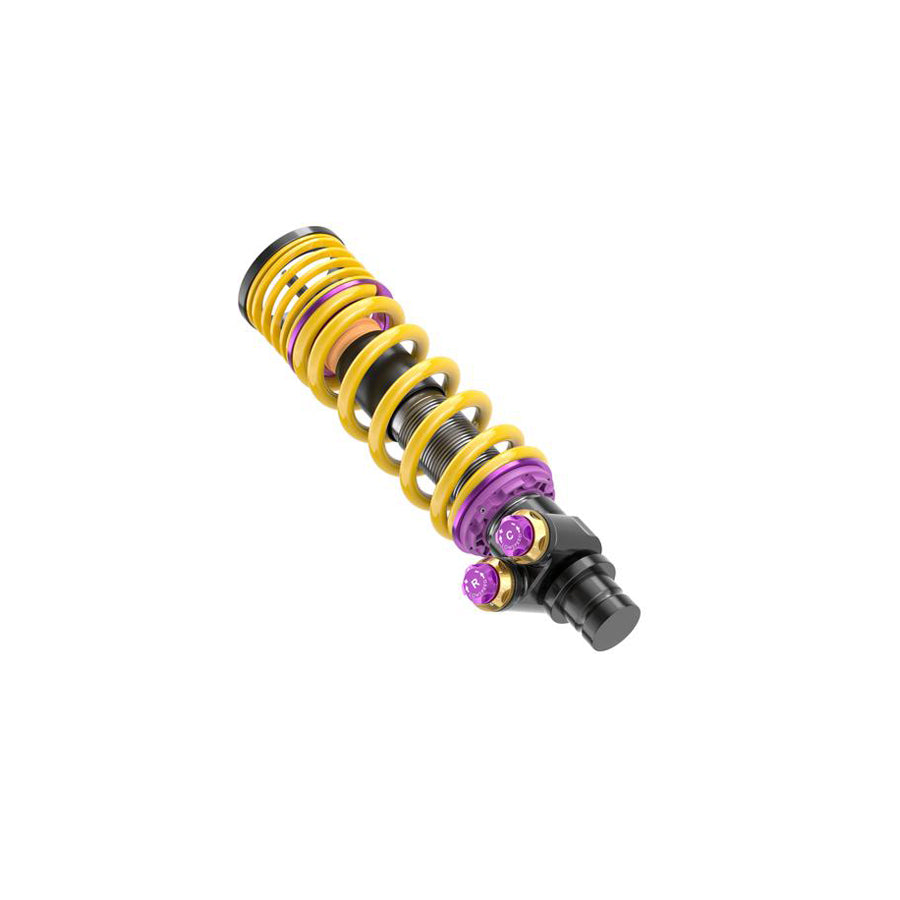

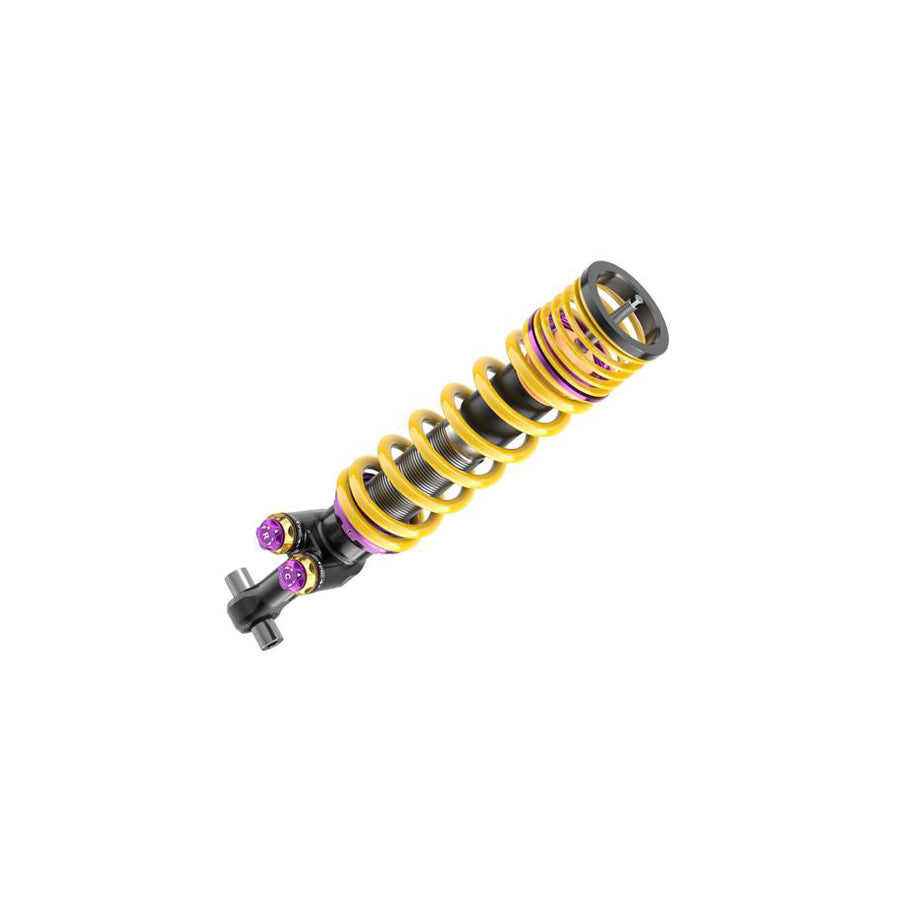

By launching the new KW V5 coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series. The KW V5 assures precise and fast damping without delay in sports cars and super sports cars. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and every input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped much more precisely. The KW Solid Piston dampers provide much more platform support to the chassis than conventional dampers and thus, depending on the vehicle body allow for lower spring rates to be used.

In contrast to traditional shocks with valves in the inner tube, KW coilovers and KW dampers with Solid Piston use a valve arrangement that is separate from the damper inner tube and piston rod. The low- and high-speed valve units in the KW V5 coilover suspension, which are built-in series with different valve spring types and main valves, offer the freedom to individually adjust the compression and rebound damping with 14 exact clicks (14 characteristic curves) each in the low- and high-speed range.

- 4-way adjustable high-performance dampers with coilover struts made of aluminium
- Solid Piston technology
- Separate and independent damper setup in:
- Low speed Rebound damping with 14 exact clicks + (tighter) / - (more comfortable)
- High speed Rebound damping with 14 exact clicks + (tighter) / - (more comfortable)
- Low speed damping with 14 exact clicks + (tighter) / - (more comfortable)
- High speed damping with 14 exact clicks + (tighter) / - (more comfortable)
- Two basic setups with comfort adjustment and performance setup

Specifications

Note:

• Height adjustable on the front and rear axles (threaded strut housings)
• Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
• Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

• Parts Approval 
• Installation Instruction 
• Installation Instruction (Cancellation Kit) 
• Adjustment Manual 

30950038

Manufactured by

KW

Warranty

• Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
• Bushings, Bump stops and Ball Joints - 1 Year
• Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.

EAN

4250580409380
