The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving. The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.

Designed on the toughest race track in the world: The Nürburgring Nordschleife

The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW Clubsport 2-way and KW Clubsport 3-way (with separate reservoir) provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.

KW Clubsport 3-way coilovers The technology of the 24-hour race winner

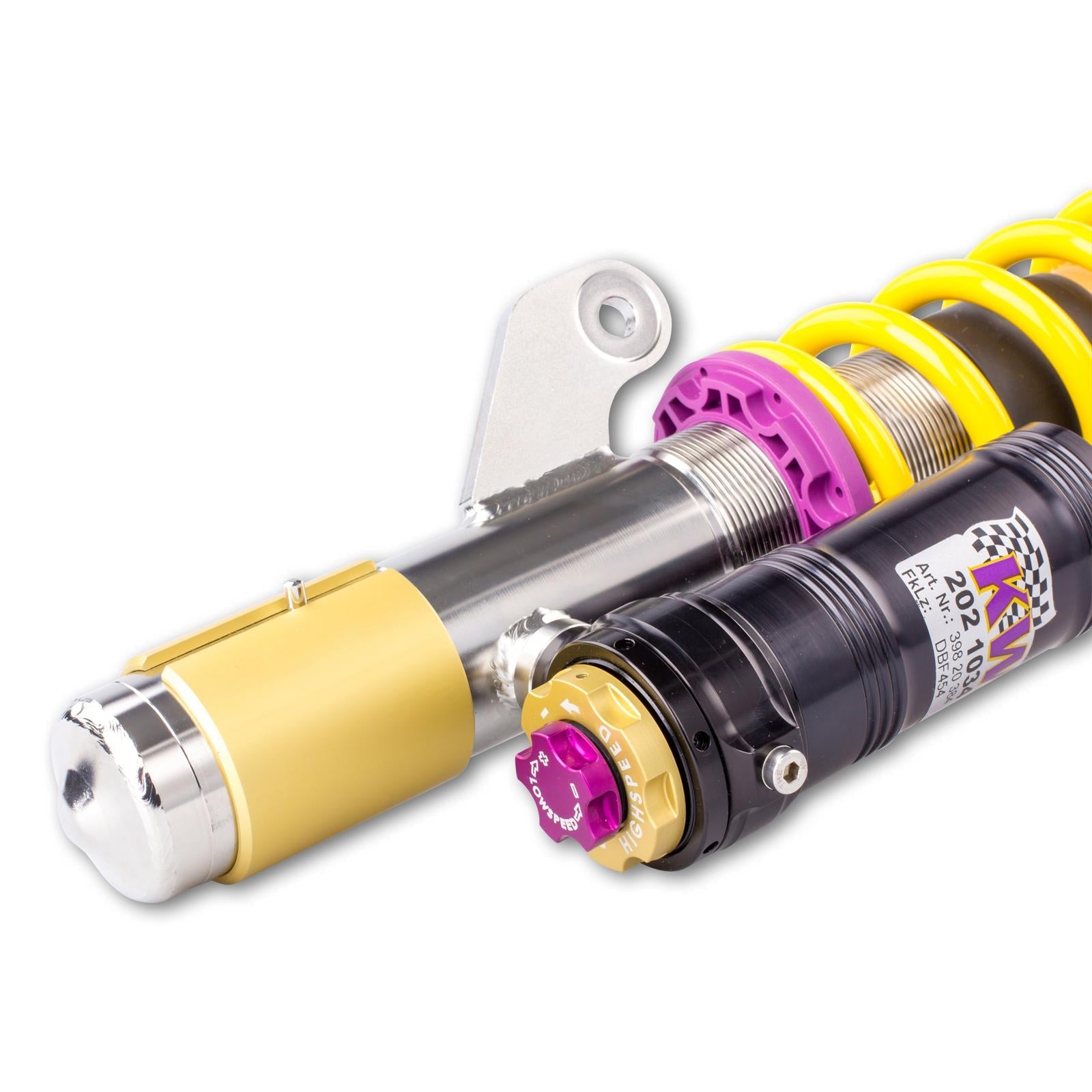

Using the Nordschleife as it's testing grounds and the 7-post rig, KW developed it's 3-way Clubsport coilover kit. Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the 3-way Clubsport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.

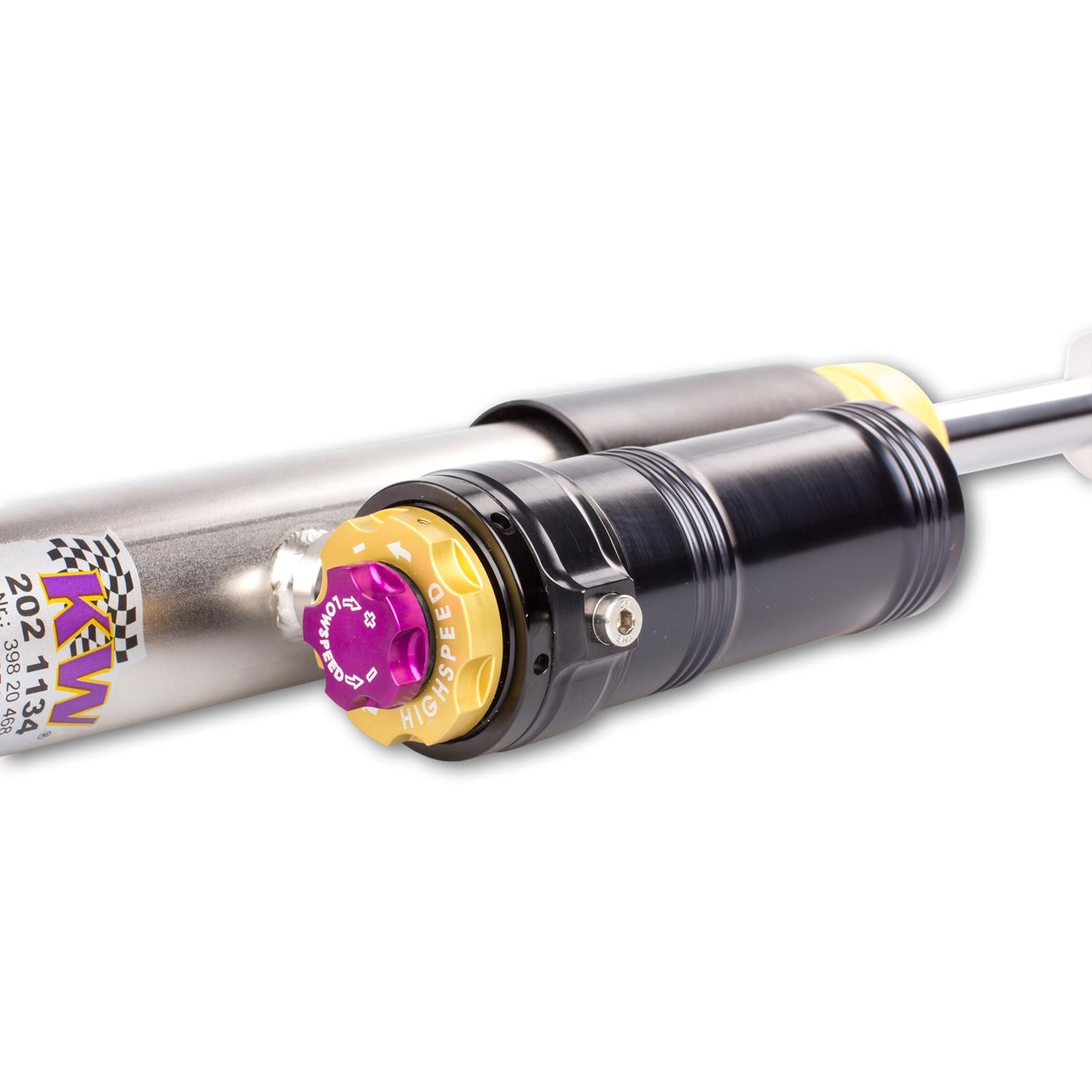

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.

Setup: Application and damper settings

KW Clubsport 3-way coilovers provide the flexibility to quickly dial their vehicle setup for various race tracks events and circuits.

Alternatively, you may be interested in the KW BMW F20 F21 F30 F32 2-Way Clubsport Coilover Kit (Inc. 116d, 125i, 330i & 440i) instead.

• Independently adjustable rebound and compression damping technology

• Stainless steel technology "inox-line"

• Continuous lowering

• Tested adjustment range

• High-quality components for a long-term durability

• Adjustable rebound damping with 16 precise clicks

• Adjustable compression damping with 12 precise clicks

• Unique, independent damping force adjustment

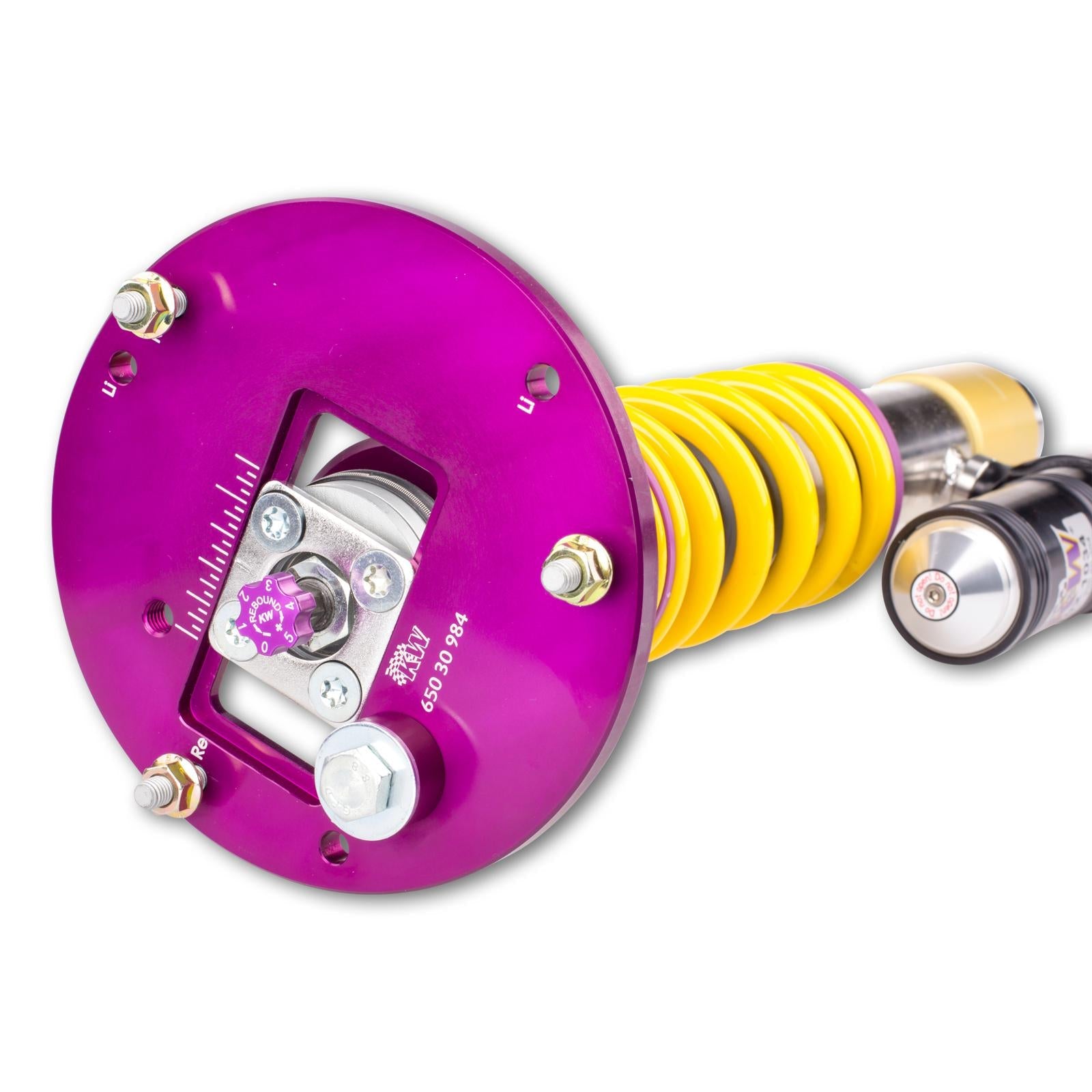

• Optional spherical bearing aluminum top mounts

Axle Load

• Front: 1090kg
• Rear: 1230kg

Lowering

• Front: 38-63mm
• Rear: 30-58mm

Please Note

• Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)

• For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list

• Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.

• Clubsport coilover with top mount: only with front axle top mount available

• Only for cars with 5-hole connection to front axle top mount

• When using original tires, wheel offset spacers may be required

• BMW 1 Series F20   (07/2010 — 02/2015)

• 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i & M140i
• BMW 1 Series F20 LCI   (05/2014 — 06/2019)

• 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i & M140i
• BMW 1 Series F21   (07/2010 — 02/2015)
• 114d, 114i, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i & M140i
• BMW 1 Series F21 LCI   (05/2014 — 06/2019)

• 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i & M140i
• BMW 3 Series F30   (02/2011 — 07/2015)
• 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i & 335i

• BMW 3 Series F30 LCI   (09/2014 — 10/2018)
• 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i & 340i
• BMW 4 Series F32   (11/2012 — 06/2016)
• 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i & 440i
• BMW 4 Series F32 LCI  (11/2012 — 06/2016)
• 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i & 440i

397202AX (For cars without electronic damper control)

397202AY (For cars with electronic damper control)

Manufactured by

KW

Warranty

2 Year KW Warranty (5 Year warranty if installed at a KW approved installer)
