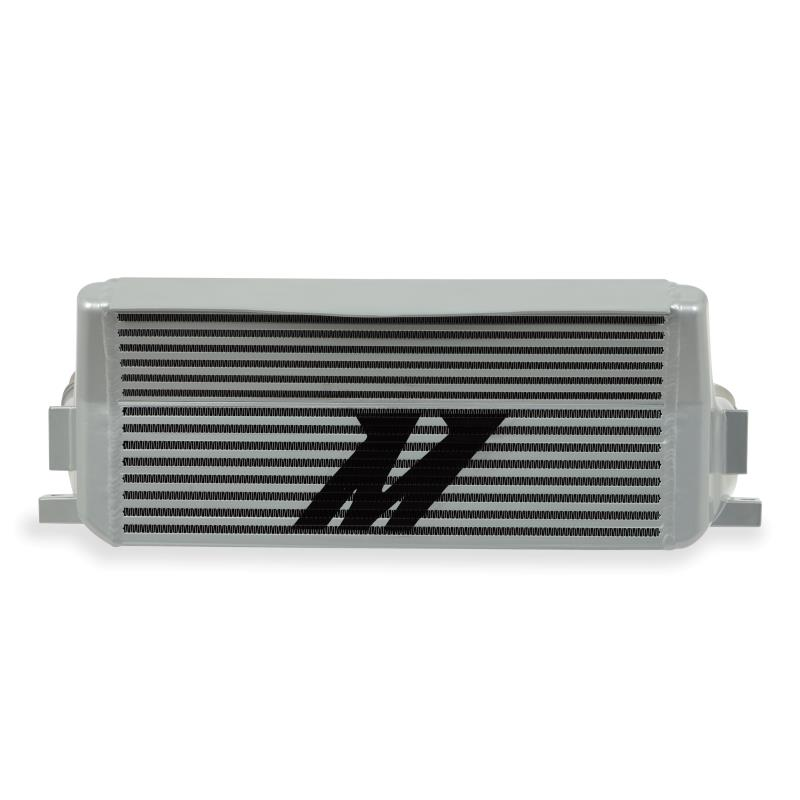

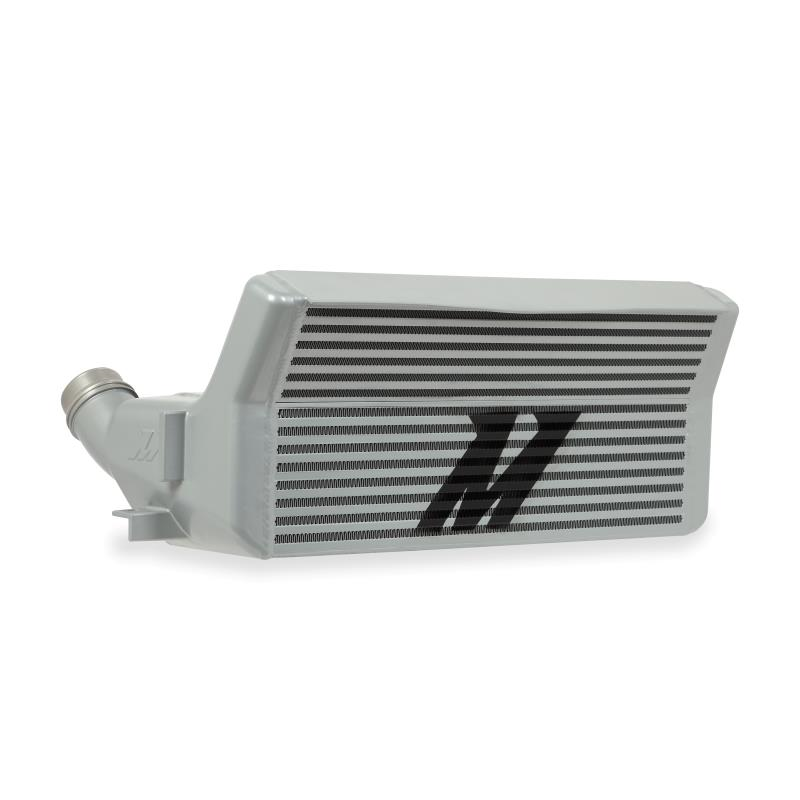

Mishimoto BMW F20 F30 F87 Performance Intercooler (Inc. M235i, 335i, 435i & M2)

Mishimoto

  • £791.80
    exc. VAT £659.83
    £659.83
  • 2 reviews


Description

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune.

Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 154mm thick step-core design adds a 115° angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction, optimizing this intercooler for heat dissipation with minimal pressure drop.

Coupled together, our features were able to drop intercooler outlet temperatures by 25°C, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in silver or black and also includes the Mishimoto Lifetime Warranty.



Note: M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.



 Features

  • Direct fit for the 2012-2016 BMW F22/F30 Chassis
  • Patent Pending
  • 152mm thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers
  • Max power gains of 10 whp and 8 wtq on stock tuning
  • Drops intercooler outlet temperature by 25°C on stock tuning
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • Intercooler core volume increased by 96%
  • External fin surface area increased by 130%
  • Header plate includes shroud specifically designed to seal against curved factory crash beam

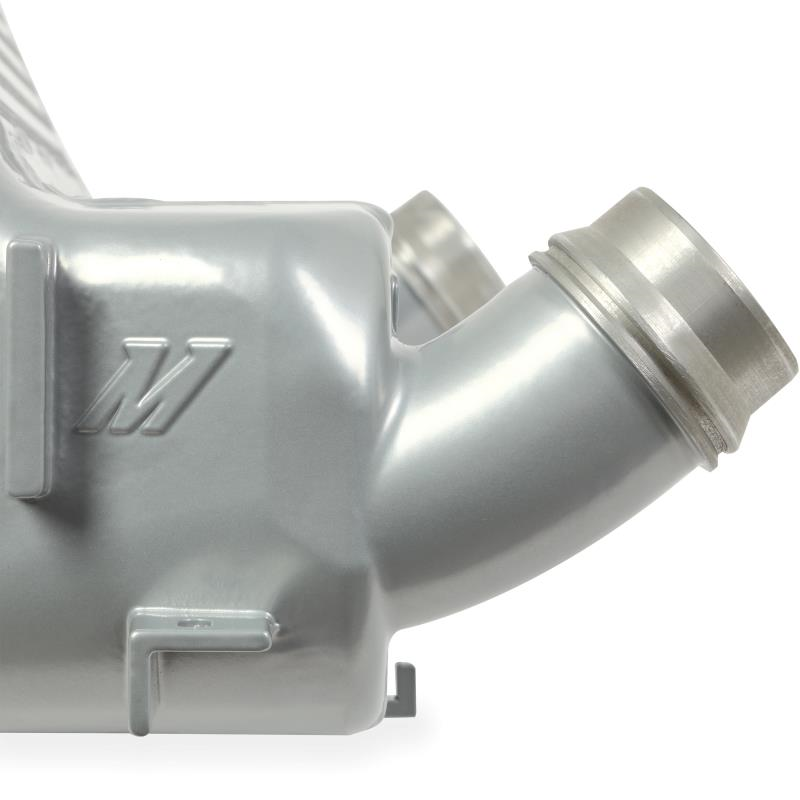

  • Retains factory quick-disconnect fittings for compatibility with stock piping

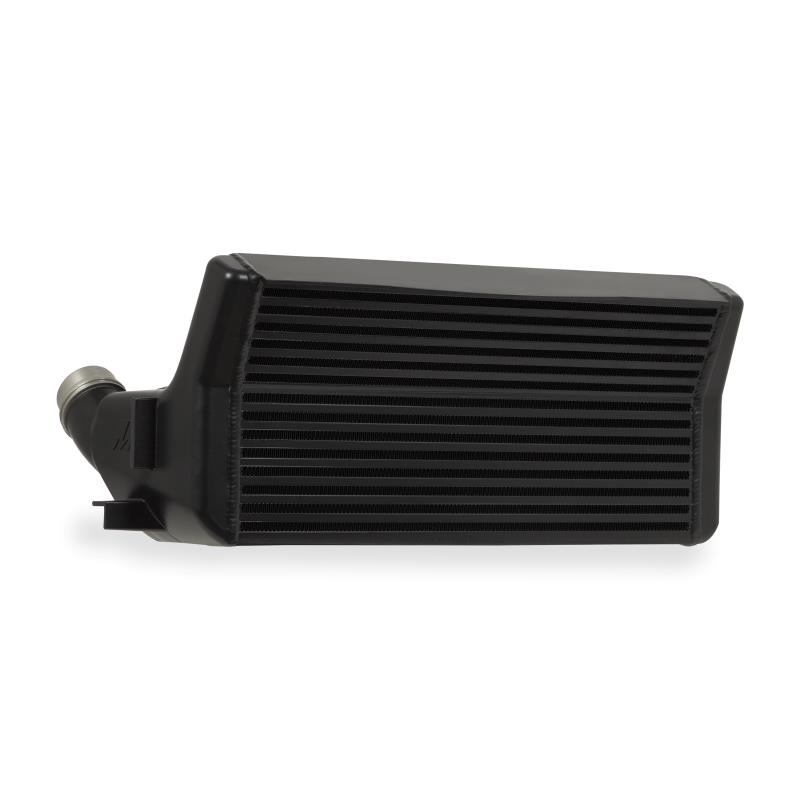

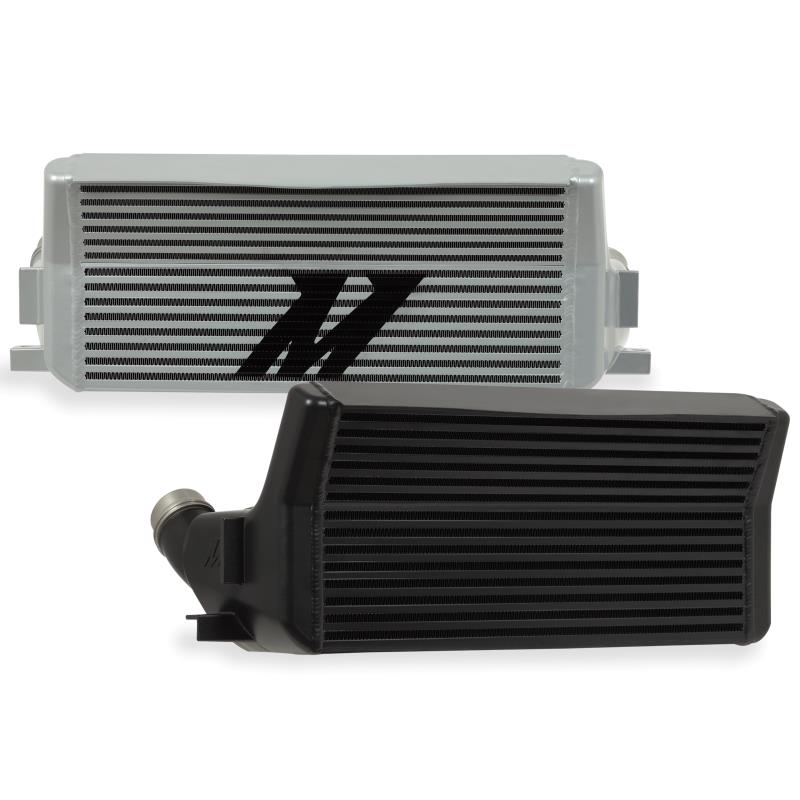

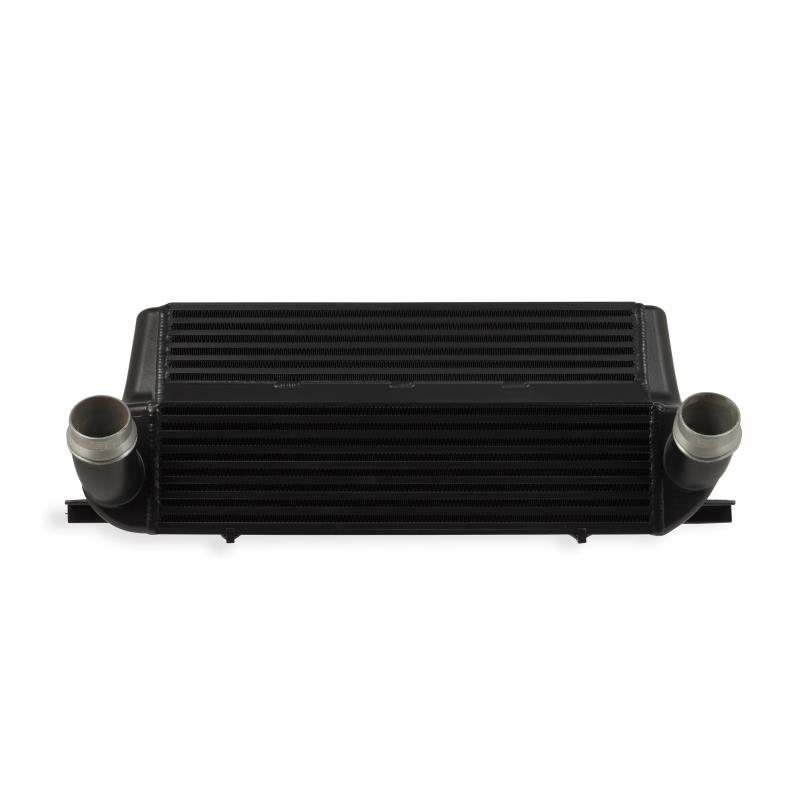

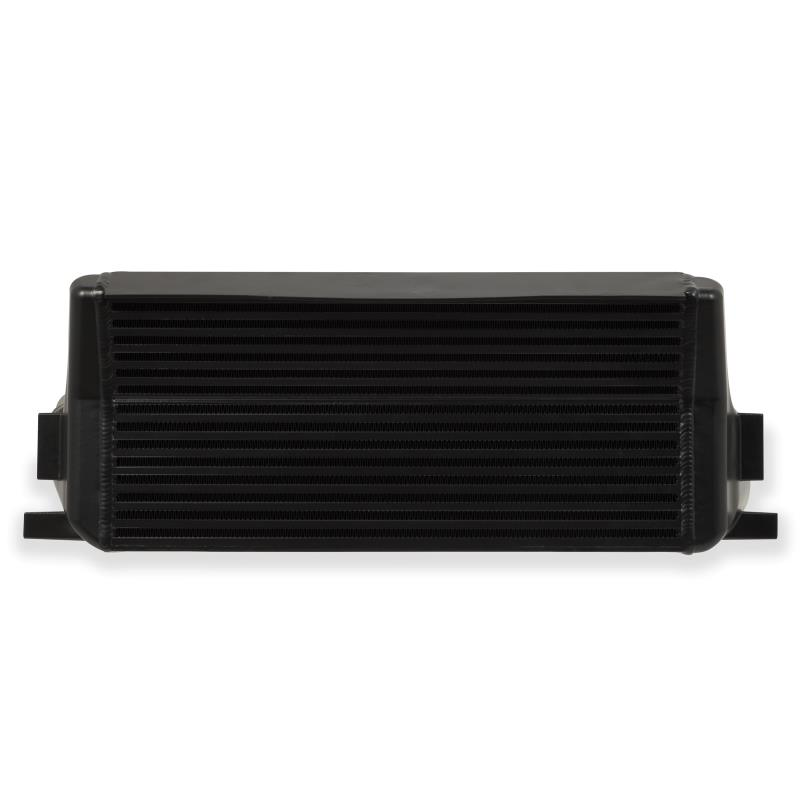

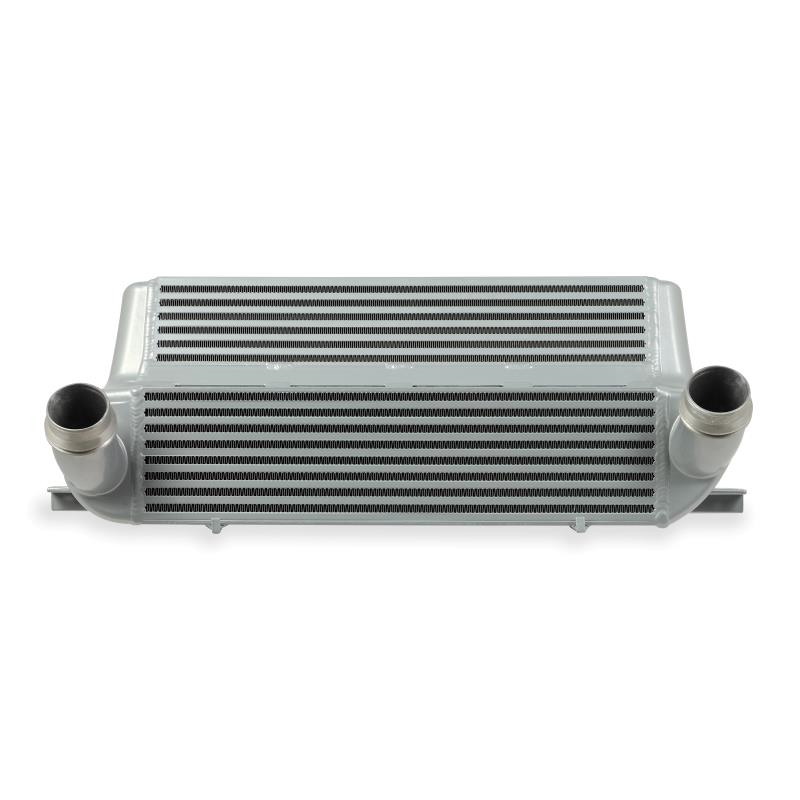

  • Available in silver or black
  • Mishimoto Lifetime Warranty



Specifications

Coating              -          Powder Coated

Core Size           -          Upper - 512 mm x 90.5 mm x 55 mm
                           -          Lower - 512 mm x 134.5 mm x 150 mm

Core Thickness  -         154 mm

Outlet                 -          55 mm

Inlet                    -          55 mm



BMW F2X/F3X Performance Intercooler Development by Mishimoto



Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility

  • 2014-2016 BMW F22 / F23 - 228i/228i xDrive (N20, N26)
  • 2014-2016 BMW F22 / F23 - M235i/M235i xDrive (N55)
  • 2013-2016 BMW F30 / F31 / F34 - 320i/ 320i ed 320i xDrive (N20)
  • 2013-2016 BMW F30 / F31 / F34 - 320i ed (N13)
  • 2012-2016 BMW F30 / F31 / F34 - 328i/328i xDrive (N20)
  • 2012-2016 BMW F30 / F31 - 328d/328d xDrive (N47N)
  • 2012-2016 BMW F30 / F31 / F34 - 335i/335i xDrive (N55)
  • 2014-2016 BMW F32 / F33 - 428i/428i xDrive - (N20, N26)
  • 2014-2016 BMW F32 / F33 - 435i/435i xDrive (N55)
  • 2016+ BMW F87 - M2 (N55)



In the Box

(1) Performance Intercooler
Mishimoto Lifetime Warranty



Installation Torque Specs

27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) Install Guide - ML Performance



Video Installation Guide



Fitted Photos

Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) - ML Performance



Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) - ML Performance



Stock Vs Mishimoto Intercooler Graph

Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) - ML Performance

Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) - ML Performance

Mishimoto BMW F20 F30 F87 Performance Intercooler (M2, M235i, 335i & 435i) - ML Performance





Warranty

Mishimoto Lifetime Warranty

Mishimoto Lifetime Warranty Seal - ML Performance UK



Manufactured by

Mishimoto



Part Number

MMINT-F30-12SL (Silver)

MMINT-F30-12BK (Black)
