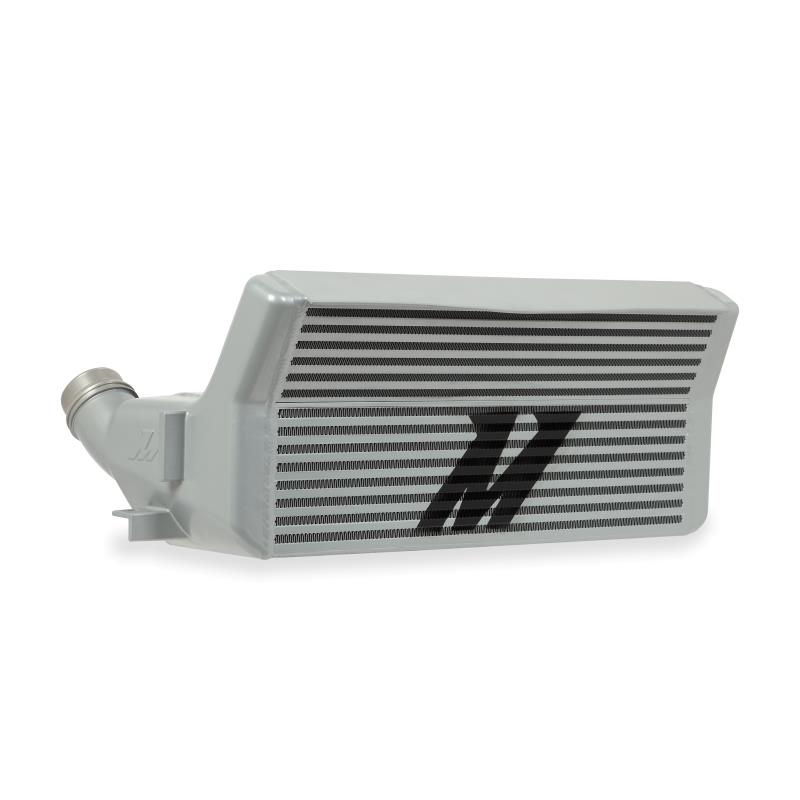

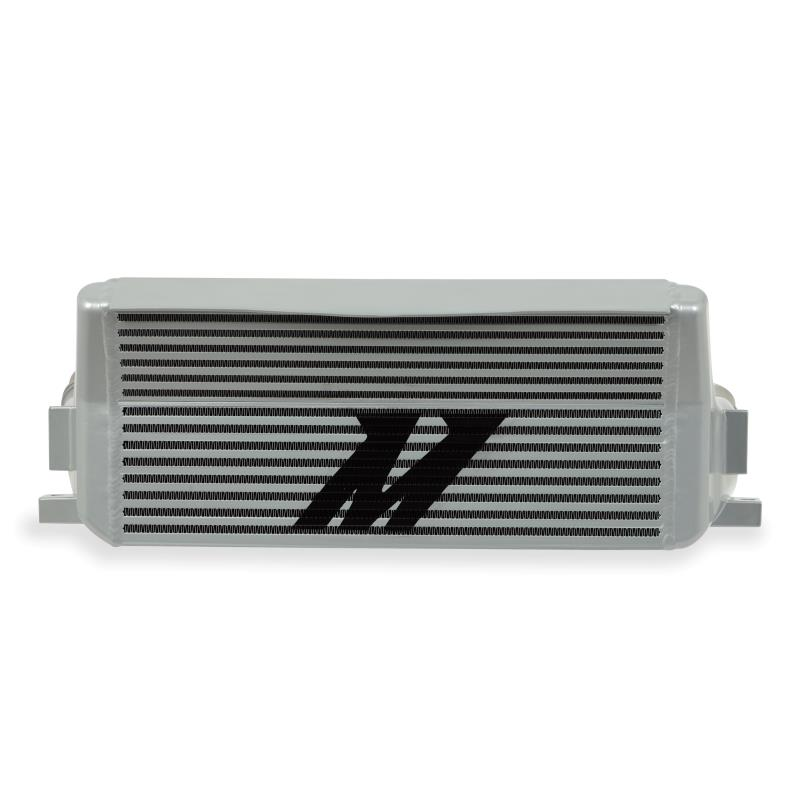

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune.

Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 154mm thick step-core design adds a 115° angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction, optimizing this intercooler for heat dissipation with minimal pressure drop.

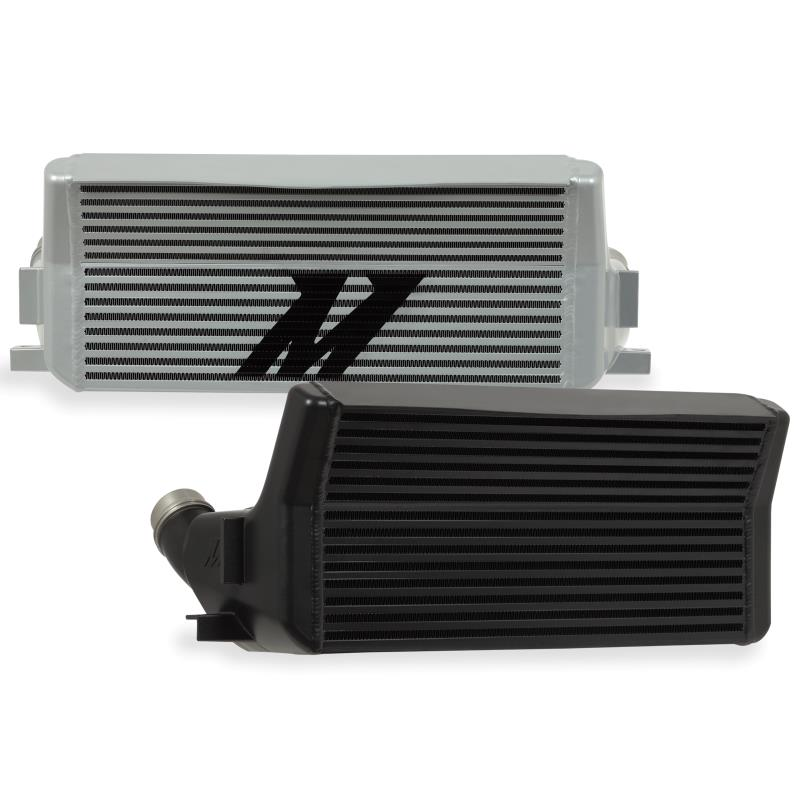

Coupled together, our features were able to drop intercooler outlet temperatures by 25°C, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in silver or black and also includes the Mishimoto Lifetime Warranty.

Note: M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.

This product has been discontinued and replaced with Mishimoto BMW F20 F30 F87 Performance Intercooler (Inc. M235i, 335i, 435i & M2).

• Direct fit for the 2012-2016 BMW F22/F30 Chassis
• Patent Pending
• 152mm thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers
• Max power gains of 10 whp and 8 wtq on stock tuning
• Drops intercooler outlet temperature by 25°C on stock tuning
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Intercooler core volume increased by 96%
• External fin surface area increased by 130%
• Header plate includes shroud specifically designed to seal against curved factory crash beam

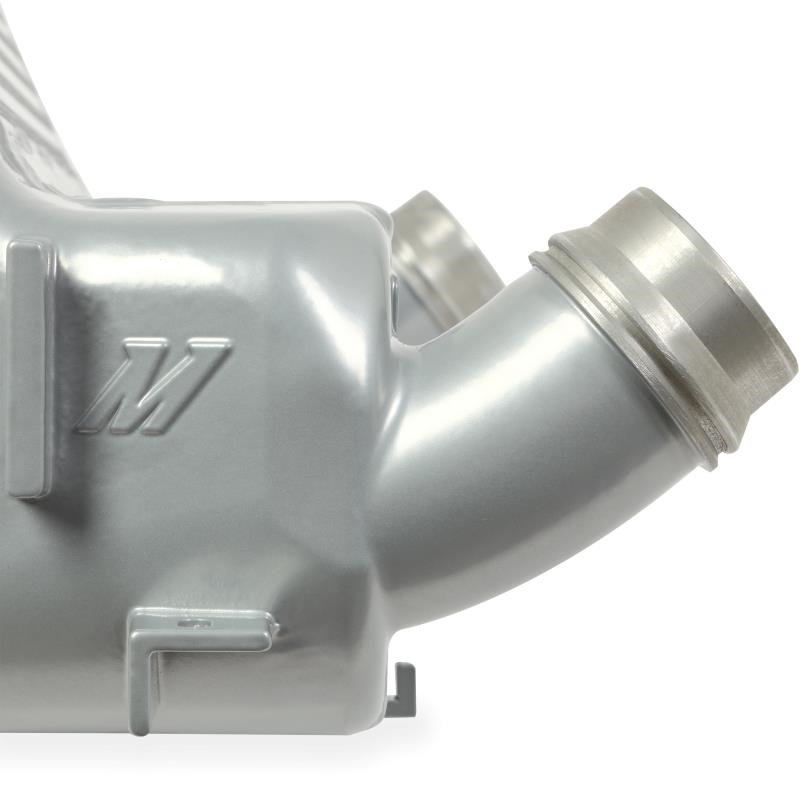

• Retains factory quick-disconnect fittings for compatibility with stock piping

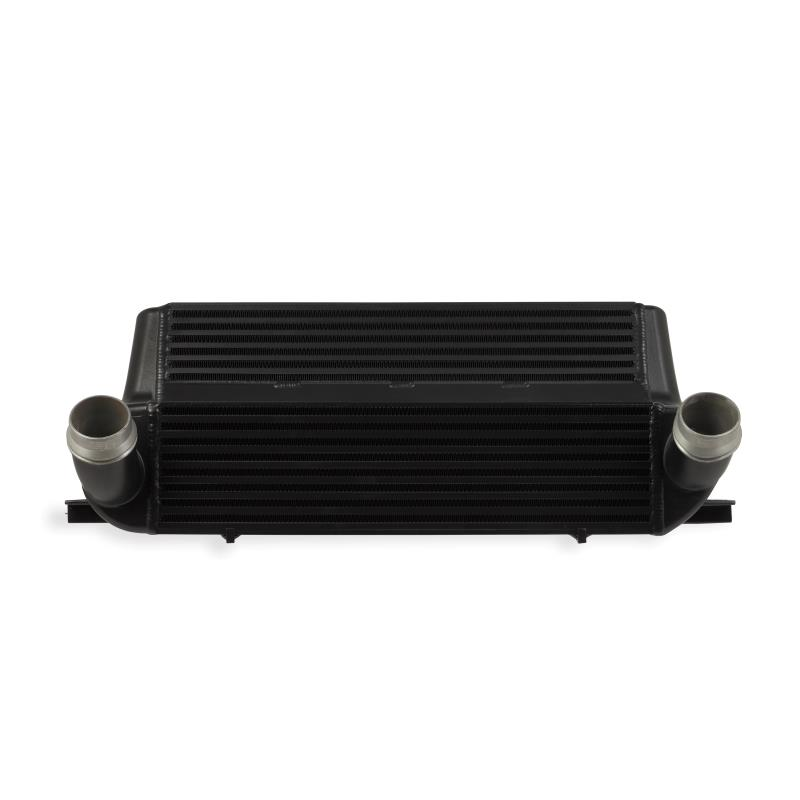

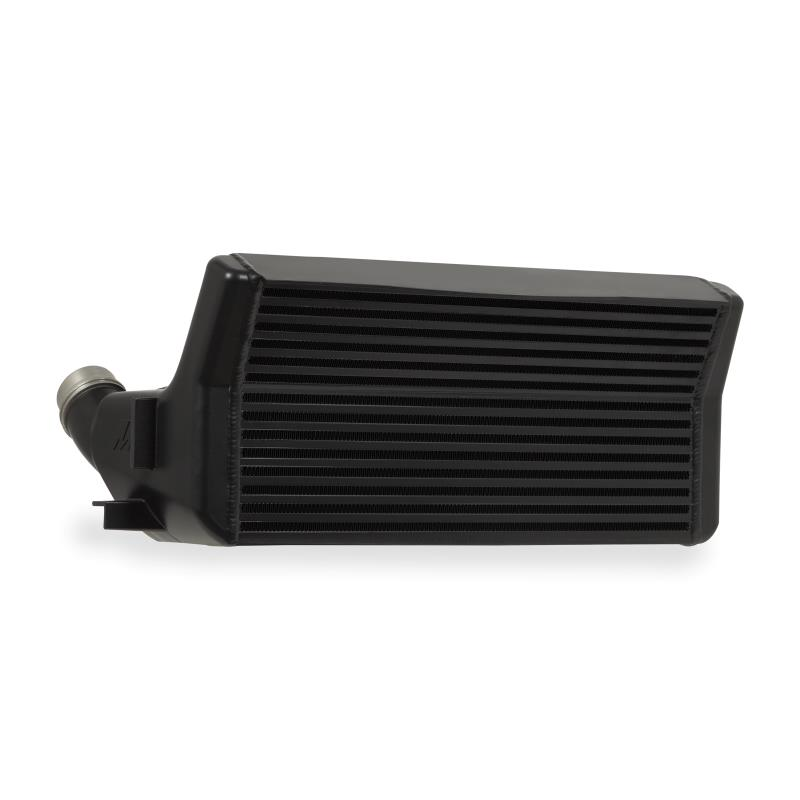

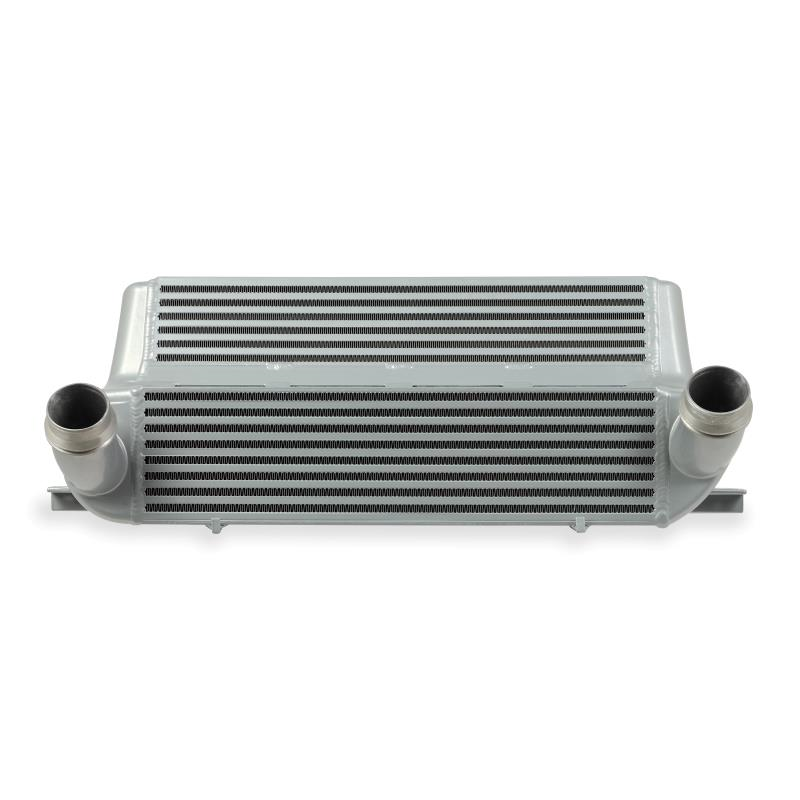

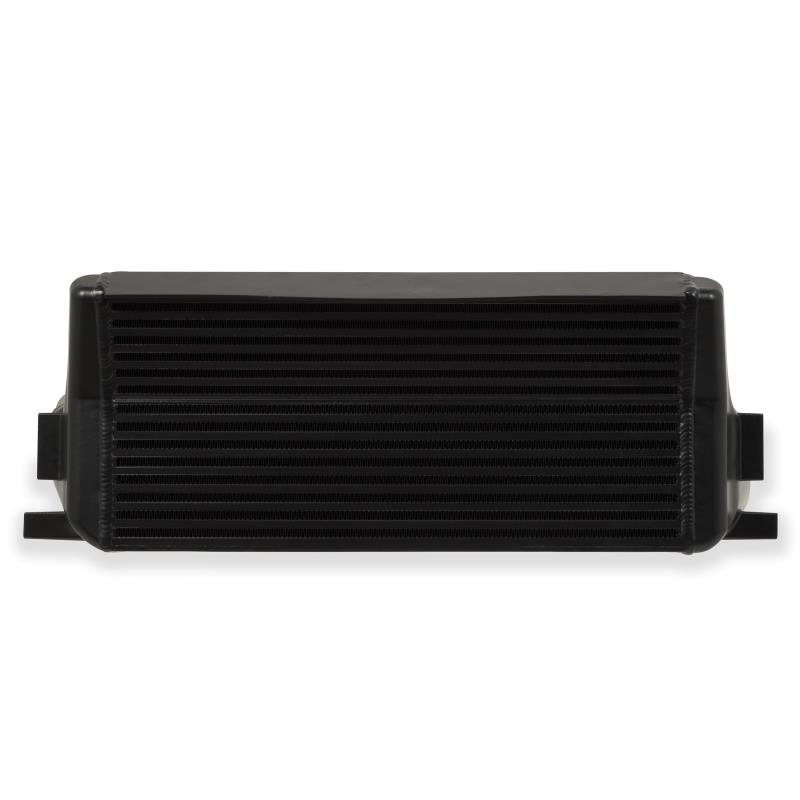

• Available in silver or black
• Mishimoto Lifetime Warranty

Specifications

Coating              -          Powder Coated

Core Size           -          Upper - 512 mm x 90.5 mm x 55 mm
                           -          Lower - 512 mm x 134.5 mm x 150 mm

Core Thickness  -         154 mm

Outlet                 -          55 mm

Inlet                    -          55 mm

(1) Performance Intercooler
Mishimoto Lifetime Warranty

2014-2016 BMW F22 / F23 - 228i/228i xDrive (N20, N26)

2014-2016 BMW F22 / F23 - M235i/M235i xDrive (N55)

2013-2016 BMW F30 / F31 / F34 - 320i/ 320i ed 320i xDrive (N20)

2013-2016 BMW F30 / F31 / F34 - 320i ed (N13)

2012-2016 BMW F30 / F31 / F34 - 328i/328i xDrive (N20)

2012-2016 BMW F30 / F31 - 328d/328d xDrive (N47N)

2012-2016 BMW F30 / F31 / F34 - 335i/335i xDrive (N55)

2014-2016 BMW F32 / F33 - 428i/428i xDrive - (N20, N26)

2014-2016 BMW F32 / F33 - 435i/435i xDrive (N55)

2016+ BMW F87 - M2 (N55)

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Stock Vs Mishimoto Intercooler Graph

27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

MMINT-F30-12B (Black)

MMINT-F30-12 (Silver)

Manufactured by

Mishimoto

Warranty

Mishimoto Lifetime Warranty

BMW F2X/F3X Performance Intercooler Development by Mishimoto
