Mobil

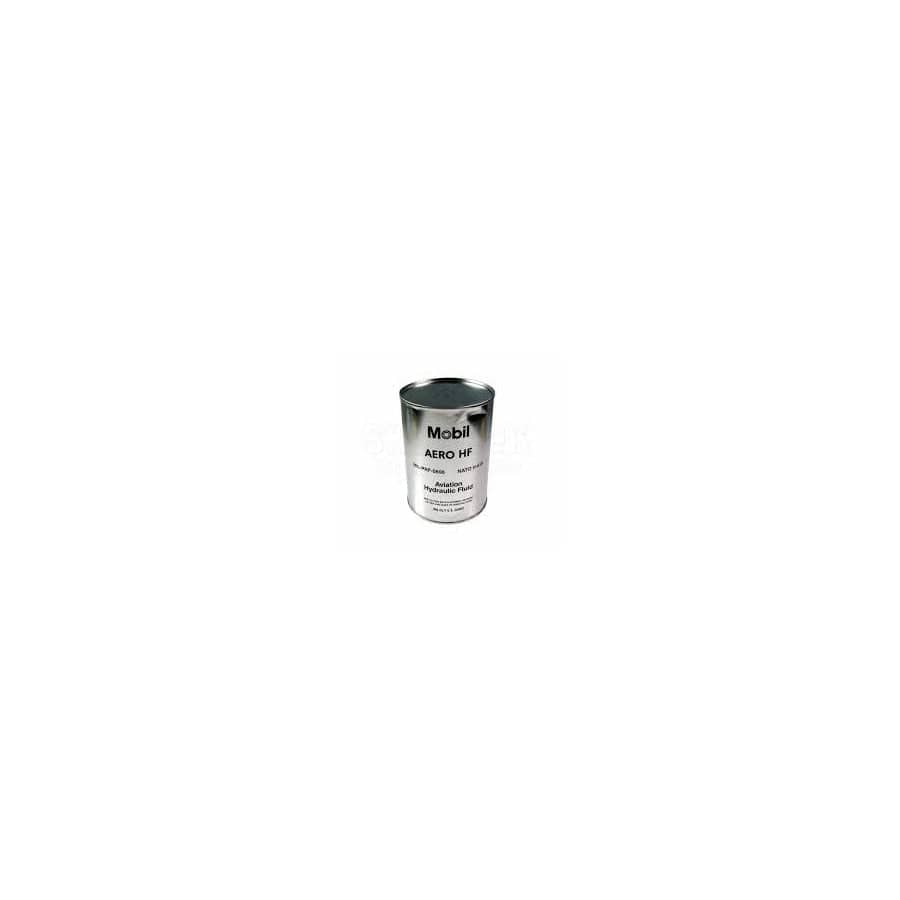

Mobil AERO HF PAIL 5USG 5USG
Mobil AERO HF PAIL 5USG 5USG
Notify Me When Available
Collect 0 points
Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.
Fitting service at Xatrix, West Yorkshire
We can offer a fitting service for this part. Contact us for a fitting quote.
- Mobil Aero HFA and HF are formulated for aircraft systems where use of hydrocarbon-based hydraulic fluids is required.
- They are low viscosity products, high VI (viscosity index) fluid with excellent low temperature properties, good anti-wear performance, and good chemical stability.
- Mobil Aero HFA and HF are composed of mineral base oil stock and contain shear-stable VI improvers.
Specification and Approvals
|
Property |
HF |
HFA |
|
API Gravity, °API, ASTM D287 |
29 |
30 |
|
Acid Number, mgKOH/g, ASTM D664 |
0.03 (0.2 max) |
|
|
Barium, mg/kg, ASTM D5185 |
<1 (10 max) |
|
|
Bulk Modulus, Isothermal secant at 40 C/4000 psi, psi, ASTM D6793 |
200,000 min |
200,000 min |
|
Color, Visual |
Red |
Red |
|
Copper Strip Corrosion, 72 hrs at 135 C, ASTM D130 |
1B (2E max) |
1B (2E max) |
|
Corrosion and Oxidation Stability, 168 hours at 135 C, Rating, ASTM D4636 |
PASS |
PASS |
|
Density @ 60 F, lb/gal, CALCULATED |
7.26 |
7.26 |
|
Evapor. Loss, 6H at 71C, mass %, ASTM D972 |
12 (20 max) |
|
|
Flash Point, Cleveland Open Cup, °C, ASTM D92 |
107 |
107 (93 min) |
|
Flash Point, Pensky-Martens Closed Cup, °C, ASTM D93 |
96 (82 min) |
92 |
|
Foam, Sequence I, Stability, ml, ASTM D892 |
0 |
|
|
Foam, Sequence I, Tendency, ml, ASTM D892 |
36 (65 max) |
|
|
Four-Ball Wear Test, Scar Diameter, mm, ASTM D4172 |
0.6 (1.0 max) |
|
|
Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D4172 |
0.6 (1.0 max) |
|
|
Kinematic Viscosity -40 F, cSt, ASTM D445 |
450 (500 max) |
|
|
Kinematic Viscosity 130 F, cSt, ASTM D445 |
10.4 (10.0 min) |
|
|
Kinematic Viscosity @ -40 C, mm2/s, ASTM D445 |
450 (600 max) |
|
|
Kinematic Viscosity @ -54 C, mm2/s, ASTM D445 |
2000 (2500 max) |
1900 |
|
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445 |
5.2 (4.9 min) |
5.2 |
|
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445 |
14.0 (13.2 min) |
14.0 |
|
Low Temperature Stability, 72 hrs @ - 54 C, FTM 3459 |
PASS |
|
|
Low Temperature Stability, 72 hrs @ - 54 C, FTM 791.3458 |
PASS |
|
|
Particulate Contamination, mg/100ml, ASTM D4898 |
0.2 (0.3 max) |
|
|
Pour Point, °C, ASTM D97 |
-62 (-60 max) |
-64 (-60 max) |
|
Shear Stability, %KV loss, ASTM D2603 |
15 max |
|
|
Specific Gravity 60 F / 60 F, ASTM D1429 |
0.872 |
|
|
Specific Gravity, 15.6 C/15.6 C, ASTM D4052 |
0.872 |
|
|
Viscosity Index, ASTM D2270 |
370 |
370 |
|
Water Content, mg/kg, ASTM D6304 |
50 (100 max) |
|
|
Water, Karl-Fischer, ppm, ASTM D1744 |
50 (100 max) |
Applications
Mobil Aero HFA is a premium quality fluid that meets the quality requirements of the U.S. Military specification MIL-H-5606A (now obsolete). It has a very high VI and is suitable for use at temperatures down to -54 ºC (-65 ºF). While this quality fluid is no longer used by the U.S. Military, it is still used in some older, small private, and commercial aircraft. It is also used in industrial and commercial equipment requiring good fluidity at very low temperatures, where Mobil Aero HFA provides long, trouble-free service over a wide range of operating conditions.
Mobil Aero HF is a premium quality fluid that is approved against the most current version of U.S. Military specification MIL-PRF-5606. It has physical properties very similar to Mobil Aero HFA, and also meets "super-clean" requirements required by modern aircraft hydraulic systems. It is intended primarily for military aircraft, but it is also used as a hydraulic fluid for small private and commercial aircraft, and as a strut fluid in landing gear of large commercial aircraft. It is a NATO Code Number H-515 fluid.
Please compare with your original manufacturer's oil specification which can be found in your vehicle manual. Feel free to contact us at info@mlperformance.co.uk if you require any assistance!
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
MOBIL120953
Manufactured by
Mobil
