Mobil

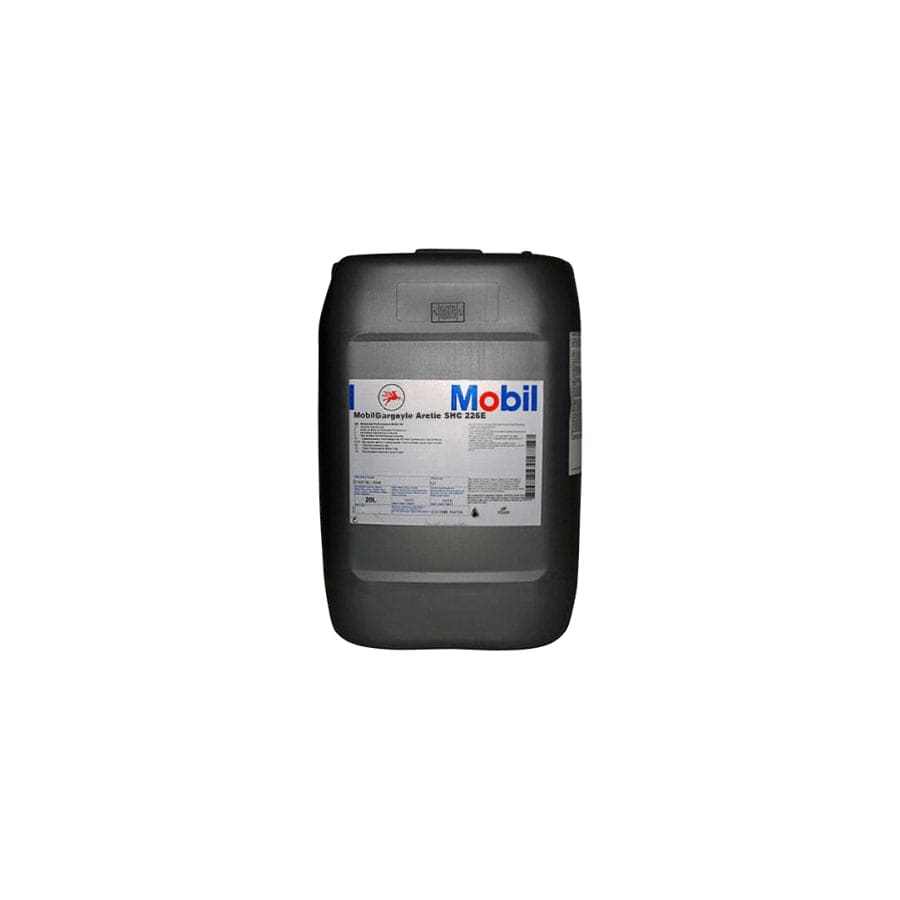

Mobil GARGOYLE ARCSHC 226E PAIL 20Ltr

Mobil GARGOYLE ARCSHC 226E PAIL 20Ltr

Regular price £187.85 Inc. VAT
Regular price £191.68 Sale price £187.85 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details
  • The Mobil Gargoyle Arctic SHC 200 Series are fully synthetic, superior performance lubricants, specifically designed for use in refrigeration compressors and heat pumps.
  • They are formulated from wax-free, synthesised hydrocarbon polyalphaolefin (PAO) fluids, which have outstanding resistance to thermal/oxidative degradation.
  • With their naturally high shear stable viscosity indexes and low temperature fluidity, they are able to perform in severe service conditions that are beyond the capabilities of many conventional mineral oils.



Features and Benefits

The Mobil Gargoyle Arctic SHC brand of lubricants are recognized and appreciated for their innovation and outstanding performance.

Our work with equipment builders has helped confirm the results from our own laboratory tests showing the exceptional performance of the Mobil Gargoyle Arctic SHC 200 Series lubricants. Not least among the benefits shown in work with OEMs is the superb low temperature capability providing excellent fluidity at low temperatures, as well as the resistance to viscosity loss due to refrigerant absorption under pressure, along with providing excellent bearing film thickness and shaft sealing properties.

By its nature, the PAO base stock used in Mobil Gargoyle Arctic SHC 200 Series oils provides exceptional thermal/oxidative resistance critical for high temperature applications. The narrow molecular weight distribution of the PAO base stocks also minimizes volatility and can help to reduce oil carryover. Mobil Gargoyle Arctic SHC 200 Series oils offer the following features and potential benefits:

Features

Advantages and Potential Benefits

High oil film thickness in the presence of refrigerant

Improved compressor protection for extended compressor life as well as better shaft sealing, reduced bearing fatigue and less unscheduled downtime

Excellent thermal/oxidative and chemical stability

Long oil life and reduced frequency of drain intervals and routine maintenance

Reduced lacquer and deposit formation

Low volatility

Viscosity remains consistent with reduced oil consumption

High Viscosity Index and wax-free

Excellent low temperature fluidity, no waxy deposits and improved evaporator efficiency

Low traction coefficient

Potential for improved system efficiency and reduced power consumption

Seal compatibility

Long seal life, reduced shaft seal leakage



Specification and Approvals

This product is registered to the requirements of:

224

226E

228

230

234

NSF H1

X

X

X

X

X

NSF HT1 X

This product meets or exceeds the requirements of:

224

226E

228

230

234

FDA 21 CFR 178.3570

X

X

X

X

X



Properties and Specifications

Property

224

228

230

234

226E

Grade

ISO 100

ISO 220

ISO 68

Copper Strip Corrosion, 3 h, 100 C, Rating, ASTM D130

1A

1A

1A

1A

1A

Flash Point, Cleveland Open Cup, °C, ASTM D92

230

255

260

280

266

Foam, Sequence I, Stability, ml, ASTM D892

0

0

0

0

0

Foam, Sequence I, Tendency, ml, ASTM D892

10

10

10

10

10

Kinematic Viscosity @ 100 C, mm2/s, ASTM D445

5.6

13.7

25.0

40.0

10.1

Kinematic Viscosity @ 40 C, mm2/s, ASTM D445

29.0

97.0

220

399

69.0

Pour Point, °C, ASTM D97

<-54

-45

-39

-39

-45

Specific Gravity, 15 C/15 C, ASTM D1298

0.82

0.84

0.85

0.85

0.83

Viscosity Index, ASTM D2270

132

147

149

150

136



Applications

Mobil Gargoyle Arctic SHC 200 Series are fully synthetic lubricants specifically designed for use in refrigeration compressors and heat pumps.

Application Considerations: While Mobil Gargoyle Arctic SHC 200 Series are compatible with mineral oil products, a mixture will detract from their performance. Systems should be thoroughly flushed and cleaned when replacing a mineral product with a Mobil Gargoyle Arctic SHC 200 Series product. In the case of R22 refrigerants, guidance from the supplier of the refrigeration unit must always be sought to ensure compressor operation is suitable for efficient separation of the oil and refrigerant.

Typical applications are indicated below:

Commercial, industrial, heat pump applications and marine refrigeration systems

Commercial, industrial and residential heat pump applications

Recommended for both reciprocating and rotary compressor designs

Recommended for use with the following refrigerants: Ammonia and Carbon Dioxide



Please compare with your original manufacturer's oil specification which can be found in your vehicle manual. Feel free to contact us at info@mlperformance.co.uk if you require any assistance!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



MOBIL122554



Manufactured by

Mobil
