Moton Suspension

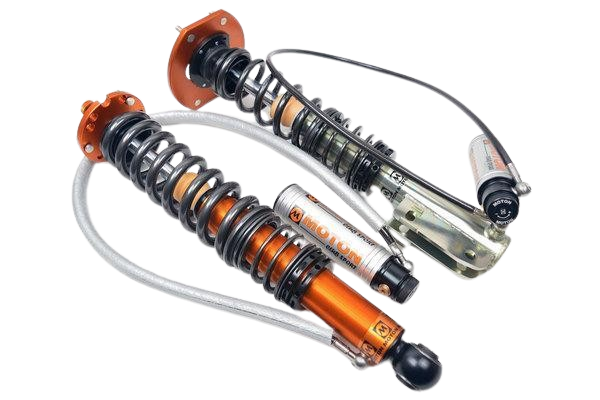

Moton M 504 009 Honda 2-Way Coilovers (Civic EJ2 , EJ6, EJ1, EJ9, EK1, EK3, EK4, EK9)

Moton M 504 009 Honda 2-Way Coilovers (Civic EJ2 , EJ6, EJ1, EJ9, EK1, EK3, EK4, EK9)

£4,856.99 Inc. VAT
£4,906.56 £4,856.99 Inc. VAT
9th Anniversary Badge

Price Match

Notify Me When Available

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

This is Moton M 504 009 Honda 2-Way Coilovers (Civic EJ2 , EJ6, EJ1, EJ9, EK1, EK3, EK4, EK9).

The Moton 2 Way Sport line is designed for the serious club racer and high performance street driver.

Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coil-over systems on the market.

If your driving can benefit from the ultimate in suspension tuning, then this kit is for you.

Please note:
This coilover kit can be configured with different spring rates. Here are the options:

1. Road car 70n all round or 80n front 50 rear.

2. Road and track 90n front 100n rear

3. Track 120n front 140n rear
Please let us know which option you prefer when ordering.

  • Easy to adjust to a real race setup
  • Easy to work with
  • Minor adjustments are very noticeable to the driver
  • Proven reliability
  • Wide range of springs can be used
  • Shafts are induction hardened and chrome plated
  • Top camber mounts supplied where possible/available
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved rumble strip and bumpy track control
  • Rebuildable/Revalveable

  • Separate Bump (15) and rebound (15) control
  • Ride height adjustable
  • Unique blow off valve system in remote reservoirs
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Canister pressure can be varied between 6-16 BAR (100-300 psi)
  • Variable canister pressure helps support the car in high speed cornering with soft springs
  • Large main piston for quick response
  • No pre-loaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
    • Double Digressive Pistons are recommended for use on the non-driven wheels
    • 4WD/FWD vehicles: DDP for both rear axle struts/shocks
    • RWD vehicles: DDP for both front axle struts/shocks
Product MOTON 2 way
Make Honda
Model Civic
Chassis EK9
Model Years 1997 - 2000
Springkit optional
Topmounts Top mounts included
Front Top mounts Top mounts included
DDP Piston available no
QDC included no, but optional

  • 1994-2000 Honda Civic EJ2 /EJ6/EJ1/EJ9/EK1/EK3/EK4/EK9

To ensure the part(s) you have ordered fits your need, we run a compatibility check prior to dispatch. Feel free to contact us if you require any assistance!

MOTON-M-504-009

Manufactured by

Moton Suspension

EAN

M 504 009

In Stock And Ready To Ship
