Dragy Universal GPS Based Performance Meter with Micro-USB Cable

Monitor your 0-60mph, 60-130mph, 100-200kmh, 1/4 mile, 1/2 mile performance, and more!

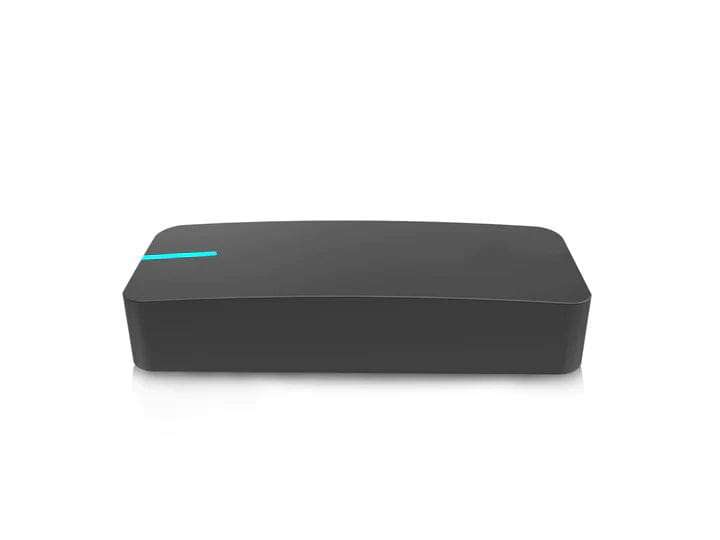

Dragy uses high speed GPS satellites to accurately measure your vehicles performance within 1/100th of a second. The Dragy software automatically charts slope on all timeslips which you can then post to forums or social media, share with friends, or even upload to the Dragy leader board. The Dragy box is extremely compact at 1" x 3" (25.4mm x 76.2mm) and can be set on the dash when testing and stored in the glove box or center console when not in use.

Runs are saved in both metric and SAE formats, allowing comparisons of 100-200kmh and all metric equivalents. You can also define your own performance windows for measuring both trap speeds and/or elapsed times, time to brake performance such as 100-0, and much more.

The system can be run simultaneously with JB4 Mobile and other bluetooth apps. Requires the Dragy app which is available free of charge for both iOS and Android.

So accurate, it's like being at track...

Race precision timing without the pain. You can literally test your car wherever you want without a queue so you can make sure you get consistent repeatable times when it really matters such as in a race!

Plan mods better...

With accurate data for a fraction of the cost of going to the track, you can spend some of that hard earned cash on better mods for your car to give a greater edge against your competition!

Be the best...

With the data you’ve gathered, apply what you have and try to take top spot on the Dragy online leader board as well as win local races.

• Measure acceleration (0-100kmh, 100-200kmh, 1/4 mile and more)
• Measuring braking time (100-0kmh, 200-0kmh and much more)
• G-force measurement
• Highscore list sorted by manufacturer
• Dragy Lap timer app also available
• Video Drag and Drop
• Profile (garage, profile picture and much more)

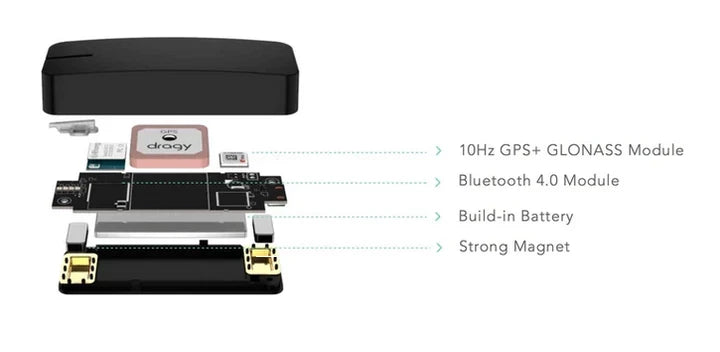

• 10th generation ublox chip, which supports 4 GNSS (GPS, GLONASS, Galileo and Beidou)

Specifications:

• Model DRG70
• GPS u-blox M10S module, concurrent reception of up to four GNSS (GPS, GLONASS, Galileo, and BeiDou
• Update Rate 10Hz
• Bluetooth Bluetooth 5.0
• Input 5V - 500mA
• Charging Time 1.5 Hours
• System iOS, Android
• Battery 3.7V 400mAh
• Battery Life Up to 20+ hrs
• Charging port Micro USB
• Operating temperature -10°C to 60°C (14°F to 140°F)
• Charging temperature -10°C to 45°C (14°F to 113°F)

Technical data:

• iOS (8.0) or Android (4.4) device required
• Metric unit system (km / h) supported
• Connection type: Bluetooth 4.0
• Supports GPS and GLONASS
• Battery life: up to 10 hours
• Dimensions: 30 x 80 x 15mm

• Dragy Performance Box Lap and Accelerometer

• Micro USB charging cable

• 2x metal plates and 3M adhesive strip

• Manual

Any vehicle as long as Dragy app is installed on mobile.

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

GPSMETER

Manufactured by

Dragy

Warranty

Dragy two year repair warranty
