The Öhlins Road & Track suspension gives our customers a true racing experience, with their own cars, without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Öhlins Road & Track coil overs you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Please Note: Ohlins Springs are not included in the kit. You will require the following quantities of springs:

• 2x front spring 48000-19 - Ohlins 200mm 70 N/mm Road & Track Coilover Spring
• 2x rear spring (Please Choose):
• AWD models - 48010-23 - Ohlins 200mm 80 N/mm Road & Track Coilover Spring
• 2WD models - 48010-19 - Ohlins 200mm 70 N/mm Road & Track Coilover Spring


• DFV technology (Dual Flow Valve)
• Height adjustable
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty

Front Features

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Lowering vs. standard: see product news or mounting instruction
• Use with original top mounts


Rear Features

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Lowering vs. standard: see product news or mounting instruction
• Use with original top mounts


Cancellation Kits

Cancellation kits are not included and need to be ordered separately.

• Ohlins Audi Seat Skoda VW Automotive EDC Cancellation Kit (Inc. 8V RS3, 5F Leon ST, 5E Octavia RS & MK7 Golf R) - Seat Leon/ST (5F), Seat Leon Cupra/ST (5F), Skoda Octavia/RS (5E), VW Golf VII (5G)
• Ohlins Audi 8V Automotive EDC Cancellation Kit (A3 & S3) - Audi A3 (8V), Audi S3 (8V)
• Ohlins Audi 8S 8V Automotive EDC Cancellation Kit (RS3, TT, TTS & TT RS) - Audi RS3 (8V), Audi TT/TT S/TT RS (FV/8S)

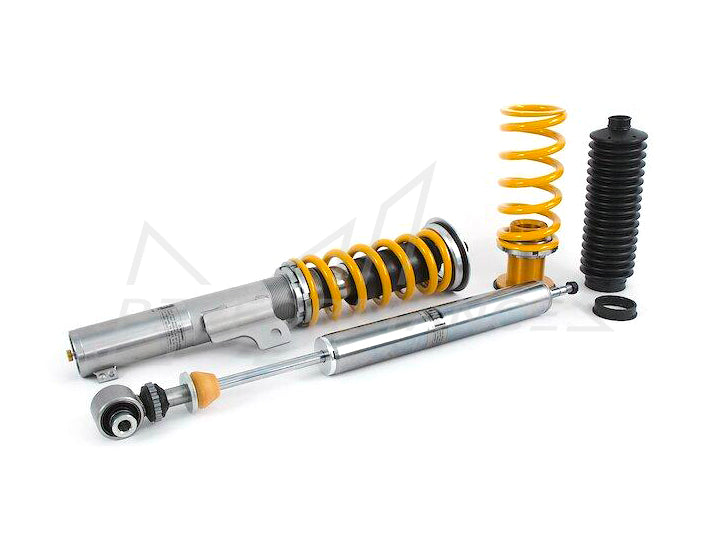

• 1x shock absorber kit VWS MU21
• C-Spanner (for spring preload adjustment)

• Owners manual and mounting instruction
• Sticker set

• Audi 8V A3 (2013+)
• Audi 8V S3 (2013+)

• Audi 8V RS3 (2015+)
• Audi 8S TT (2014+)
• Audi 8S TTS (2014+)
• Audi 8S TT RS (2014+)
• Seat MK3 Leon ST 5F (2012-2020)
• Seat MK3 Leon Cupra ST 5F (2012-2020)
• Skoda MK3 Octavia 5E (2012-2019)
• Skoda MK3 Octavia RS 4WD 5E (2012-2019)
• Volkswagen MK7/MK7.5 Golf R 5G (2012-2019)
• Volkswagen MK7/MK7.5 Golf Variant 5G (2012-2019)

VWS MU21

Manufactured by

Ohlins

Warranty

Ohlins One Year Warranty
