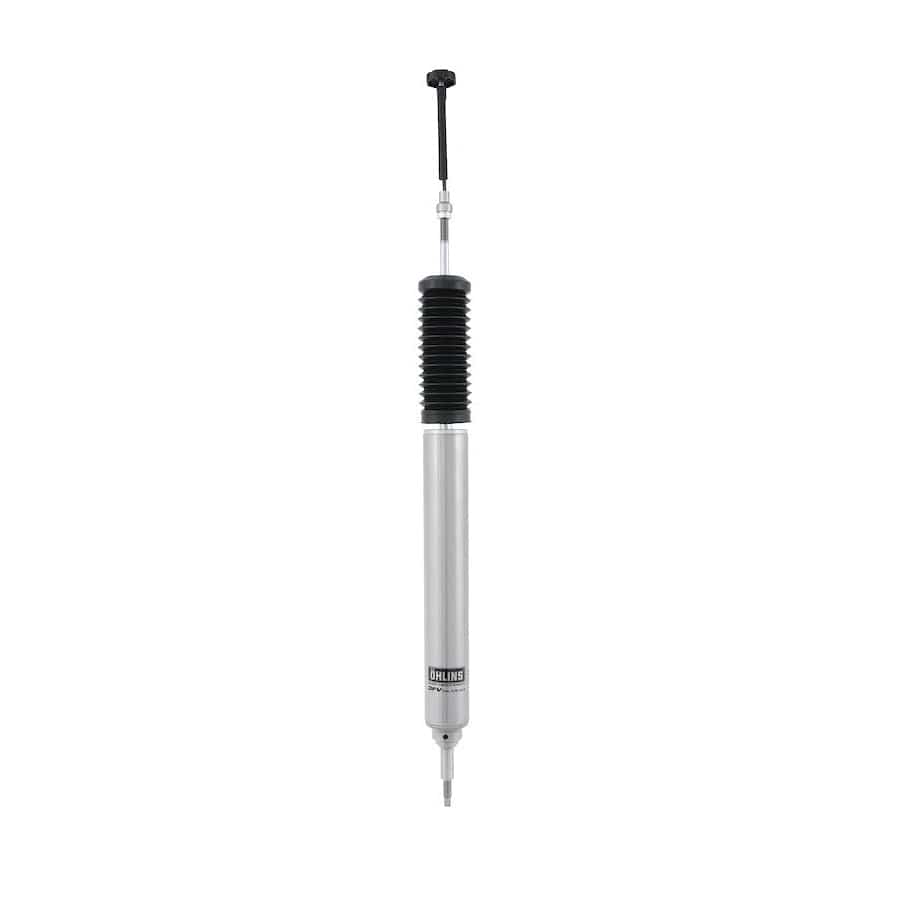

The Öhlins Road & Track suspension gives our customers a true racing experience, with their own cars, without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Öhlins Road & Track coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

This product is also TUV approved.

Please Note: The springs are not included in the kit and are sold separately.

Here are the links to the springs that you will need with the exact quantities:

• 2x Front Springs - Ohlins 180mm 70 N/mm Road & Track Coilover Spring
• 2x Rear Springs - Ohlins 200mm 120 N/mm Road & Track Coilover Spring


• DFV technology (Dual Flow Valve)

• Individual height adjustment

• Rebuildable

• Corrosion salt spray tested (ISO 9227)

• 2 year warranty

Front Suspension

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5 - 20 mm lower than standard with recommended setup
• Spring rate 70 N/mm
• Use with original top mounts

Rear Suspension

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10 - 40 mm lower than standard with recommended setup
• Spring rate 120 N/mm
• Use with original top mounts

• BMW 1 series (E81, E82, E87, E88) no Hybrid or xDrive (2005 - 2012)
• BMW 3 series (E90, E91, E92, E93) no Hybrid or xDrive (2005 - 2012)

BMS MI01

Manufactured by

Ohlins

Warranty

Ohlins One Year Warranty
