We designed our suspension for the Adventure segment with Off-Road and Rally-raid in mind, to put the excitement back in the winding countryside roads and rough terrain. Our suspension gives you better contact with the road, improves sharp turns, and stays stable during hillsides. The adjustable damping makes it possible for you to adjust your suspension depending on the road ahead to fit your drive. With more traction and control it's possible to use larger tires for steeper terrain no matter if you're going through muddy water or climbing overland. They are also improving the ride comfort in common roads, which makes these products a perfect match!

General Features

• 2,25Ø shock body, fully aluminum design for improved cooling
• 2-way damping adjustment
• Ohlins industry leading pressure balanced damping for cavitation prevention
• Designed for 1 inch lift
• Improved top out strength for solid axles and off road use
• Spherical ball joints for low friction suspension movement and improved body control
• Rebuildable for custom tuning
• Possibility to upgrade to separate high and low speed compression adjustment
• Fully rebuildable dampers for maintenance and repair
• 2-year limited warranty

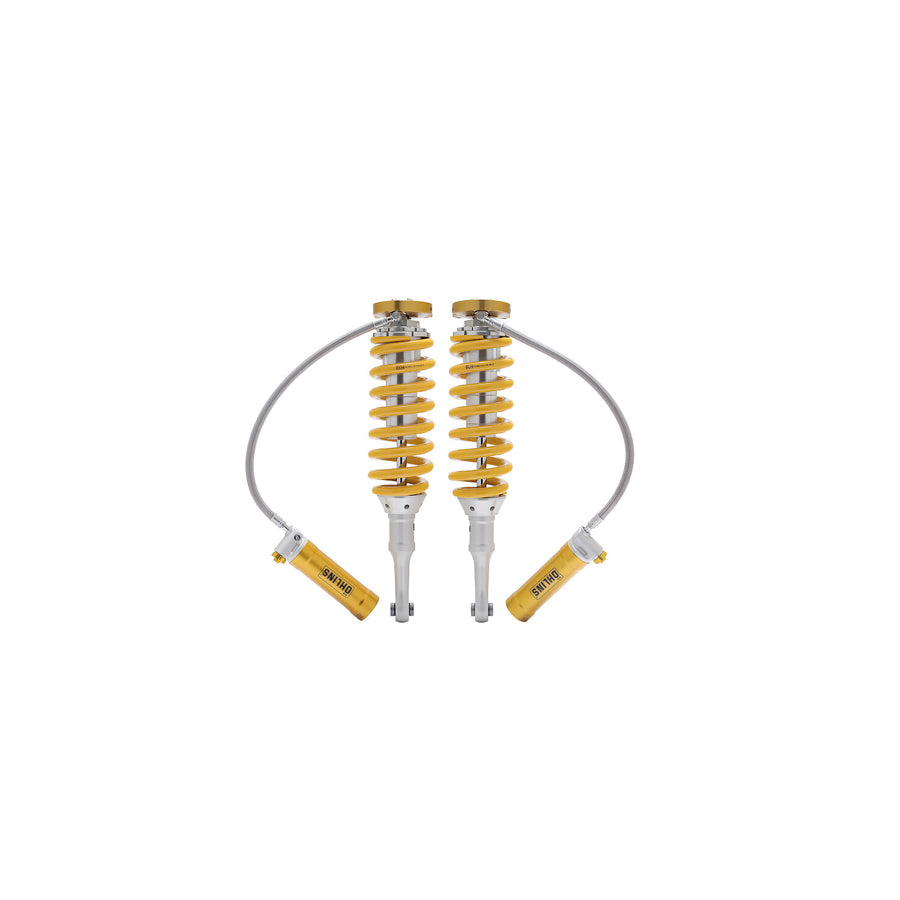

• Conventional shock absorber with braided hose for remote reservoir
• Separate adjustment for compression and rebound damping
• Designed for 1 inch lift with spring preload adjusters
• Uniball top mounts

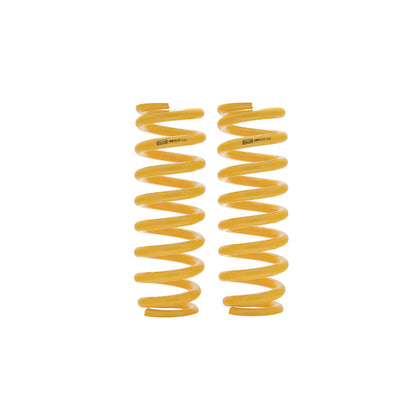

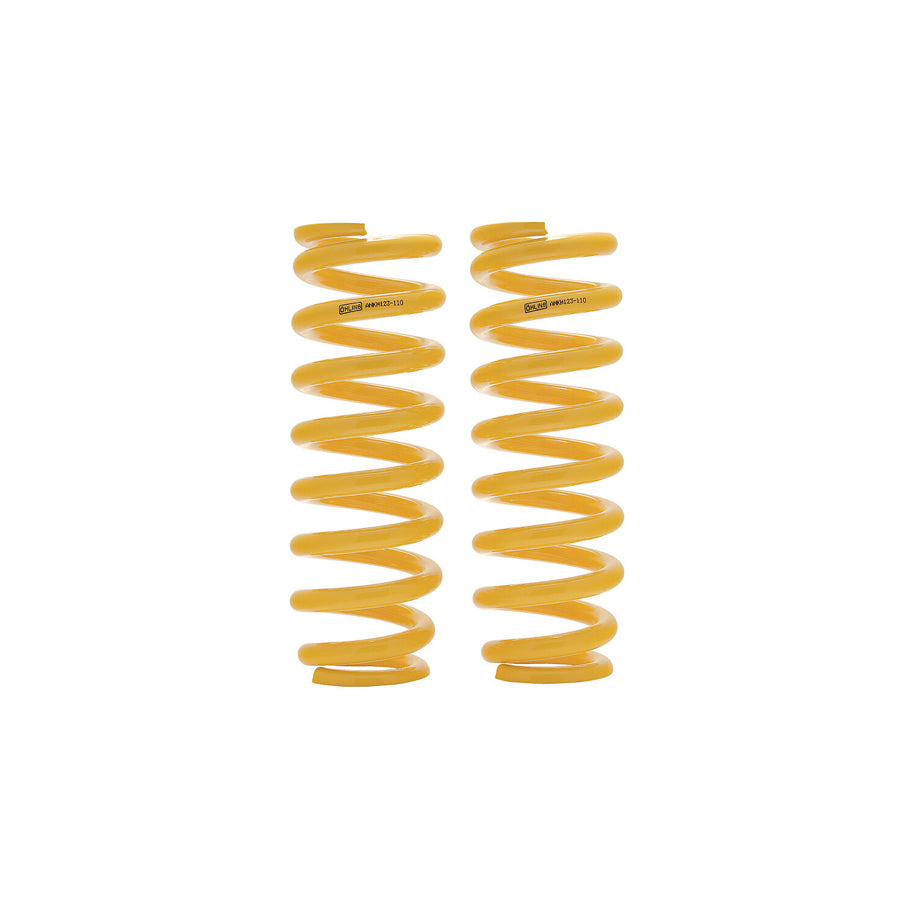

• Spring rate 120 N/mm; optional 130 N/mm (up to 50 kg) or 140 N/mm (up to 100 kg)

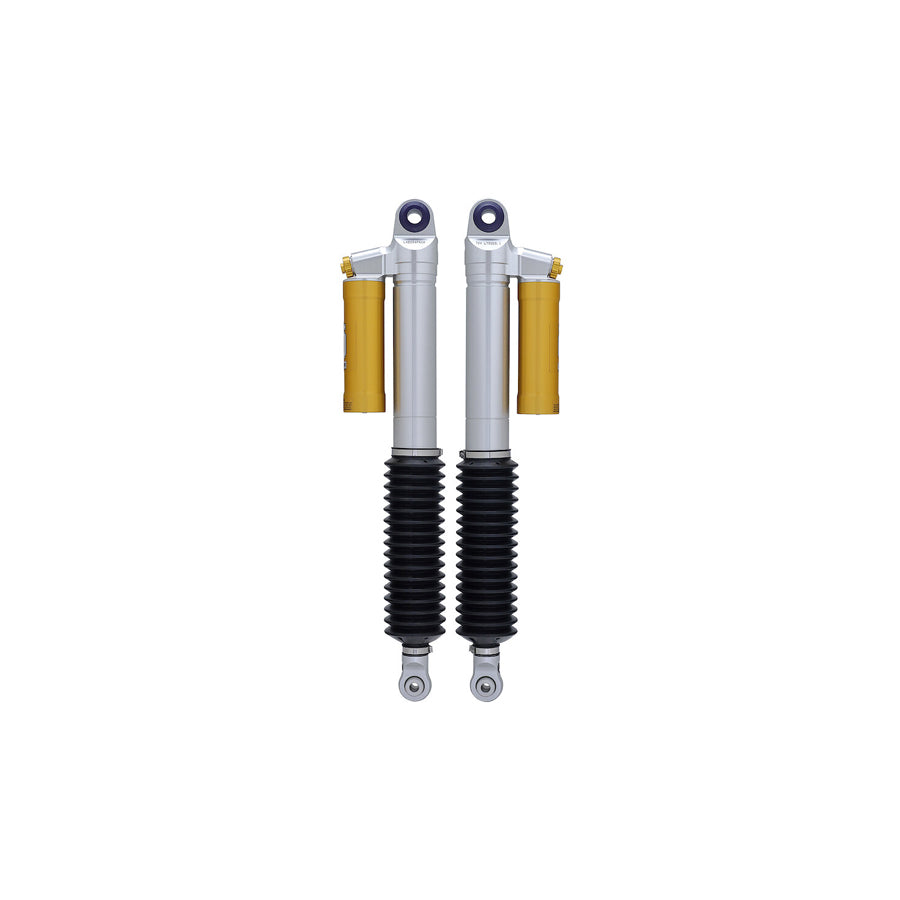

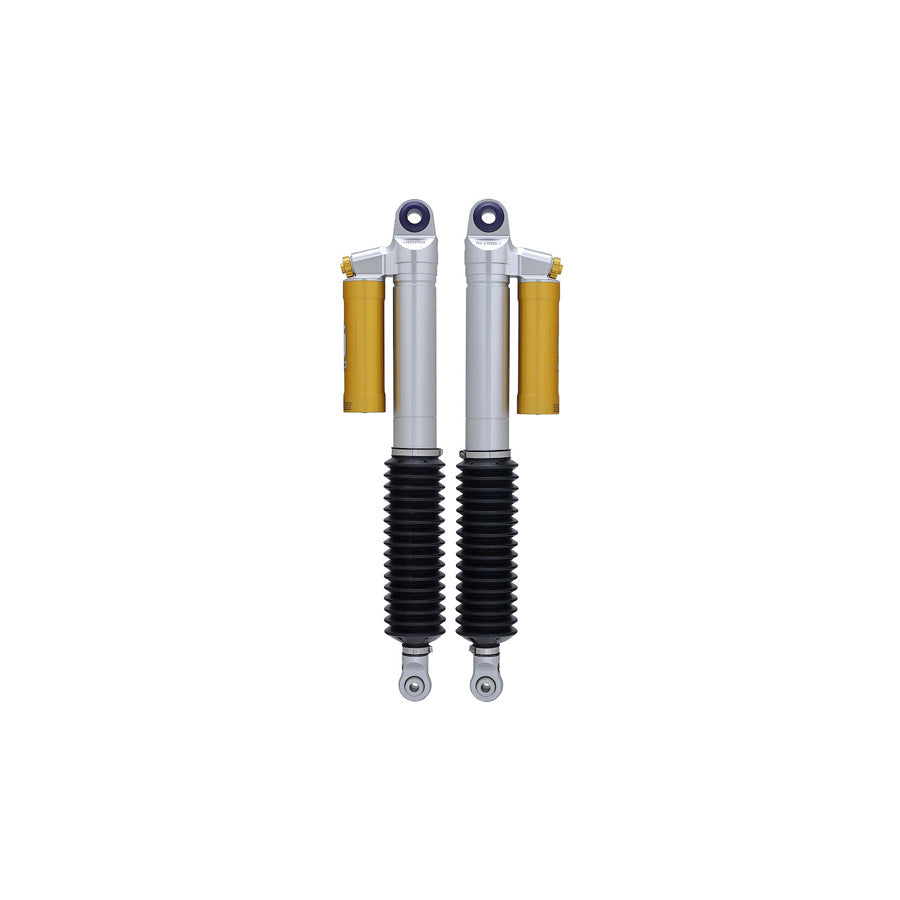

• Conventional shock absorber with external reservoir
• Separate adjustment for compression and rebound damping

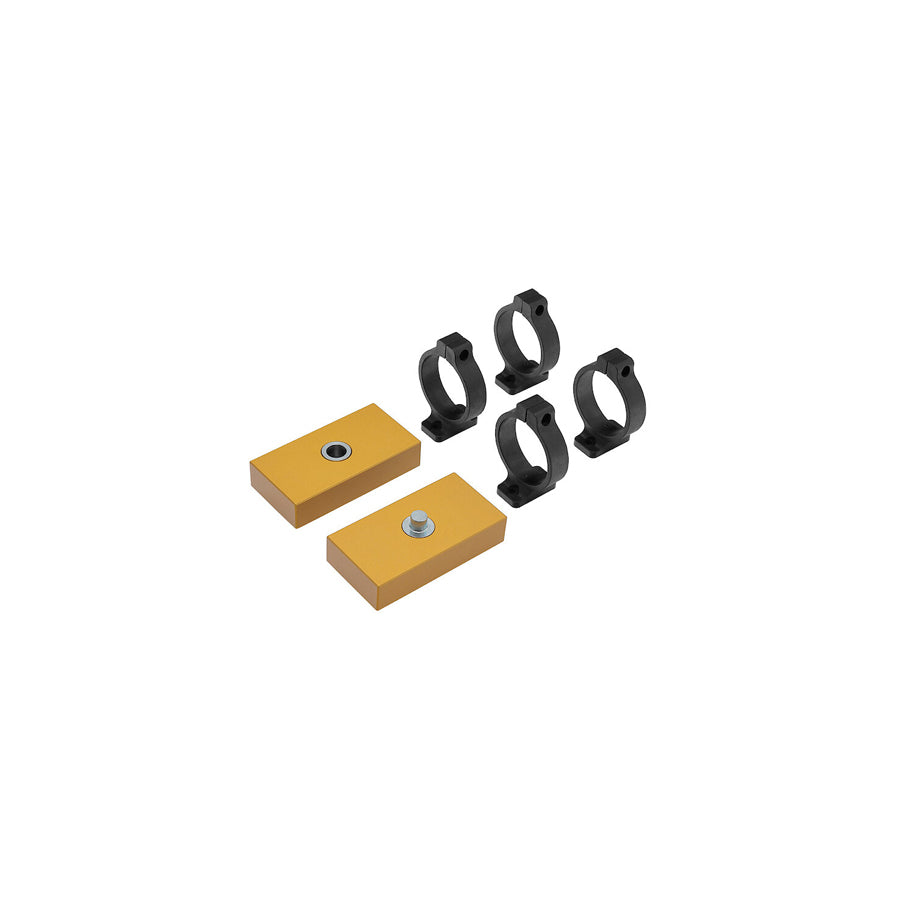

• Designed for 1 inch lift with included lift bloc (25 mm longer u bolts needed, not included)
• Equipped with bellows for shaft protection
• Use of the standard leaf springs

To ensure the part(s) you have ordered fits your need, we run a compatibility check prior to dispatch. Feel free to contact us if you require any assistance!

OHLINS-TOV 1W00

Manufactured by

OHLINS
