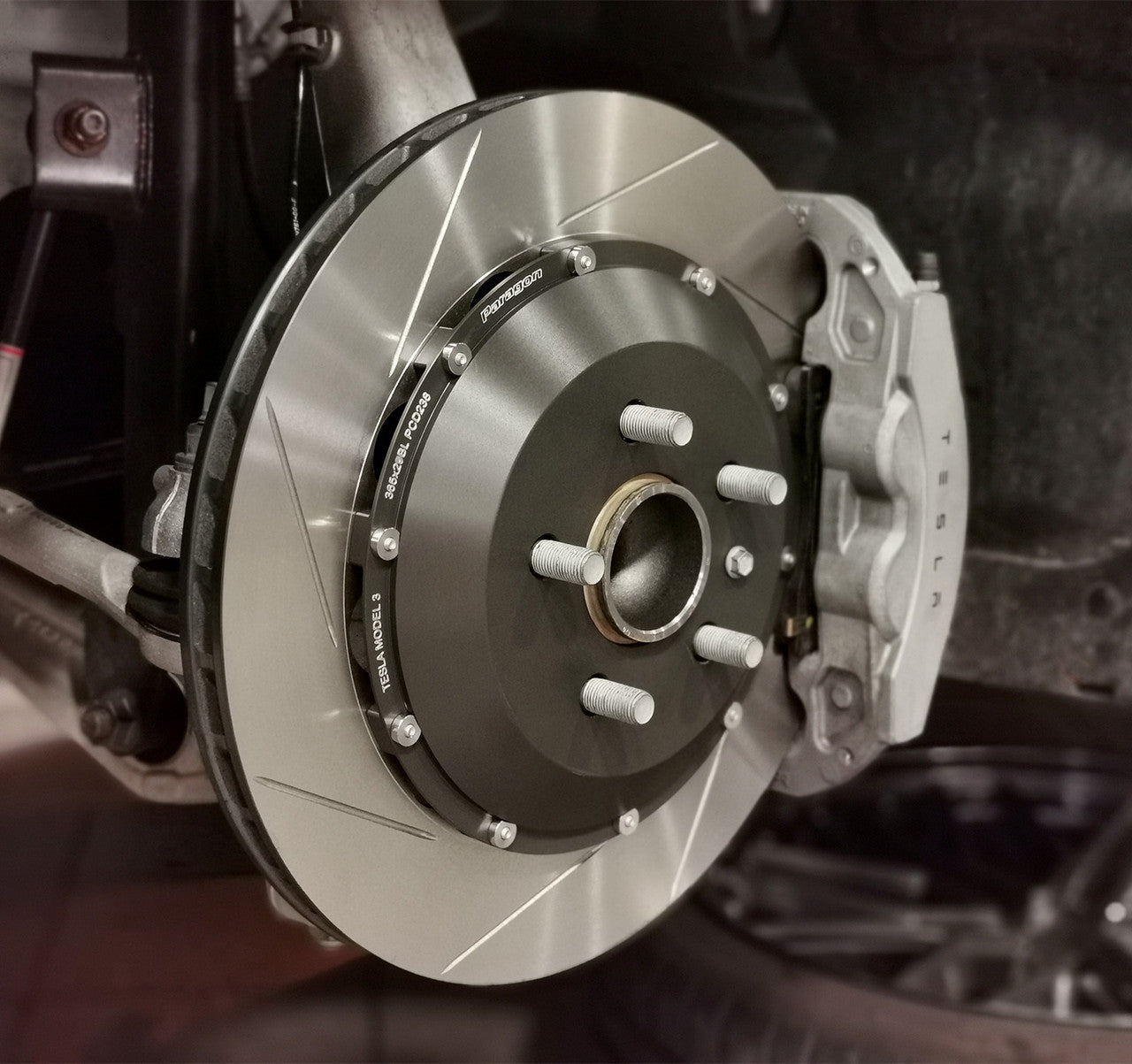

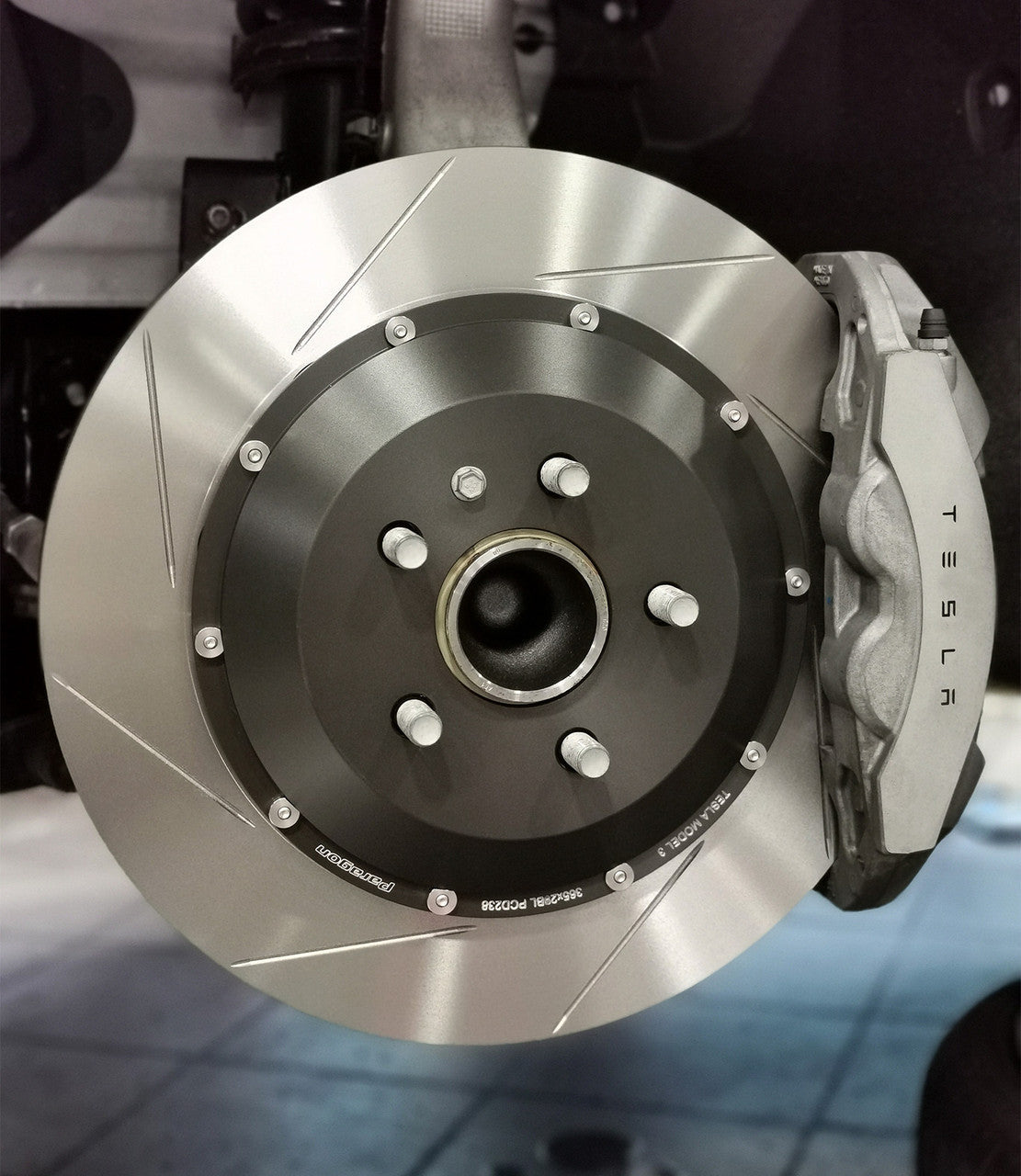

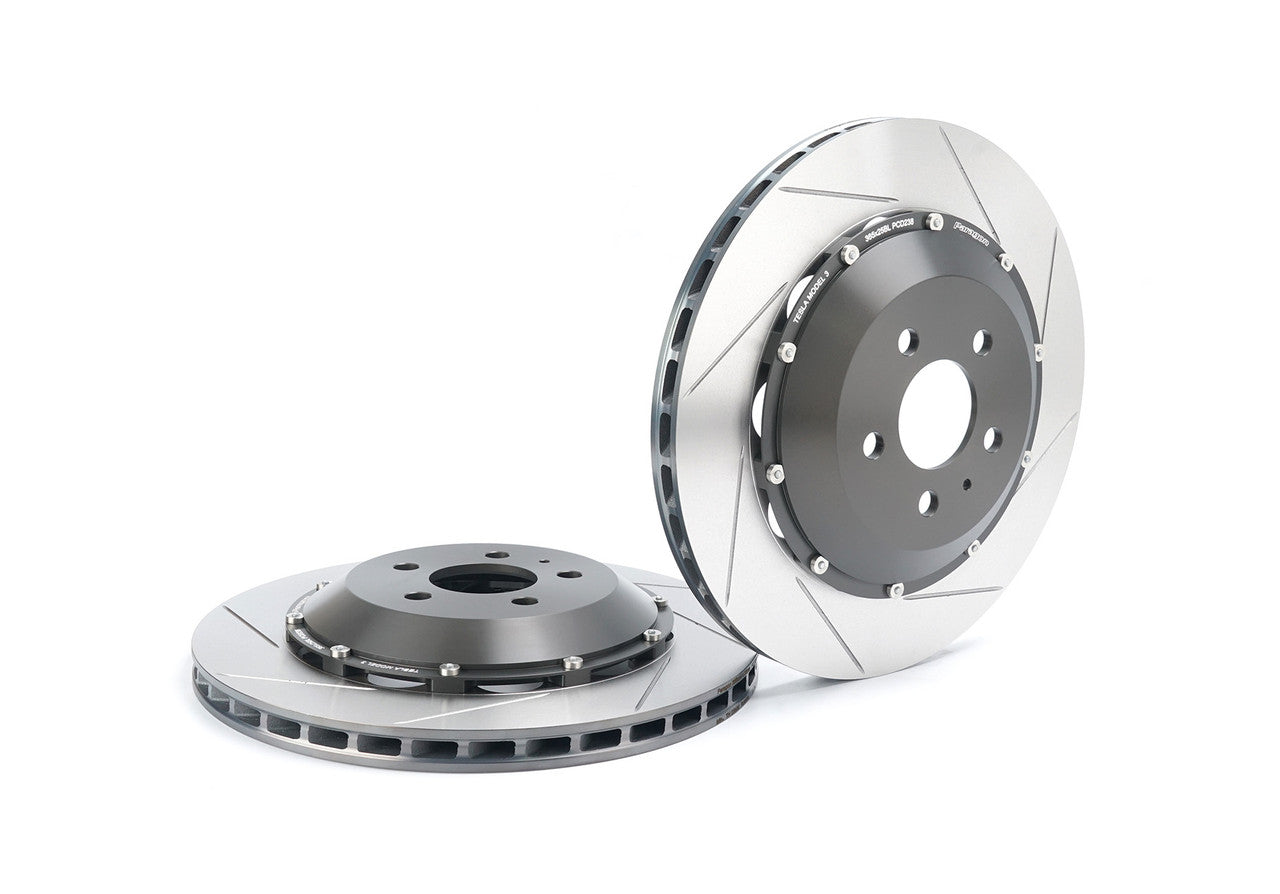

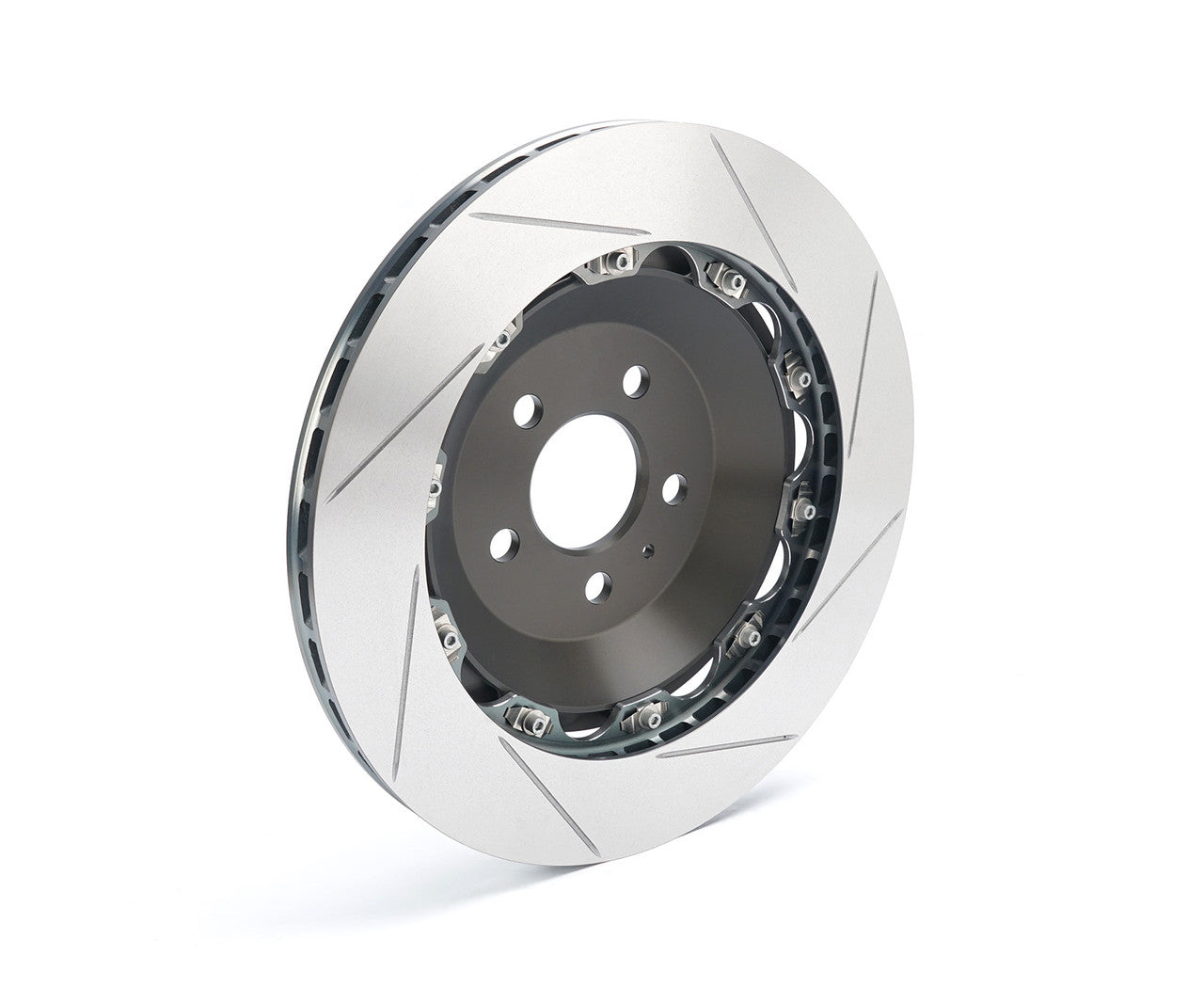

Paragon Performance 2-piece Brake Discs offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Brake Discs rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads. Excellent thermal capacity is achieved by maintaining optimal mass in the rotor rings.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. The floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface.

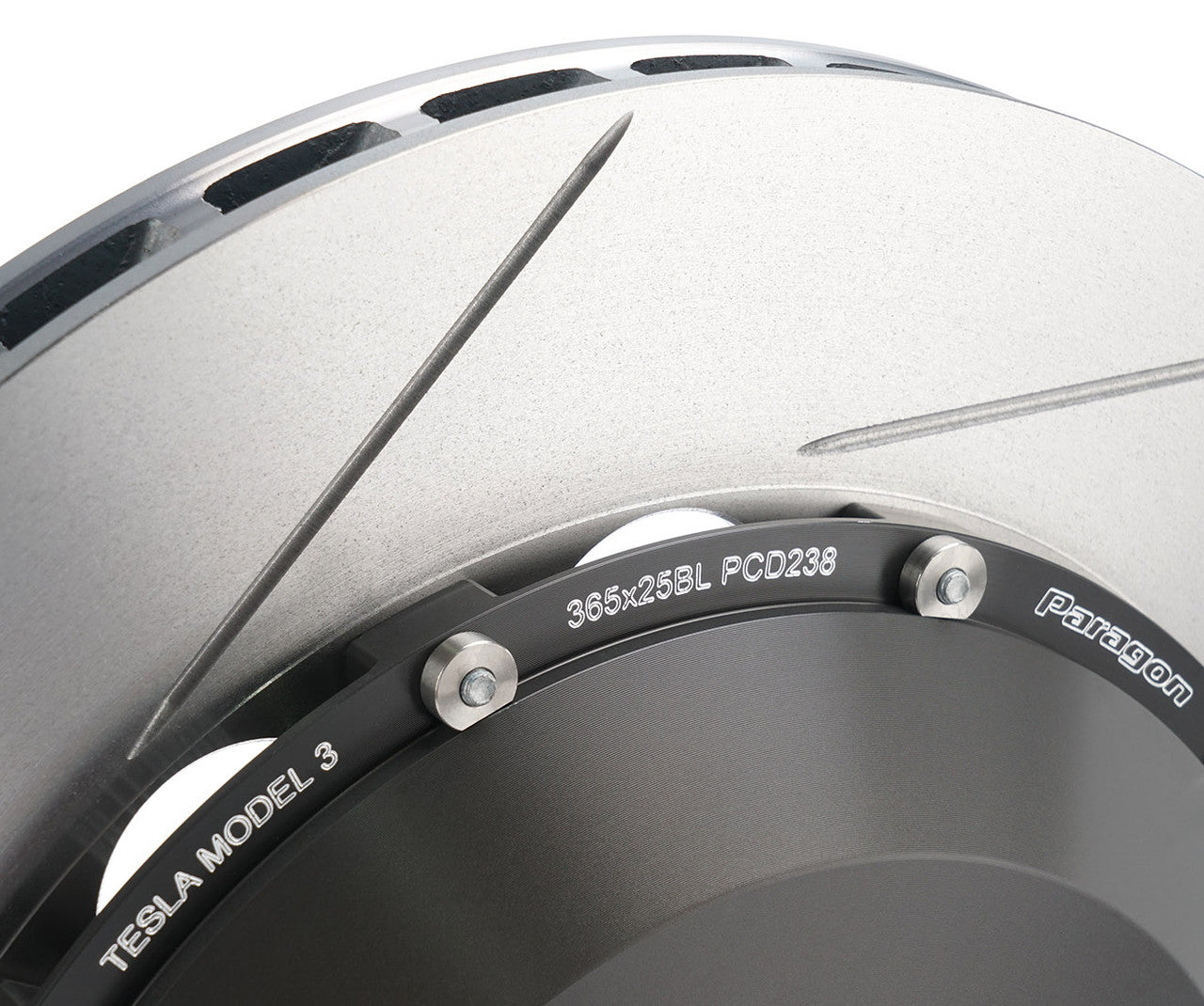

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then black hard coat/hard anodized to increase resistance to wear and corrosion. Mil-spec Type III anodized hats will not discolor under extreme heat, and are harder and more wear/scratch resistant. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity.
*Black hard coat and hard coat anodized hats are the same in terms of performance and durability.

• Designed to work flawlessly with OEM ABS and brake system while maintaining factory brake bias. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)
• Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%
• Floating 2-piece design

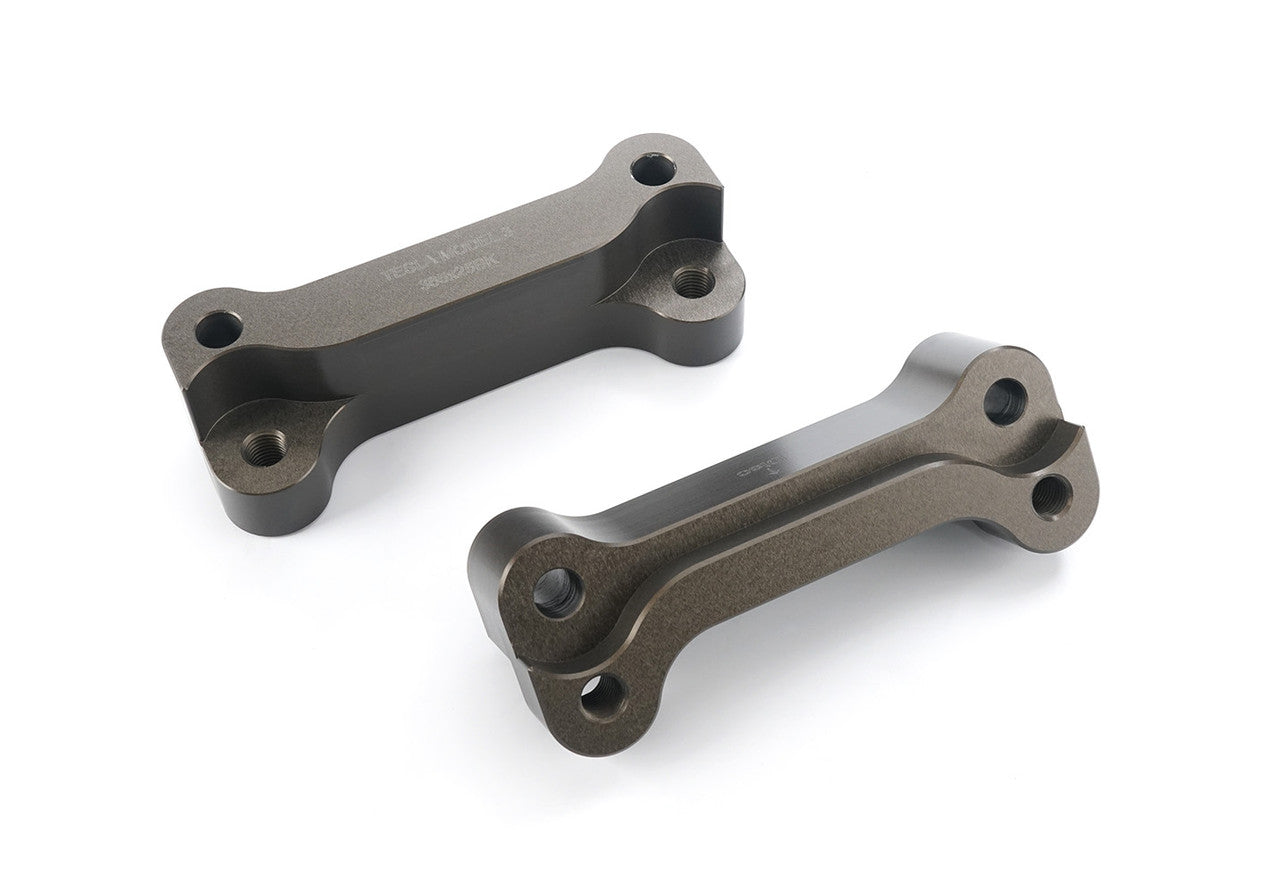

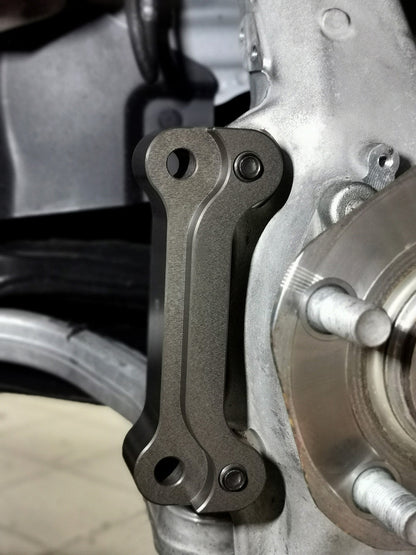

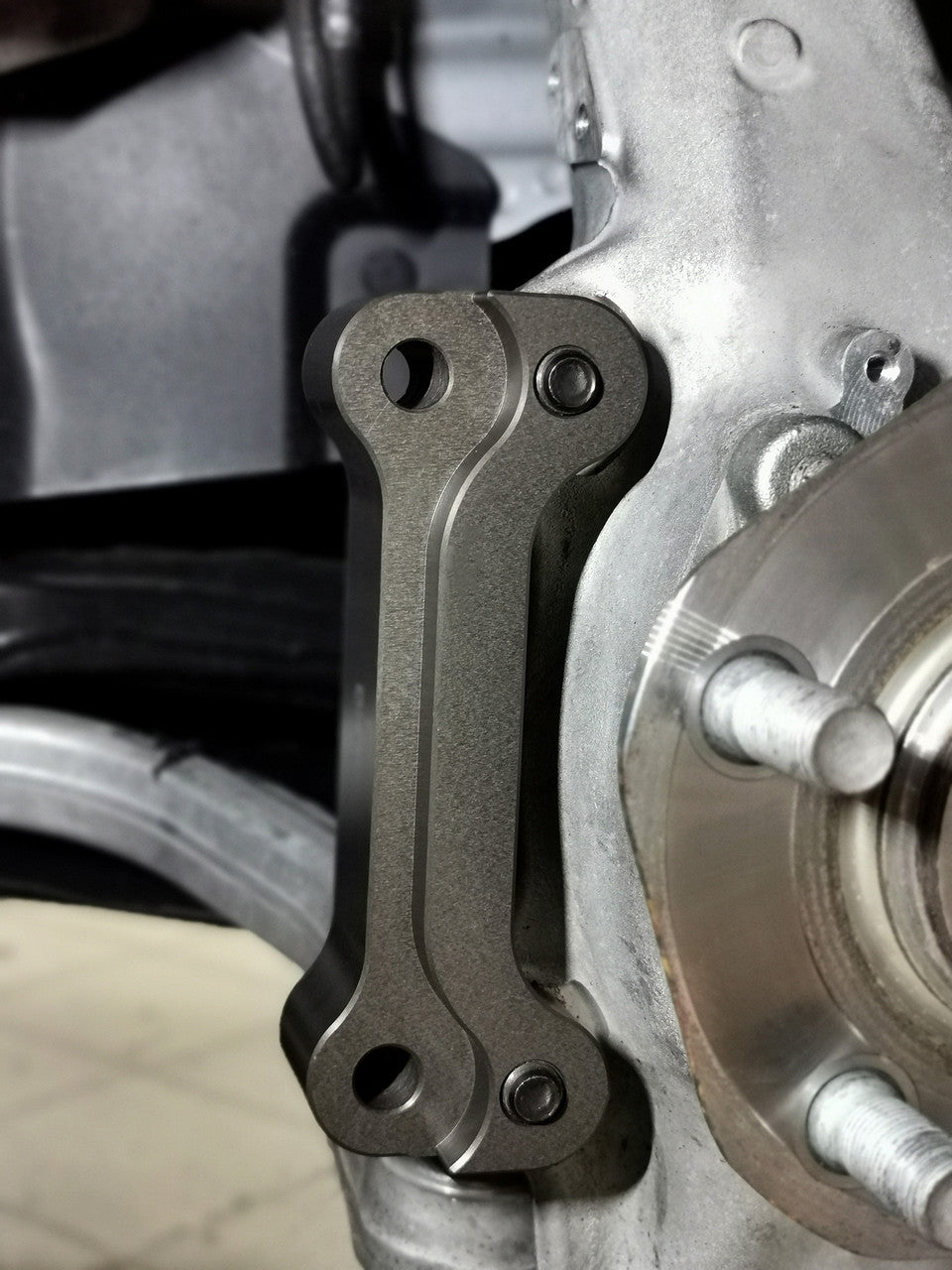

• Brackets included to accommodate increased rotor size (365mm vs. stock size 320mm)
• Minimizing brake fade & judder during extended sessions

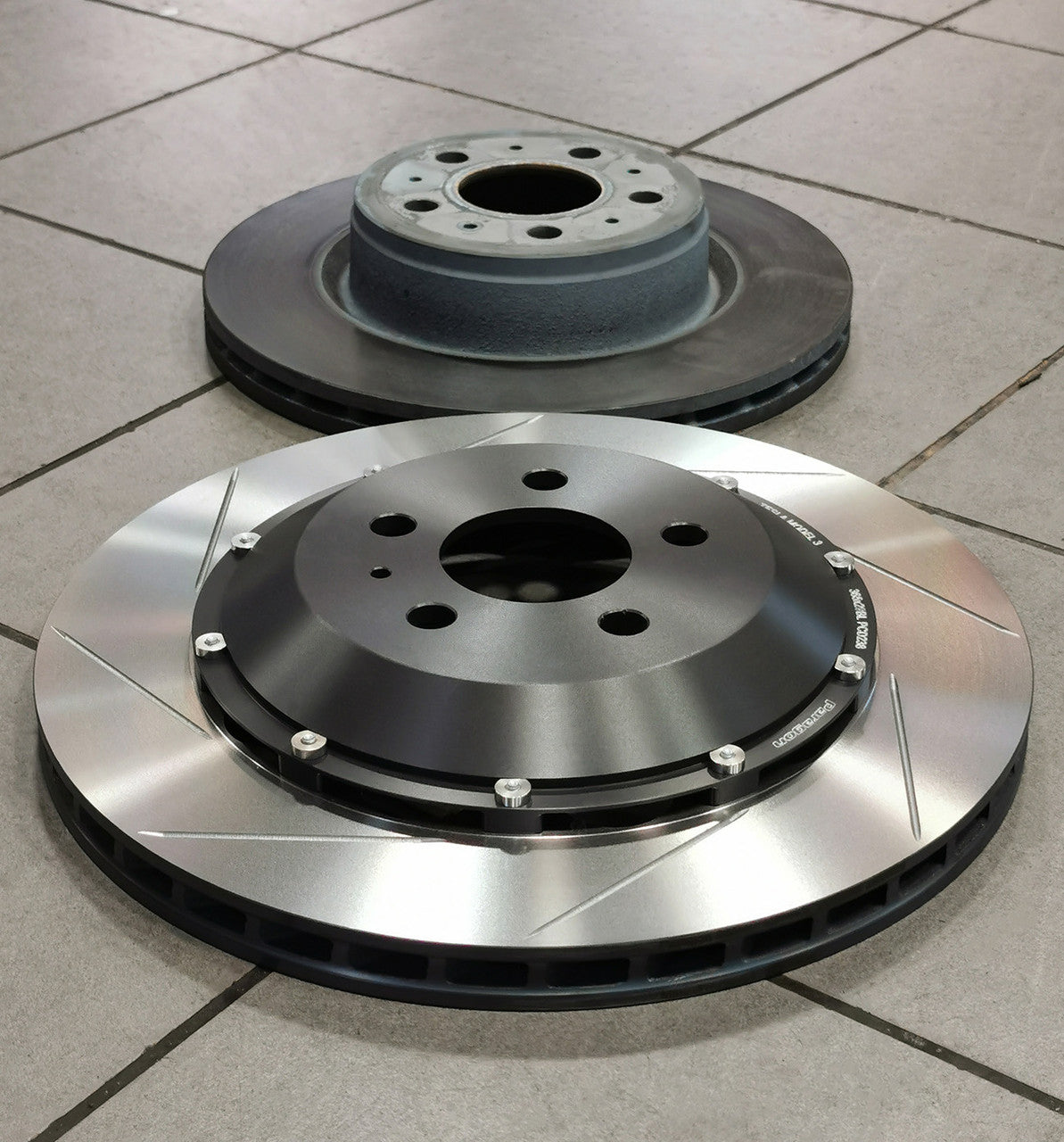

• Great upgrade from non-directional, pillar vane OEM rotors

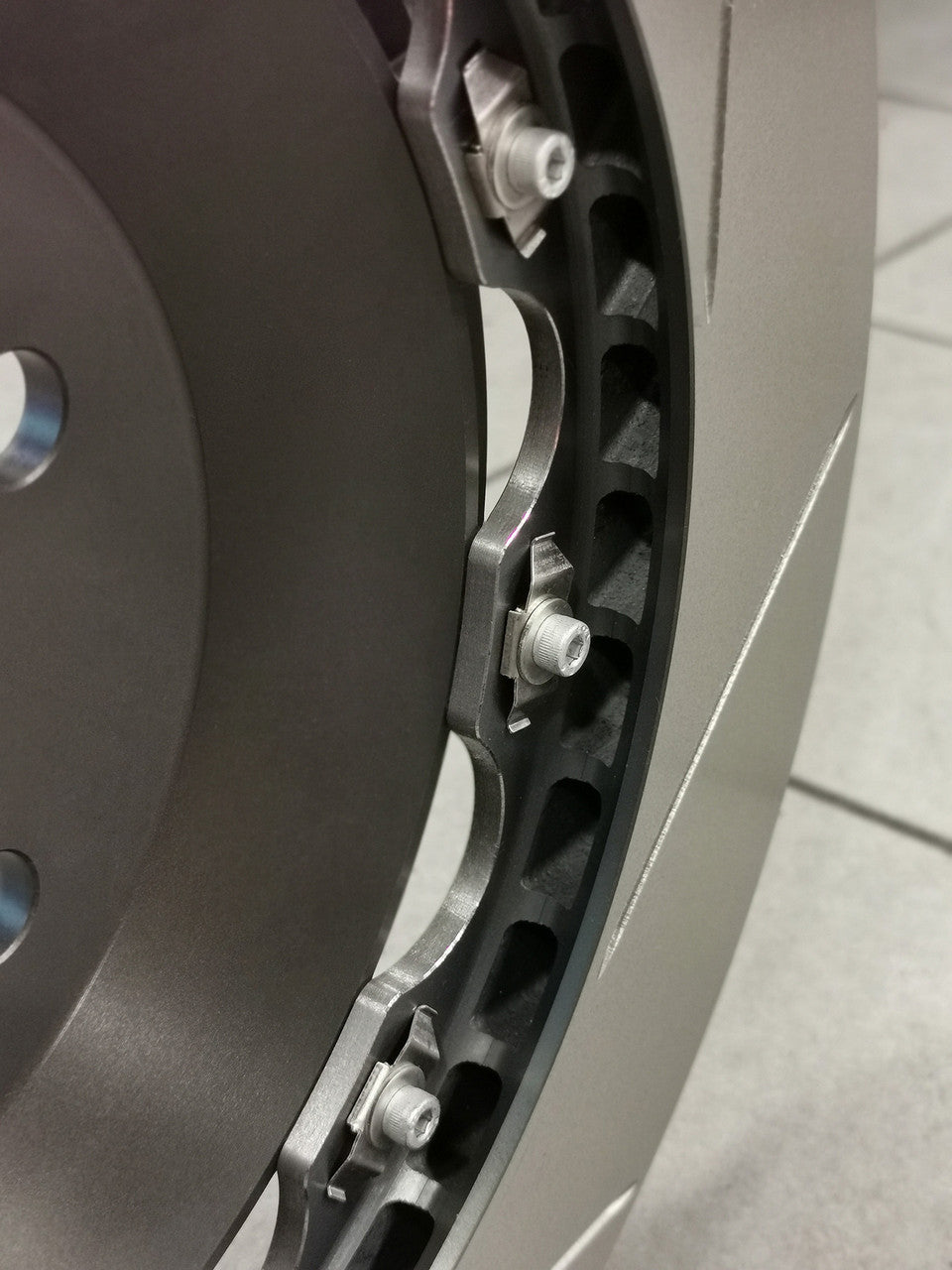

• Brake Discs to hat mounting system: D-Bobbin (Long) - 10-bolt

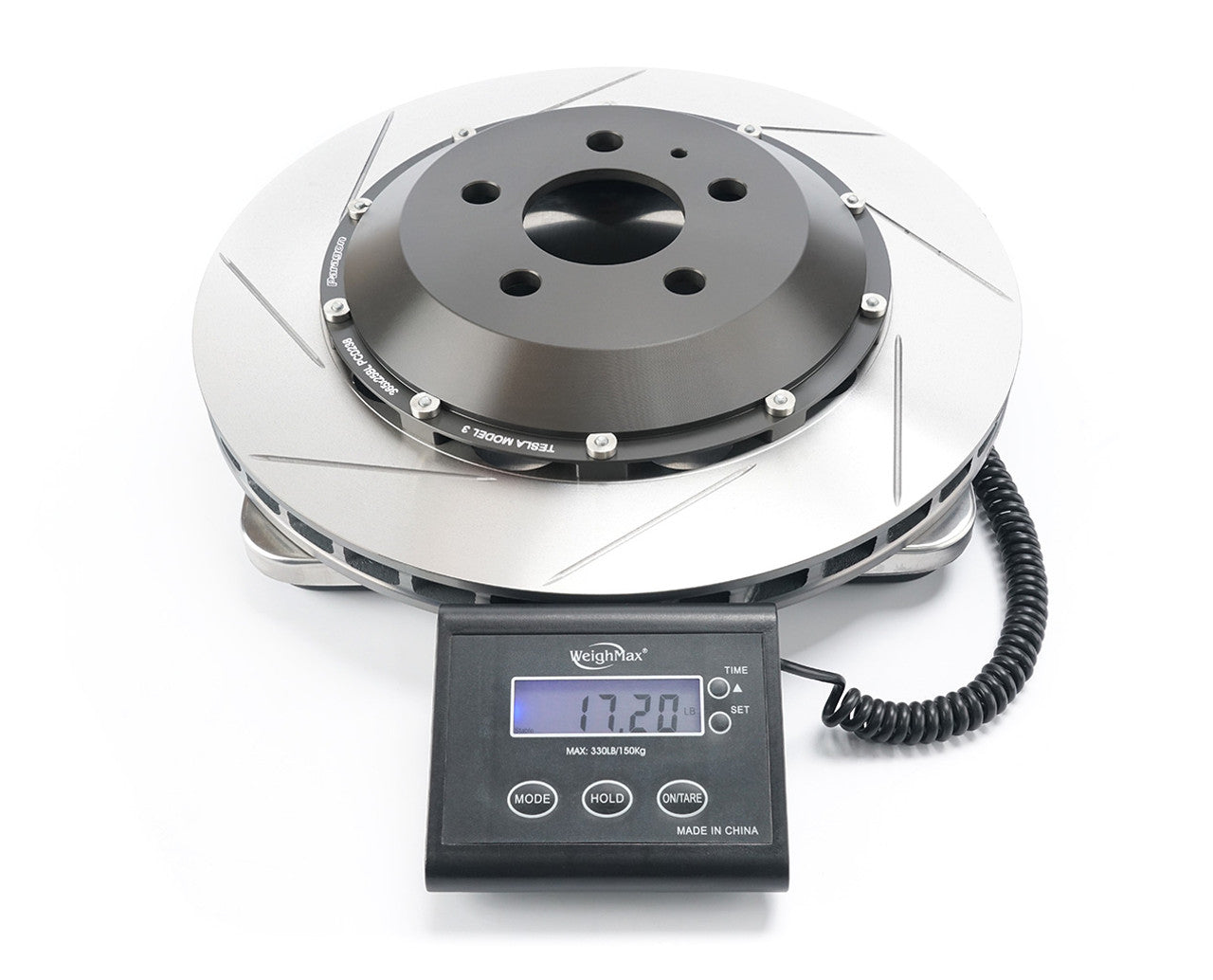

• Weighs 17.2 lbs (7.8 kg)
• Requires 19" or larger wheels

**Slight modifications to the steering knuckle required

Direct replacement of OEM Tesla part #: 1044611-00-D

Specifications:

• Diameter: 365mm (14.37")
• Thickness (new): 25mm (0.98")
• Thickness (min.): 23mm (0.91")
• Type: 2-piece floating
• Face Pattern: Slotted
• Vented / Solid: Directional ventilated
• Number of Vanes: 48
• Hat Material: 6061-T6 aluminum
• Friction Ring Material: CM-250 high carbon alloy cast iron
• Brake Discs Finish: CBN turned
• Weight (per rotor): 17.2 lbs (7.8 kg)

Cross Reference:

• OEM Tesla  1044611-00-D
• Brembo  09.N360.11

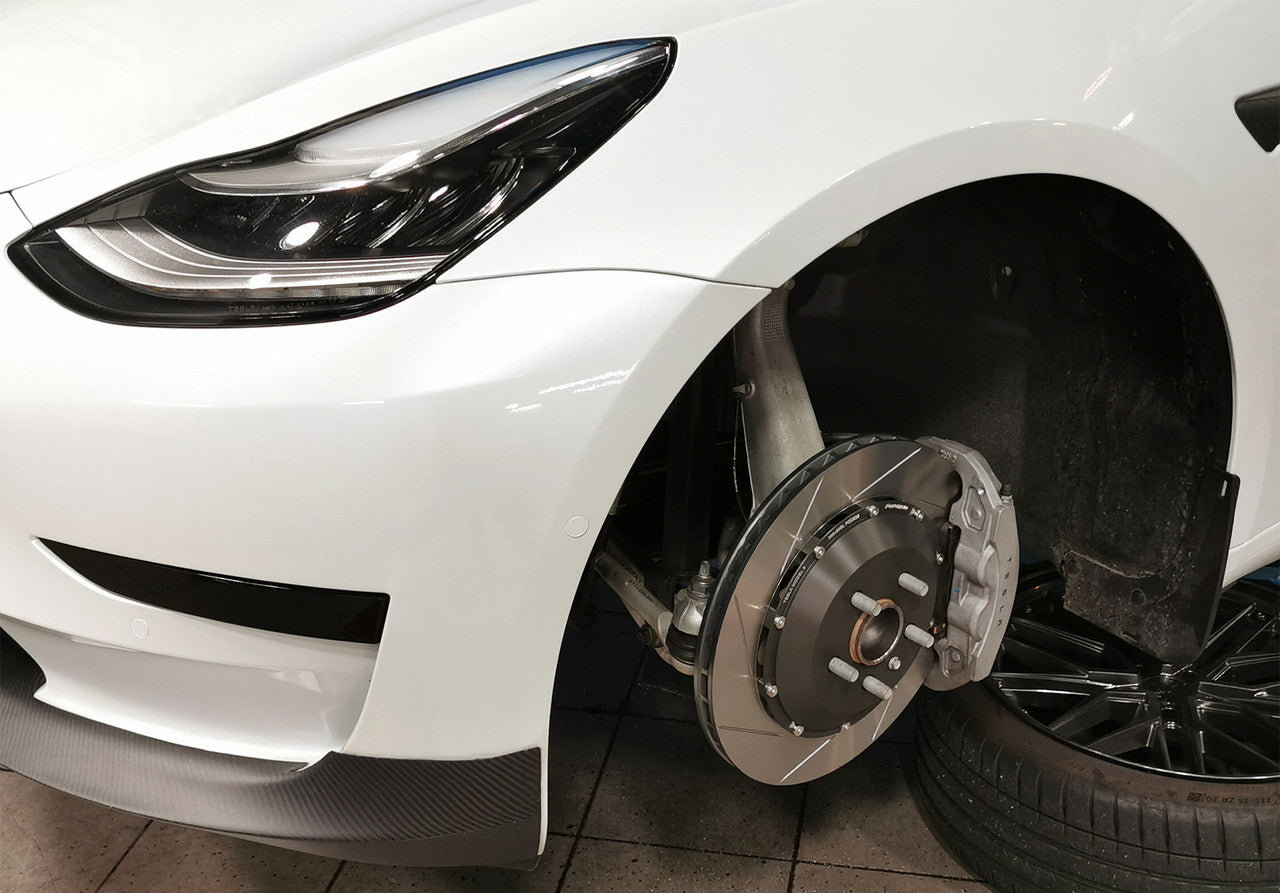

Fits 2017+ Model 3 Rear-Wheel Drive and Long Range (Dual Motor, All-Wheel Drive)

***Does NOT fit AWD Performance or vehicles with Performance Upgrade Package "PUP" brakes

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

PARAGON-P2R.048.365.250.23800.08.01.01.F (Black Hard Coat Anodized Hat)

PARAGON-P2R.048.365.250.23800.08.01.02.F (Hard Anodized Hat)

Manufactured by

Paragon
