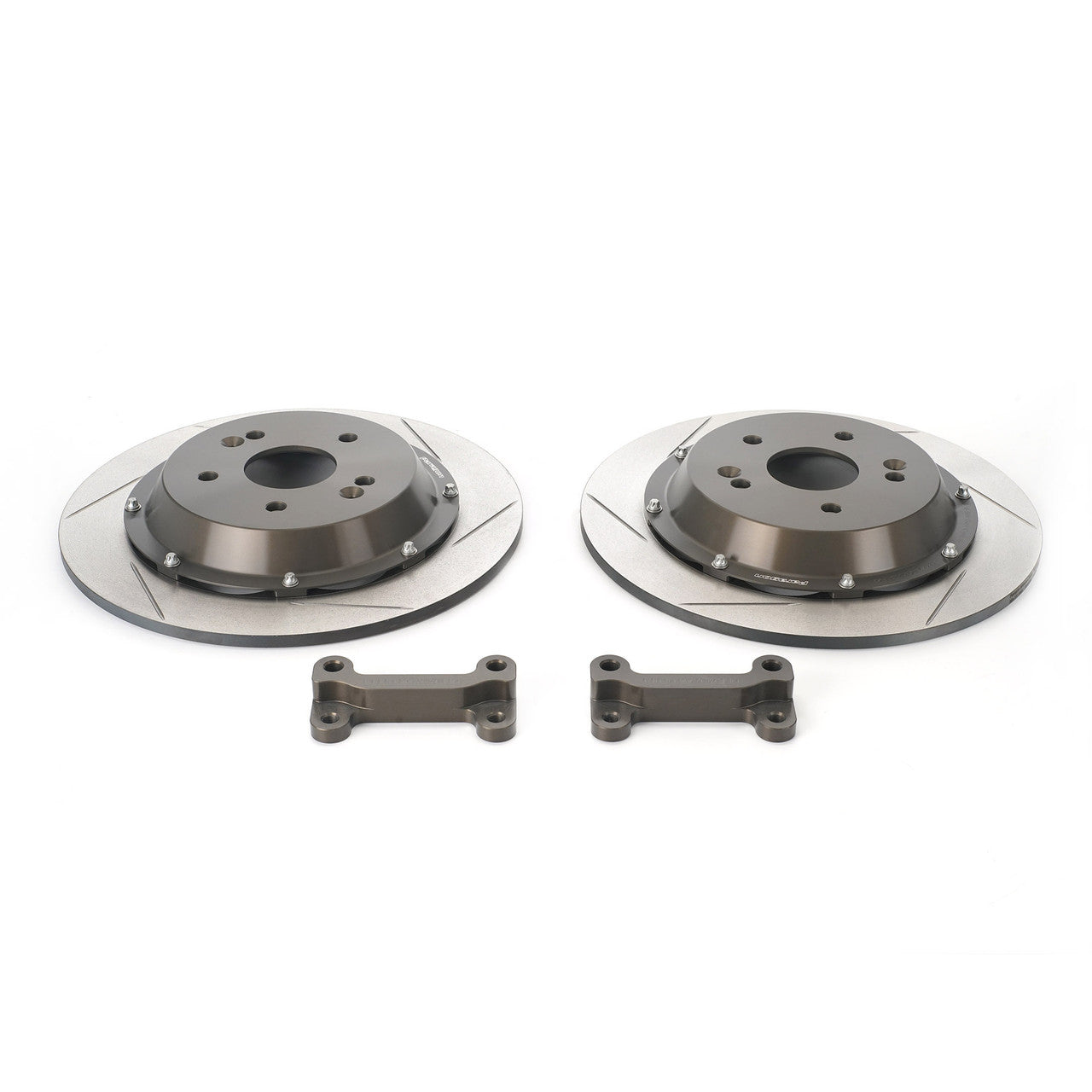

Paragon Performance 2-piece Brake Discs offers superior braking and cooling efficiency optimized for track and race applications. Features greater thermal capacity and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Brake Discs rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotors went through rigorous quality control procedures and inspections to ensure the rotors are fit for their purposes. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our 2-piece rotors improves overall handling by saving unsprung mass.

Aluminum hats are CNC machined from lightweight 6061-T6 aerospace grade aluminum for high strength and durability under extreme track conditions, then black hard coat/hard anodized to increase resistance to wear and corrosion. Mil-spec Type III anodized hats will not discolor under extreme heat, and are harder and more wear/scratch resistant. Unnecessary materials are taken out from the aluminum hats for maximum weight savings while maintaining proper structural integrity.
*Black hard coat and hard coat anodized hats are the same in terms of performance and durability.

• Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system. Compatible with OEM or aftermarket brake pads with the same pad depth (D)
• Increases rear rotor diameter by 42mm / 1.65" (14.9%)

• Further increases brake torque over O.E. sized 2-piece rotors due to improved leverage

• 2-piece design
• Minimize chances of brake fade & judder during extended sessions
• Adapters to accommodate larger rotor size (324mm vs. stock size 282mm)

• Brake Discs to hat mounting system: Fixed hat, non-floating (8 bolt)

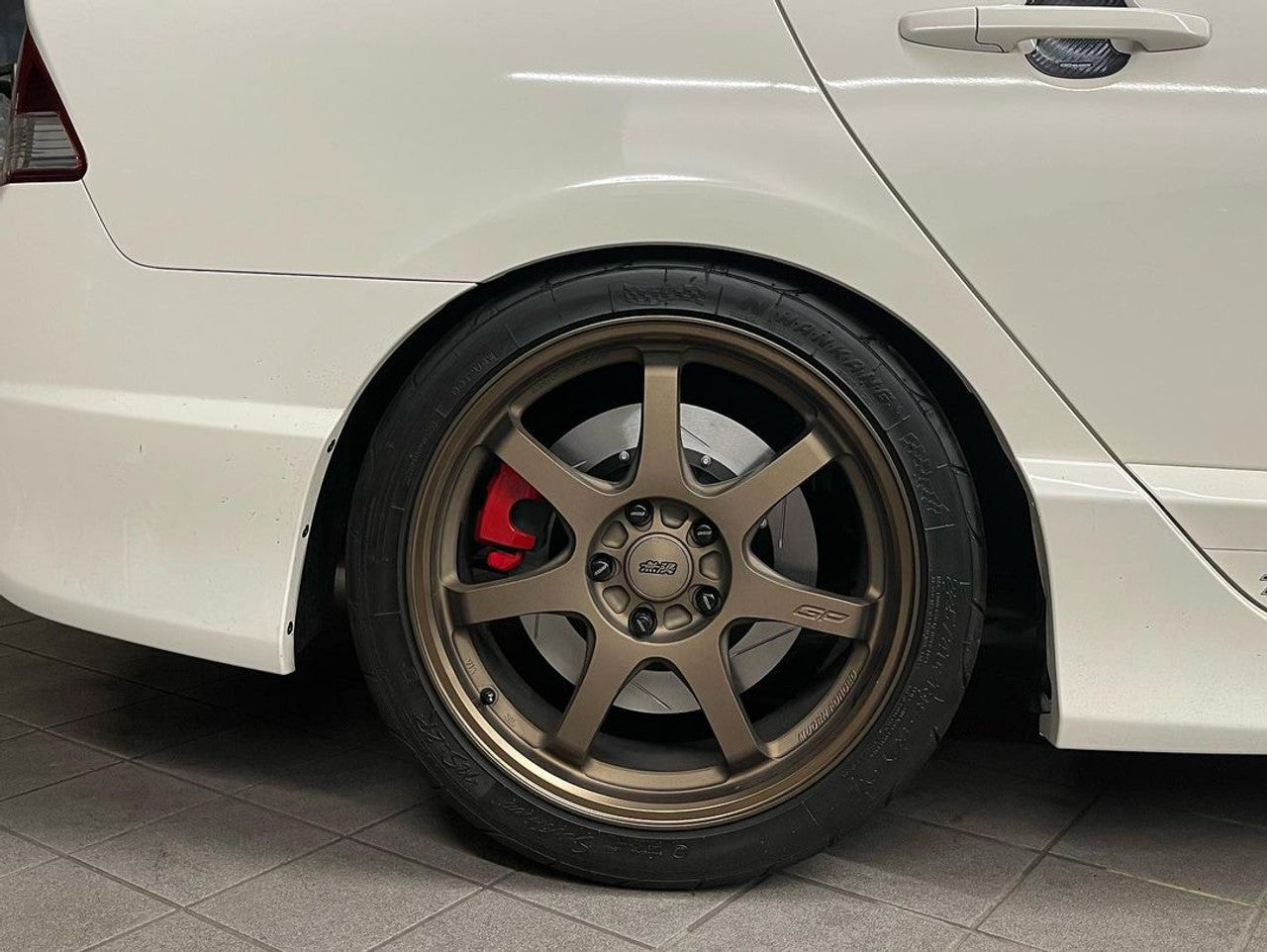

Wheel Fitment

This larger rear rotor kit was designed to fit under certain 17 inch wheels. However, not all 17" wheels are compatible due to variations in wheel design.

Test fit approved wheels:

• OEM Integra DC5 Type R 17x7 +60

Direct replacement of: OEM Honda part # 42510TA0A00 / 42510-TA0-A00 / 42510TA0A01 / 42510TA0A02

Specifications:

• Diameter: 324mm (12.76")
• Thickness (new): 9mm (0.35")
• Thickness (min.): 7mm (0.28")
• Type: 2-piece non-floating
• Face Pattern: Slotted
• Vented / Solid: Solid
• Number of Vanes: N/A
• Hat Material: 6061-T6 aluminum
• Friction Ring Material: CM-250 high carbon alloy cast iron
• Brake Discs Finish: CBN turned

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

PARAGON-P2R.019.324.090.22200.01.03.01.R (Black Hard Coat Anodized Hat)

PARAGON-P2R.019.324.090.22200.01.03.02.R (Hard Anodized Hat)
