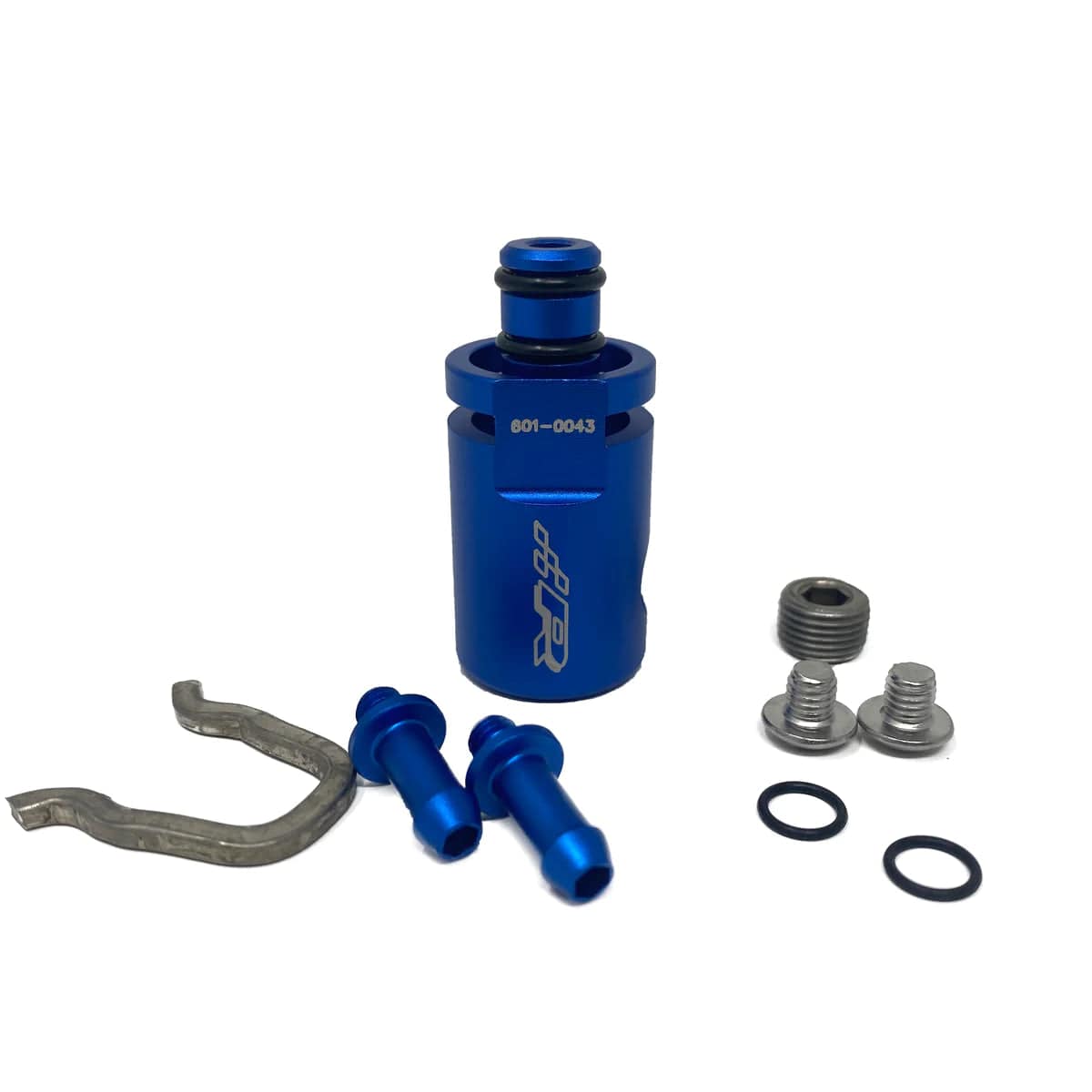

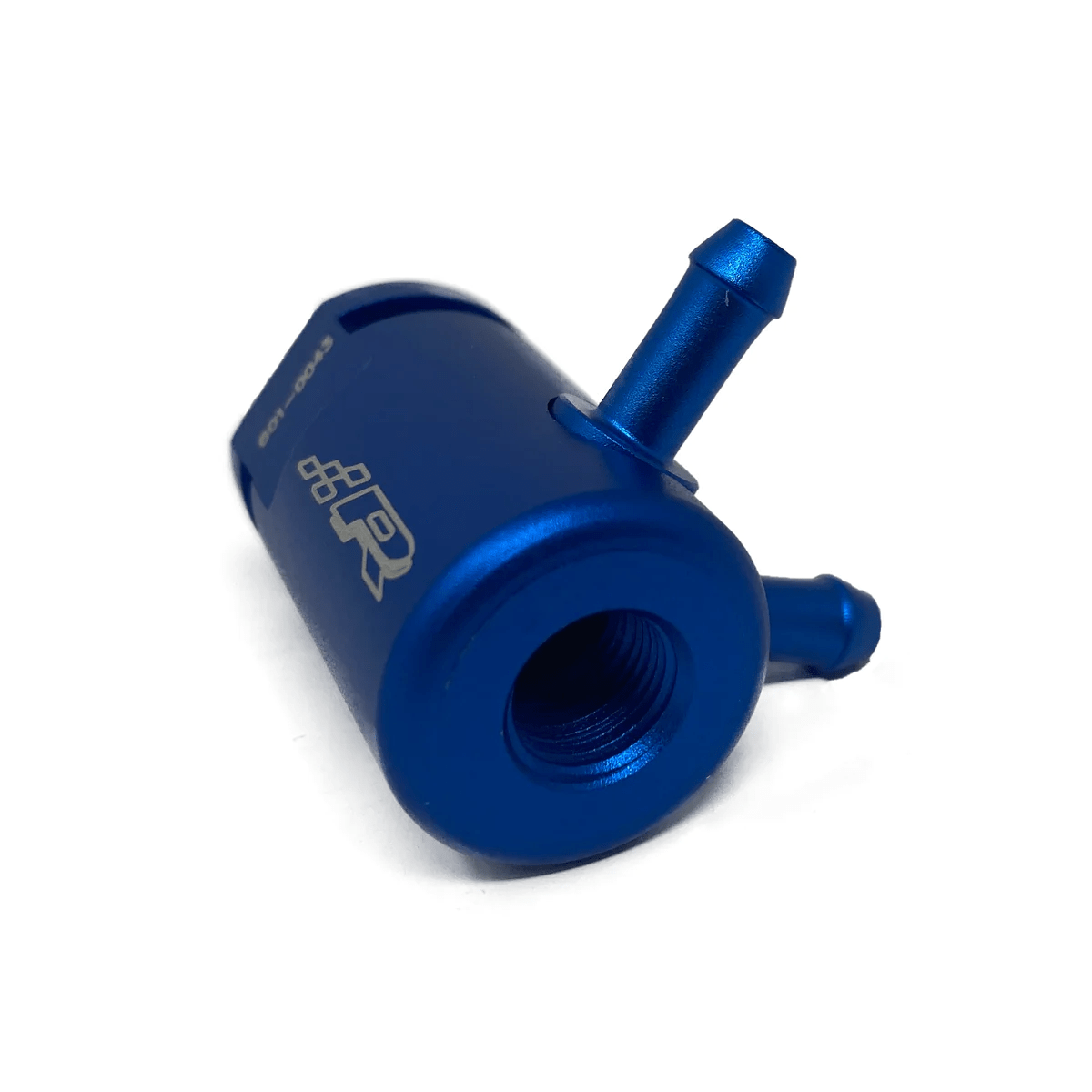

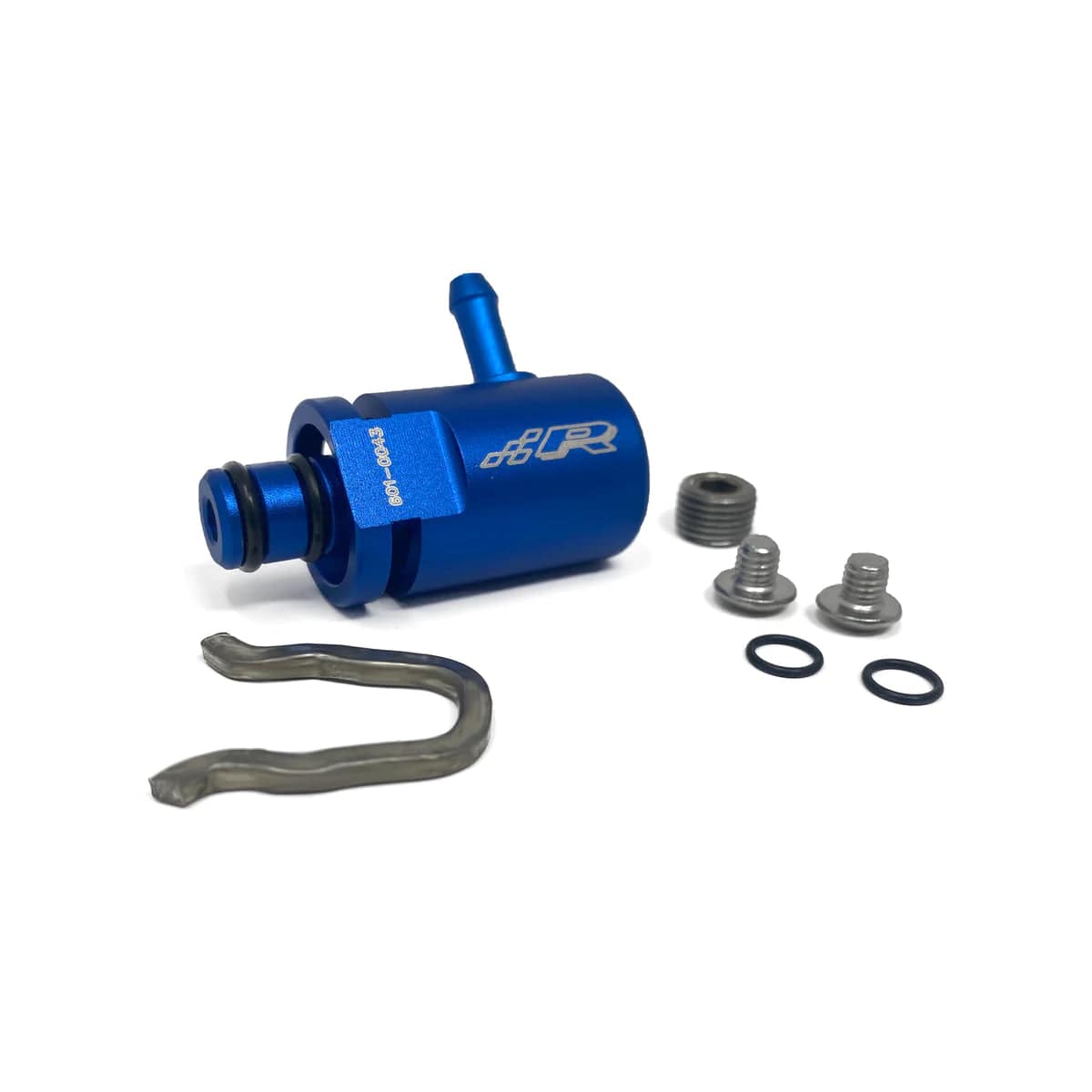

The Precision Raceworks EA888.3 INTAKE MANIFOLD BOOST TAP KIT provides a solid leak free method to get boost/vacuum from your intake manifold. It features 3 nipples for use with vacuum gauges, vacuum operated waste gates, blow off valves, dyno use, or any other function you might need vacuum/boost reference. Best of all this is the only kit on the market featuring an 1/8” NPT port in the side for use with pressure switches or sensors such as 5 Bar map sensors.

Don’t be fooled into thinking all kits are the same, there are companies out there making boost tap kits which fit where the factory T-Map sensor go on the manifold. These kits have been proven to heat soak and cause timing pulls in your engine reducing power and decreasing fuel economy.  So stay away from any boost tap that installs where your map sensor installs and do it the right way the first time!

Just like with any vacuum line in a boosted application, all hoses or silicone nipples should be secured with a small zip tie to prevent possible boost leaks or blow off occurring.

Specifications

• Weight:  2.4lbs
• Dual sealing Shaft: Yes
• Silicone block off caps included: Yes
• 1/8” NPT port : Yes
• Number of standard ports: 3 standard nipple ports
• Finish: Anodized to prevent corrosion

• Audi S3 2014-2018

• Audi TT 2015-2018
• Aud TT S 2015-2018
• Seat Leon Cupra 2015-2017
• Skoda Octavia 2015-2017
• Volkswagen GTI 2014-2018
• Volkswagen GTI Clubsport 2015-2018
• Volkswagen Golf R 2014-2018

601-0043 (Blue)

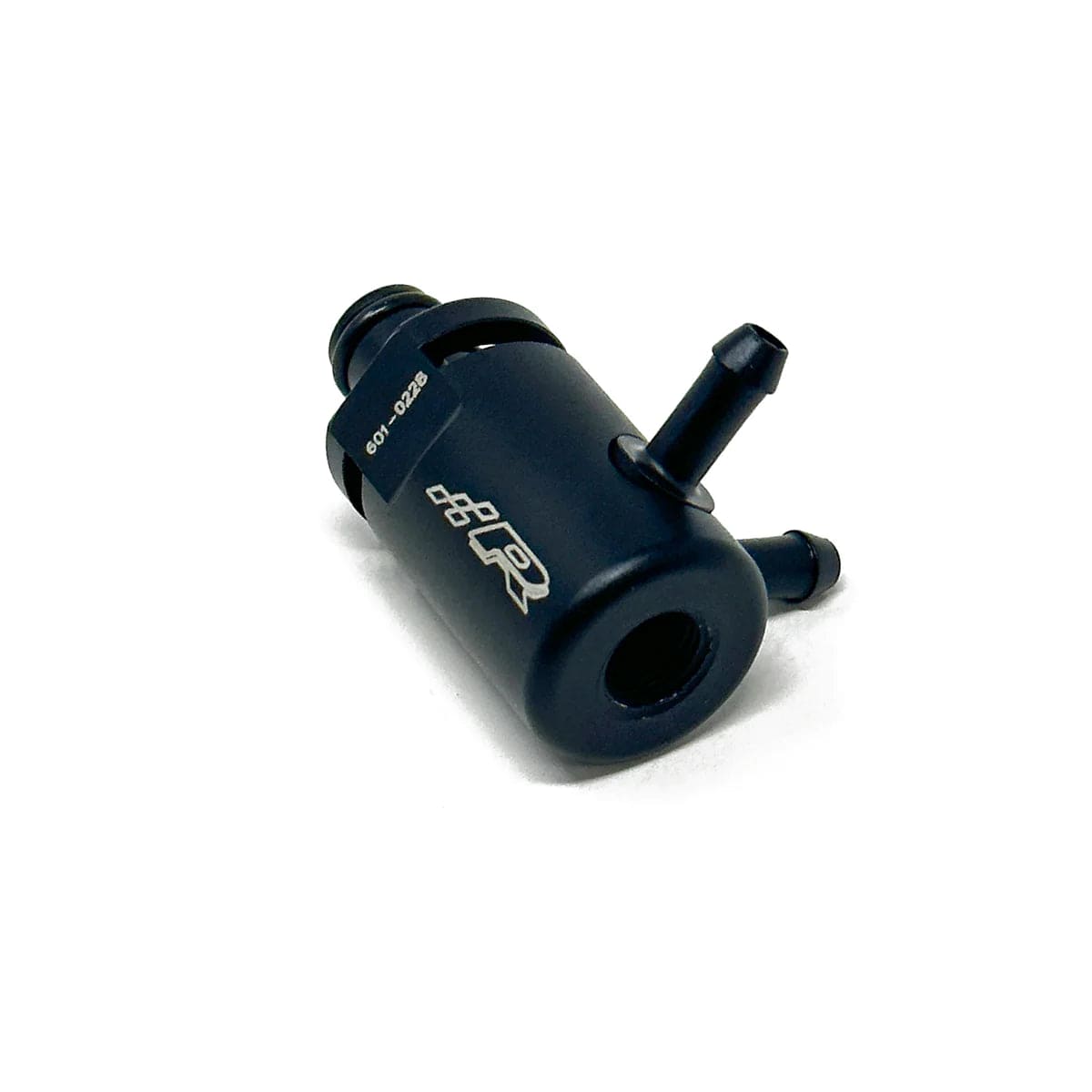

601-0228 (Black)

Manufactured by

Precision Raceworks
