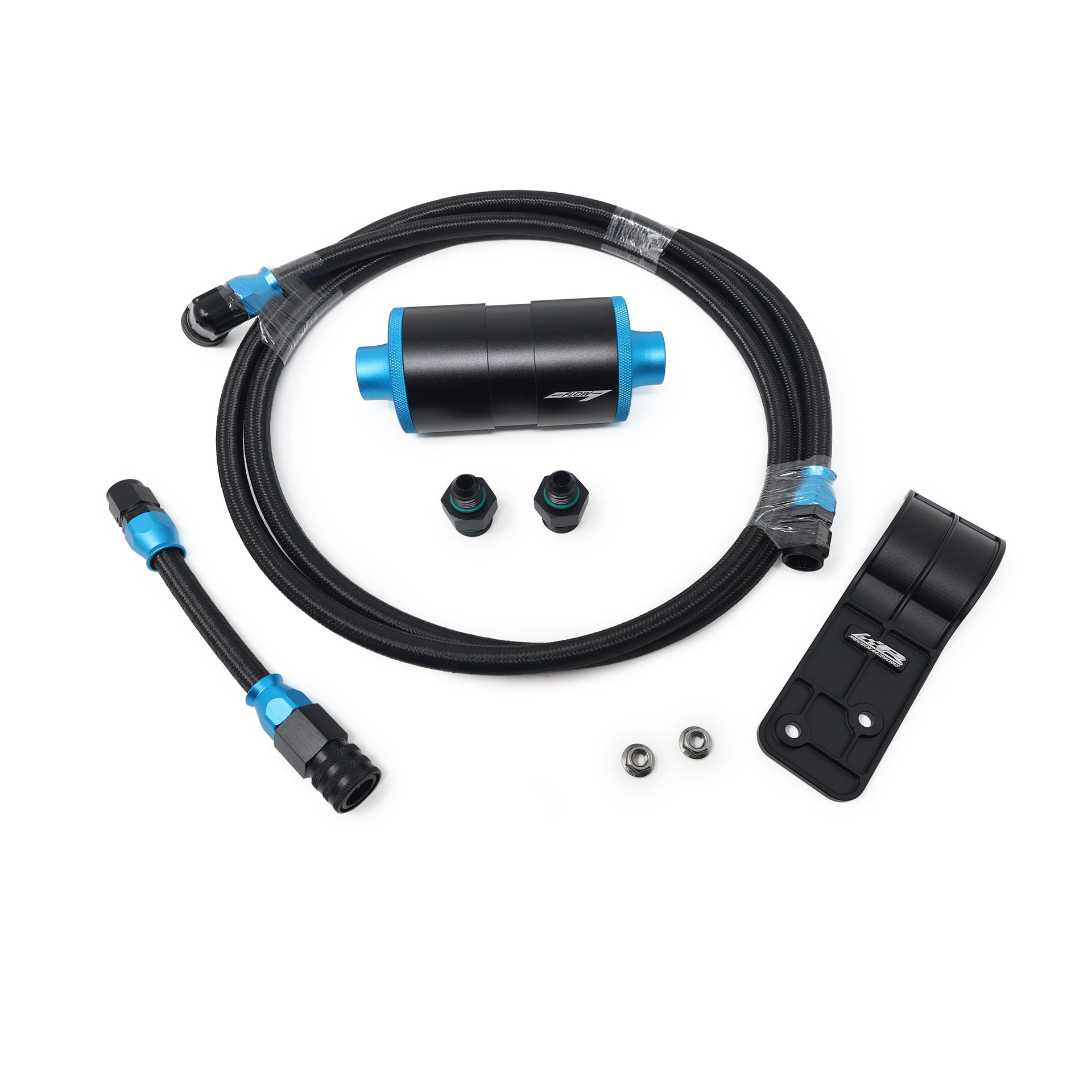

The Precision Raceworks G2x/G8x Performance AN6 Fuel line upgradeoptions are a direct replacement from the fuel pump in the fuel tank to the metal hard line under near the firewall. Featuring smooth bore PTFE protected by stainless still and nylon and 100% billet fittings these lines are a nice touch of quality to add to any build.

All fittings, line lengths, and brackets are designed in house, machined from 6061 aluminum,and then anodized for100% E85 compliance.

Additionally this kit is modular in design to work with our USA made 10 micron micro-glass fuel filter option. This option protects your injectors and high pressure fuel pump. T his line set is a MUST for anyone running an upgraded primary fuel pump of any brand as currently no other company is filtering the fuel which will lead to premature failure of the high pressure pump and fuel injectors! Best of all, micro-glass is the ideal filtration material for both E85 and Gas (including race fuels).

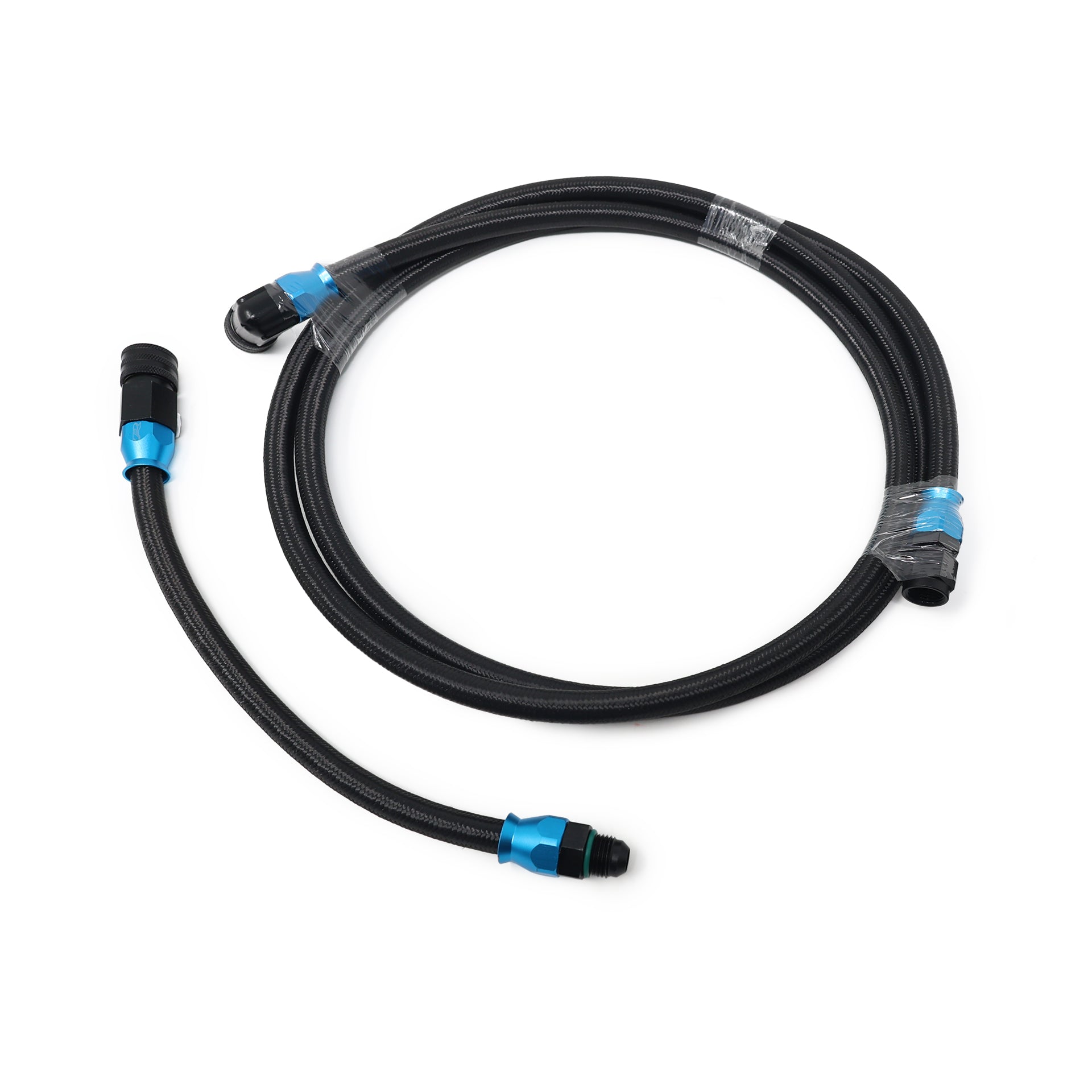

Primary Fuel Line Upgrade

• Direct replacement for factory fuel line from pump in tank to metal hard line
• AN6 PTFE smooth bore fuel line with stainless and nylon braiding
• Made from billet aluminum designed for high flow (exceeding standard designs)
• 100% compatible with all fuels including Ethanol
• 1/8" NPT accessory port for adding low pressure fuel sensor
• Modular design compatible with below fuel filter expansion module

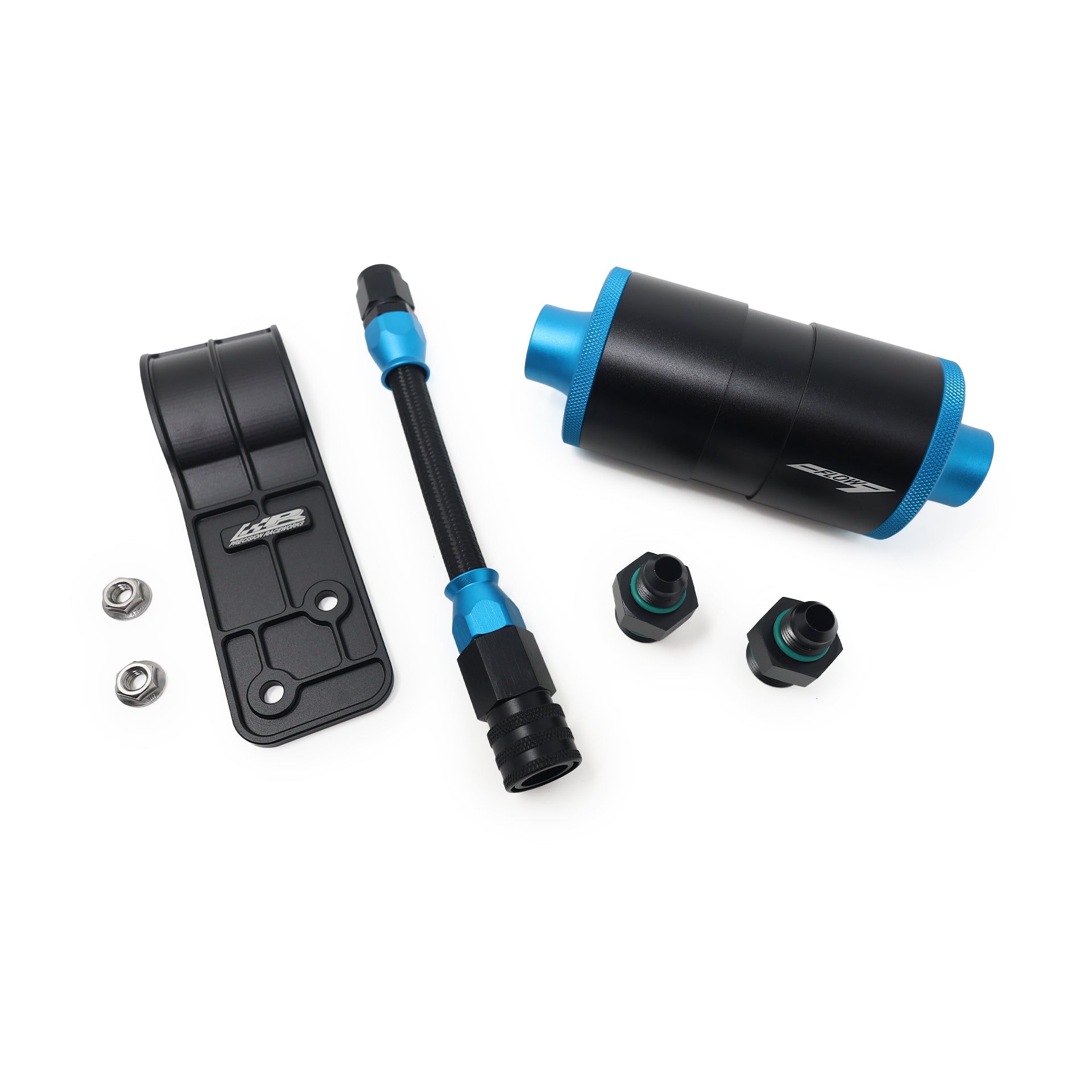

Optional Fuel Filter Module(above line set required)

• Compatible with all factory and aftermarket fuel pumps*
• Billet aluminum filter housing anodized for full E85 compatibility
• USA made 10 micron Micro-glass filter element
• Compatible with all fuels including Ethanol and Race Fuels
• Billet aluminum filter mounting bracket for easy and secure mounting
• All components anodized for E85 compatibility and corrosion protection
• Included line section featuring same 1/8" NPT accessory port of main line

Looking to add Ethanol Sensor?

• Simply use ourEthanol 360fittings to easily add an ethanol sensor!
• Select3/8" fittings to put in the line under the car
• Select5/16" fittings to put in the line behind the manifold

*Fuel filter expansion module is not compatible for cars running our stand alone aux fuel system, as the stand alone aux system uses the same filter location.

• Primary Fuel Line Upgrade
  • Weight: 1.04lbs
  • Fuel hose type: PTFE Smooth Bore
  • Line Size: -6AN
  • Connection Style: OEM Quick Connect & AN6 Flare
  • Connector Material: 6061 Aircraft Grade Aluminum & OEM Spec Nylon
  • Accessory Port Size: 1/8" NPT (perfect for fuel pressure sensor)
  • Connects to flex fuel sensor: No (Click Here for flex fuel connection)

• Optional Fuel Filter Module
  • Weight: 1.10lbs
  • Fuel hose type: PTFE Smooth Bore
  • Line Size: -6AN
  • Filter Element Specs: 10 Micron Micro-glass
  • Connection Style: OEM Quick Connect & AN6 Flare
  • Connector Material: 6061 Aircraft Grade Aluminum & OEM Spec Nylon
  • Accessory Port Size: 1/8" NPT (perfect for fuel pressure sensor)
  • Connects to flex fuel sensor: No (Click Here for flex fuel connection)
