Drive without limits thanks to our new A5-platform 2.0 TFSI EA113 Oil Catch Tank Kit.

Our Tank is produced from high quality 6061 aluminium. Precision robot-welded for the perfect construction. Two male AN10 breather ports. Resilient & attractive 'crinkle black' powder coated finish

Not all catch tank kits are equal. Designed with a built in engine baffle plate, our system is designed to aid engine oil control as well as catching unwanted oil and water vapour.

• Retains oil in the engine under high-G cornering and braking.
• 3 way baffled catch tank to effectively collect excess moisture and oil vapour.
• Keep your intercooler and inlet tracts clear of oil build-up residue, whilst providing cleaner airflow through the inlet manifold and ports

Our catch tanks are machine welded for the best possible finish before being coated in our distinct "crinkle black" powder coat. All this is to ensure a RacingLine catch tank stands the test of time and retains its looks.

• Easy level measure with our built in dipstick.
• Drain Plug at the base of the tank for easy disposal of excess fluids.
• Our catch tank locates on the side of your engine mount and utilises the original chassis bolt, retaining a true OE appearance.
• The factory carbon canister must be removed to allow our larger can to be fitted. Please check on legality in your local market before purchase/fitment.

210 SERIES BRAIDED HOSE

Our oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience.

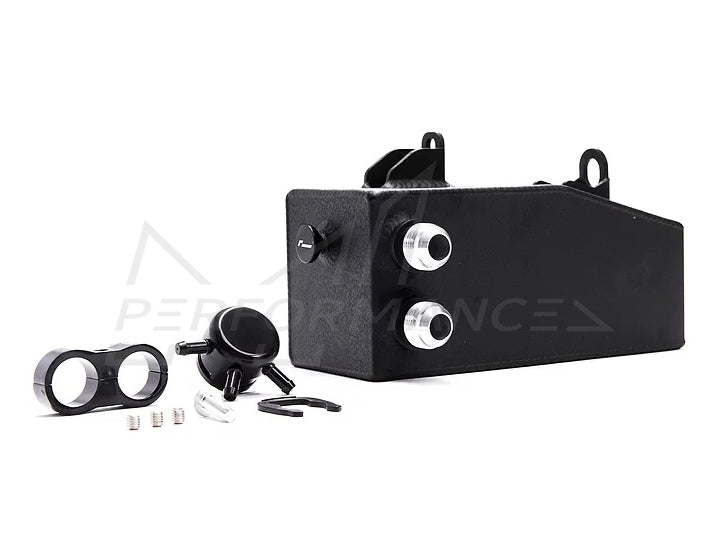

CATCH TANK

Not just a tank, but a three way inner division ensures separation of moisture and oil.

Racingline fittings are all hand polished before anodising for the ultimate finish and limits the chances of "spanner rash"

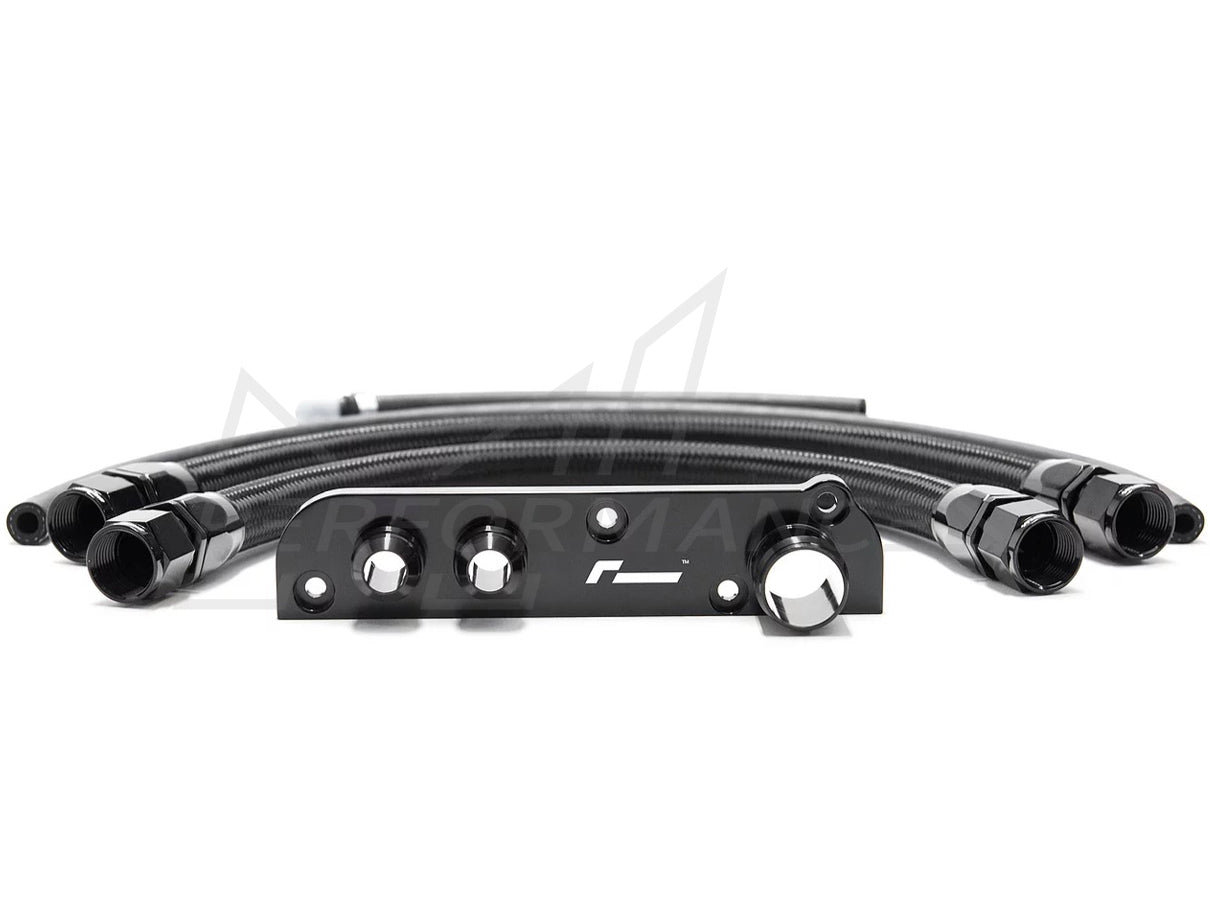

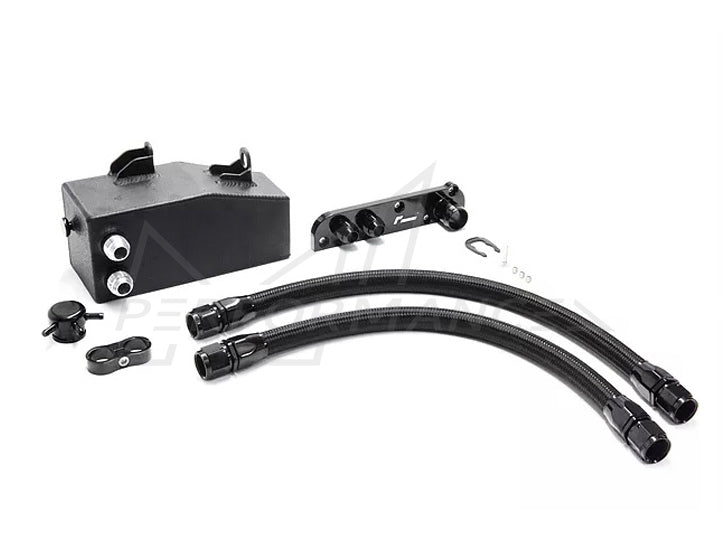

• Replacement PCV breather plate
• Baffled breather cap
• Breather hose from cap to catch tank
• Baffled catch tank
• Breather return hose from catch tank to inlet
• Oil catch tank dipstick
• Catch tank drain plug
• AN-10 "210 series” oil lines
• CPE synthetic inner rubber lining with reinforced stainless steel braid
• Fixing kit containing all required bolts, washers and rubber o-ring cord.

Please Note: The factory carbon canister must be removed to allow our larger can to be fitted. Please check legality in your local market before installation.

​The factory engine cover can no longer be used once the catch can is fitted - so you will need to have a cold-air intake already installed.

• VW Golf 5 GTI 1K 2005 - 2008
• VW Golf 5 GTI 1K ED30/Pirelli 2006 - 2007
• VW Golf 6 R 5K 2009 - 2014
• VW Scirocco R 2009+
• WV Jetta V GLI 1K 2005 - 2011
• Audi A3 8P 2003 - 2012
• Audi S3 8P 2006 - 2012
• Audi TT 8J 2.0 TFSI II 2006 - 2014
• Audi TTS II 8J 2008 - 2014
• Seat Leon Cupra/R II 1P 2006 - 2012
• Skoda Octavia vRS II 1Z 2004 - 2013

VWR13G500

Manufactured by

Racingline
