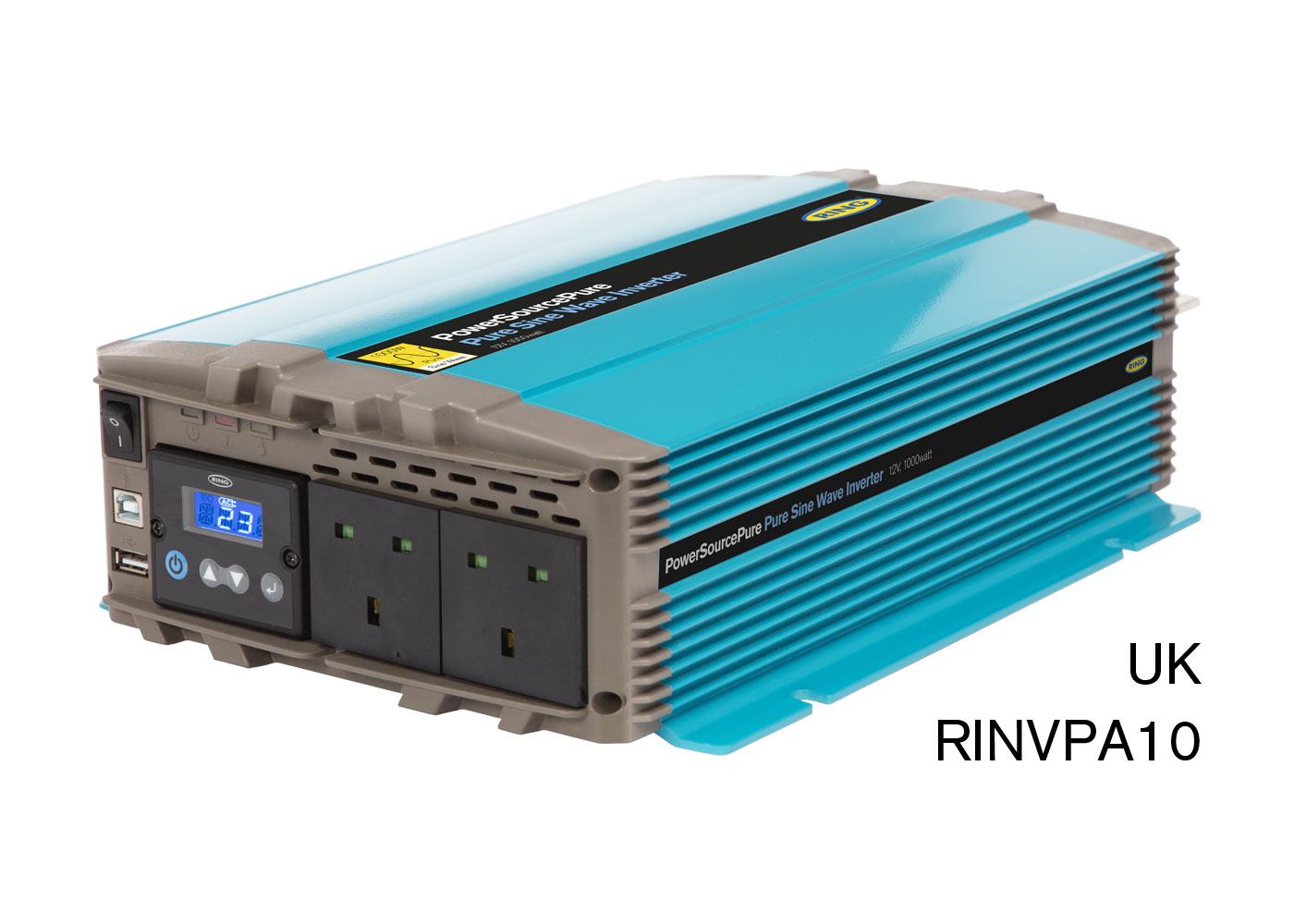

RING RINVPA10 12V DC to 230V AC, 1000W Pure Sine Wave Inverter (2 x UK Sockets)

RING RINVPA10 12V DC to 230V AC, 1000W Pure Sine Wave Inverter (2 x UK Sockets)

Regular price £405.67 Inc. VAT
Regular price Sale price £405.67 Inc. VAT
9th Anniversary Badge

Price Match
View full details

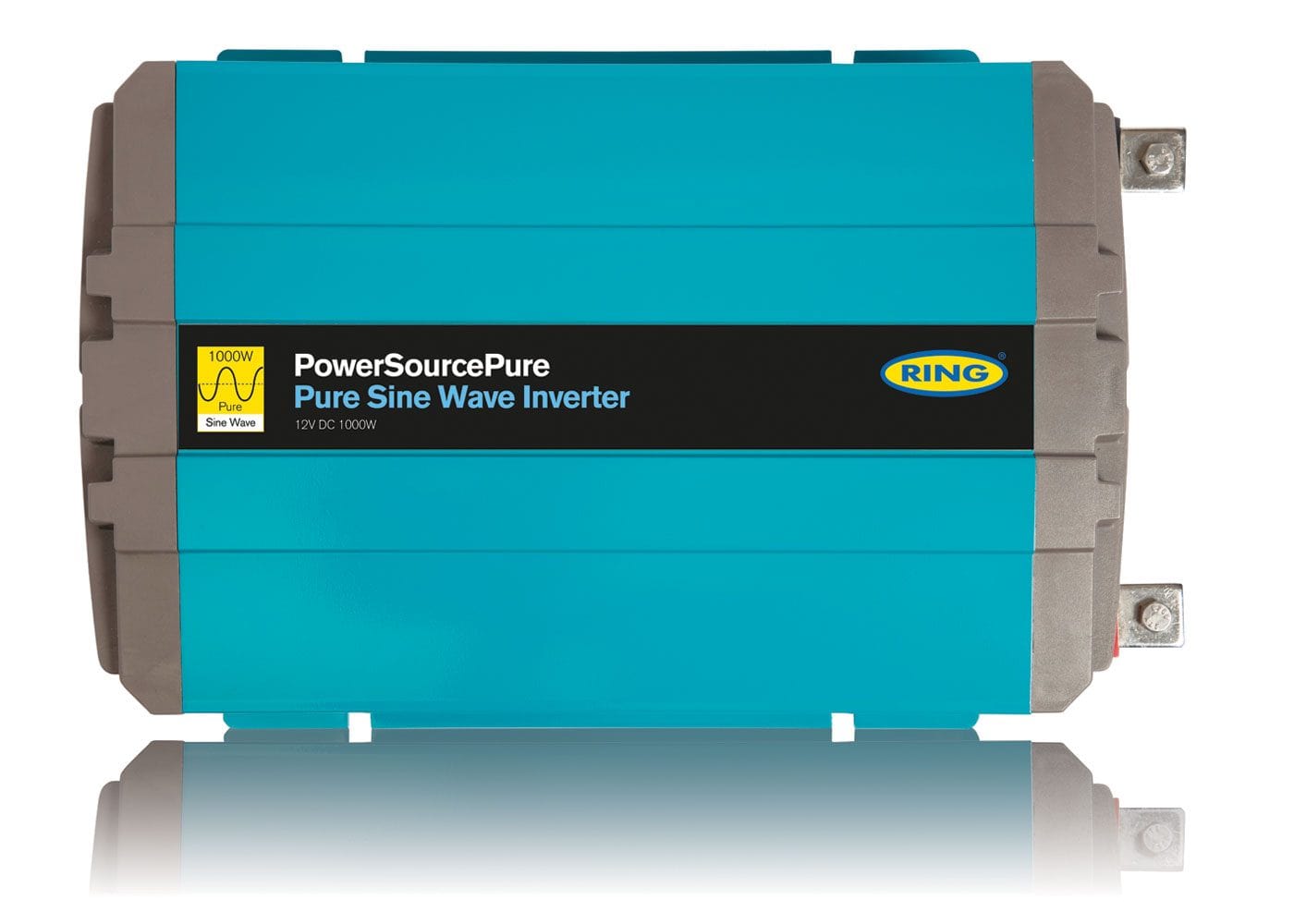

This is PowerSourcePure Pure Sine Wave Inverter.

Professional 1000 watt pure sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal for remote applications such as service vehicles. Pure sine wave inverters provide an extremely pure output, which replicates the normal domestic mains supply. This makes them suitable for powering products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive electronics such as laptops and audio/visual equipment.

Highly efficient, running at 90% efficiency at 75% load, and with minimal footprint to reduce installation space. Includes a power saving mode to reduce battery drain when not in use. All models are fully protected against overload, over temperature and low/high voltages.

An additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.

PowerSourcePure inverters are E-Marked and tested and certified to the relevant EMC and LVD Directives.



  • 1000W pure sine wave inverter
  • Operating mode and fault indicators
  • Power saving mode reduces standby power
  • Up to 12 hours continuous use
  • Compact heavy duty extruded casing
  • USB charging socket for mobile devices
  • Optional multi-function LCD frame (RINVFRM)
  • Optional battery sensor module (RINVCM)
  • Fully protected against overload, over temperature and low/high voltage
  • Suitable for 12V vehicles
  •

    Specifications

    Product dimensions (mm): HxWxD 99 x 247 x 373
    Weight (kg) 5.266
    Voltage 12V DC Input 230V AC Output
    Wattage 1000W
    E Regulation 10 - EMC
    Continuous power rating (up to 12hrs) 1000W
    Peak power rating (up to 200ms) 2000W
    Output voltage Adjustable: 200/220/230/240V +/- 10%
    Output frequency Adjustable: 50/60Hz
    Output waveform Pure sine wave
    Input voltage range 9.5 - 16.5V (12V nom)
    Input current 59A
    Efficiency at 75% load 90%
    No load current draw <1.5A
    Power saving mode Yes
    Power saving current 0.2A
    Low battery alarm sounds 10 - 11.5C +/- 0.5V
    Low battery shut down 9.5 - 11V +/- 0.5V
    Thermal protection 60°C +/- 10°C
    USB 2.1A
    Display panel port Yes
    Current sensor port Yes



    Double check your vehicle's compatibility with our product recommender. Need help? Our friendly team is here to assist you!



    To ensure the part(s) you have ordered fits your need, we run a compatibility check prior to dispatch. Feel free to contact us if you require any assistance!



    RING-RINVPA10



    Manufactured by

    RING AUTOMOTIVE
