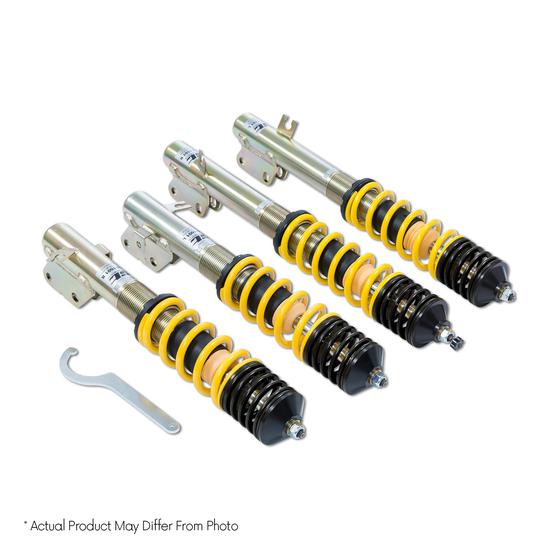

ST coilover XTA plus 3 1820230883 for FORD FIESTA VII

With the ST XTA Plus 3 coilover kit you achieve maximum performance without compromise. The Plus 3 coilover suspension has stepless lowering, adjustable rebound damping and high and low-speed compression adjustment. Thus, the perfect suspension set-up is possible for every challenge.

Two-way adjustable compression damping
The separate compression damping can be set in the low-speed and high-speed characteristics in 24 clicks each adjust. This allows the vehicle-specific basic setting of the XTA plus 3 coilover suspension to be adapted to individual requirements when compressing the dampers. Put simply, if you close the compression valves on the front axle, the suspension setup becomes firmer and the handling becomes more precise and direct. On the rear axle, a tighter compression adjustment ensures increased directional stability during load changes through evasion and helps to reduce oversteer. If, on the other hand, you open the valves, the damping becomes more comfortable to a certain extent and you benefit from greater rolling comfort.

Adjustable rebound damping
The adjustable rebound damping can above all body control of the vehicle when rebounding can be regulated. The rebound damping, which can be adjusted with 16 clicks, enables either a more comfortable setup or a noticeable adjustment of the damping force and thus sporty, firm handling - depending on the direction in which the rebound damping dial is turned.

Adjustable Aluminum Unibal top mounts
With the Unibal top mounts you can optionally adjust the wheel camber on the front axle. The Unibal top mounts are sealed and scalable in the camber setting. They enable the maximum tire contact area to be set when cornering and more direct handling.

Product advantages:

• Stepless lowering
• Adjustable pressure and rebound
• Adjustment plate made of polyamide composite material with stainless steel insert
• No oxidation of the adjustment plate on the shock absorber
• Permanent height adjustment
• High-performance powder coating
< li>Moisture resistance tested in the laboratory



Scope of delivery: Set FA+RA = Front axle: coilover struts incl. top mounts; Rear axle: springs with height adjustment + dampers



Manufacturer	Model	Type	Lowering in mm (FA/RA)	Axle load (FA/RA)	Four wheel drive?
FORD	FIESTA VII (JHH) 05/2017-	1.5 ST EcoBoost 147kw	15-40/25-50	-895/-805	No

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



ST-1820230883
