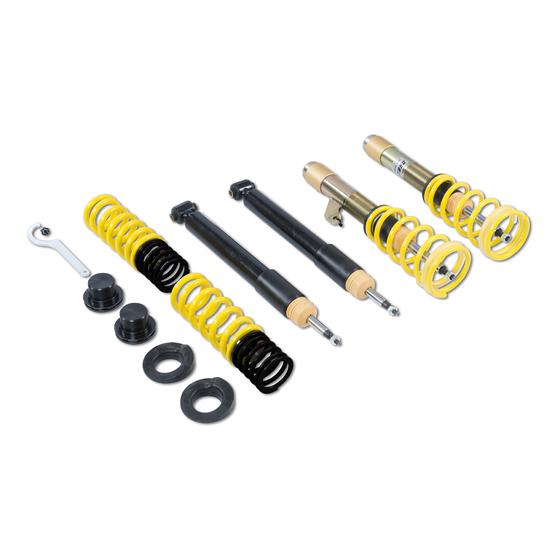

ST Suspension BMW F33 F36 COILOVER KIT XA (428i, 430i, 435i & 440i)

ST Suspension BMW F33 F36 COILOVER KIT XA (428i, 430i, 435i & 440i)

Regular price £1,019.70 Inc. VAT
Regular price £1,133.00 Sale price £1,019.70 Inc. VAT On sale

Price Match

Available on stock order

Learn more on stock order delivery.

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

View full details
For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

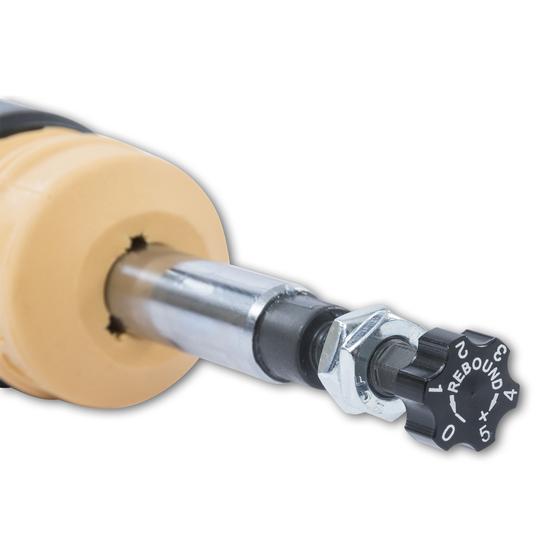

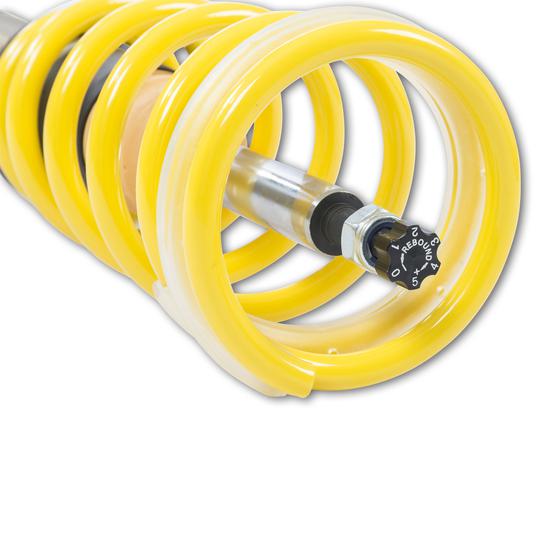

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

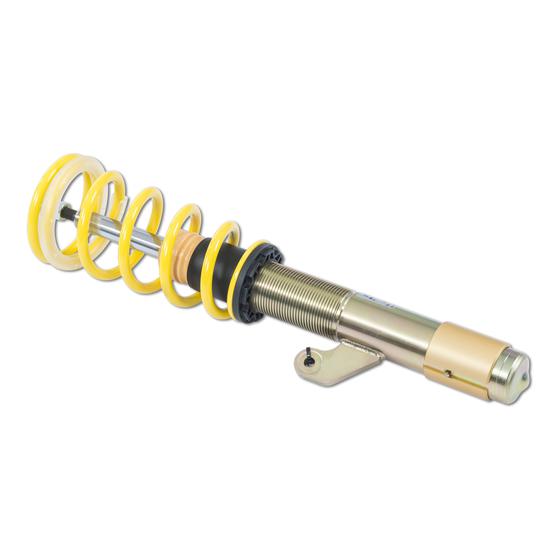

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weath



    • Front Lowering: 1.6" to 2.5"
    • Rear Lowering: 1.6" to 2.5"
    • Version: XA
    • Damping adjustment: Rebound Damping
    • Material: Galvanized Steel
    • Material: Galvanized Steel


      • BMW 3 Series F31 F34 (2012 — 2019)
        • 318d, 320d, 320i, 325d, 330d, 330i, 335i & 340i
      • BMW 4 Series F33 F36  (2014 — 2020)
        • 420d, 425d, 425i, 428i, 430d, 430i, 435i & 440i



        Note:

        • Does not fit xDrive models
        • All vehicles equipped with the EDC system (electronic damper control) are NOT APPLICABLE
        • In combination with the original wheel and tires, wheel spacers might need to be used.


        1822000J



        Manufactured by

        ST Suspension


        Warranty

        Two years manufacturer warranty
