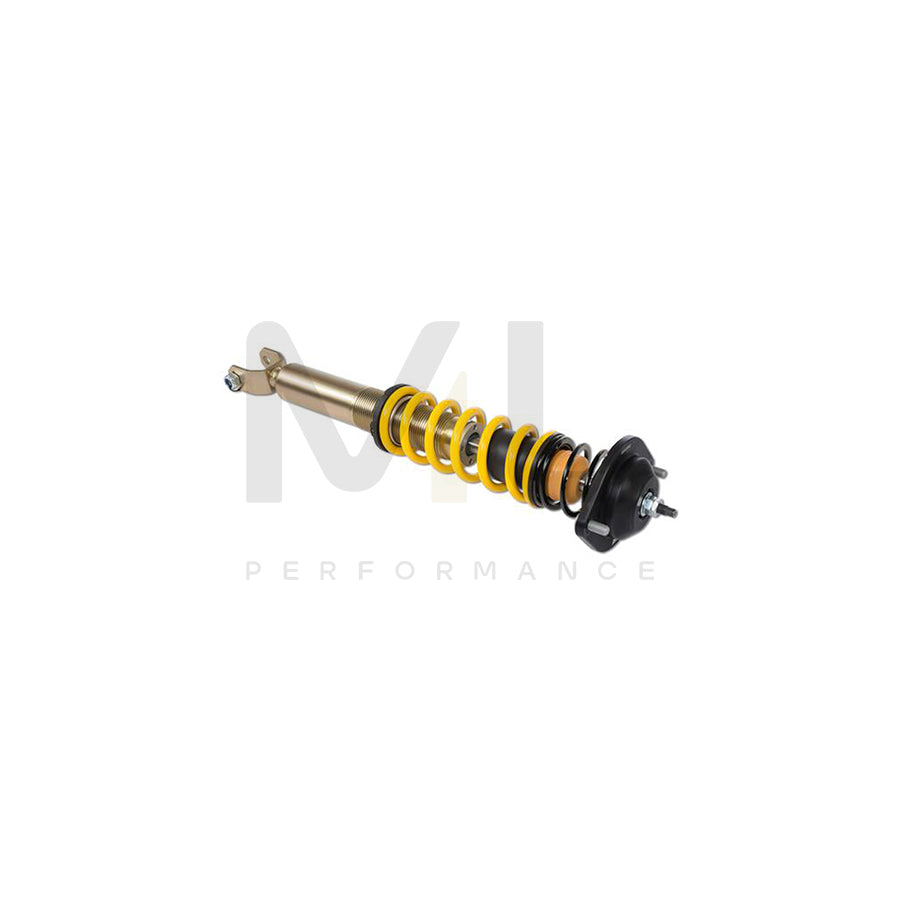

ST Suspensions 18280828 Audi 8P A3 COILOVER KIT XTA

ST Suspensions 18280828 Audi 8P A3 COILOVER KIT XTA

£1,274.00 Inc. VAT
£1,274.00 £1,274.00 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

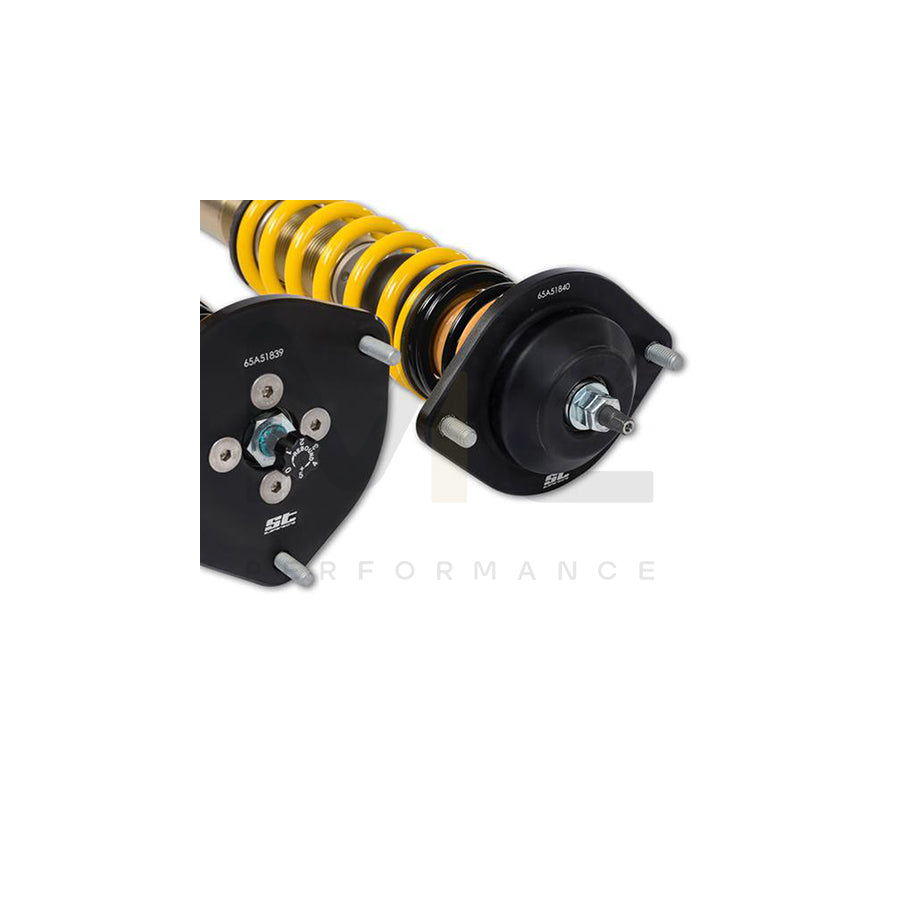

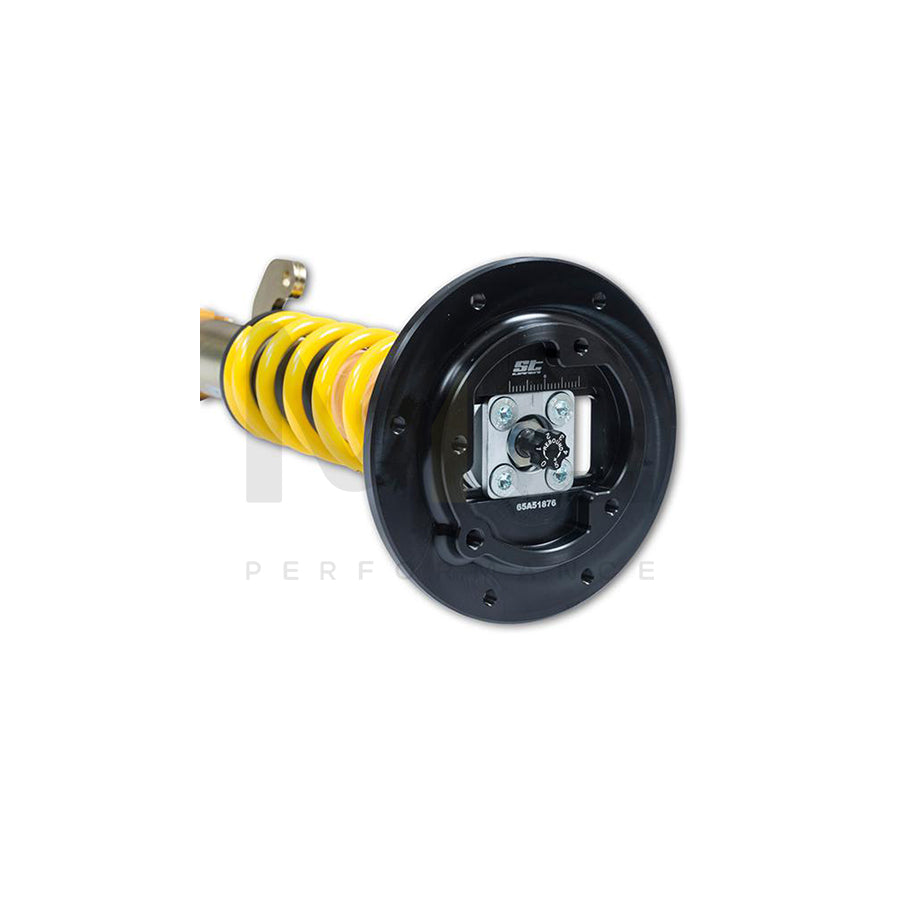

For those who demand the absolute best performance comes the ST XTA coilover. The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminium uniball top mount for fine-tuning of the camber and caster!

Performance driving in mind
ST XTA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. For increased performance, the ST XTA features an aluminium adjustable topmount allowing the camber and caster to be adjusted depending on your driving needs or vehicle setup.

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XTA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XTA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protec




  • Front Lowering: 25mm to 55mm
  • Rear Lowering: 25mm to 55mm
  • Version: ST XTA
  • Damping adjustment: Rebound Damping
  • Material: Galvanized Steel
  • Strut diameter front axle (mm): 55
  • Approval: Part approval (ง19.3)



Specifications

Length 76
Width 46
Height 15
Weight (kg) 22



  • A3
    • A3 Hatchback (8P1) (05/2003-12/2013)
      • 1.8tfsi quattro / 2.0tdi 16V quattro / 2.0tdi quattro / 2.0tfsi quattro / 3.2 V6 quattro / S3 quattro
    • A3 Convertible (8P7) (04/2008-05/2013)
      • 1.2tfsi / 1.4tfsi / 1.6 / 1.6tdi / 1.8tfsi / 1.9tdi / 2.0tdi / 2.0tfsi
    • A3 Sportback (8PA) (09/2004-12/2015)
      • 1.8tfsi quattro / 2.0tdi 16V quattro / 2.0tdi quattro / 2.0tfsi quattro / 3.2 V6 quattro / S3 quattro

Note:

  • Only for cars with a clamp diameter of 55 mm on the front axle.
  • At vehicles equipped with electronic damping DCC, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510141.



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



18280828


Manufactured by

ST Suspension


Warranty

Two years manufacturer warranty



EAN

4250580437406
