This brake disc is often purchased with the Tarox BMW F80 F82 370mm Rear Brake Discs (M3 & M4)

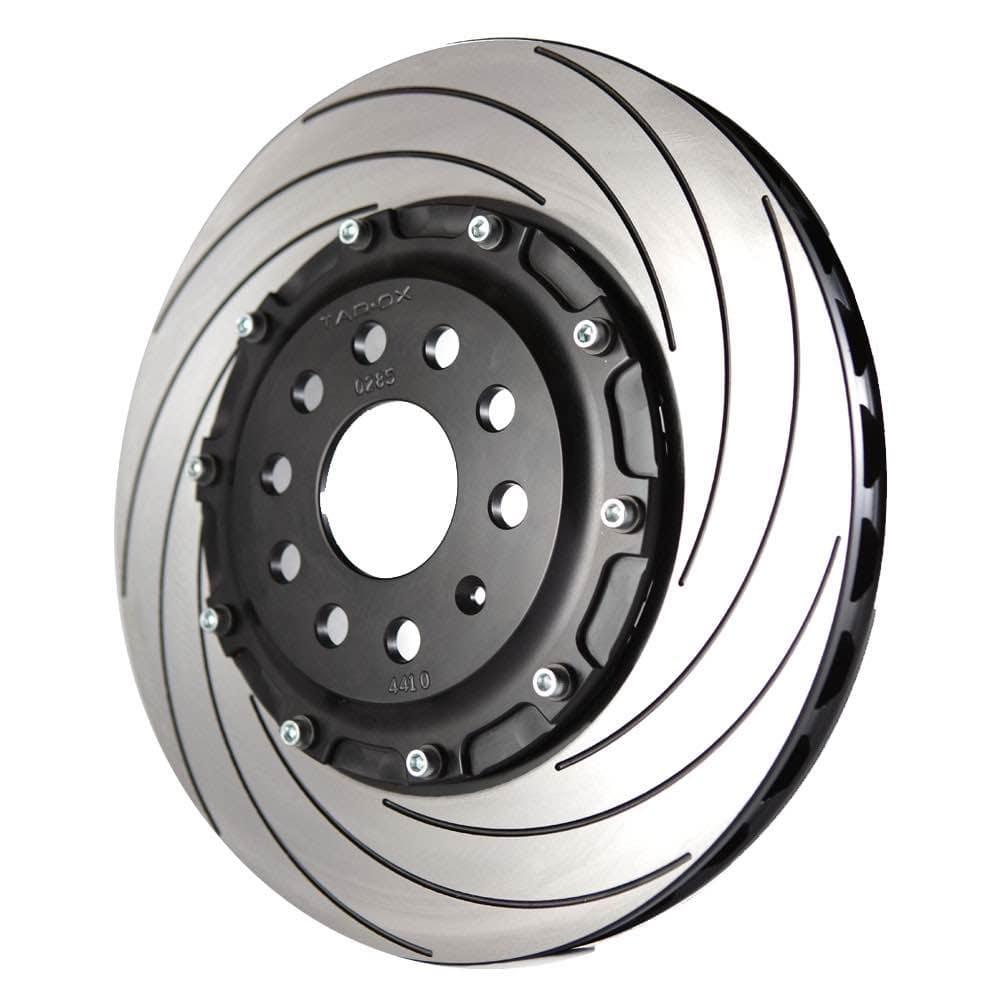

The first in a new range of performance upgrades for the popular BMW M3/M4 models, TAROX has unveiled a newly designed two-piece performance brake disc solution for the BMW F80 and F82 platform.

These discs are direct replacements for the OE brake discs and will fit straight to your vehicle without any further modifications required. You will receive a pair of handed discs with specific cooling features for the left and right side of the axle.

The 'Bespoke' way...

These discs are part of our special 'Bespoke' range which we have compiled to provide a performance solution for vehicles for which parts aren't easily obtainable. Vehicles such as classic sports marques or modern high-performance cars whose drivers seek higher levels of performance from their brake setup. All discs in the 'Bespoke' range are individually CNC machined from a solid piece of steel billet - they are never made in a cast. Once the billet has been machined to the required size it is heat-treated and then cooled to unify the structure of the steel and improve strength and durability. This keeps the disc more stable at extreme temperatures. Characteristics such as warping, cracking, fade and knock-off are all massively reduced. The longevity of the disc and pad are both extended dramatically. The toughened disc is then grooved and/or drilled as required and finally finished by hand. Each disc is manually ground to a tolerance approaching 0.015mm creating a perfectly level surface to ensure that the discs will run true. In the case of a two-piece disc, the billet rotor is then mated to a CNC machined alloy bell which has been hard anodized for protection from the elements. The Ultimate Tensile Strength (UTS) for these discs is rated at 57kg per square mm. To put this figure into perspective, the standard for racing spec discs is usually 38kg per square mm and the CEE standard UTS is 25kg per square mm. If you have any questions about the 'Bespoke' range, please feel free to contact a member of our team with your query.

Specifications

• TAROX CODE: S2-2940

• QUANTITY: 2 Discs

• AXLE: Front

• DISC TYPE: Vented

• VEHICLE ENGINE SIZE: 3.0

• DISC DIAMETER: 380

• DISC THICKNESS: 30
• MINIMUM DISC THICKNESS: 28.0
• OFFSET (DISC HEIGHT): 62.5
• CENTRE BORE DIAMETER: 79.0

• STUD HOLE ARRANGEMENT: 5

• BRAKE SYSTEM: Brembo

• PADS: SP5532

• DISC NAME: Bespoke

• DISC CONFIGURATION: Two-piece
• OE PART NUMBER: 34112284810

Compatibility

• BMW M Series F80 M3 Saloon S55 (2012-2015)

• BMW M Series F80 LCI M3 Saloon S55 (2015-2018)

• BMW M Series F80 LCI M3 CS S55 (2016-2019)

• BMW M Series F80 LCI M3 Competition S55 (2016-2019)

• BMW M Series F82 M4 Coupe S55 (2013-2017)

• BMW M Series F82 LCI M4 Coupe S55 (2016-2019)

• BMW M Series F82 LCI M4 CS Coupe S55 (2016-2019)

Manufactured by

TAROX Performance Brakes

Part Number

S2-2940
