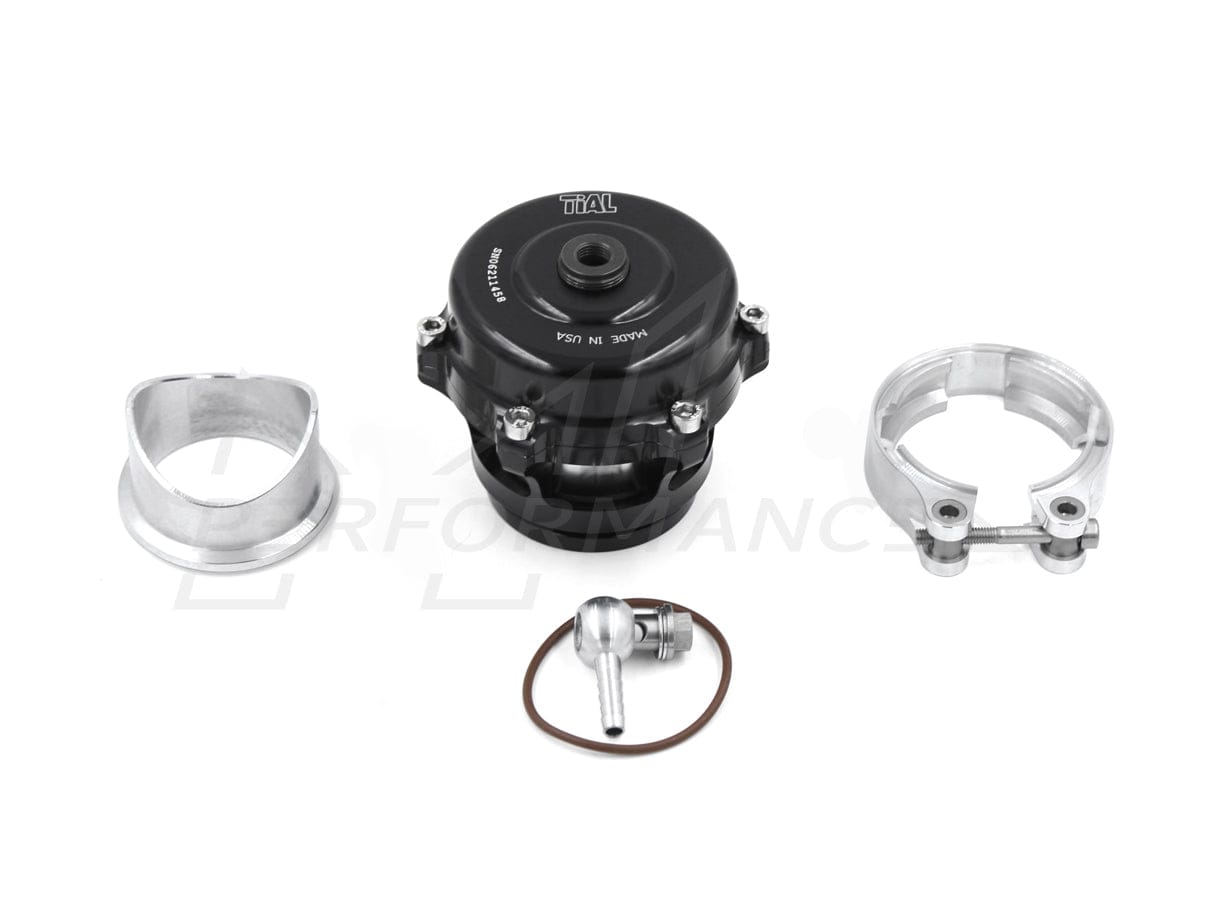

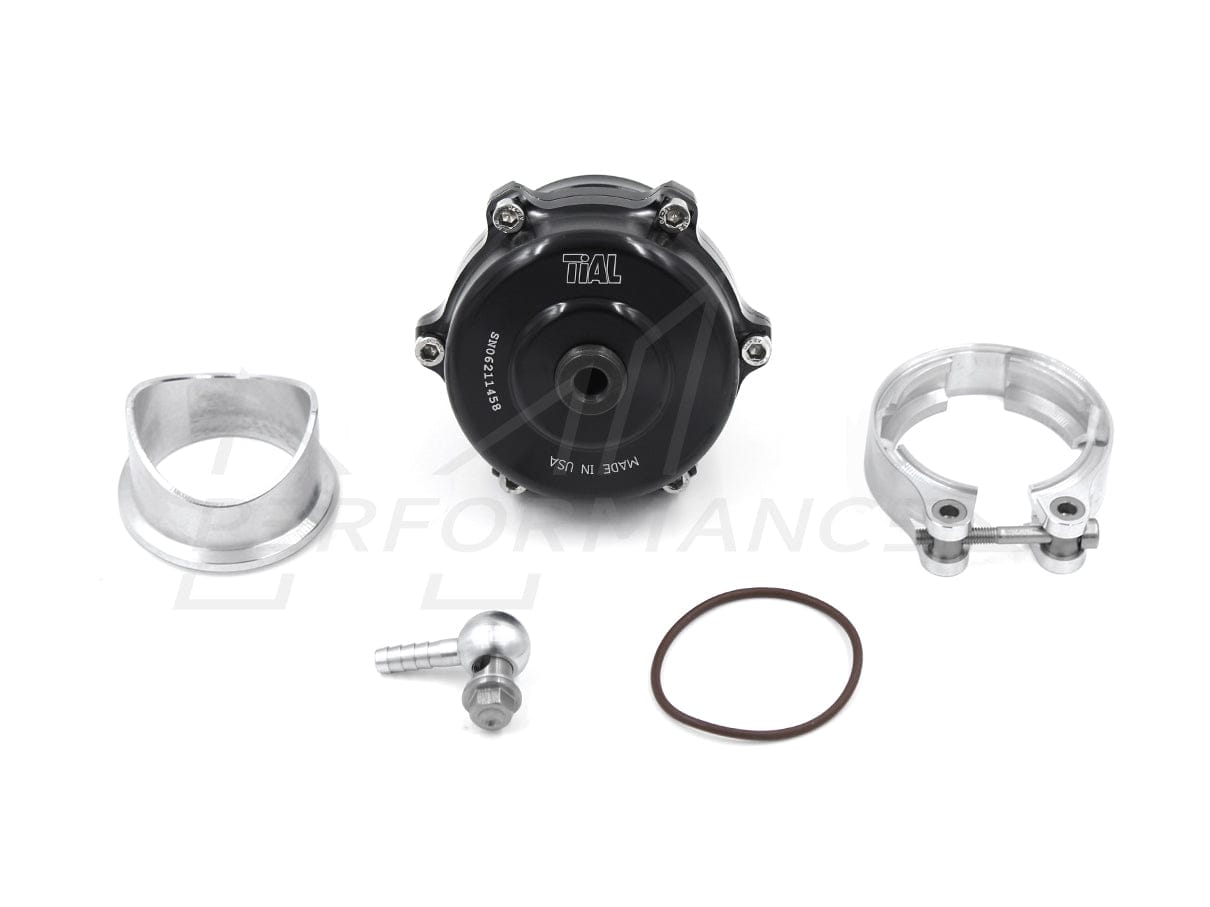

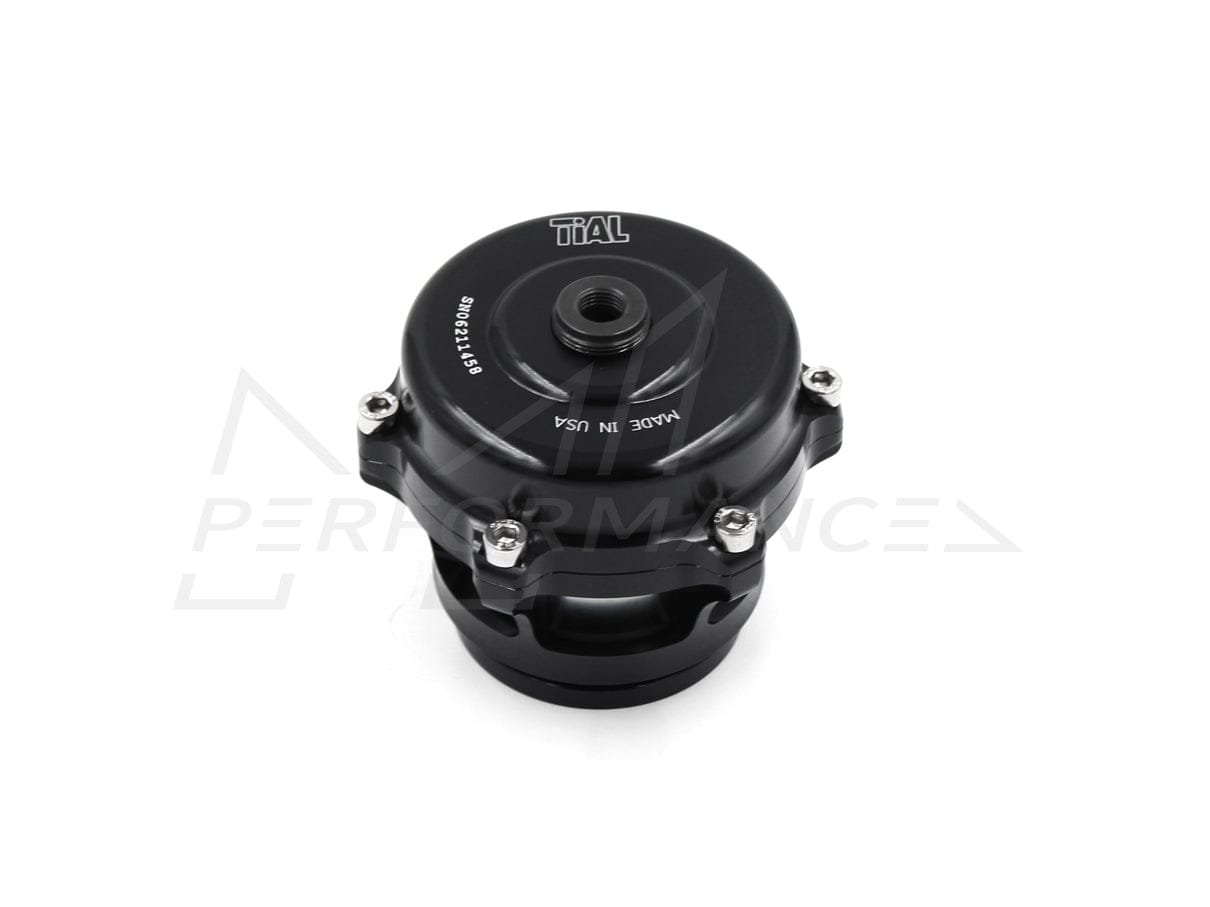

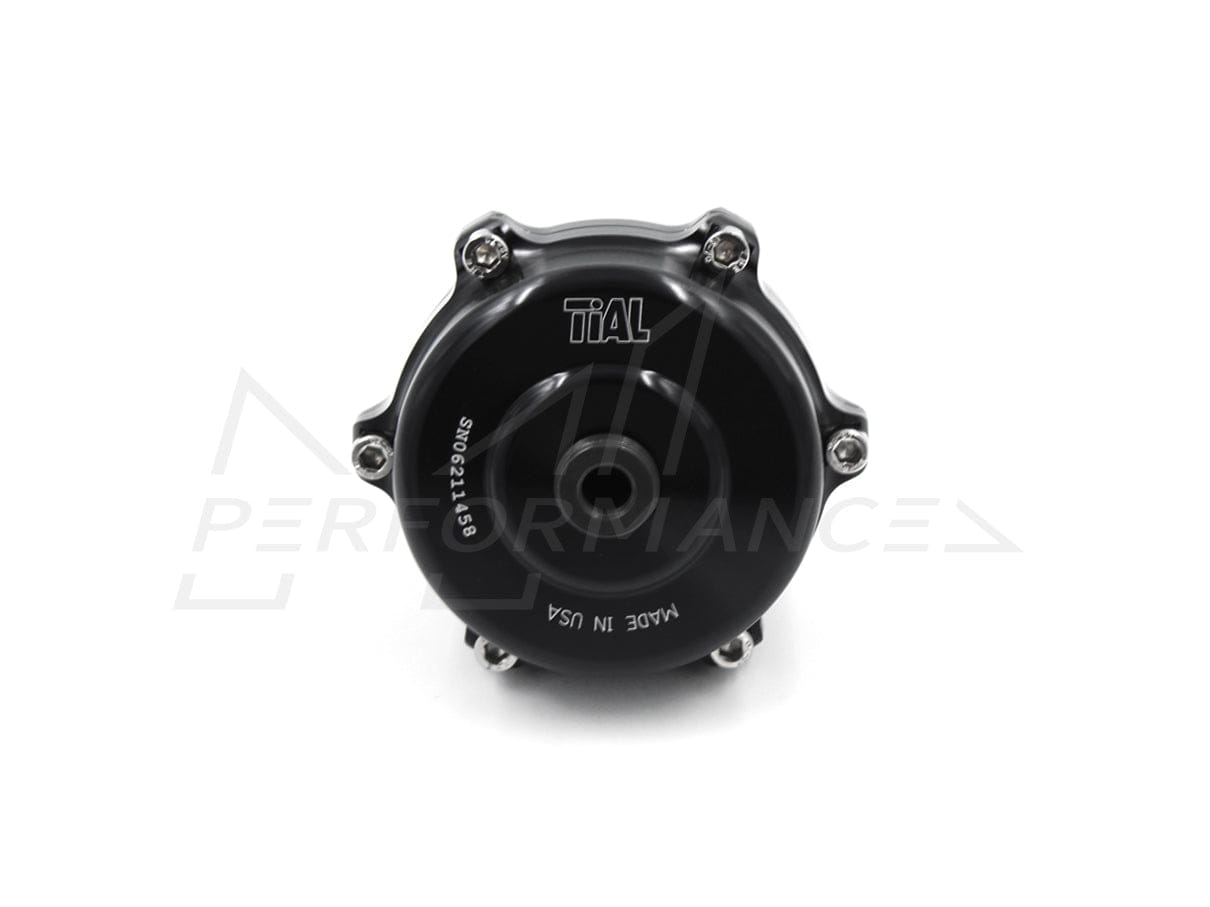

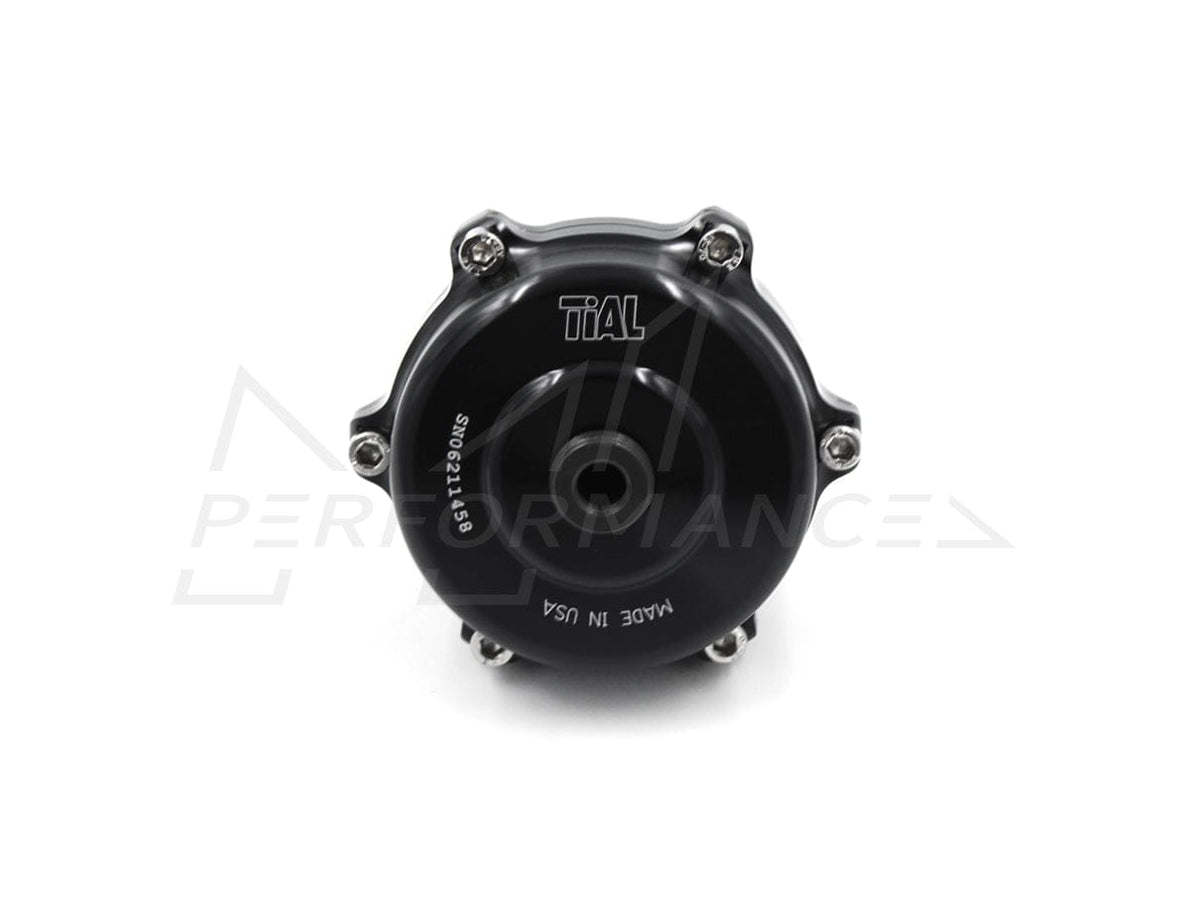

Designed to be used with BMW chargepipe with TIAL flange, for N54 engine found on E82 1M, E82/E88 135i and E90/E91/E92/E93 335i. Complete with 10psi spring, capable of handling 1800bhp.

• For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
• The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
• The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
• The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
• An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
• Through countless hours of R&D we were able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.
• A single Q BOV can support up to 1,800hp

• 10psi spring for BMW with N54 engine, found on 135i and 335i

BMW M Series

• 2011 - 2012 E82 1M Coupe

BMW 1 Series

• 2007 - 2010 E82 135i Coupe
• 2007 - 2010 E88 135i Convertible

BMW 3 Series

• 2006 - 2010 E90 335i / 335ix Saloon
• 2006 - 2010 E91 335i / 335ix Touring
• 2006 - 2010 E92 335i / 335ix Coupe
• 2006 - 2010 E93 335i / 335ix Convertible

Compatible with N54 engine only

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TIAL001

Manufactured by

TiAL Sport

Warranty

TiAL One Year Warranty
