FOR PERFORMANCE AND TRACK DAY CARS. THE NON-FIA LIGHTWEIGHT RACE SEAT OPTION. TWO SIZES AVALIBLE WITH TWO OUTER WIDTH VARITATIONS.

The 2022 model of the B6 is a compact lightweight seat suited to many types of performance and track day cars. The construction has been re-developed to improve it both structurally and cosmetically. Visibly it now matches the beautifully proportioned B6 Screamer FIA seat.

The seat has a lighter construction than the FIA version, due to the seat not needing to conform to FIA requirements. It can have bottom mounts, this is preferred in super narrow cockpits.

Despite not having the FIA accreditation, the new update increases the strength and rigidity over the previous B6 model first released over 20 years ago.

The narrow B6-40 can often be seen in vehicles such as the Lotus, and Caterham's with the B6-44 "edges on" seat type used in GT's, saloon cars and many more vehicle types.

The B6 is a perfect combination of a premium track racing seat and road car seat. Giving maximum support and feedback yet comfortable enough for use on the road, making it a great option for most performance cars.

The rolled outer edge along the leg support area can either be removed for a narrow cockpit "edges off" or left on to create a continuous rolled edge around the whole perimeter of the seat "edges on".

40cm Rolled Edges Cut Off - 40 cm at widest point. Rolled edges are cut off for narrow cockpit - The B6 is made for use with a full race harness. NON FIA - Includes headrest pad.

44cm Rolled Edges On - 44 cm at widest point - The B6 is made for use with a full race harness - NON FIA - Includes headrest pad.

43cm Rolled Edges Cut Off - 43 cm at widest point "rolled edges cut off", NON FIA version - Includes headrest pad.

47cm Rolled Edges On - 47 cm at widest point- NON FIA version - Includes headrest pad.

• Two internal seat sizes available, Standard B6 and the 30 mm wider B6 XL.
• Two edge cut options for reducing external widths across the leg area, "edges on" or "edges off". See images for visual understanding.
• Two seat mounting point options available, Bottom mounted "BM" or Side mounted "SM".
• Full race harness and 30° Hans compatible (5 or 6 point race harness recommended).
• 4.5-5.1 kg (Weight of seats can vary by 10%) check sizing for weight difference.
• Mostly used in track day vehicles.

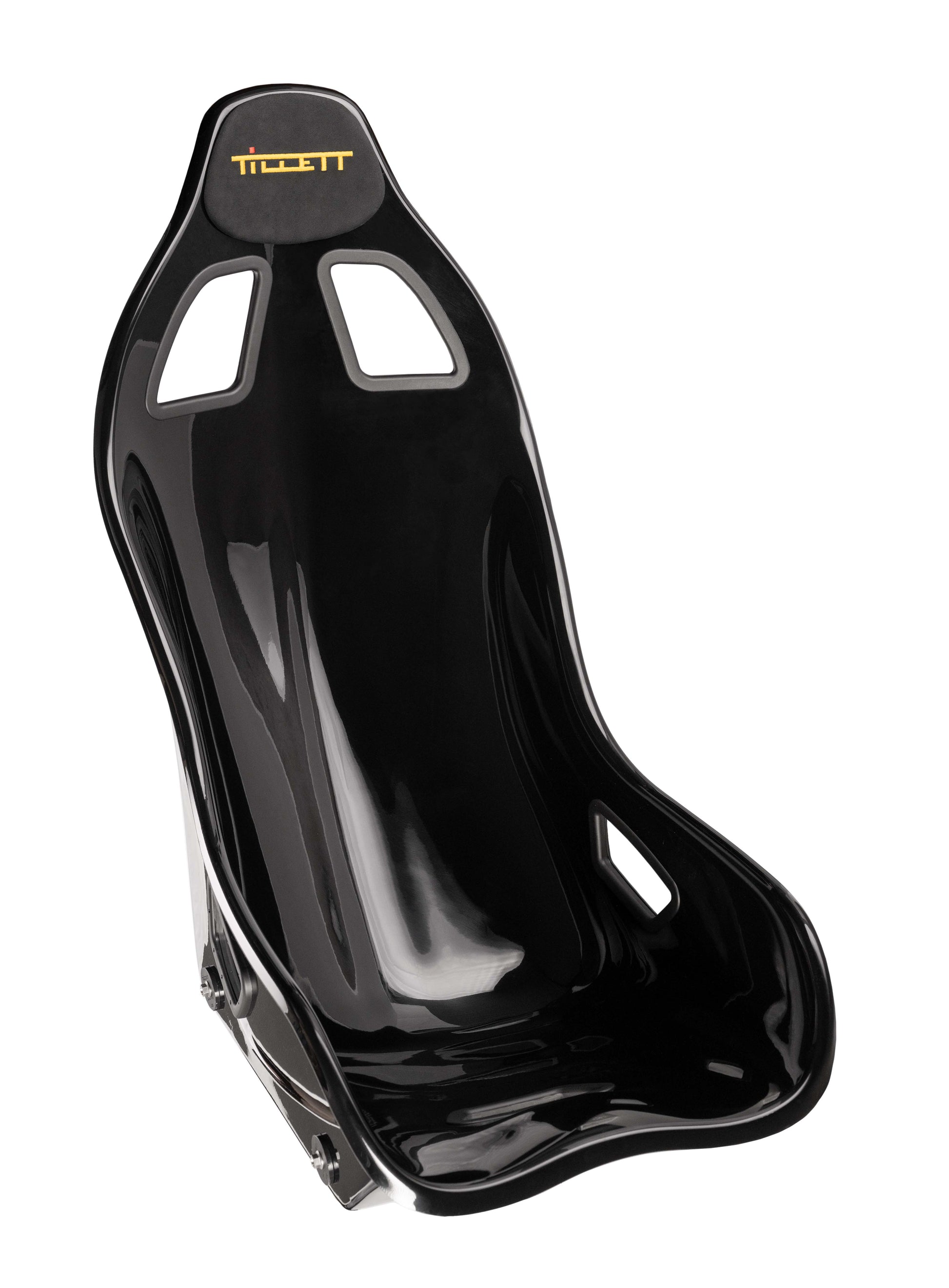

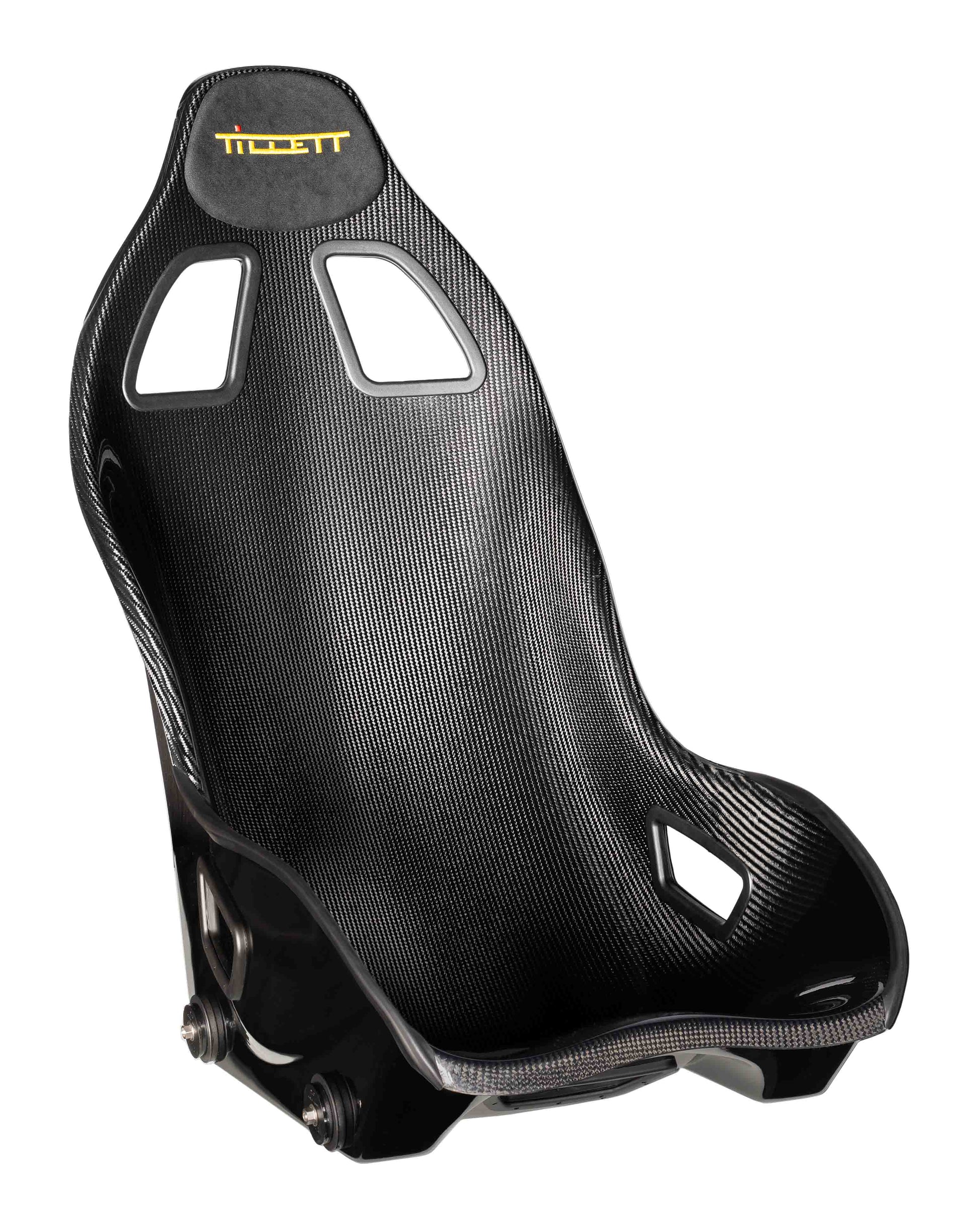

• Available with a Carbon or GRP black gloss finish.
• Does not require padding, great option for open top cars.
• Uncovered as standard (see additional covered panel option if required below) Panel set will add approximately 1kg.
• Dinamica® covered headrest panel included as standard.
• All seat panels are customisable at an additional charge, see product page SP1 or SP2 for more information.
• Gel coat colour available on this seat model at additional cost, see SP7 for this add on feature.
• Designed and manufactured in the United Kingdom.

COMPATIBLE SEAT BRACKETS

• EBP Bracket set
• EBR Bracket Set
• EBS Bracket Set
• STBO Bracket Set
• TB FIAO2 Brackets
• STBI Bracket Set

COMPATIBLE SEAT PANELS

• TP2

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TILLETT-B6XL-43C/GRPBM (B6XL Carbon GRP Car Seat (Bottom Mounted) - Edges off)

TILLETT-B6XL-43C/GRPSM (B6XL Carbon GRP Car Seat (Side Mounted) - Edges off)

TILLETT-B6XL-43GRPBM (B6XL GRP Car Seat (Bottom Mounted) - Edges off)

TILLETT-B6XL-43GRPSM (B6XL GRP Car Seat (Side Mounted) - Edges off)

TILLETT-B6XL-47C/GRPBM (B6XL Carbon GRP Car Seat (Bottom Mounted) - Edges on)

TILLETT-B6XL-47C/GRPSM (B6XL Carbon GRP Car Seat (Side Mounted) - Edges on)

TILLETT-B6XL-47GRPBM (B6XL GRP Car Seat (Bottom Mounted) - Edges on)

TILLETT-B6XL-47GRPSM (B6XL GRP Car Seat (Side Mounted) - Edges on)

Manufactured by

Tillett
