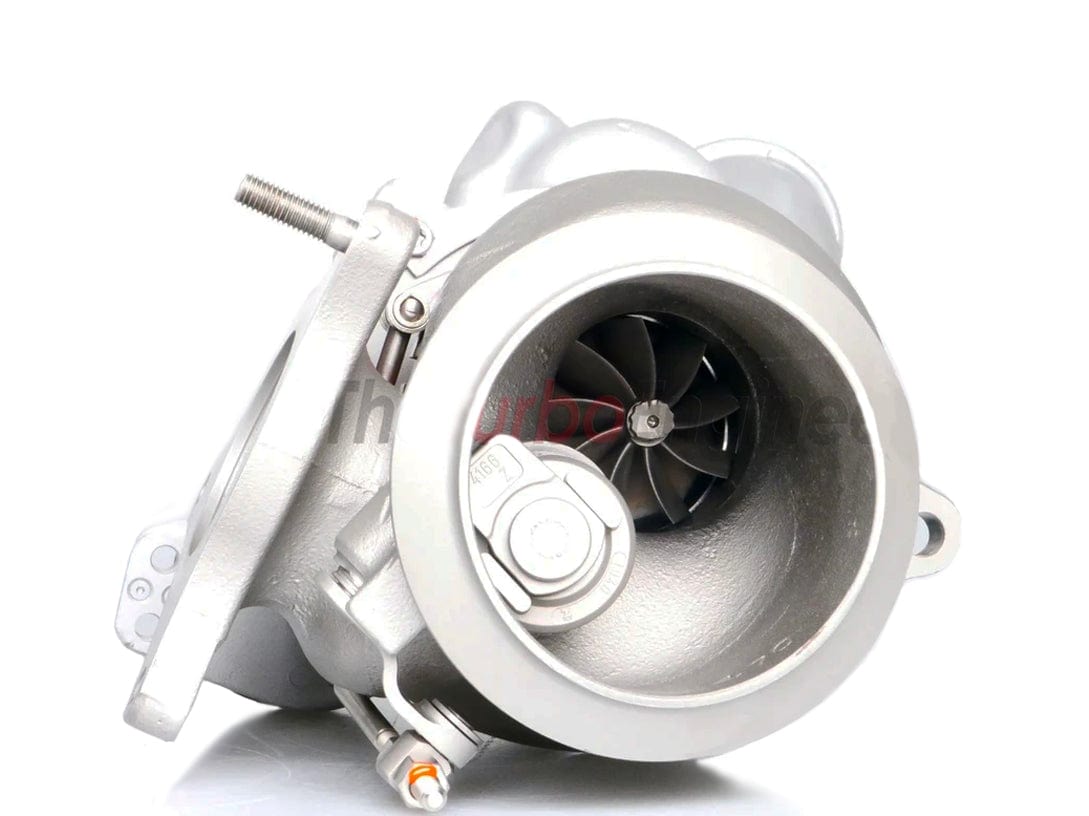

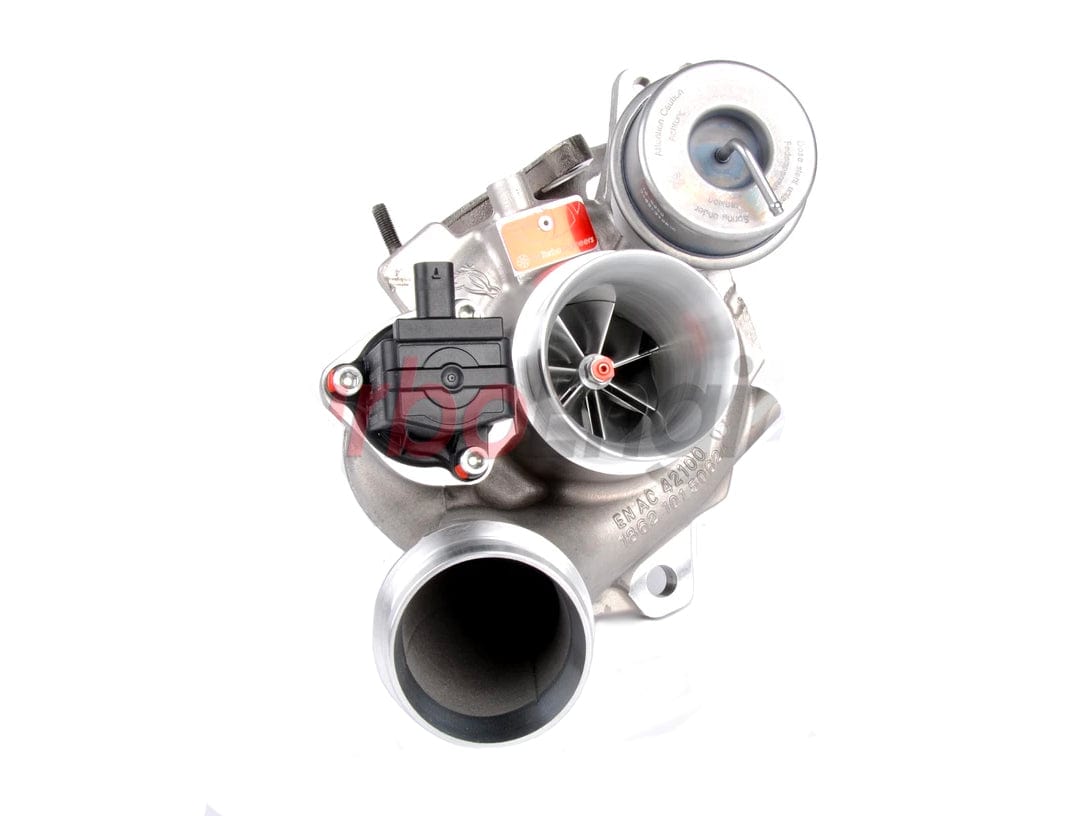

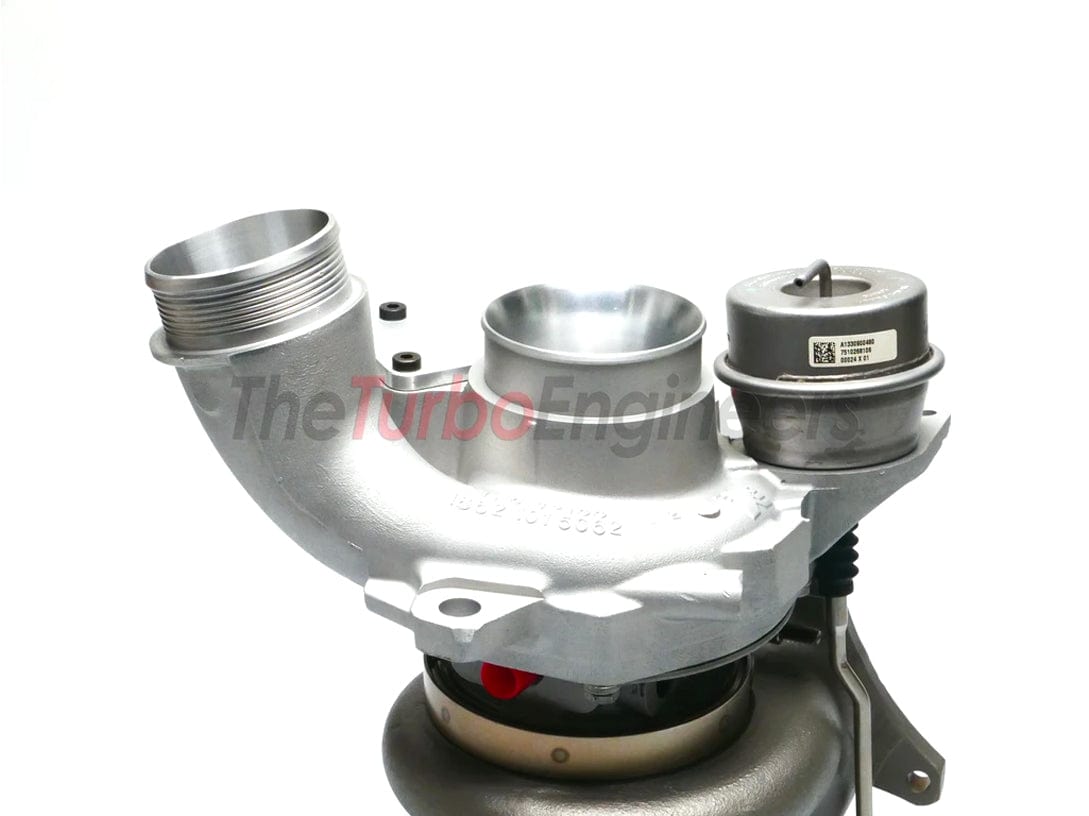

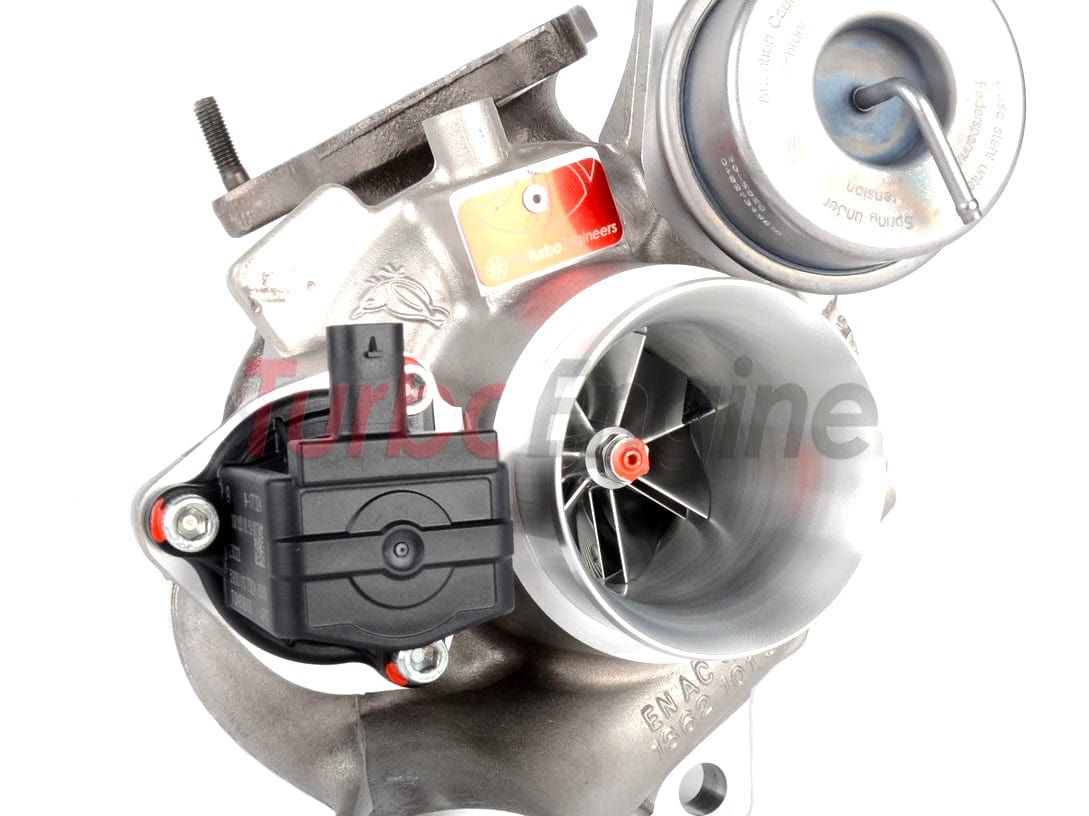

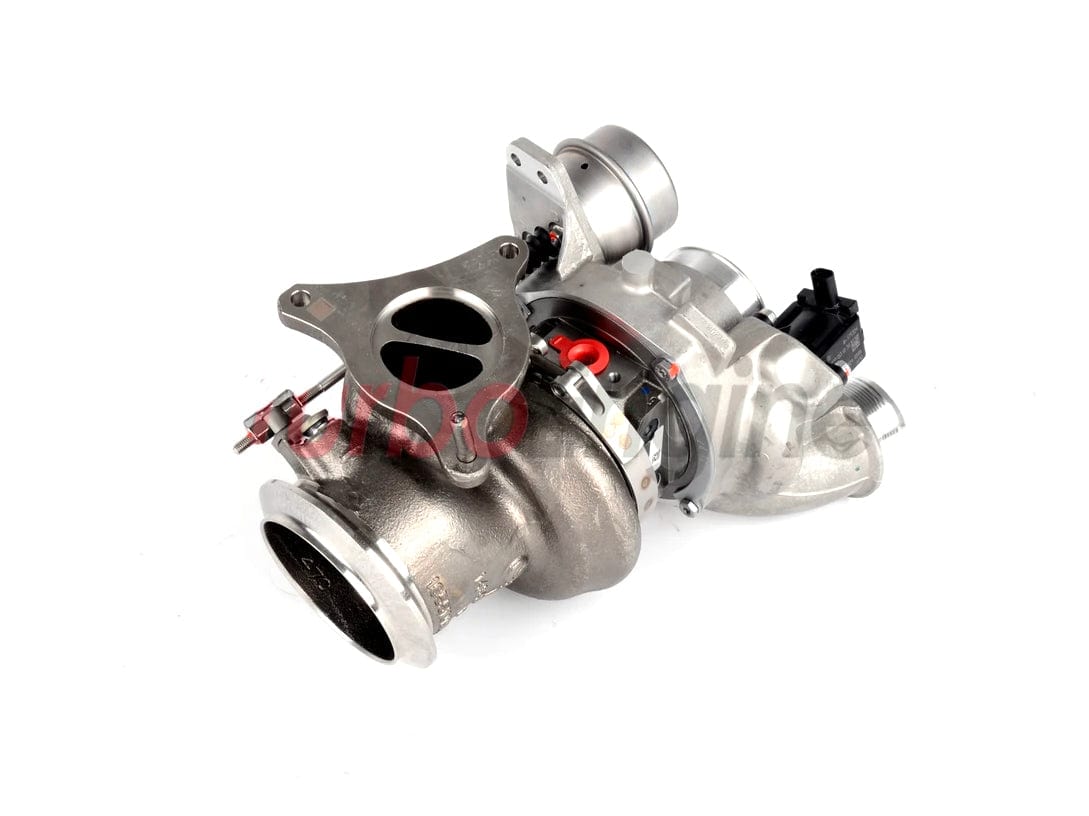

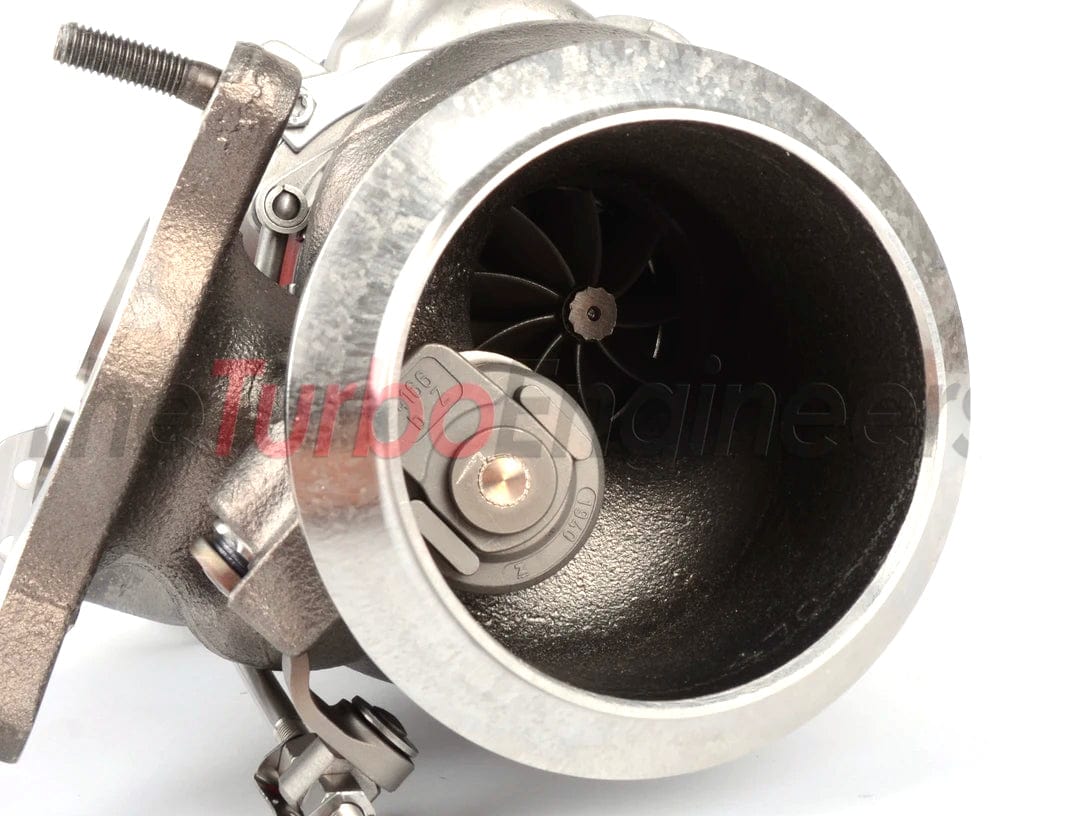

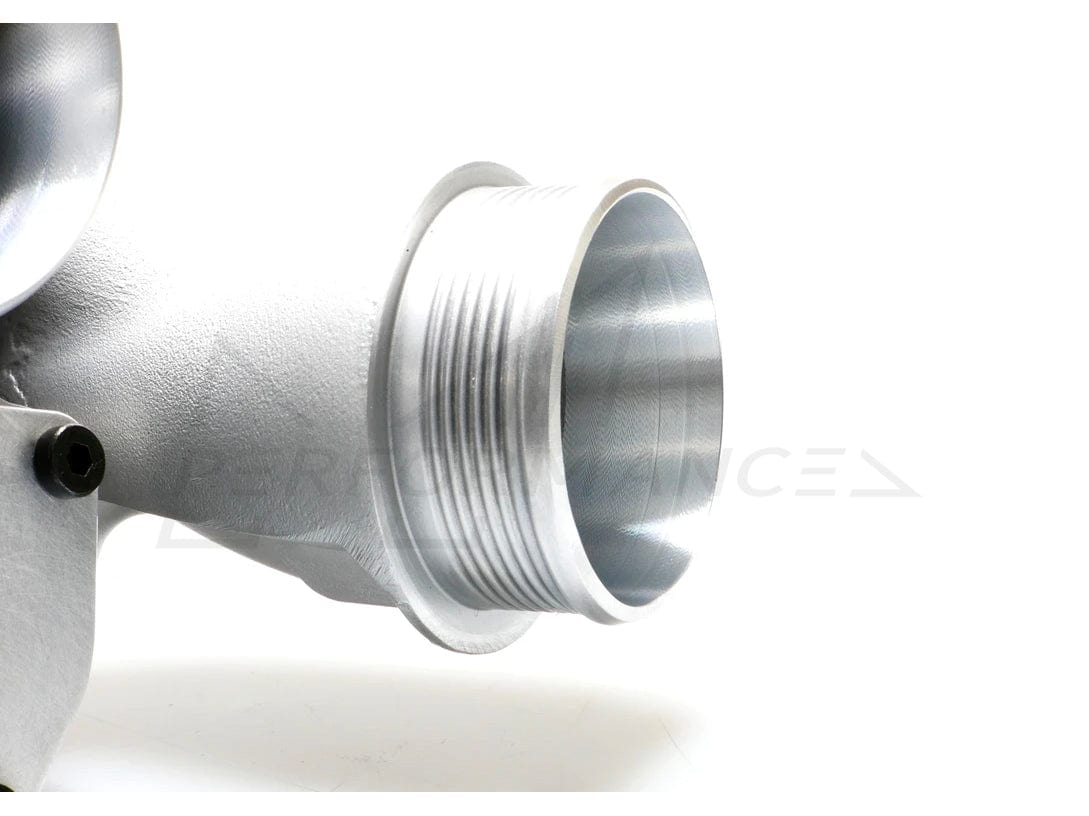

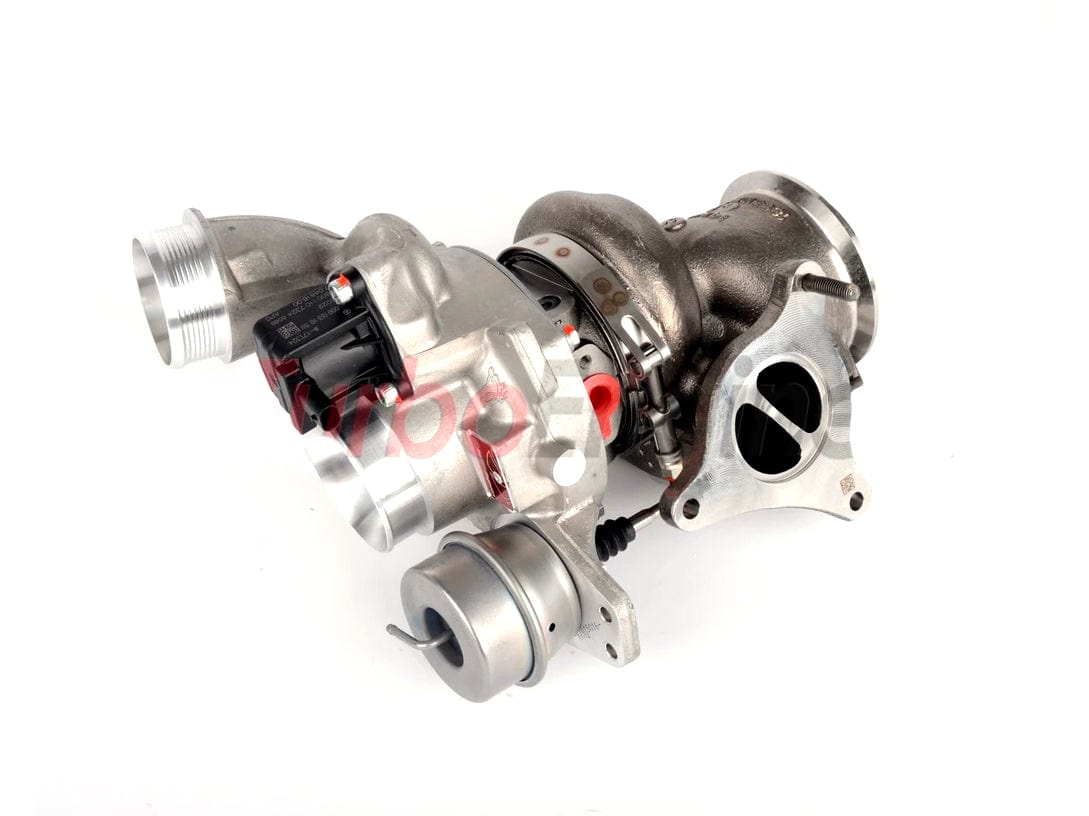

This is the turbocharger for the MERCEDES AMG TTE550 A45 / CLA / GLA UPGRADE TURBOCHARGER, capable of 550bhp!

TheTurboEngineers TTE550 Stage 2 hybrid turbocharger for the four cylinder 2.0 AMG engine.

To construct a TTE550 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow.  We also replace the original bearing system for TTE upgrade that includes a 360 deg thrust bearing

The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers.  Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.

Please Note: To take advantage of the full power potential, it is 100% necessary to replace the restrictive OEM charger cooler for AMS INTERCOOLER and replace the 50MM OEM Rubber concertina hose from turbo to airbox (MST offer a 60mm item)

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

• Original BWTS turbocharger as the base part
• TTE Billet Milled compressor 7+7 BLADE
• TTE CNC Ported compressor inlet
• TTE High-Flow 9 Blade Turbine
• Upgrade bearing pack
• 550PS Capable
• Plug and Play installation
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Upgrade your Existing Turbo

To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.

• MERC AMG A45/CLA/GLA W177 M133

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TTE10080 (New)

SW10080.1 (Refurbished)

Upgraded by

TheTurboEngineers (TTE)

Warranty

One year TTE warranty.

Delivery

To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo.

Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order.

TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.
