TTE Audi 2.7T Turbocharger Upgrade TTE600 (RS4, S4 B5 & A6)

The Turbo Engineers(TTE)

  • £3,726.36
    exc. VAT £3,105.30
    £3,105.30


Description

Introducing here what many feel the best blend of power, response and ease of fitment and our first step utilizing RS6 turbine housings for greater flow and power. TTE600 Performance turbochargers can and do make over 600PS with the right hardware and software, yet offer only a little loss in response but offer big step too more power. These really do offer a great balance of high power and fast response.

Engineered & Enhanced

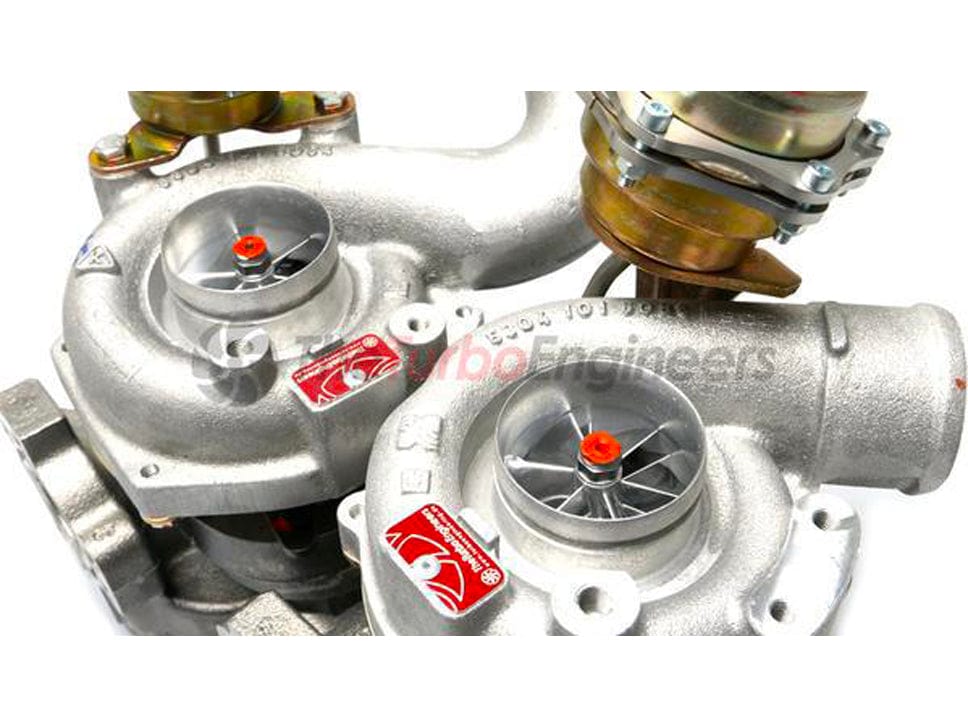

TTE600 Turbochargers start life as Genuine RS6 K04 OE units. Engineered and enhanced using mostly BorgWarner components. TTE600 uses RS4 compressor covers that we CNC machine in house to a optimum clearance to allow fitment and maintain efficiency of a larger more advanced billet TTE2280X Extended tip compressor wheels, inducer 45.1mm exducer 59.4mm. We also as standard CNC mill the air inlet port on the compressor housing to remove a lip right before the compressor wheel to smooth the transition to the intake pipes to maximise performance.

The 2280X compressor wheel design features promotes greater airflow using a low inertia wheel that performs like a wheel of even greater size and mass. Extended tip technology enables the user to have faster spool-up at lower engine speeds while providing the high boost with less heat for the powerful top-end performance.

Turbine and shaft are origanal RS6 K04 size items with a special curved clip. A TTE grinding process to the turbine blade tips, to reduce area, thus increasing gas flow and so reduce back pressure and lowering exhaust gas temperatures, allowing safer higher boost level's.

This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing rotational mass improving moment of inertia. Stock being around 136gram and TTE clipped around 126gram.

Special profile 360 deg high performance motorsport journal bearing are fitted, to remain durable at higher loads with no loss in transient response.

Actuators used are uprated sprung OE units fitted with our reinforced clamps for trouble free operation. These also can also be modified to customer needs and specifications.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.







Feature

  • Genuine BorgWarner RS4 Compressor housings and key components
  • Genuine BorgWarner RS6 Exhaust housings
  • TTE Billet 2280X Compressor geometry (new)
  • CNC Ported compressor inlets
  • Genuine BorgWarner Turbines with curved clipped wheels
  • Genuine BorgWarner Reinforced Motorsport bearing system
  • Genuine BorgWarner Modified reinforced and synchronized actuators
  • Single parts finely balanced then components assembled and high-speed VSR balanced
  • Supplied with a serial numbered balance test documents for each turbocharger
  • Installation as original RS4 K04 (with regard to oil and water line, all else see bellow)
  • 600PS Capable
  • Designed, Machined & Built by TTE in Germany



Upgrade your Existing Turbo


To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.



TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.





Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility

  • Audi S4 B5 2.7T
  • Audi A6 2.7T
  • Audi RS4 B5

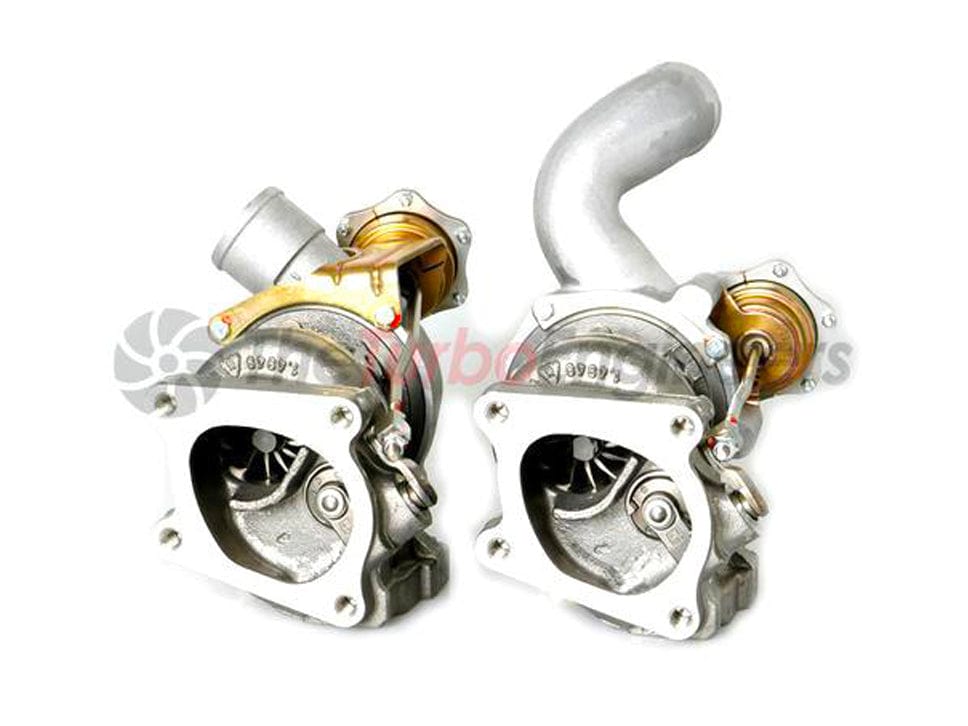

Note: These turbochargers use K04 RS4 B5 compressor housings with 58mm inlets. Specific turbo intake pipes to suit are required . The turbine housings are RS6 C5 specific, so flange on downpipe is needed to match. They do not work with RS4 B5 specific downpipes but these can be adapted with use of a RS6 flange.



Delivery

To upgrade your existing turbo, the estimated delivery time is around 4-6 weeks after receiving your existing turbo. We can also ship worldwide, simply contact us for a quote.



Our new turbos are made to order, the estimated delivery time is also 4-6 weeks after receiving your order. We can also ship worldwide, simply contact us for a quote.



Warranty

One year TTE warranty.



Upgraded by

TheTurboEngineers (TTE)



Part Number

AUDI-TTE600
