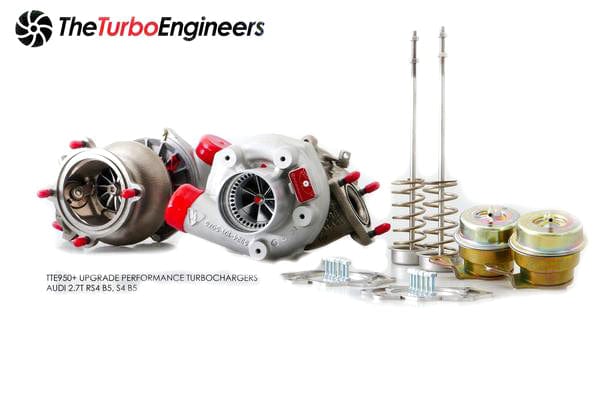

TTE Audi 2.7T Turbocharger Upgrade TTE950+ (RS4 & S4 B5)
Our biggest power solution for the AUDI 2.7T V6 Powerplant aimed and designed for the power elite B5 owners like Philipp Kaess with the infamous RS4 Limo that holds multiple records for the B5 platform. A Huge amount of development tuning this turbo spec to create ultimate high power with good boost response.
Engineered & Enhanced
TTE950+ Turbochargers are based on Genuine BorgWarner Porsche K16 turbine housings and cores with Genuine BorgWarner compressor covers with TTE billet anti-surge inlets.
TTE CNC machine in-house the Genuine BorgWarner compressor cover to allow fitment and maintain the efficiency of a larger highly advanced billet milled 7+7 blade high-pressure compressor wheel and for fitting the TTE billet Anti-surge 63.5mm inlets.
The Compressor wheel is a TTE 7 blade billet milled high-pressure anti-surge geometry compressor wheel, features promote greater airflow and pressure using a low inertia wheel that performs like a wheel of even greater size and mass. 7+7 Blade technology enables lower boost threshold giving the user faster spool-up at lower engine speeds while providing the high boost with much less heat for powerful top-end performance.
The K16 exhaust turbine housings are CNC milled in-house to allow fitment of the larger K24 turbine to an optimum clearance for maximum efficiency. We also modify exhaust entry port from a stock size diameter, increasing the size of the throat to increase the flow capacity before the turbine and perform other modifications after the turbine for increased performance.
Turbine and shaft being BorgWarner (Porsche) K24 items. K24 turbine is clipped at BorgWarner. Clipping reduces the blade area thus increasing gas flow and so reduce backpressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This clipping also gives a secondary advantage of removing some material, lightening the turbine thus reducing the rotational mass improving moment of inertia and spool.
Genuine BorgWarner motorsport 360 deg journal bearing system are fitted, to remain durable at higher loads with no loss in transient response.
Actuators used are uprated sprung OE units fitted with our reinforced clamps for trouble free operation. These also can also be modified/set to customer needs and specifications. These are supplied in kit form to allow the end user to custom fit as required.
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
- Genuine BorgWarner compressor housings with Billet TTE anti surge 63.5mm inlets (Viton O-Ring seals inc)
- Genuine BorgWarner K16 exhaust housings, Ported & Modified for greater gas flow
- TTE Latest Billet Highly Efficient Next Gen compressor geometry
- Genuine BorgWarner K24 Turbine, Clipped & lightened
- Genuine BorgWarner Reinforced Motorsport bearing system
- Genuine BorgWarner Modified reinforced and synchronized actuators supplied in kit form for custom fitment
- Single parts finely balanced then components assembled and high-speed VSR balancedURL]
- Supplied with a serial numbered balance test document for each turbocharger
- 1080PS proven on e85
- Designed, Machined & Built by TTE in Germany
ATTENTION: These turbochargers need custom installation are not Plug & Play.
TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.
TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.
Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
- Audi S4 B5 2.7T
- Audi RS4 B5
Our new turbos are made to order, the estimated delivery time is also 4-6 weeks after receiving your order. We can also ship worldwide, simply contact us for a quote.
One year TTE warranty.
