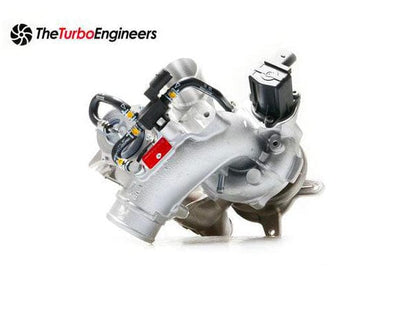

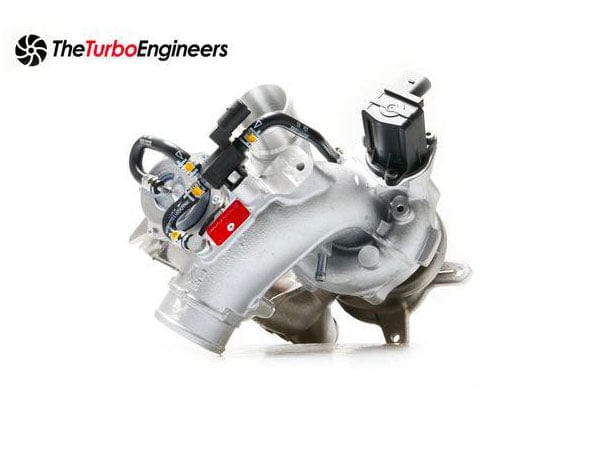

TTE Audi/VAG 2.0 TSI Turbocharger Upgrade TTE420 EA888 (A3, Passat & Golf)

The Turbo Engineers(TTE)

  • £2,341.44
    exc. VAT £1,951.20
    £1,951.20


Description

Note: This product is for EA888 variants. TTE420 for EA113 variants can be found here.

TTE420 begins as a brand new standard BorgWarner K04-064 turbocharger that we dismantle and then set about upgrading and optimizing as engineers to create our ultimate K04 frame hybrid for the EA888.1. TTE420 Turbocharger is great power stage for the 2.0 TSI range of vehicles while retaining like OE fitment.

Engineered & Enhanced

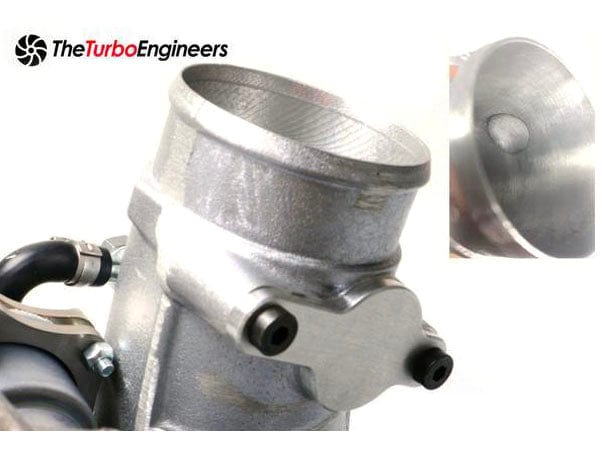

The formula to making a TTE420 starts with a much larger 2871X TTE billet compressor wheel, chosen because is highly efficient, new generation type with very thin blades, creating extremely high flow for comparative size, giving a compressor map that's very wide. The Re-profiled compressor cover is machined to an optimized tolerance to ensure maximum compressor efficiency. We blank of the original PCV port as not required and fit our TTE smooth flow optimized billet blanking plate cover. The intake pipe is CNC ported and hand finished with the TTE smooth flow cover fitted to give a smooth tract and transition for the incoming air for the ultimate flow.

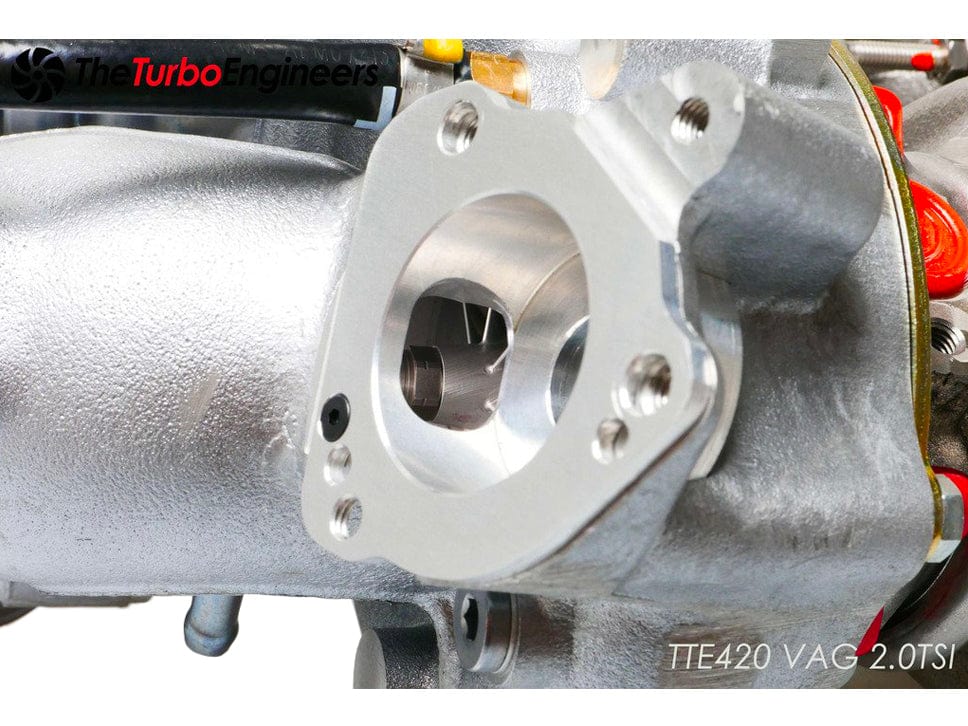

We also fit our Billet CNC TTE Boost adapter & silencer delete. Removing any restriction so improving the flow and enhancing the sound. We CNC mill the compressor cover to accept our CNC Billet TTE Recirculation Valve Adapter to fit an Original VAG Recirculation valve to give OE like fitment with trouble free operation.

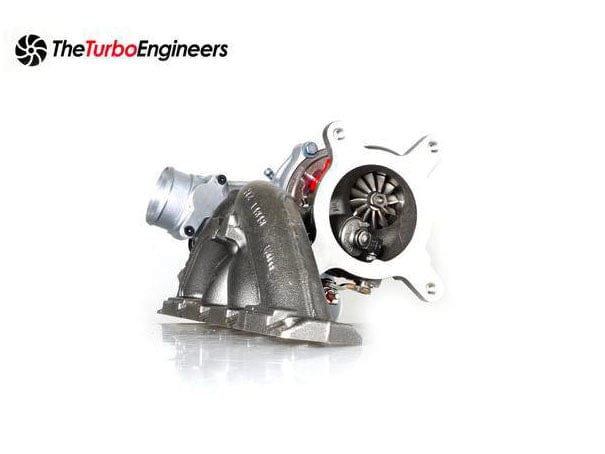

A key part to driving the large 2871X compressor and in turn making this unit produce the huge power advantage over stock, is machining and fitting a far larger BorgWarner K16 curved clipped turbine and shaft, while still keeping the k04 core, this is not so easy to do. This K16 turbine gives much lower back pressure and keeps EGT lower compared to stock K04 turbine or clipped stock.

The clipping of the K16 turbine reduces blade area thus increasing gas flow and so reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost level's. This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing rotational mass improving moment of inertia. Dyno's have shown little loss in response vs stock K04 yet huge gains in power and torque.

Special TTE developed in house 360 deg high performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.

Actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble free operation.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.





Feature

  • Genuine BorgWarner Housings, Exhaust manifold & Components
  • TTE 2871X Billet Highly Efficient Next Gen Compressor Geometry
  • Optimized Compressor Cover Machining Clearances
  • TTE CNC Billet Smooth Flow Optimised Intake Port Cover Blanking Plate
  • VAG Genuine Original Recirculation Valve Included (latest generation)
  • Genuine OEM Pierburg N75 Valve
  • CNC Ported Hand Finished Intake
  • CNC Billet Direct Recirculation Valve Adapter & Port
  • CNC Billet Boost Adapter & Silencer Delete
  • Genuine BorgWarner K16 Turbine, Clipped & lightened
  • Genuine BorgWarner Uprated & Reinforced Actuator
  • Special TTE K16/K04 Reinforced Bearing System
  • Fitment As Original. Plug & Play
  • Dynamically Balanced
  • 420+ PS Capable
  • Designed, Machined & Built by TTE in Germany



Upgrade your Existing Turbo

To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.



TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.





Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility

  • A3 (MK2) / Q3 / TT (MK2) / Beetle / CC / EOS /GOLF(MK6) / GTI (MK5 / MK6) / Jetta / GLI / Bora / Sigitar (MK5 / MK6) / Passat (B6) / Scirocco(MK3) / Tiguan / Altea / Leon (MK2) / Toledo (MK2) / Yeti / Octavia / VRS (MK2) / Superb (B6)
  • Engine Codes:
    CAWA, CAWB, CBFA, CCTA, CCTB, CCZA, CCZB, CCZC, CCZD



Delivery

To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo. We can also ship worldwide, simply enter your address at checkout for a shipping quote.

Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order. We can also ship worldwide, simply enter your address at checkout for a shipping quote.



Warranty

One year TTE warranty.



Upgraded by

TheTurboEngineers (TTE)



Part Number

AUDI-TTE420-TSI
