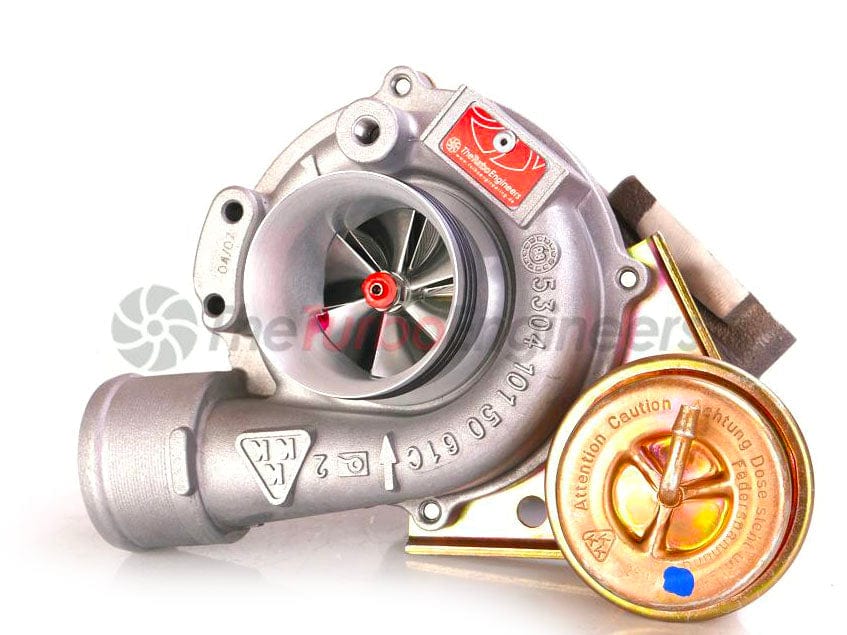

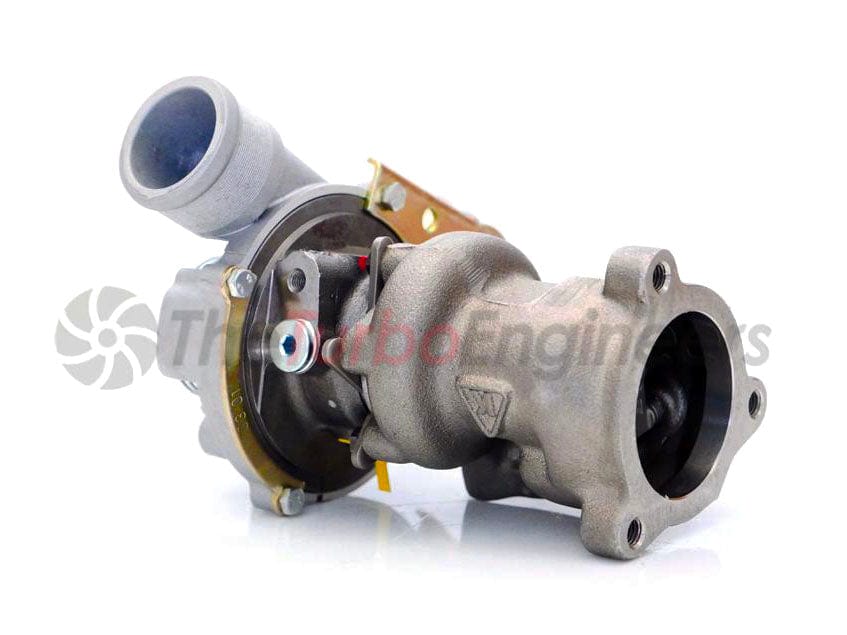

TTE Audi/VAG 1.8T 20V Longitudinal Engine Turbocharger Upgrade TTE280 (A4 B5/B6)

The Turbo Engineers(TTE)

  • £1,523.12
    exc. VAT £1,269.27
    £1,269.27


Description

TTE280 performance turbocharger for the 1.8T VAG longitudinal platform. To produce this hybrid K04 TTE280 upgrade turbocharger TTE uses a much larger BorgWarner 2283 billet compressor wheel, chosen because it is highly efficient and features BorgWarner Extended tip technology, creating extremely high flow for comparative size, but giving a compressor map that's very wide.

Equilibrium

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.







Feature

  • Genuine BorgWarner modified housings

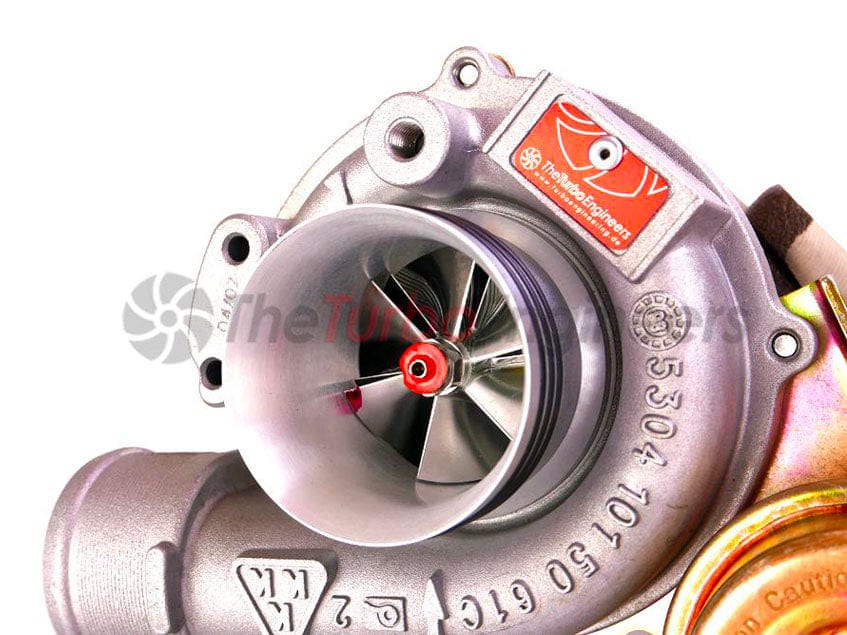

  • Genuine BorgWarner Billet 6+6 extended tip compressor geometry (Inducer 46.50mm / Exducer 59.50mm)

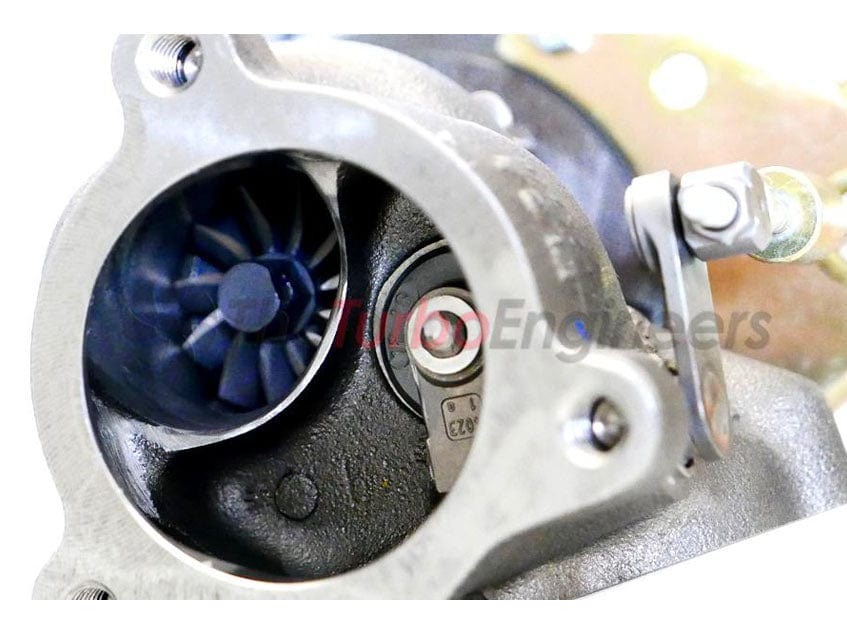

  • Genuine BorgWarner K04 Trim 8 enhanced output clipped turbine (Inducer 50mm / Exducer 44.50mm)

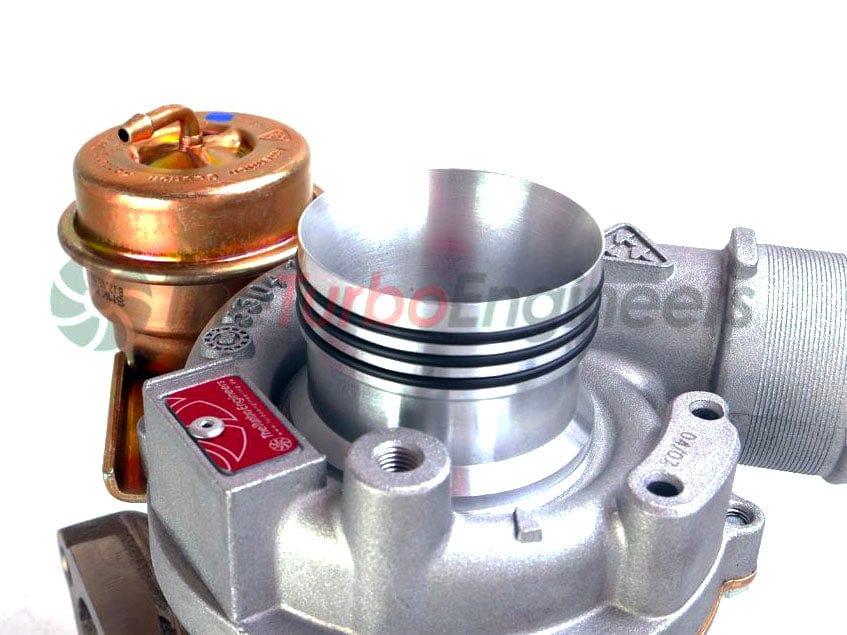

  • TTE Billet 58mm oversize intake (Viton O-rings Seals inc)
  • Genuine BorgWarner 360 ° Reinforced bearing system
  • Genuine BorgWarner uprated actuator
  • Optimized clearances
  • Single parts finely balanced then components assembled and core high-speed VSR balanced, supplied with a balance test result document
  • Fitment As Original with Supersize turbo intake pipe
  • 300PS Capable
  • Designed, Machined & Built by TTE in Germany



Upgrade your Existing Turbo


To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.



TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.





Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility

  • Audi A4 B5 1.8T 20V
  • Audi A4 B6 1.8T 20V
  • VW Passat B6 1.8T 20V



Delivery

To upgrade your existing turbo, the estimated delivery time is around 4-6 weeks after receiving your existing turbo. We can also ship worldwide, simply contact us for a quote.



Our new turbos are made to order, the estimated delivery time is also 4-6 weeks after receiving your order. We can also ship worldwide, simply contact us for a quote.



Warranty

One year TTE warranty.



Upgraded by

TheTurboEngineers (TTE)



Part Number

VW-TTE280
