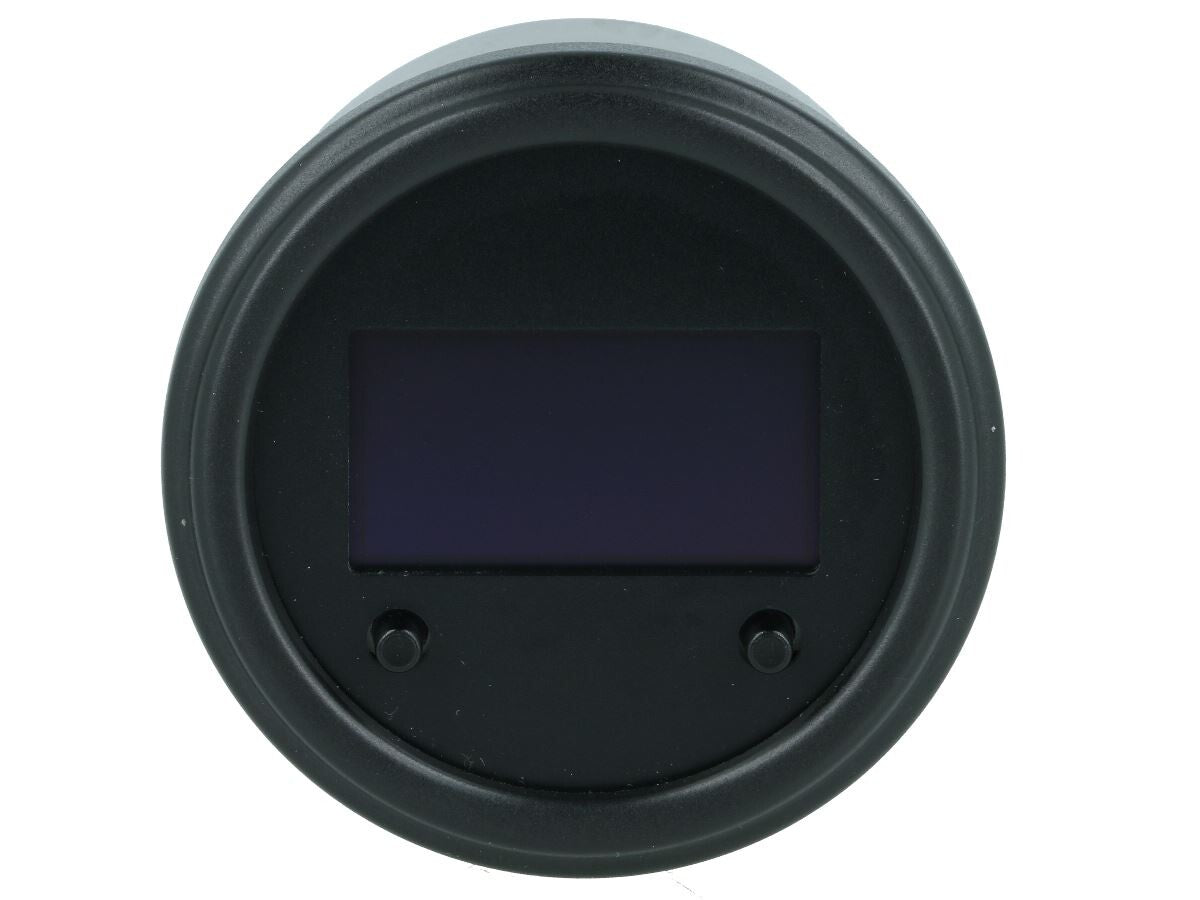

TSG-1 turbo speed gauge / controller for EFR / AirWerks
BorgWarner TSG-1 gauge for BorgWarner EFR / AirWerks SX-E turbocharger
2-1/16" (52mm) Gauge for turbocharger rpm. boost pressure and Exhaust temperature
The new Turbo Speed Gauge TSG-1 is a compact. 2 1/16" circular gauge that can be easily attached to the dashboard. A-pillar. instrument cluster or a variety of other locations. The gauge is designed for use with the turbo speed sensor integrated into all BorgWarner EFR and many Airwerks series turbos. Using a speed sensor attached to the turbocharger. the gauge accurately displays turbo speed in both numeric and graphical formats. Whenever turbo speed exceeds the safe limit and the turbo begins to overspeed. the TSG-1's screen flashes. instantly notifying the driver.
The TSG-1 analog input can capture and display data from auxiliary sensors such as MAP/Boost sensor. oil or fuel pressure and more. The TSG-1 generates a 12-bit 0-5 volt analog turbo speed signal that can be connected to an engine control system or datalogger. The TSG-1 also generates a warning output signal during overspeed events that can illuminate a warning light. trigger a relay or other device.
For ECU and/or datalogging
Values:
Turbocharger rpm (just for BorgWarner EFR & and AirWerks SX-E) -separate sensor necessary!
It can display ONE additional value. e.g. Boost or fuel or oil pressure (sensor not included). Or other 0-5V sensors. for example exhaust gas temperature with a controller should also work
Advantages:
-Compact 2 1/16" (52mm) circular gauge
-128 x 64 pixel graphical display
-Pairs with turbo speed sensor
-12-bit 0-5 volt analog input
-MAP / pressure sensors
-12-bit 0-5 volt analog output

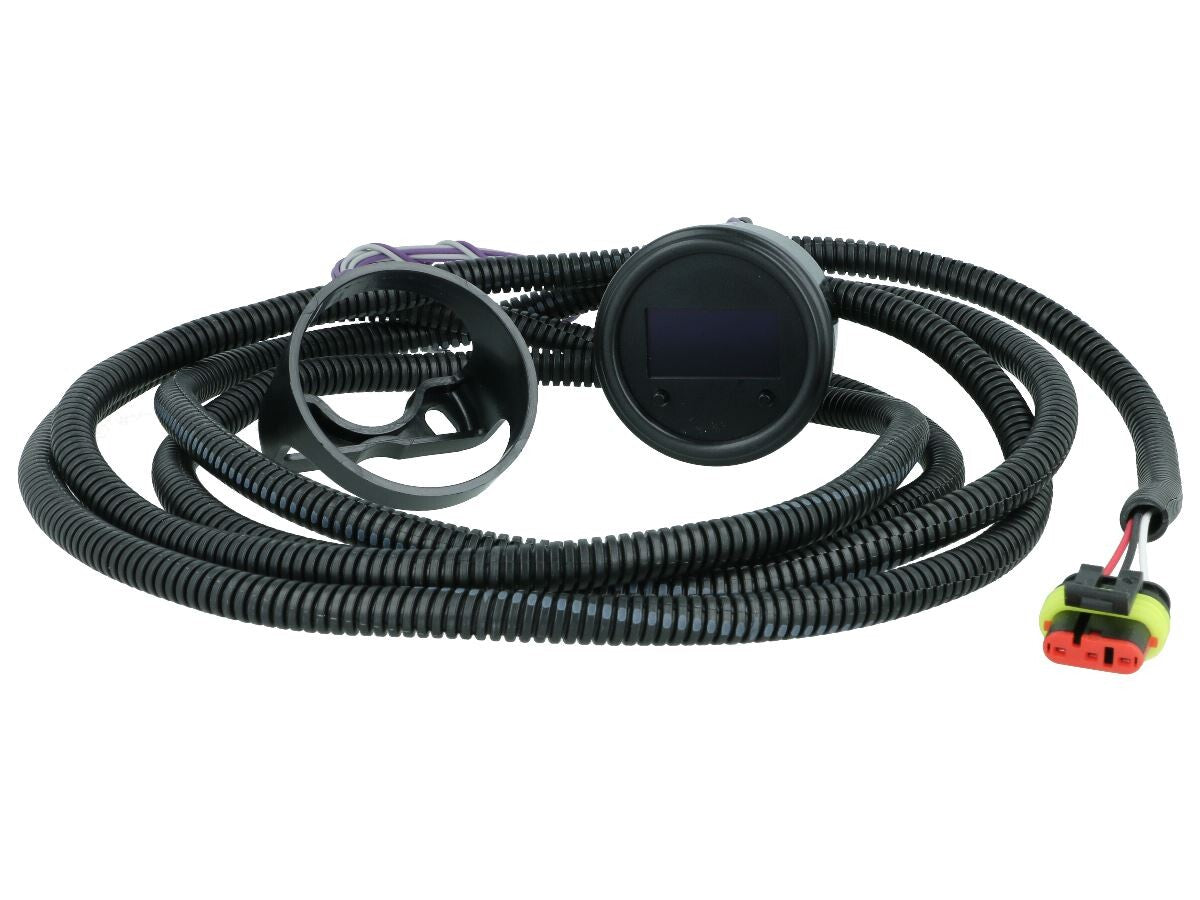

Scope of delivery:
-52mm / 2-1/16" display with integrated controller
-Wiring harness
-Manual
Buy First Hand We are the main German distributor for BorgWarner Performance Turbochargers with exclusive sales rights for Germany. Austria and Switzerland. Any AirWerks und EFR Turbochargers made by BorgWarner can only be sold in these countries either by us or by our dealers. Buy your products first hand and benefit from our excellent support and consultation. Furthermore the short supply chain ensures a quick repair or replacement if needed. As the German distributor we guarantee you. that the product is functioning correctly. In the unlikely case of a malfunction. we send out a free replacement. Malfunctions that are resulting from misuse. improper use. negligence. unauthorized alteration or repair will not be compensated.We only sell 100 % original products. Buying from us means. you always buy the latest version. No refurbished products and no knock offs that look deceptively like the real product.
