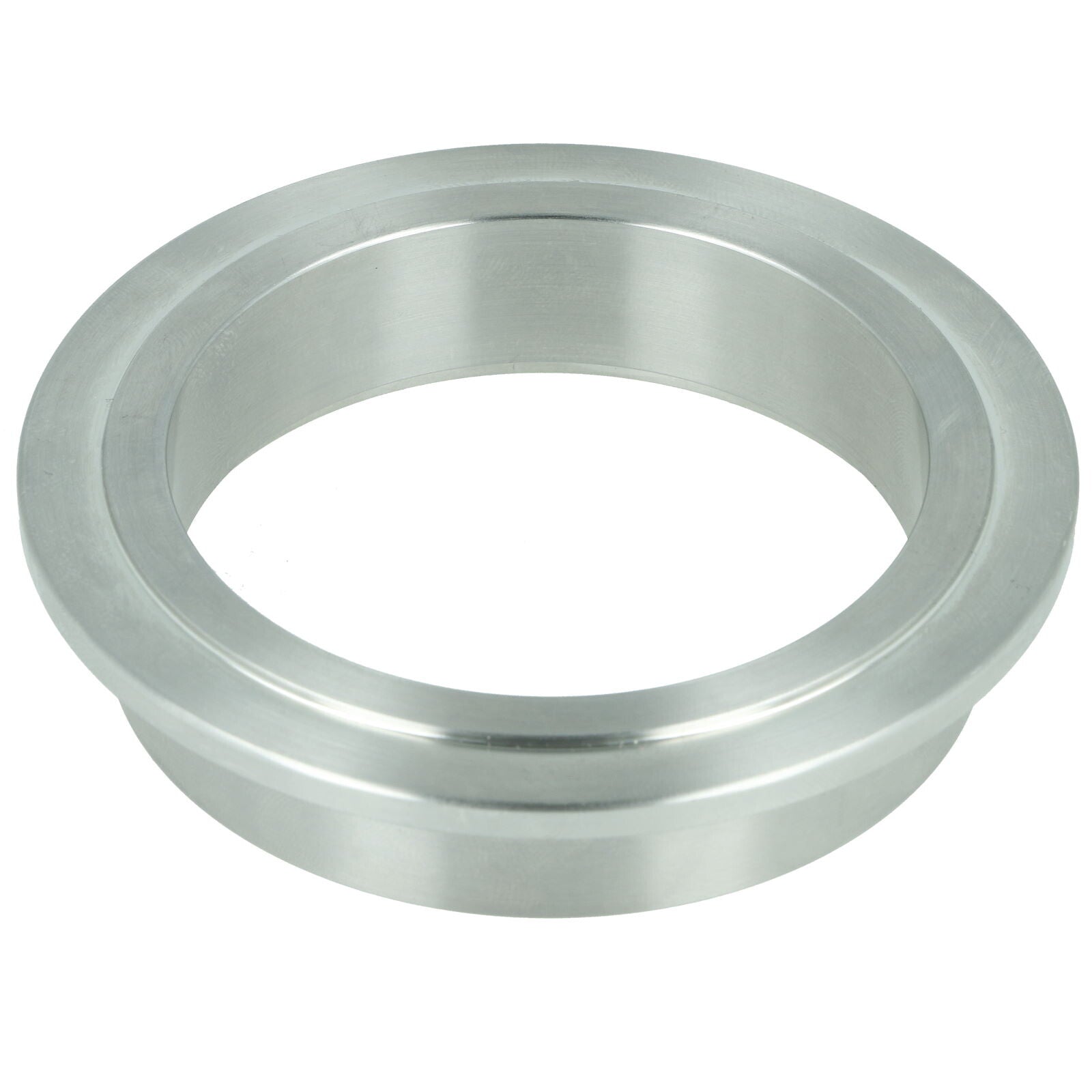

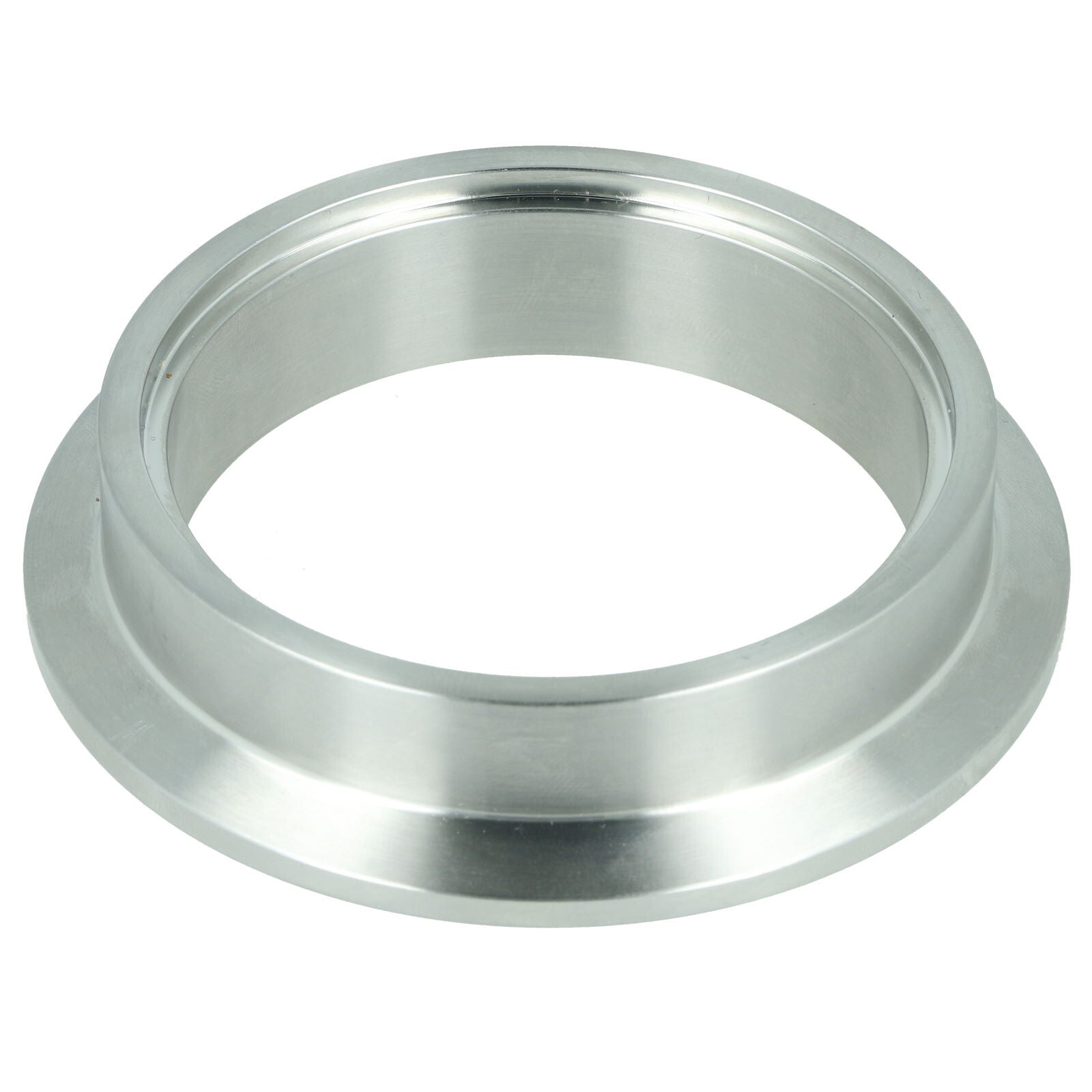

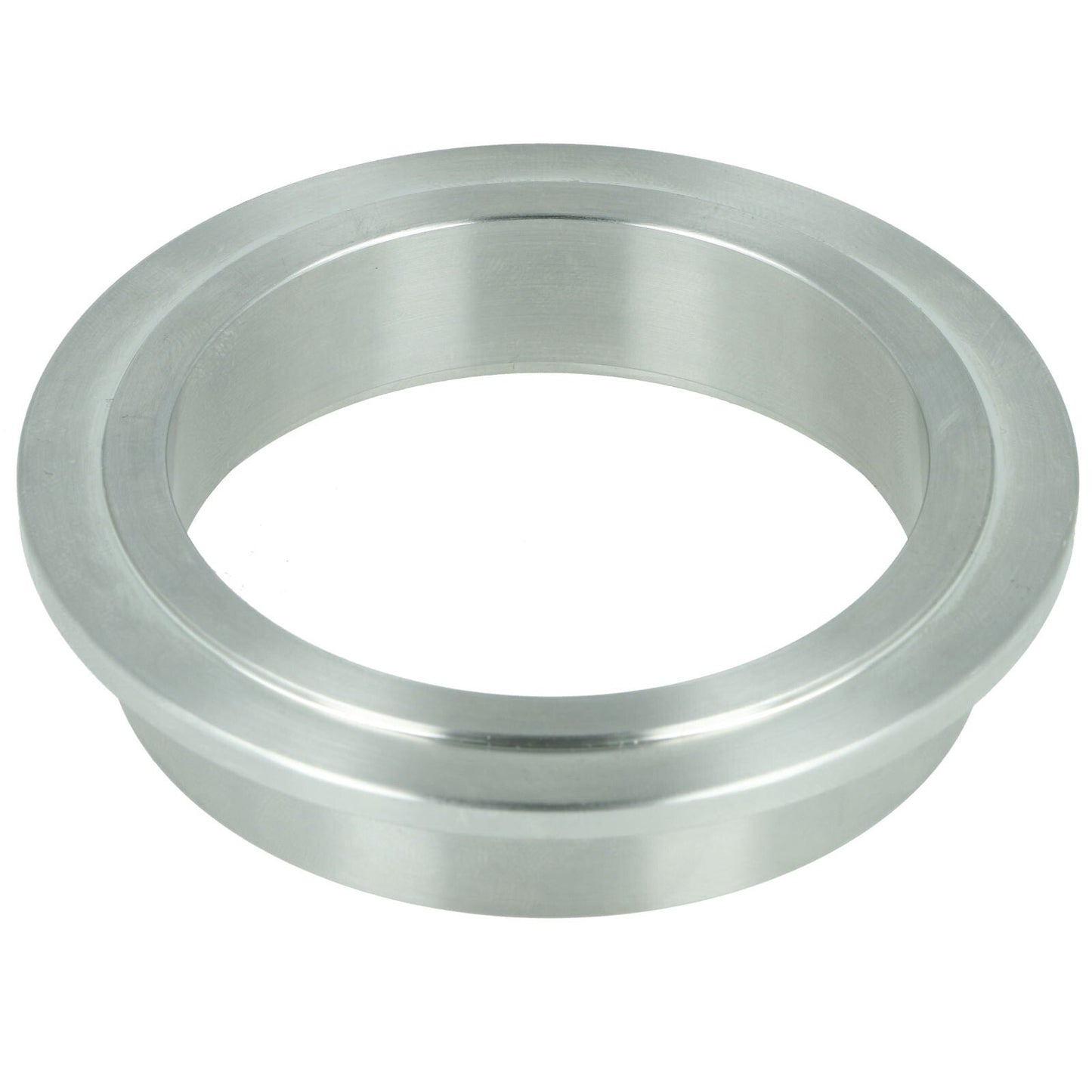

Flange (inlet) V-Band turbine housings G40 / G42 / G45
Stainless steel V-Band flange for V-Band Ni-Resist turbine housings (Inlet)
Fits for the inlet for Garrett G40 / G42 / G45 V-Band exhaust housings
TurboZentrum stainless steel V-Band flange. fits for the inlet (manifold side) of the Garrett Ni-resist singlescroll V-Band turbine housings (see list below). Fits for the inlet of Garrett G40 / G42 / G45 single scroll V-Band exhaust housings.
Application: Inlet of the V-Band turbine housing
Material: Stainless steel
Fits for Garrett G40 / G42 / G45 turbine housings (inlet / manifold side):
G40-900 / G40-1150:
-757707-0027
-757707-0028
-757707-0029
-757707-0030
G42-1200c / G42-1200 / G42-1450:
-757707-0011
-757707-0012
-757707-0013
G45-1125 / G45-1350 / G45-1500:
-757707-0019
-757707-0020
-757707-0021
-757707-0022
Fits for complete Garrett G40 / G42 / G45 turbocharger (inlet / manifold side):
All G40-900 / G40-1150
G42-1200 Compact:
-879779-5001S
-879779-5002S
-879779-5003S
G42-1200:
-879779-5007S
-879779-5008S
-879779-5009S
G42-1450:
-879779-5013S
-879779-5014S
-879779-5015S
All G45-1125 / G45-1350 / G45-1500
