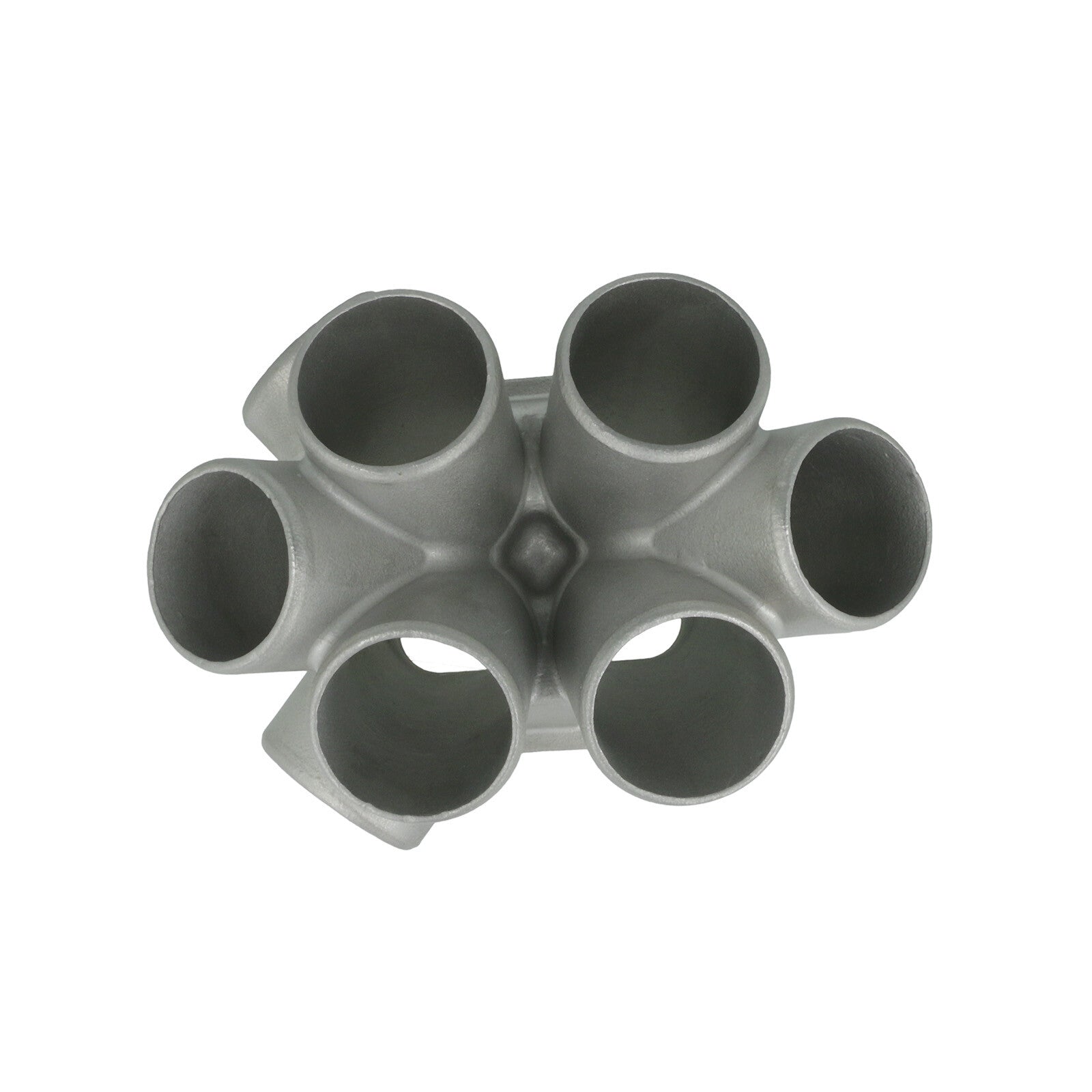

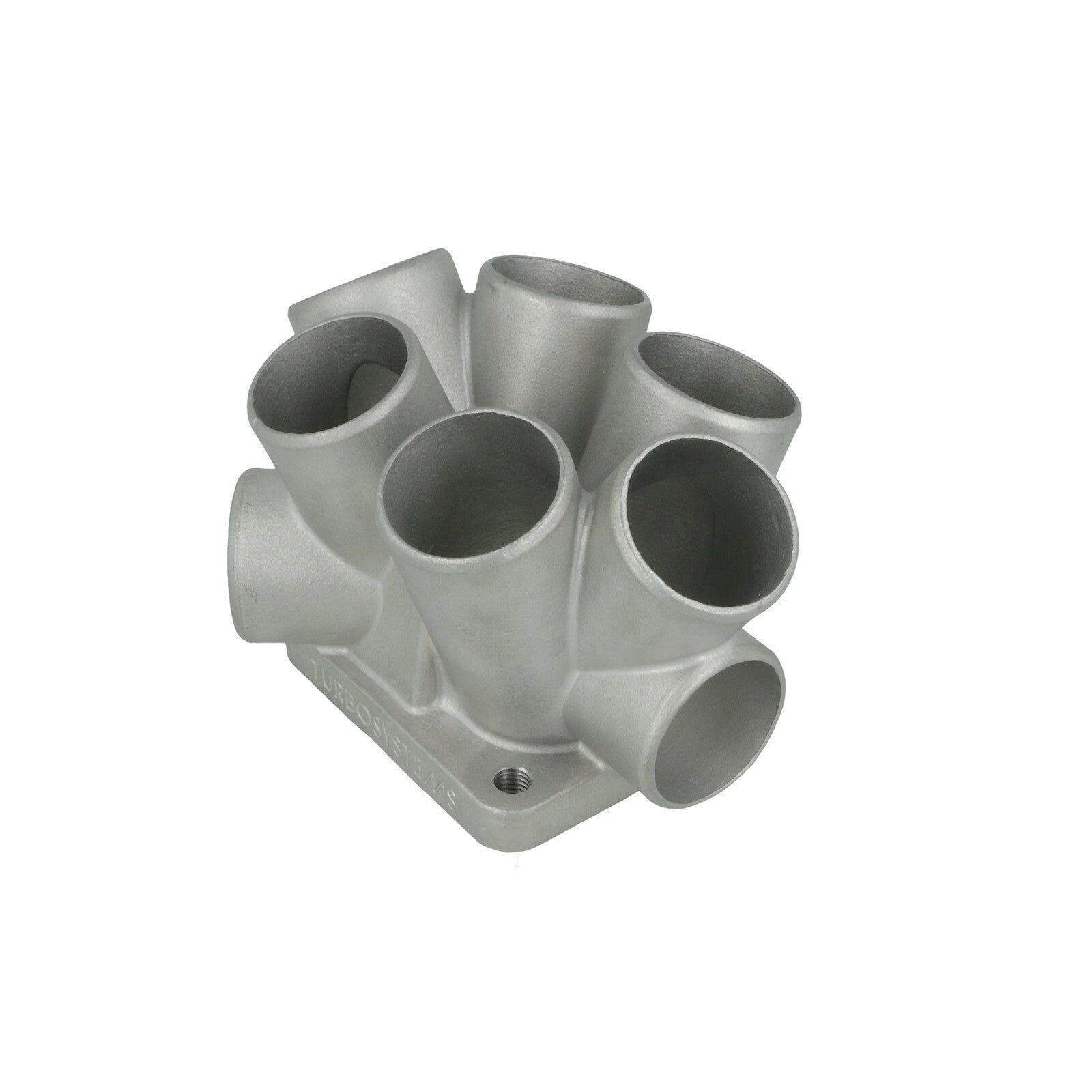

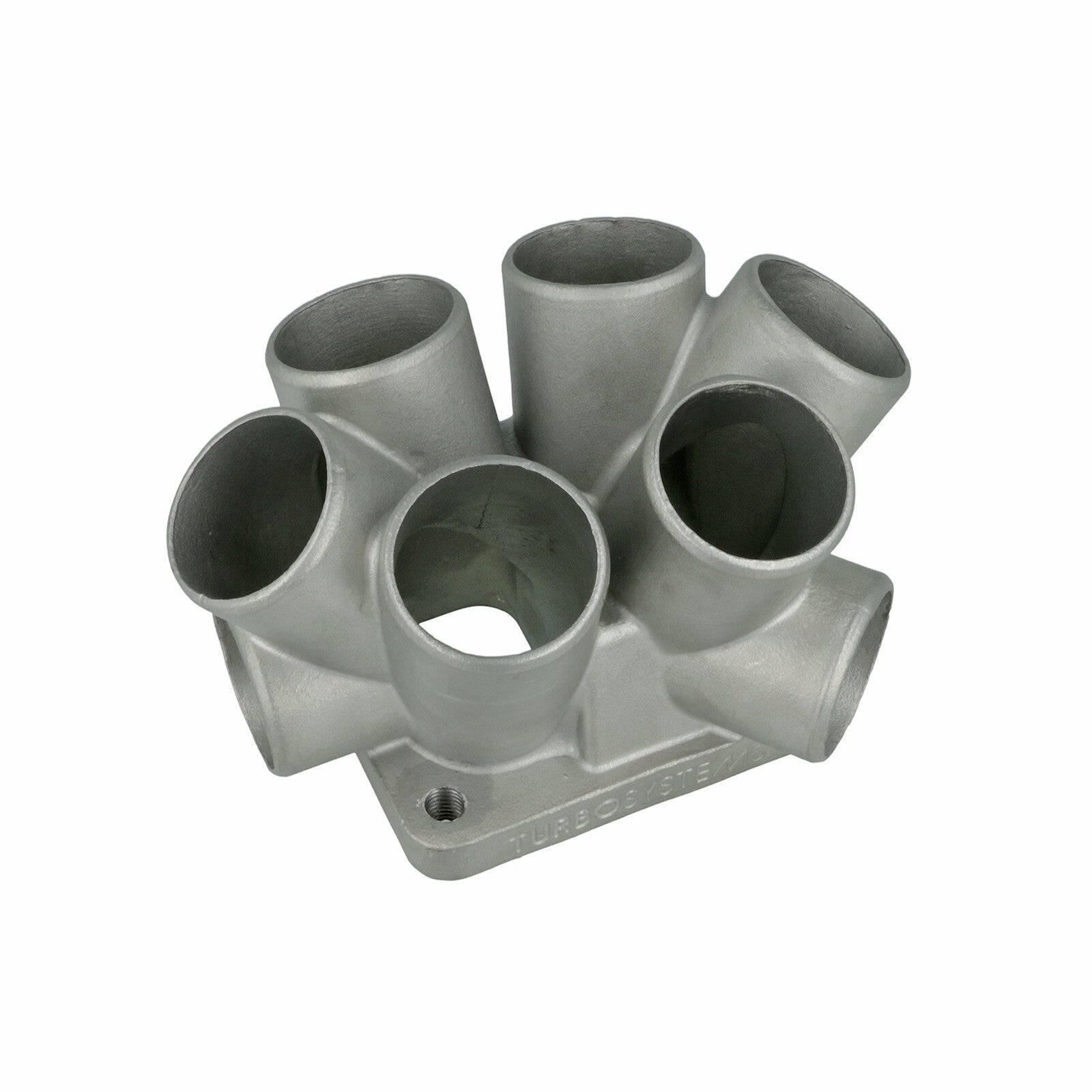

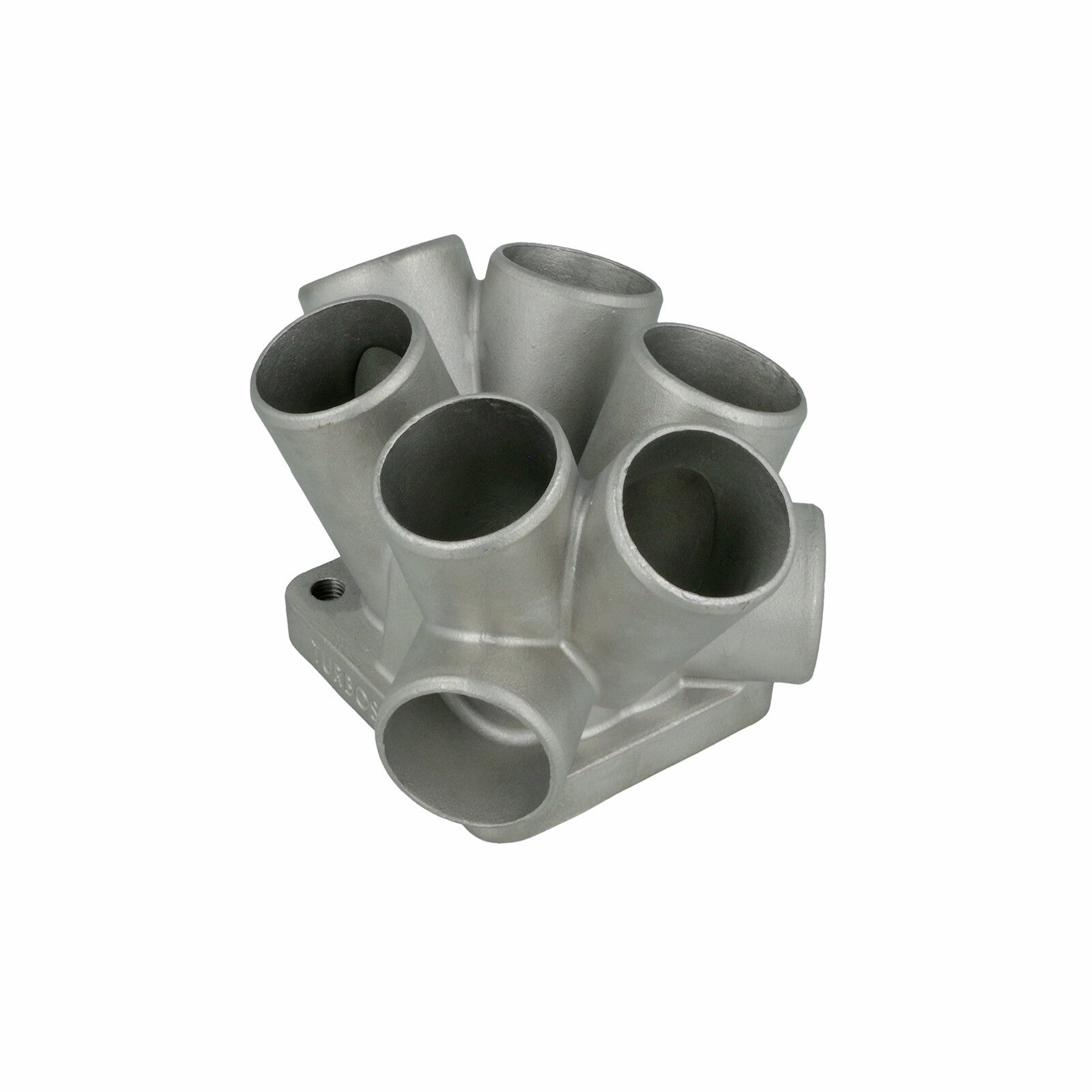

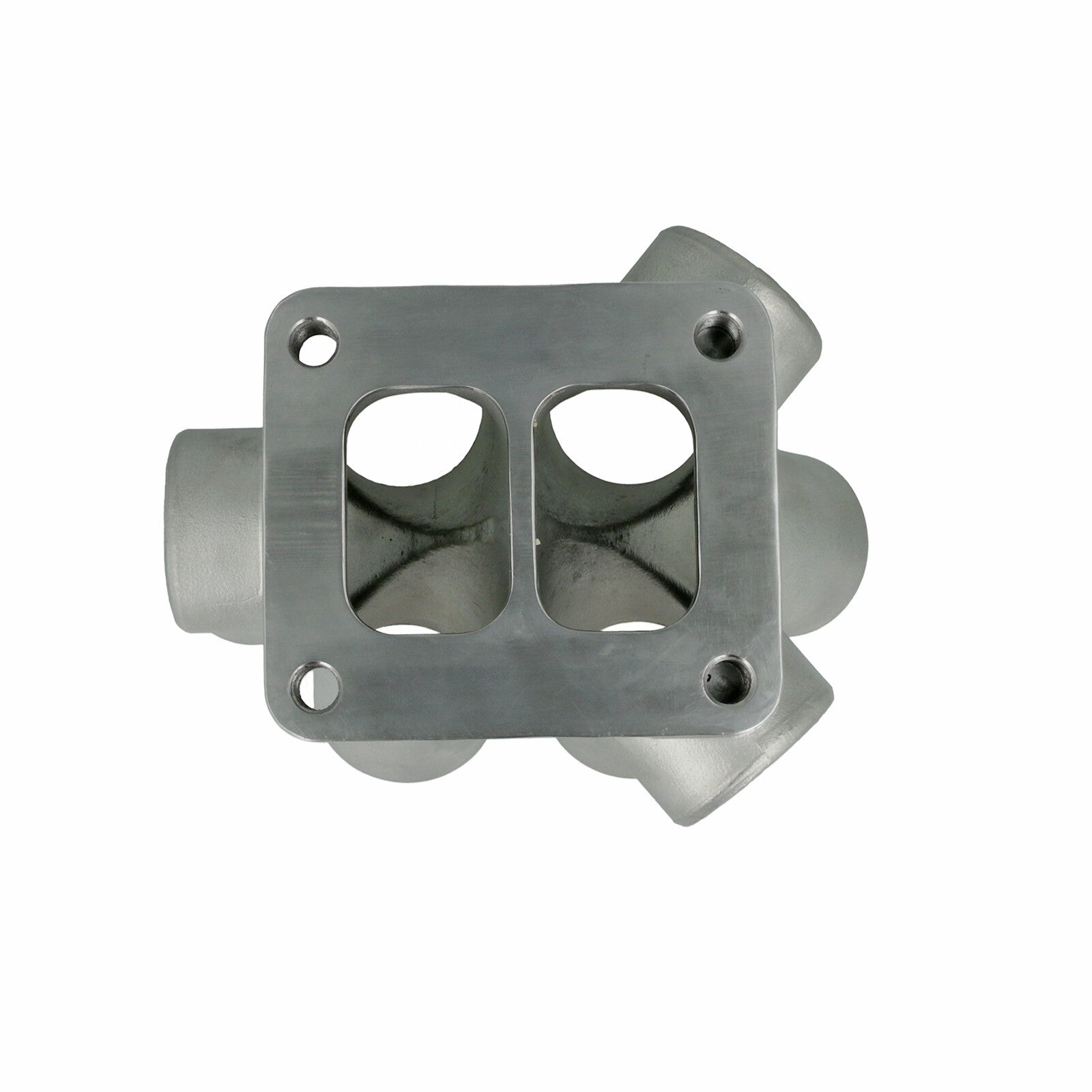

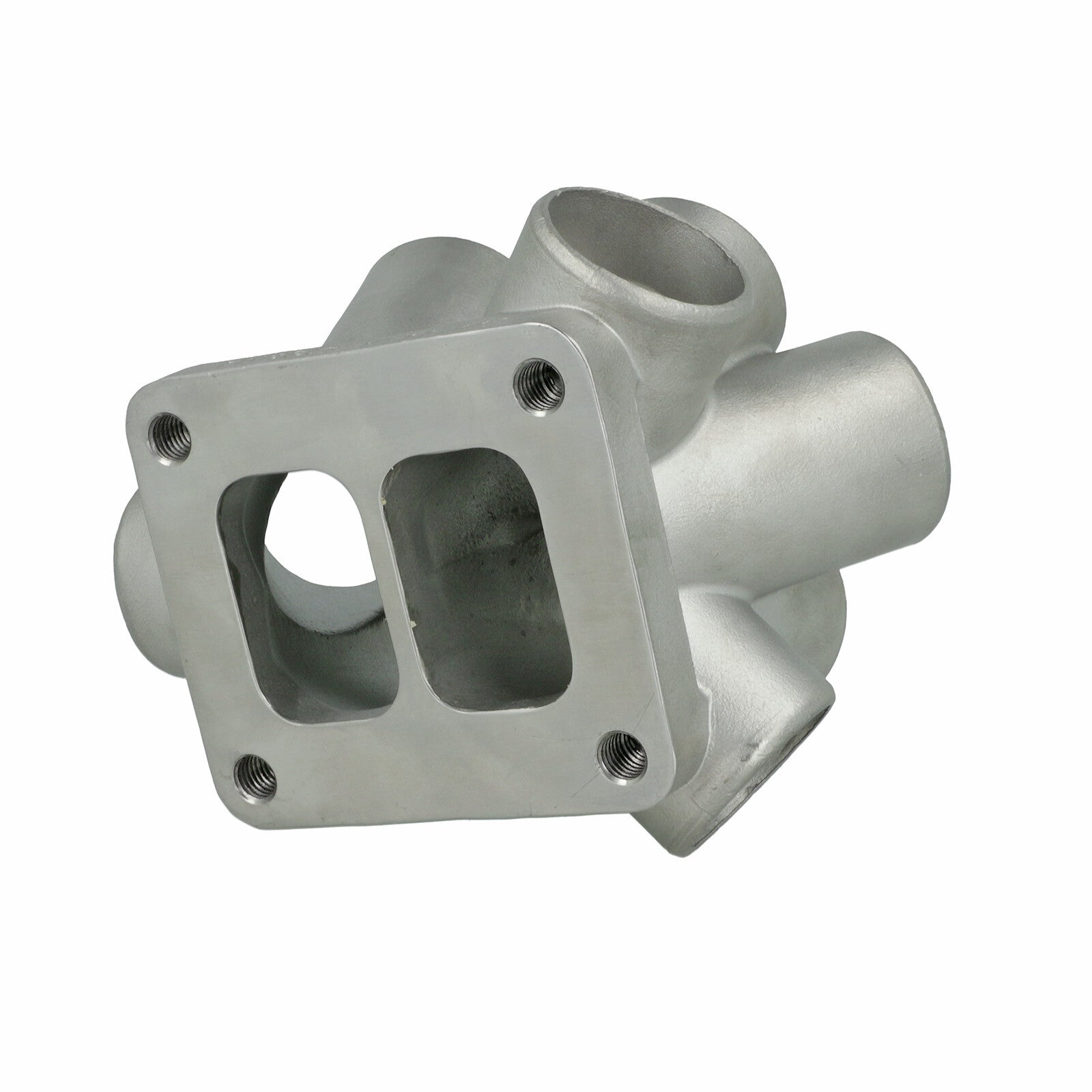

6-Cylinder collector T4 Twinscroll with 3x Wastegate outlet

Stainless steel precision casting manifold collector

Turbo collector cast from heat-resistant stainless steel

Note: There are up to 3 wastegate connection options! These are not pre-drilled! See pictures. This means you can use this collector for T4 Twinscroll with internal wastegate (actuator) or for external wastegates.Now available at TurboZentrum! Stainless steel heat resistent precision cast 6-cylinder turbo collector with T4 Twinscroll flange and up to three wastegate connections. Perfect for turbo manifolds to achieve maximum performance!

This turbo collector offers unbeatable advantages:

• For manifold builders: The manifold collector is always exactly the same. ensuring 100% accurate repeatability in production with a template. This was not always possible with welded collectors due to tolerances and distortion during welding.
• For maximum performance: Since the turbo collector is made from stainless steel precision casting. there are no swirling edges. chamfers. or steps that can negatively affect the flow behavior.
• For long durability: These stainless steel collectors cannot crack due to their one-piece construction. Thus. long durability is ensured even under stresses from heavy turbochargers. downpipes. and exhaust systems.

Suitable For:
6-cylinder engines and turbochargers with dual-entry (twinscroll) T4 flange turbine housings such as:
BorgWarner EFR T4 with internal wastegate or external wastegate
Airwerks S200SX / SX-E / SX-R. S300SX / SX-E / SX-R. S400SX / SX-E
Garrett GT / GTX / GTX GEN2
Precision Turbo GEN 1. GEN 2. NEXT GEN

Inner Diameter Inlet: n/a
Length of Merge: n/a
Inner Diameter of Collector Pipe Connections: 39mm
Outer Diameter of Collector Pipe Connections: 45mm
Collector Length: n/a
Outer Diameter of Collector: n/a
