Description

Note: You may also wish to purchase the J-Pipe together with this intercooler kit.

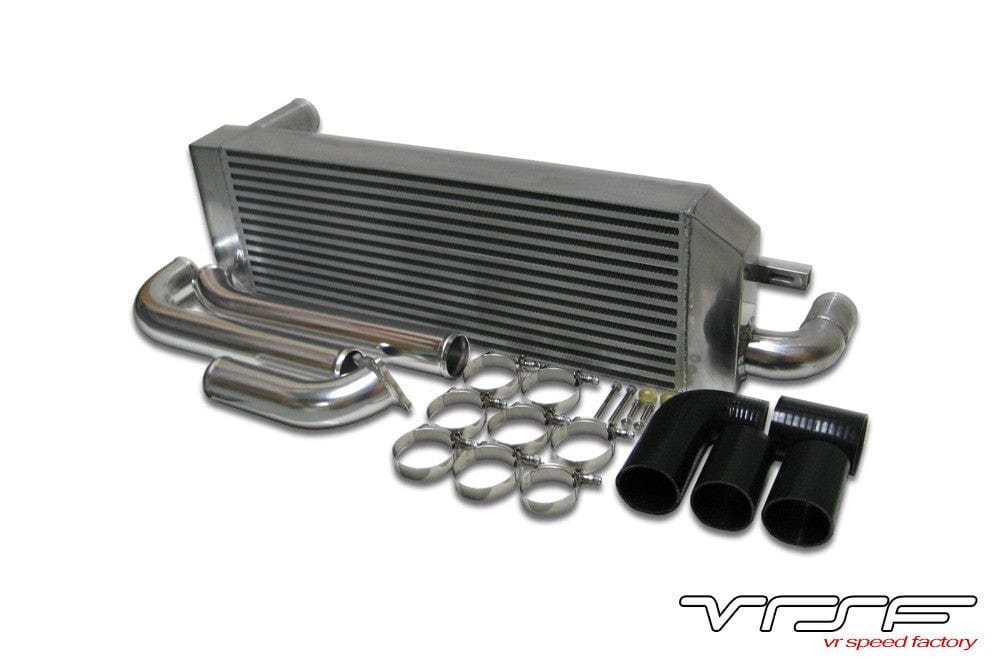

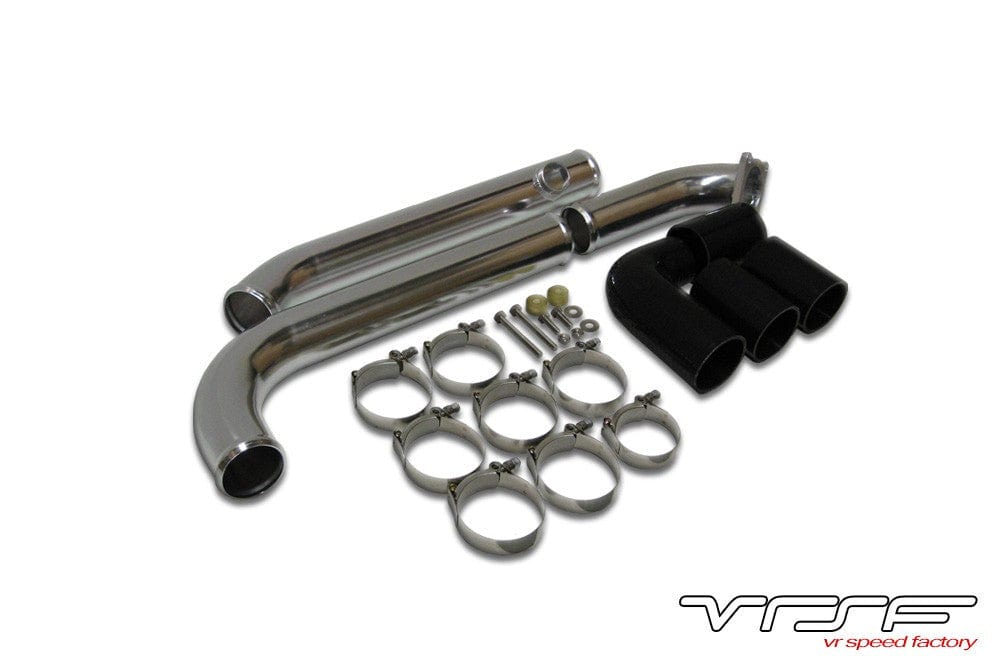

Designed with 2.5" mandrel bent polished aluminium piping and utilising 3 ply fibre reinforced silicone couplers along with stainless steel t-bolt clamps, this intercooler kit is hands down one of the best value buck modifications for your 2G DSM. This kit will cool virtually anything you can throw at it and the 3.5" core is rated at 1150 CFMs with very little pressure drop. The intercooler piping utilises the shortest routing possible and comes flanged for a 1g DSM blow off valve and will also fit a Greddy Type-S or Type-RS blow off valve.

This kit includes everything you need to upgrade from your factory side mount intercooler or current aftermarket front mount intercooler kit (included items listed below). We designed this to be a hassle free complete bolt on with only some slight modification to the vehicles radiator support to allow clearance for the upper intercooler pipe.

The VRSF 2G FMIC was designed for any down facing turbo (50 Trim, FP Green, FP Red, Garret GT Series, ect..) but will fit any Mitsubishi (14b, 16g, 18g, 20g) with the use of a j-pipe. Garrett turbos such as the T-25 or T-28 can also fit with minor modification (u-pipe or cutting the elbow and re-welding/coupling to face driver side).

Features

• Intercooler Core: Bar & Plate
• Intercooler Core Dimensions: 28.5"x10"x3.5"
• Piping Material: Polished Mandrel Bent Aluminium
• Piping Size: 2.5"
• Couplers & Clamps: Black 3 Layer Tiber Reinforced Silicone Hoses & Stainless Steel T-Bolt Clamps

Dyno Graph (Click to enlarge)

Dyno comparison of the VRSF 2G FMIC Kit vs the Hahn Racecraft FMIC Kit. Please note that the only changes made were the FMIC kits. No tuning or boost adjustments were made. That's a 28whp & 30wtq gain!

Compatibility

1995 - 1999 Mitsubishi Eclipse Turbo & Eagle Talon Turbo

Warranty

VRSF Lifetime Warranty (Non-Transferable)

Manufactured by

VRSF

Part Number

2GDSMFMIC
