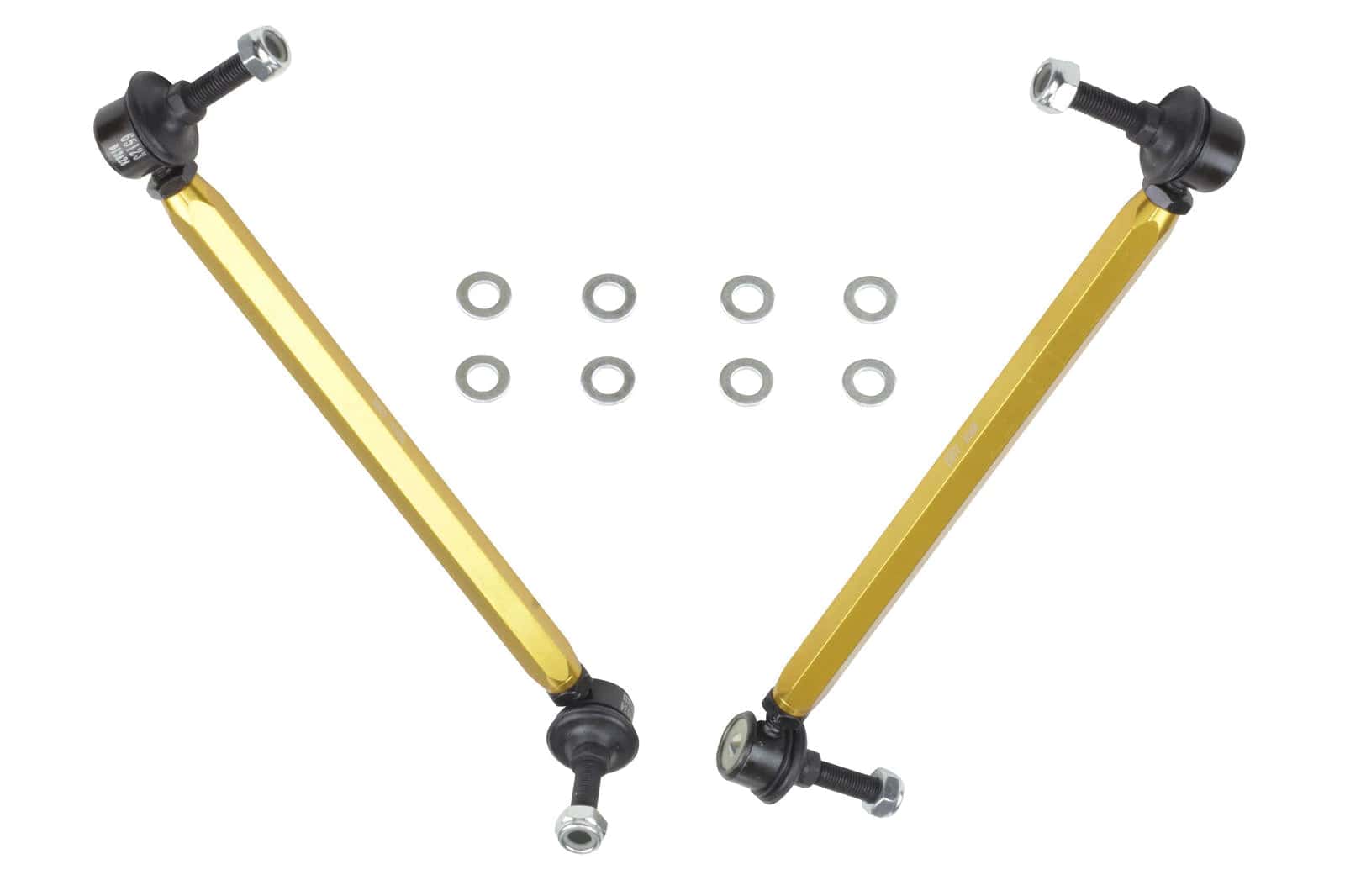

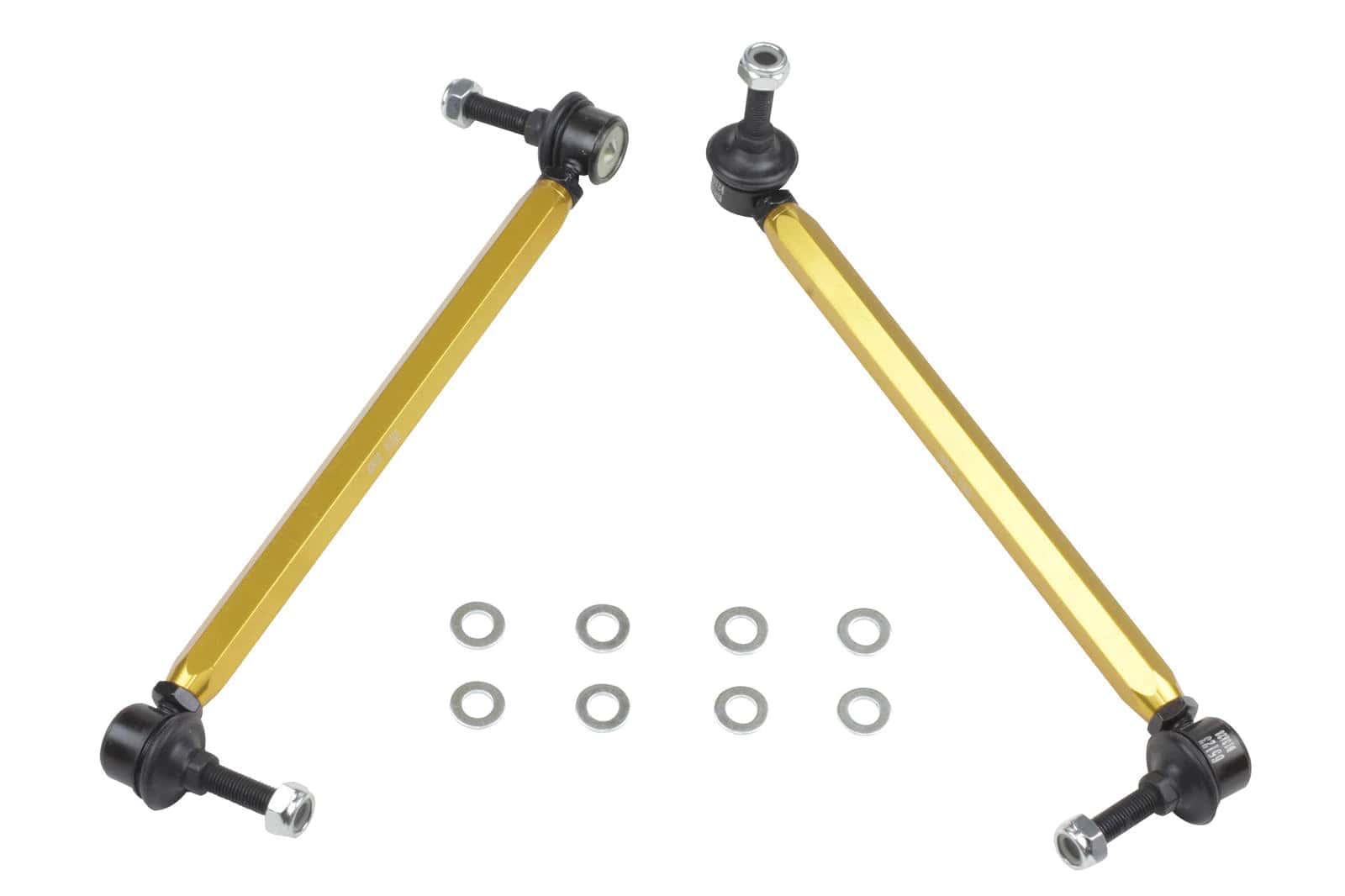

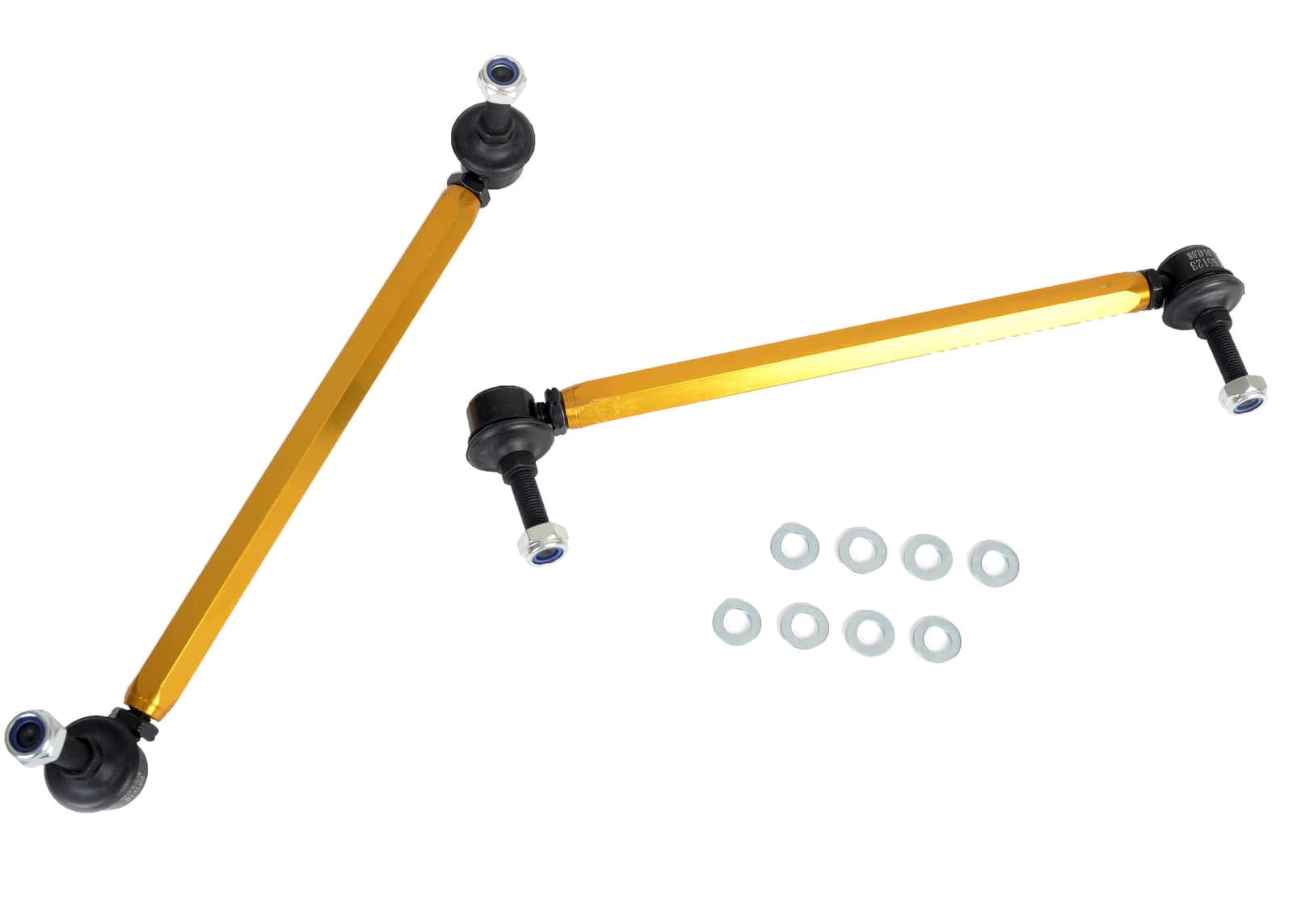

Adjustable Extra Heavy Duty Anti-Roll Bar Link Kit.

Not many enthusiasts are aware that OE and more importantly aftermarket Anti-Roll bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable Anti-Roll bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating Anti-Roll bar preload on installation but most importantly ensuring the maximum output of the Anti-Roll bar for improved grip and better handling.

Performance

Whiteline adjustable Anti-Roll Bar links are designed to increase Anti-Roll Bar effectiveness and improve overall performance. By eliminating flex and compliance associated with original equipment, these high strength links provide increased rigidity and responsiveness which can be felt especially during lane changes and initial turn in.

Construction

Whiteline adjustable Anti-Roll Bar links are manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability. The light weight alloy bodies are anodized in Whiteline Gold colour providing a long-lasting protective barrier to corrosion and wear.

Adjustable

Eliminate Anti-Roll Bar pre-load or fine tune to your liking, Whiteline Anti-Roll Bar Links allow for on-car length adjustment of up to 25mm centre to centre. Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.

Lubrication Guide

In the majority of applications the Whiteline bushings act as a flexible bearing and must be greased at the time of assembly.To gain optimum performance from Whiteline products take the following precautions when installing

Ensure all suspension parts are free from rust, scale, paint and previous rubber deposits.

Please use these hints along with any instructions provided when fitting Whiteline products. Vehicle manufacturers manual should be used to ensure Whiteline warranty compliance.

Shackle and mounting pins, control arm and spring eyes and shoulders must show no major signs of pitting or damage - any damaged components must be replaced or repaired to vehicle manufacturer’s tolerances.

Grease has been supplied in the kits where required and must be used to optimise bush performance and durability. Grease has been formulated from a reinforced No. 2 lithium complex base and selected additives with molybdenum disulphide for mechanical stability, extreme pressure qualities for extended life and a high melting or drop point be applied to the bores and outer flanges of all bushes and components - do not grease the outside surfaces of bushes and components.

Please Note:

The major noise producing factor in polyurethane is incorrect fitment and uncleaned mating surfaces.

Diagram

BMW

• E8X 1 Series BMW non M (E82, E88, 128i, 135i)
• E9X 3 Series BMW non M (E90, E91, E92, 328i, 335i, 335d)
• E89 Z4 Series BMW

KLC154

Manufactured by

Whiteline

Warranty

Backed by a 3 year warranty
