Xtreme-DI BMW B58 Gen 1 HPFP / Fuel Injectors (Inc. M140i, 340i, 540i & X4 M40i)

Xtreme-DI BMW B58 Gen 1 HPFP / Fuel Injectors (Inc. M140i, 340i, 540i & X4 M40i)

£2,926.99 Inc. VAT
£2,956.98 £2,926.99 Inc. VAT
9th Anniversary Badge

Price Match

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth £0.00 GBP.

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

Introducing our HPFP solutions for the BMW B58 Platform (Gen1) and the very first aftermarket injector in the world!

Up to 700whp DI only, no PI needed.

Before buying please know that tuning changes are required for these products.
We are currently working on MHD and BM3 support for our injectors. ECUtek or WinOLS works fine.

If you would like information on becoming a dealer or about this product please click the button below!



Please Note:

We highly recommend to replace all 6 injectors at the same time, after installation, you will also need to code them, this can be done at your local BMW specialist.



Specifications

  • XDI-HPFP35:
    • up to 200Bar
    • 36% capacity over stock
  • XDI-EVO:
    • 250bar
    • 36% capacity over stock
    • 12% higher VE/Flow than 35 pump or competitor stage1 (at 200bar)
  • XDI-HPFP60:
    • built to order, price on request
    • 260bar, 3800psi
    • 63% capacity over stock
  • XDI-Injectors:
    • 175% flow (That is 75% over stock B58 Injector)
      • Stock-like idle characteristics
    • Matched in sets within a ±0.5% spread
    • Rock solid at 250bar, perfectly linear.
    • 100% drop in fitment, no adapters or pigtails needed
    • Tuning changes are required.
      • EcuTek full support
      • MHD/BM3 Coming Soon
      • MG Flasher Coming Soon
    • Every XDI injector set gets tested and matched at three different operating points and comes with full documentation:
      • 1) 0.8ms/20bar for idle stability
      • 2) 10ms/100bar for static flow (qstat) reference
      • 3) 6ms/200bar for wot performance and stability



Mechanical Data

Maximum Rail Pressure

  • 200bar / 2900psi (HPFP35)
  • 250bar / 3600psi (EVO)
  • 260bar / 3800psi (HPFP60)
  • 250Bar / 3600psi (Injectors)



Geometric Volume:

  • OEM (Bosch HDP5) =  .973cc/rev
  • HPFP35/EVO = 1.32cc/rev > +36% Capacity
  • HPFP60 = 1.59cc/rev > +63% Capacity



Housing material: stainless steel, hard coated Aluminum

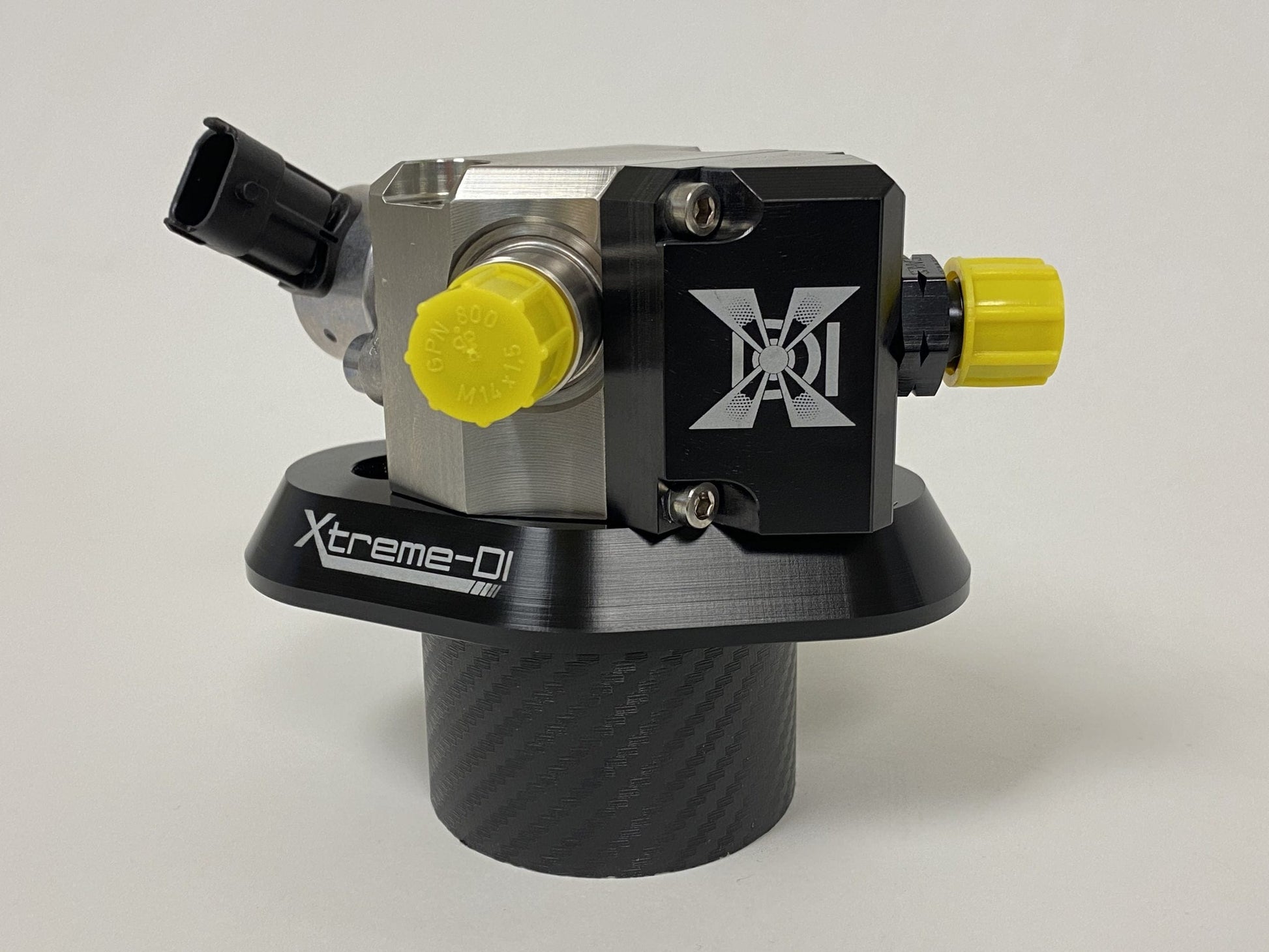

  • Xtreme-DI HPFP (35, EVO or 60)

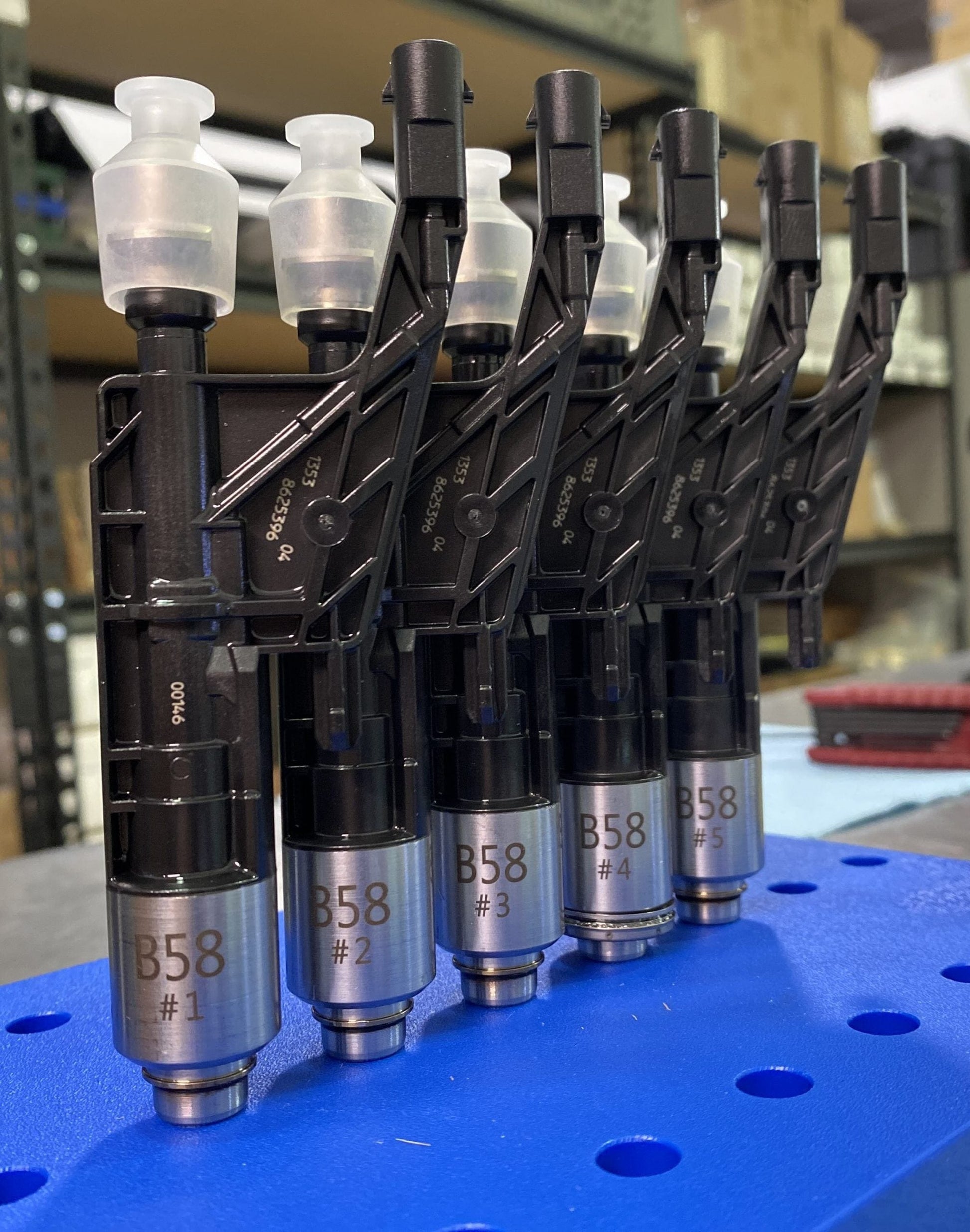

  • Xtreme-DI +75% Fuel Injectors, 6 units



      BMW

      • BMW 1 Series F20/F21 LCI   (05/2014 — 06/2019)
        • M140i, M140iX
      • BMW 2 Series F22/23   (06/2014 — 06/2017)
        • M240i, M240iX
      • BMW 2 Series F22/23 LCI   (09/2016 — 12/2019)
        • M240i, M240iX
        • BMW 3 Series F30 LCI   (09/2014 — 10/2018)
          • 340i, 340iX
        • BMW 3 Series F31 LCI   (09/2014 — 06/2019)
          • 340i, 340iX
        • BMW 3 Series F34 GT LCI   (09/2015 — 12/2019)
          • 340i, 340iX
        • BMW 4 Series F32   (04/2015 — 02/2017)
          • 440i, 440iX
        • BMW 4 Series F32 LCI   (05/2016 — 12/2019)
          • 440i, 440iX
        • BMW 4 Series F33/ F33 LCI   (03/2015 — 02/2017)
          • 440i, 440iX
        • BMW 4 Series F33 LCI   (05/2016 — 12/2019)
          • 440i, 440iX
        • BMW 4 Series F36 Gran Coupé   (05/2014 — 03/2017)
          • 440i, 440iX
        • BMW 4 Series F36 Gran Coupé LCI   (05/2016 — 12/2019)
          •  440i, 440iX
        • BMW 5 Series G30   (10/2015 — 12/2019)
          • 540i, 540iX
        • BMW 5 Series G31   (03/2016 — 06/2019)
          • 540iX
        • BMW 6 Series G32 GT   (09/2016 — 06/2019)
          • 640i, 640iX
        • BMW 7 Series G12   (10/2014 — 02/2019)
          • 740i, 740iX, 740Li, 740LiX
        • BMW X3 Series X3 G01   (10/2016 — 10/2019)
          • X3 M40iX
        • BMW X4 Series X4 G02   (03/2017 — 07/2019)
          • X4 M40iX


        Does NOT fit B58TU



        To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



        Manufactured by

        Xtreme-DI
