In the vehicles M135i and M235i with a standard brake system, the BMW lightweight sports brake discs on the front and rear axles can be installed without any additional measures. For 335i and 335d as well as 435i and 435d vehicles with standard brakes, the BMW lightweight sports brake discs on the front axle can be installed without additional measures. On vehicles with a 17 "or 18" BMW M sports brake (optional extra from the band), the perforated and grooved BMW lightweight sports brake discs can be installed on the front and rear axles without additional measures.

Homologation: An entry in the vehicle documents is not necessary as the brake system does not change in the approval-relevant data!

The vehicle must be carefully retracted for the first 200 km after installing the brake discs! After the break-in period, the full effectiveness of the brake system is given. Due to the constructive peculiarity of the perforated and grooved BMW lightweight sports brake discs, it can lead to functional noise when braking, but have no effect on the stability of the brake discs.
It is also recommended to install new brake pads when installing the BMW lightweight sports brake discs. The BMW lightweight sports brake disc, like the corresponding series brake disc, is only approved in conjunction with at least 17 "or 18" aluminum wheels (also in winter)!

Note: For this product, customers will usually need to purchase two, one for each side. These rear discs are usually purchased with the Genuine BMW F20 F21 F30 F31 Brake Retrofit Kit (M135i, 320i, 335i & 435i).

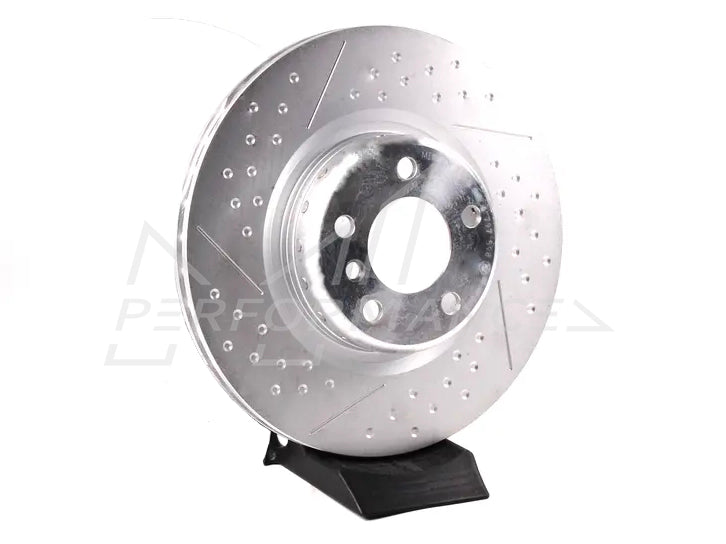

Picture is for illustration only, this listing is for one rear brake disc only.

• Reduction of the emergence of a water film between brake pad and brake disc by countersinks and grooves.
• Low weight, therefore low unsprung masses.
• Attractive appearance.
• Underlining the sportiness, especially in light-alloy wheels with an open wheel design.
• The lightweight sport brake discs are suitable for the individualisation of the vehicle, since it is not configurable ex works as special equipment.

Specifications

Size: 345 x 24mm

1 x Rear Disc

Please select quantity two if you would like to replace both sides.

BMW F-Chassis 3 Series with M Sport Brake (SA2NH) including the following

• BMW 3 Series F30   (02/2011 — 07/2015)
• 328i, 328i xDrive, 335i, 335i xDrive, 335i Active Hybrid, 330d, 330d xDrive, 335d xDrive
• BMW 3 Series F30 LCI   (09/2014 — 10/2018)
• 328i, 328i xDrive, 335i, 335i xDrive, 335i Active Hybrid, 330d, 330d xDrive, 335d xDrive
• BMW 3 Series F31   (07/2011 — 07/2015)
• 328i, 328i xDrive, 335i, 335i xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW 3 Series F31 LCI   (09/2014 — 06/2019)
• 328i, 328i xDrive, 335i, 335i xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW 3 Series F34 GT   (07/2012 — 06/2016)
• 328i, 328i xDrive, 335i, 335i xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW 3 Series F34 GT LCI   (09/2015 — 12/2019)
• 328i, 328i xDrive, 335i, 335i xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW 4 Series F32   (11/2012 — 02/2017)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive
• BMW 4 Series F32 LCI   (05/2016 — 12/2019)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive
• BMW 4 Series F33   (03/2013 — 02/2017)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive
• BMW 4 Series F33 LCI   (05/2016 — 12/2019)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive
• BMW 4 Series F36 Gran Coupé   (07/2013 — 03/2017)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive
• BMW 4 Series F36 Gran Coupé LCI   (05/2016 — 12/2019)
• 428i, 428i xDrive, 435i, 435i xDrive, 430d, 430d xDrive, 435d xDrive

34206797600

Manufactured by

Genuine BMW

Warranty

Two years manufacturer warranty for UK customers and one year manufacturer warranty for international customers if VIN is provided during check out on compatible vehicles.
