TTE BMW Toyota B58 F20 F30 F32 G30 TTE580 Hybrid Turbocharger Upgrade (Inc. M140i, M240i, 340i ,440i, 540i & A90 Supra)

The Turbo Engineers(TTE)

  • £4,726.39
    exc. VAT £3,938.66
    £3,938.66


Description

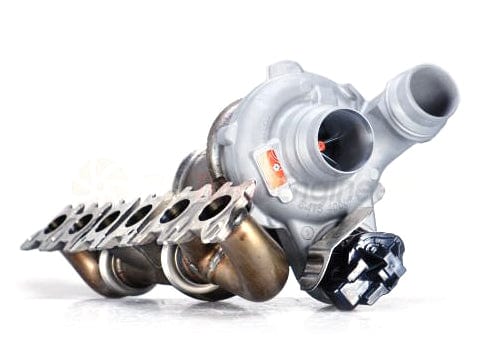

TTE580 is our very latest hybrid performance upgrade turbocharger based on the Original turbocharger for the BMW B58 inline-six-cylinder turbocharged engine. Superfast spool and response with extra power. We feel this is the best performing 550+hp hybrid.



Engineered & Enhanced

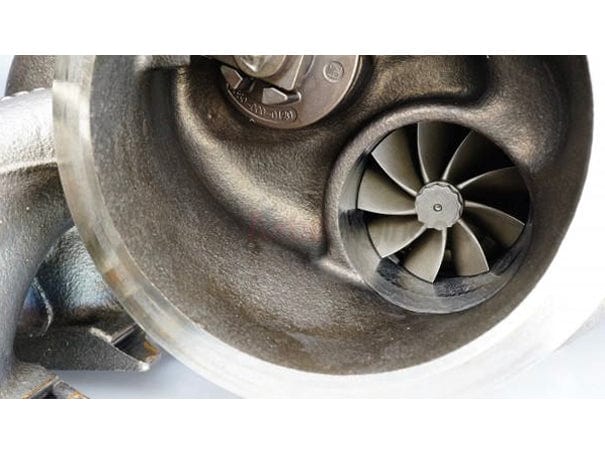

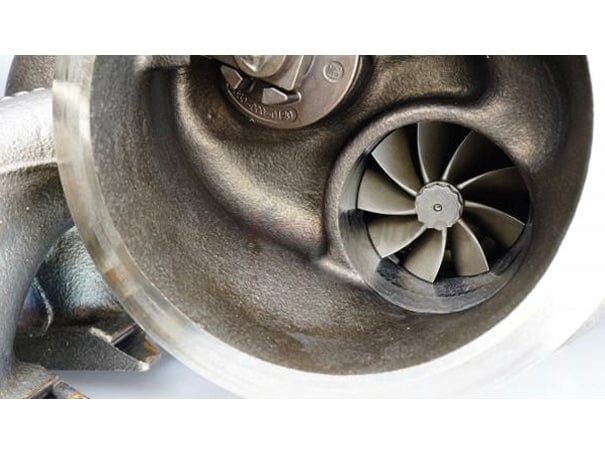

To construct a TTE580 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We change the Original exhaust turbine for a larger 9 blade high-flow item to lower EGT and raise the power potential but maintain a great boost response profile.



Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.



Features

  • Original Genuine turbocharger as the base part
  • Original Genuine actuator
  • Original Genuine diverter valve

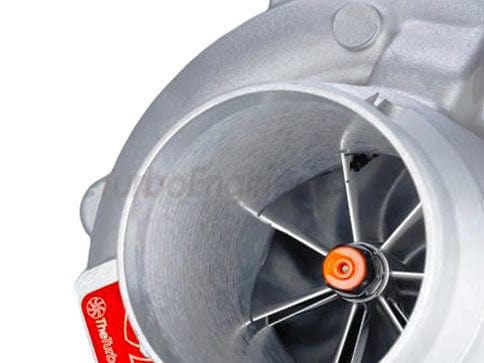

  • TTE Billet Milled compressor 7+7 Blade with Extended Tip
  • TTE High-Flow 9 blade turbine
  • Plug & Play installation
  • 580HP capable
  • Proven TheTurboEngineers quality
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Made in Germany



Upgrade your Existing Turbo

To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.



TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.





Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



Compatibility (Click to Expand)

BMW models equipped with the B58 Engines

  • F20 LCI   (05/2014 — 06/2019)
    • M140i & M140ix
  • F21 LCI   (05/2014 — 06/2019)
    • M140i & M140ix
    • F22   (06/2014 — 06/2017)
      • M240i & M240ix
    • F22 LCI   (09/2016 — 12/2019)
      • M240i & M240ix
    • F23   (06/2014 — 06/2017)
      • M240i & M240ix
    • F23 LCI   (09/2016 — 12/2019)
      • M240i & M240ix
      • F30 LCI   (09/2014 — 10/2018)
        • 340i & 340ix
      • F31 LCI   (09/2014 — 06/2019)
        • 340i & 340ix
      • F34 GT LCI   (09/2015 — 12/2019)
        • 340i & 340ix
      • G20   (10/2017 — 12/2019)
        • M340i & M340ix
      • G21   (06/2018 — 12/2019)
        • M340ix
      • F32   (04/2015 — 02/2017)
        • 440i & 440ix
      • F32 LCI   (05/2016 — 12/2019)
        • 440i & 440ix
      • F33   (03/2015 — 02/2017)
        • 440i & 440ix
      • F33 LCI   (05/2016 — 12/2019)
        • 440i & 440ix
      • F36 Gran Coupé   (05/2014 — 03/2017)
        • 440i & 440ix
      • F36 Gran Coupé LCI   (05/2016 — 12/2019)
        • 440i & 440ix
      • G22 (2021+)
        • M440ix
      • G30   (10/2015 — 12/2019)
        • 540i & 540ix
      • G31   (03/2016 — 12/2019)
        • 540ix
      • G32 GT   (09/2016 — 12/2019)
        • 640i & 640ix
      • G11   (10/2014 — 02/2019)
        • 740i
      • G11 LCI   (01/2018 — 12/2019)
        • 740i
      • G12   (10/2014 — 02/2019)
        • 740i, 740ix, 740Li & 740Lix
      • G12 LCI   (01/2018 — 12/2019)
        • 740i, 740ix, 740Li, 740Lix
      • G14   (06/2018 — 12/2019)
        • 840i & 840ix
      • G15   (06/2018 — 12/2019)
        • 840i & 840ix
      • G16 Gran Coupé   (05/2018 — 12/2019)
        • 840i & 840ix
      • X3 G01   (10/2016 — 12/2019)
        • X3 M40ix
        • X4 G02   (03/2017 — 12/2019)
          • X4 M40ix
          • X5 G05   (10/2017 — 12/2019)
            • X5 40i, X5 40ix & X5 40ex
          • X6 G06   (06/2018 — 12/2019)
            • X6 40i & X6 40ix
          • X7 G07   (11/2017 — 12/2019)
            • X7 40ix
          • Z4 G29   (10/2017 — 12/2019)
            • Z4 M40i
          • A90 (2019+)
            • Supra GR 6 Cyl



          Delivery

          To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo.

          Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order.



          Warranty

          One year TTE warranty.



          Upgraded by

          TheTurboEngineers (TTE)



          Part Number

          TTE10321 (New)

          TTE10321.1 (Refurbish)
