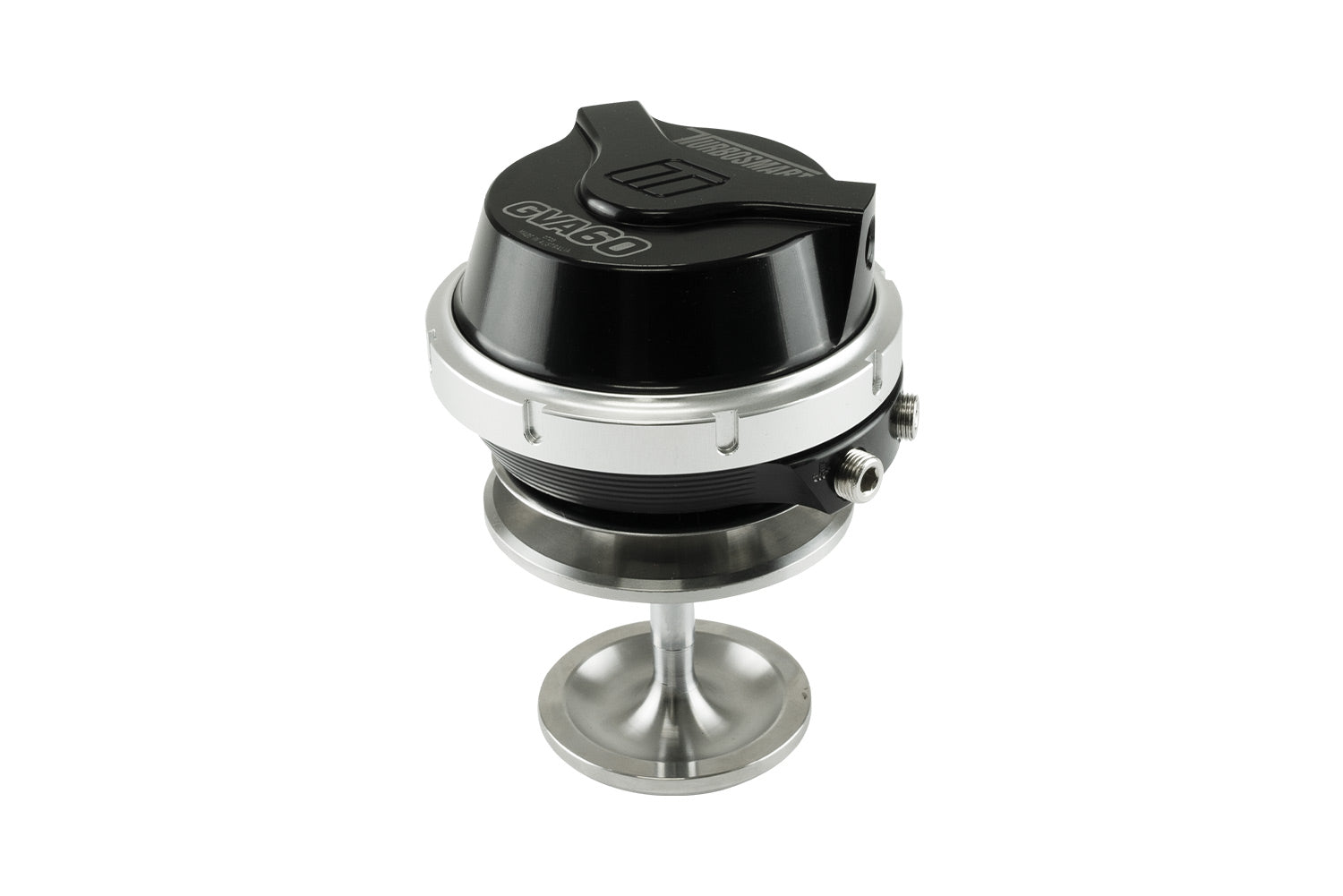

Turbosmart GVA Series is a spring and diaphragm style pneumatic actuator which operates a mechanical valve. The reference air acts upon a diaphragm and opposing spring to actuate the valve, which is supplied as a modular system designed to be used in a host of custom, industrial and automotive applications.

The GVA series actuators include Milspec Diaphragms and can be specified with a range of base springs. The V-band mounting system can be adapted to virtually any application where valve diameter and actuation stroke requirements are within specification.

The Turbosmart GVA Series of Gas Valve Actuators are derived from the proven and multiple award winning GenV External Wastegate Series. These Gas Valve Actuators take the Motorsport and Industry proven performance and reliability of the GenV poppet style external wastegate technology and provide a modular platform where the design restrictions of the Turbosmart range of wastegate bodies are no longer the limitation.

Optional Upgrades
Hall Effect Positions Sensor Cap
HP (High Pressure) cap with Springs up to 50 psi
Inverted Diaphragm system for large reference pressure differentials

• Billet aluminum actuator body

• Aluminum locking collar system

• Ceramic thermal Isolation

• Dual 1/8 NPT Reference Ports

• Nitronic 60 valve guide

• Option Positions Sensor Upgrades

• V-Band mounting system for easy integration

• Hard chrome coated stainless steel valve

• Liquid cooling provision

• 17/7 PH grade spring options (3-26psi)

• GVA Gas Valve Actuator

• V-Band Clamp

• 1/8BPT Reference Fitting Kit

• Turbosmart Decal

Feel free to contact us at info@mlperformance.co.uk should you require any assistance!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TS-0555-1712

Manufactured by

Turbosmart
