Water/Methanol/Alcohol injection commonly referred to as WMI allow you to make tremendous amounts of power on pump gas. The effect is similar to running 100 octane race gas or E85 fuel all the time with the additional cooling benefits allowing for more power than you can make on race gas or E85 alone.

The key to a safe and effective WMI setup is tuning integration. The BMS S63TU F90 BMW M5/M6 WMI kit integrates to the JB4 tuning system allowing for precise mapping based on boost, throttle position, engine speed, intake temperature, advance, gear, and other data elements available to the JB4 through its CANbus system. In addition a pump flow signal is fed back to the JB4 allowing for a safe and smooth progressive boost mapping. If the tank runs empty or flow drops for any reason the JB4 will safely back down performance to avoid detonation. Boost is held low until WMI is properly flowing to avoid tip in knock common with non-integrated WMI setups. In addition WMI can be activated or disabled right from the JB4 Mobile app , will automatically disengage during traction control or safety map situations, and WMI flow data can be displayed via your JB4 Mobile logging device.

The BMS WMI kit includes a high quality Aquatec WMI pump made to our specifications, high speed solenoid with leak-free compression fittings, a WMI filter, and basic wiring and hardware.

Included is a 1 gallon clear tank that can mount with the pump in front of the firewall simplifying the install process. Alternatively, the pump can be attached to the washer fluid reservoir eliminating the need for a separate tank. NOTE no bracket is provided to mount the pump or tank and customers will need to setup this aspect of the installation on their own. For our development, we used zip-ties to attach the pump to the strut brace and connected it to the washer fluid tank. Customers may also choose to mount the 1 gallon tank in the trunk or to not use the 1 gallon tank and explore one of our larger trunk mount tank options such as the 2 gallon integrated tank.

You may also wish to purchase the BMS Audi BMW Upgraded Billet WMI Tank Cap with Safety Check Valve

1 Gallon Kit contains:

WMI Pump
WMI solenoid & filter assembly
JB4 FSB module for control and tuning integration
F90 plug and play nozzle adapters
Two BM7 nozzles
Compression fittings for nozzles, solenoid, tee, & filter

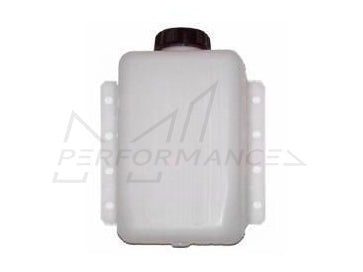

1 gallon tank, black cap, and fittings
15' of WMI fluid line
15' black and red wiring
10 amp fuse
Grounding forks for FSB, pump, and power splice

2 Gallon Kit contains:

WMI Pump
WMI solenoid & filter assembly
JB4 FSB module for control and tuning integration
F90 plug and play nozzle adapters
Two BM7 nozzles
Compression fittings for nozzles, solenoid, tee, & filter
2 gallon tank, black cap, and fittings
15' of WMI fluid line
15' black and red wiring
10 amp fuse
Grounding forks for FSB, pump, and power splice

• 2018-Present BMW F90 M5 and M5 Competition
• 2020+ BMW F92 M8 Coupe and M8 Competition
• 2020+ BMW F93 M8 Gran Coupe

• 2020+ BMW F91 M8 Convertible

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

General directions and discussion thread here: https://www.n54tech.com/forums/showthread.php?t=60228

Manufactured by

Burger Motorsports

Warranty

BMS do no offer warranty on this product

Burger Motorsports F90 BMW M5 WMI nozzles and adapters in place

F90 WMI hose integration with windshield washer reservoir

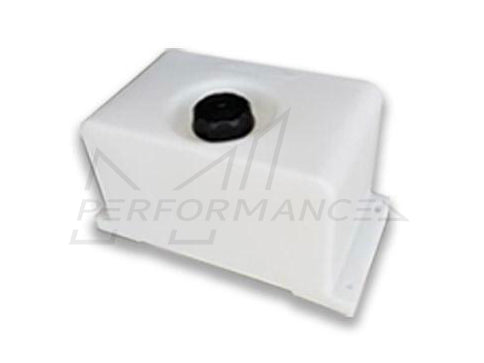

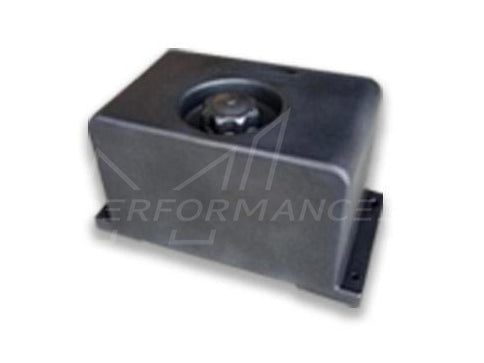

Water Methanol Injection Tank w/ integrated pump mount (2 gallon)
